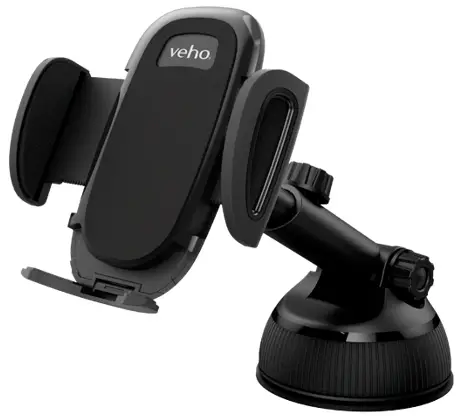

TA9 Universal Smartphone Holder
User Manual

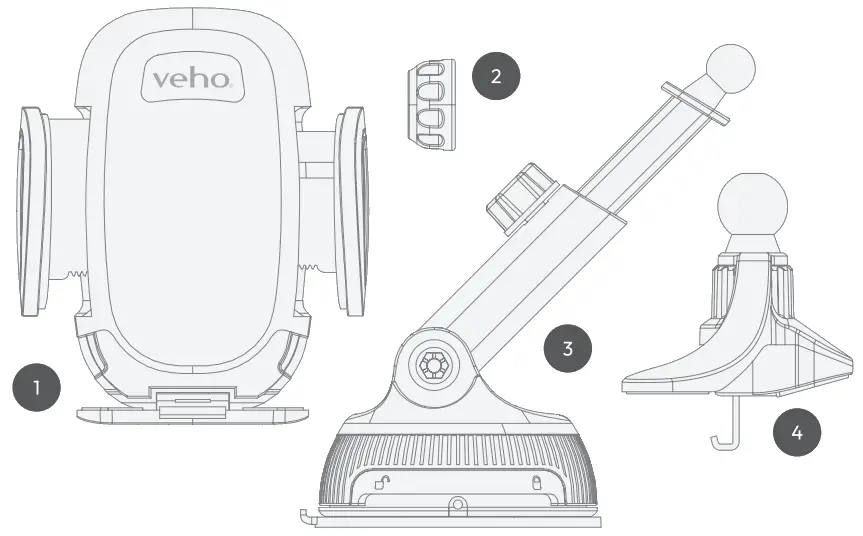

What’s in the box?
Cradle- Mounting ring
- Dashboard confirmation
- Vent grille attachment
 |  |

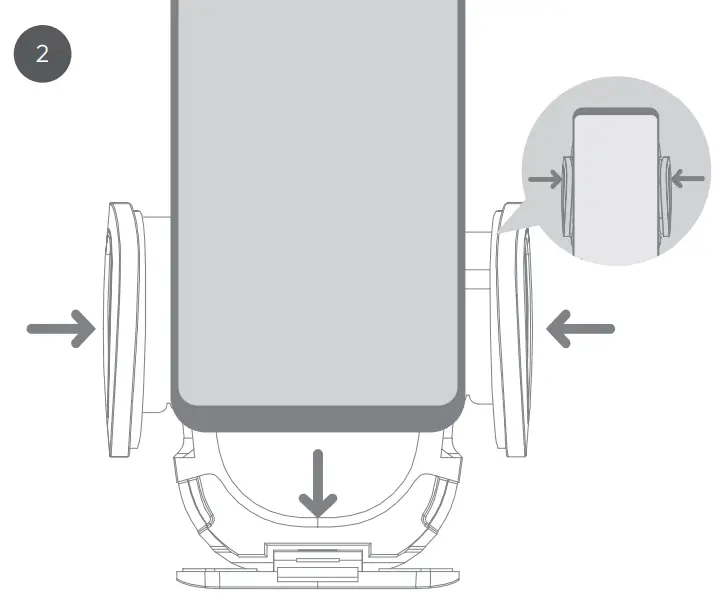

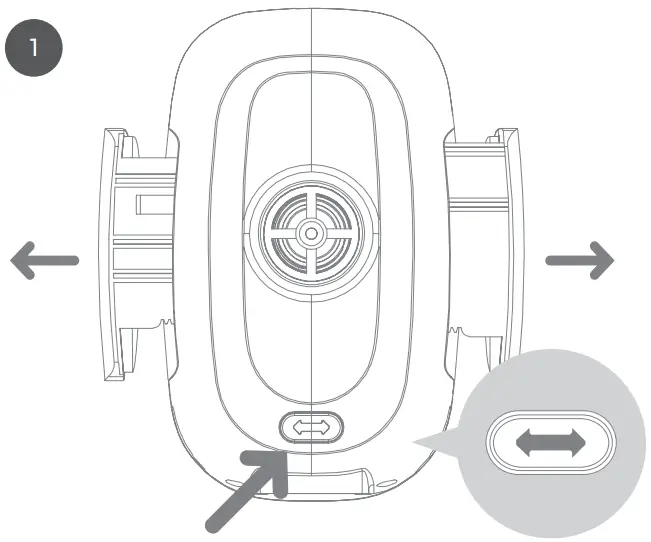

| Extending the cradle Press the ‘Arm Release’ button on the back and the arms open automatically. | Installing your smartphone Place your device in the holder and push arms to close together. Cradle Width 43mm – 93mm. |
 |  |

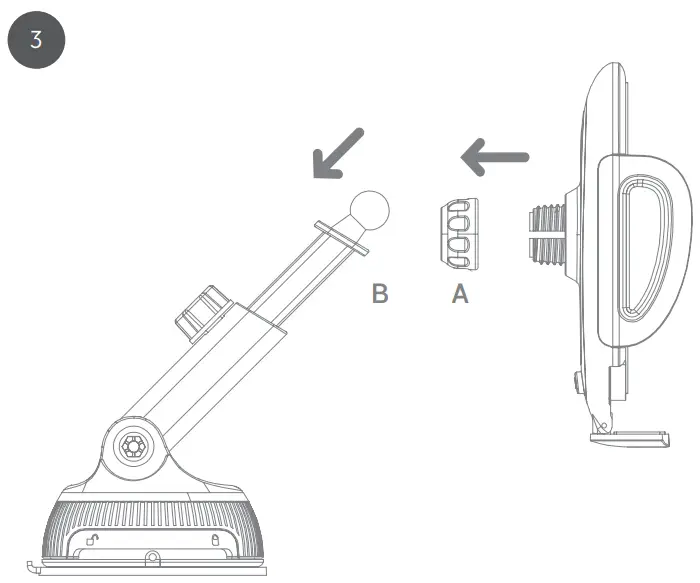

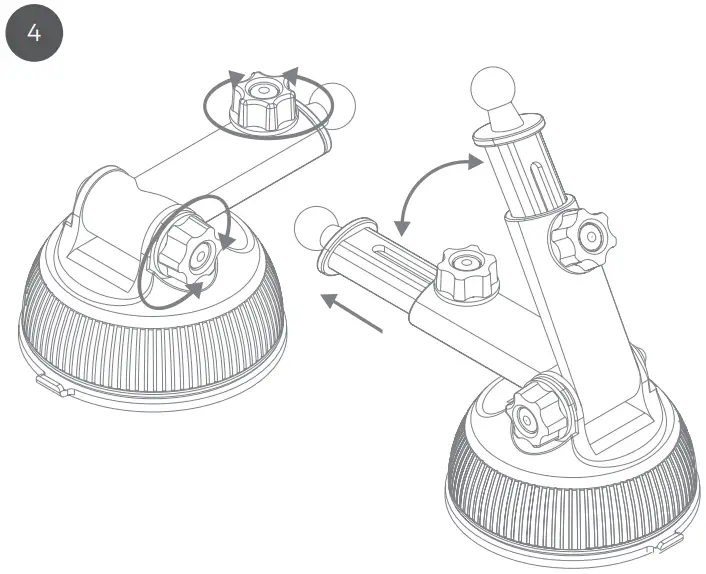

| Mounting on the dashboard Unscrew the mounting ring (A) and place it in the ball joint (B), reattach it to the back of the holder and turn it fixed. | Adjusting the dashboard mount Loosen the screws to adjust the length and angle to adjust the telescopic arm, tighten the screws to secure the position lock. |
 |  |

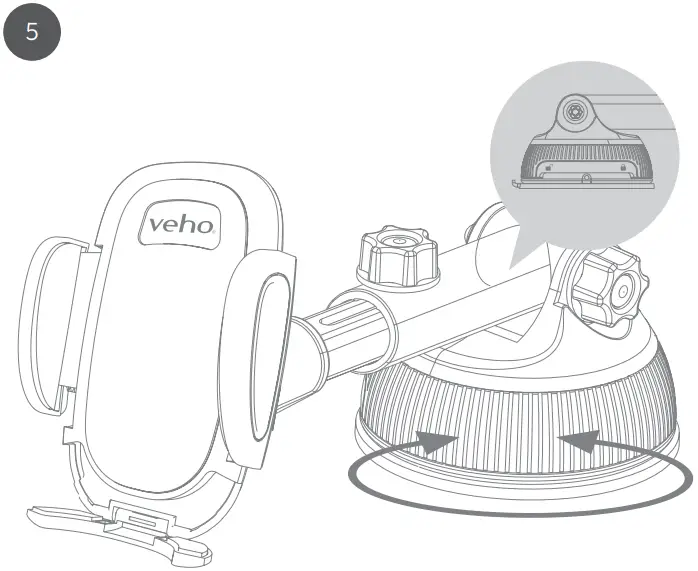

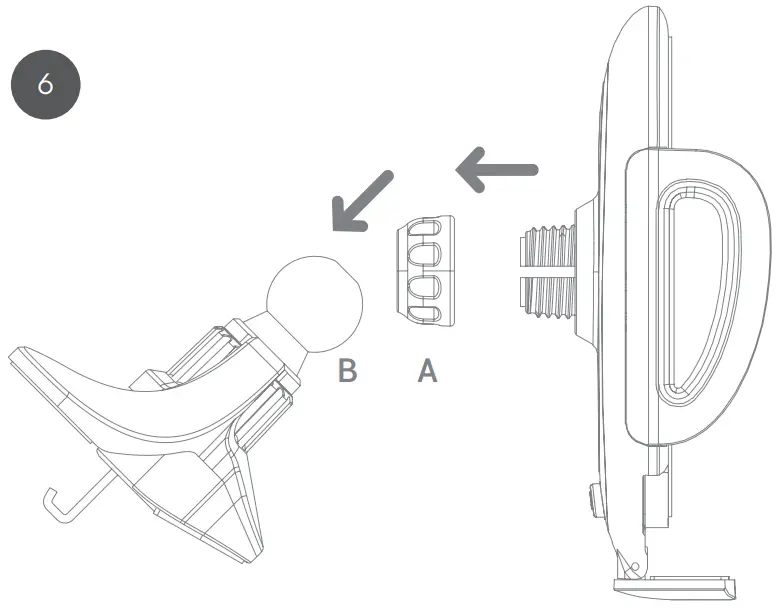

| Installing the dashboard mount Once the mount is placed on your dashboard/windshield, rotate the clamp to the locked icon . | Mounting the breather Unscrew the mounting ring (A) and place it in the ball joint (B), reattach it to the back of the holder and tighten. |
 |  |

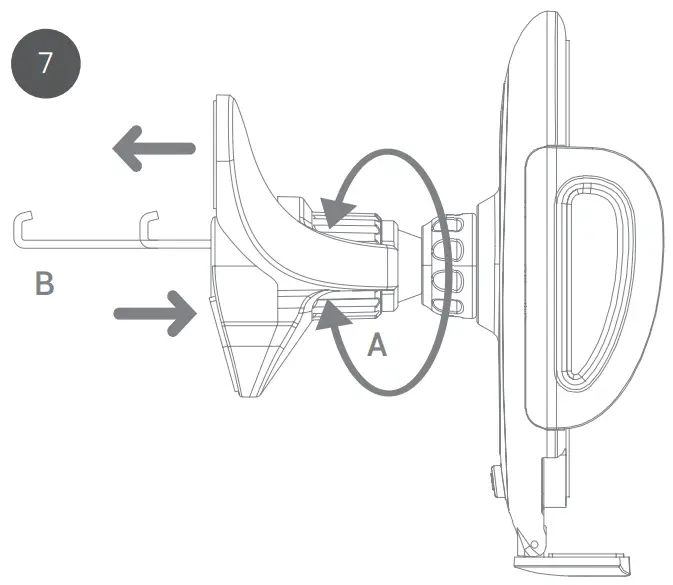

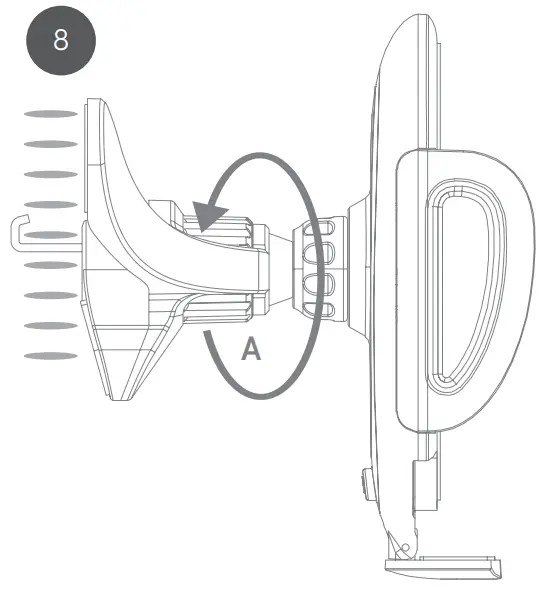

| Controls for mounting the air vent Turn the knob (A) counterclockwise to extend the hook (B), turn clockwise to retract the hook. | Installation of the vent Slide the hook through the vents, twist knob (A) clockwise to tighten. |

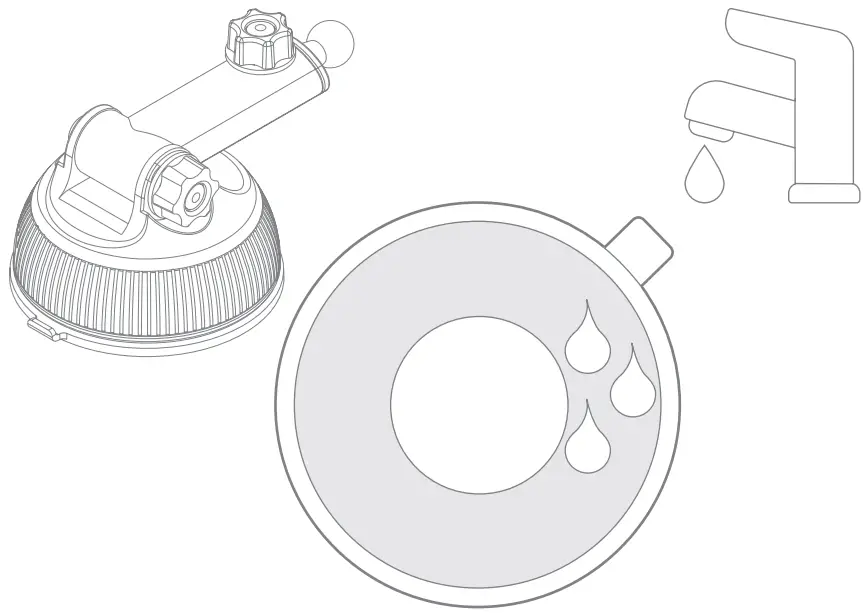

Maintenance
Cleaning
If the dashboard/windshield loses its grip, wash the base of the clamp in clean water and allow to dry. This restores the tacky surface.
Support
For product support, visit our technical support page at: veho-world.com/product-support
EC Declaration of Conformity
Veho UK LTD hereby declares that the radio equipment type (VAA-015-TA9) complies with EC directives.
The full text of the EU Declaration of Conformity is available at https://veho-world.com/compliance/
VAA-015-TA9
This symbol, affixed to the product or its packaging, indicates that the product must not be processed as household waste. This product should be correctly disposed of according to your local guidelines for electrical and battery operated products. Correct disposal of the battery will avoid potential harm to the environment and human health. For further information regarding the recycling of this product, please contact your local waste recycling centre.
