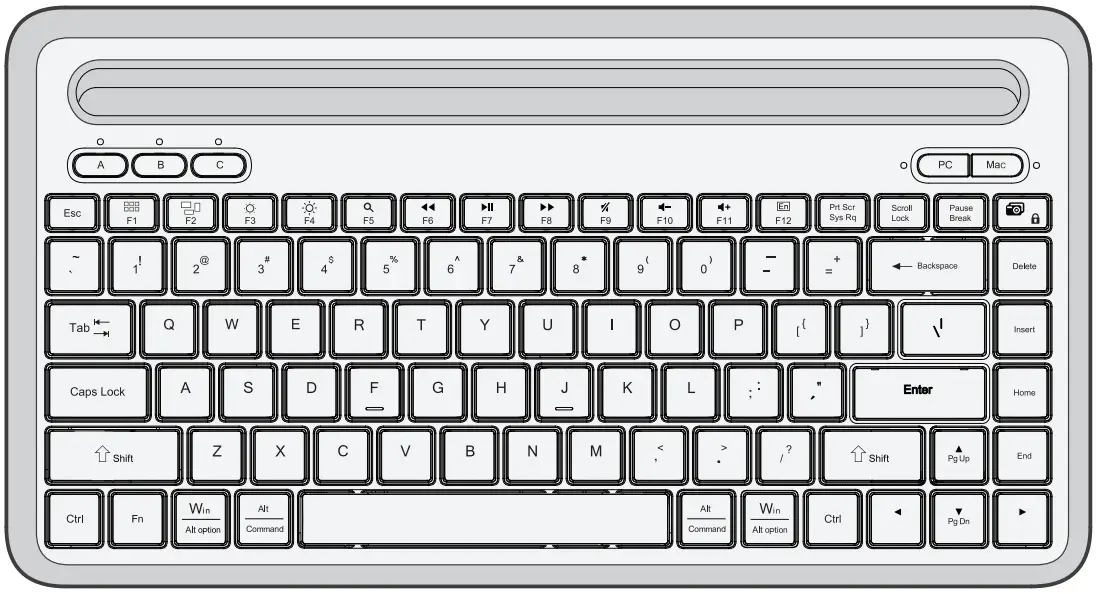

Keyboards TK594B04801R Wireless Bluetooth Keyboard User Manual
Welcome:
Thank you for choosing this wireless product. To ensure optimum performance and safety, please read these instructions carefully before operating this product. It is strongly recommended you keep this manual for future reference.
About after-sales problems :
- 12 Months Warranty
- If you have any problem, please feel free to contact us.
Manufacturer Email : [email protected]
Physical Specifications
- Height:18.5±0.2mm
- Length:312.2±0.2mm
- Width:166.75±0.2mm
Packing Include
- 1*Keyboard (No 2*AAA Batteries)
- 1*User Manual
Compatibility
Windows: Win XP,Win Vista,Win7,Win8,Win8.1,Win10,Bluetooth Android4.3 and above
Mac: Mac OS10.10 and above
Step Description

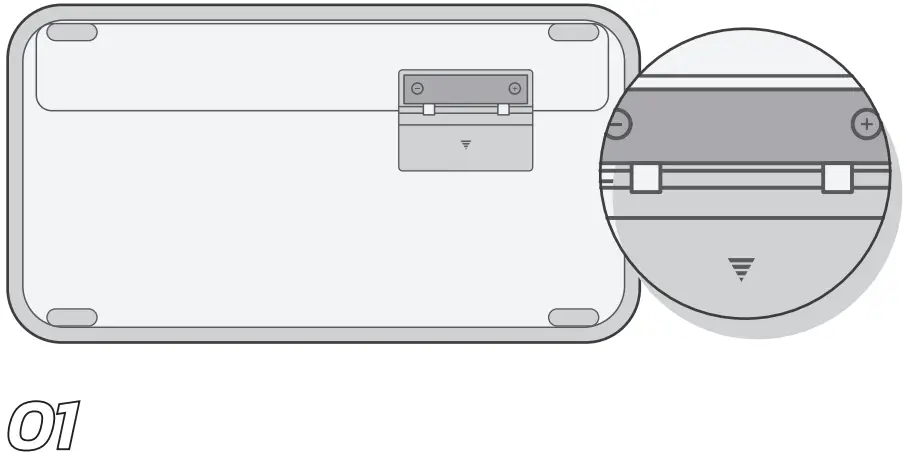

- Battery cover:
Internal installation of 2*AAA batteries

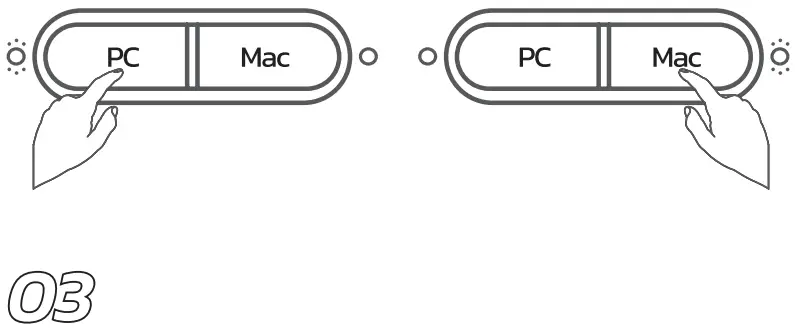

- System Switching:
Press PC\Mac key long for 5 seconds to choose the corresponding System, and the indicator will light up.
PC for windows or Android, Mac for mac os or ios.
- Bluetooth Channels:
ABC channel, if connect A, just press A long for 5 seconds until the light flashes rapidly to connect B and C work the same way.
- Connection:
Start to use the connected devices. Short press A、B、C key, keyboard can remember the previously connected device to switch.
Function List
| PC | PC | Mac | Mac | |
| Android | Windows | Mac | IOS | |
| F1 | 1 | F4 | All Apps | 1 |
| F2 | 1 | F3 | All Active Windows | 1 |
| F3 | Reduce Backlight | Reduce Backlight | Reduce Backlight | Reduce Backlight |
| F4 | Increase Backlight | Increase Backlight | Increase Backlight | Increase Backlight |
| F5 | 1 | Searching | Searching | Searching |
| F6 | Previous Song | Previous Song | Previous Song | Previous Song |
| F7 | Play/Pause | Play/Pause | Play/Pause | Play/Pause |
| F8 | Next Song | Next Song | Next Song | Next Song |
| F9 | Mute | Mute | Mute | Mute |
| F10 | Volume Down | Volume Down | Volume Down | Volume Down |
| F11 | Volume Up | Volume Up | Volume Up | Volume Up |
| F12 | 1 | Change Input Method | Change Input Method | Change Input Method |
| Print Screen | Print Screen | Print Screen | Print Screen |
FCC Caution
Labelling requirements
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
Information to user
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
RF warning for Portable device:
The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.
MADE IN CHINA
Service Email: [email protected]
