Philips Hr2100 Juicer Blender User Manual

HR2100 JUICER BLENDER
 User Manual

HR2100/ HR2101
HR2102/ HR2103
HR2104/ HR2108
Register your product and get support at www.philips.com/welcome

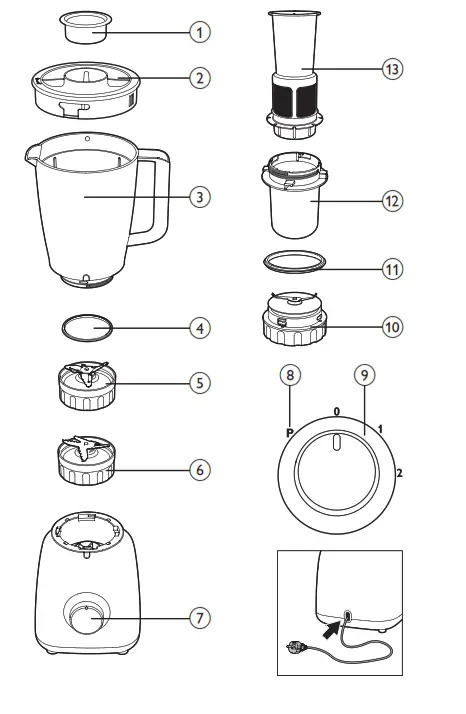

1. Measuring cup
2. Lid
3. Blender jar
4. Sealing ring for blender/mill blade unit
5. 4-star blade unit for blender and mill (specific model only)
6. 5-star blade unit for blender and mill (specific model only)
7. Control knob
8. Pulse setting
9. Speed settings
10. Mini chopper blade unit (HR2102/HR2104 only)
11. Sealing ring for mini chopper blade unit
12. Mill and mini chopper beaker (HR2102/HR2103/HR2104/ HR2108 only)
13. Filter (HR2101/HR2013/ HR2104 only)

Before first use
Thoroughly clean the parts that will come in contact with food before you use the appliance for the first time (see chapter “Cleaning”).

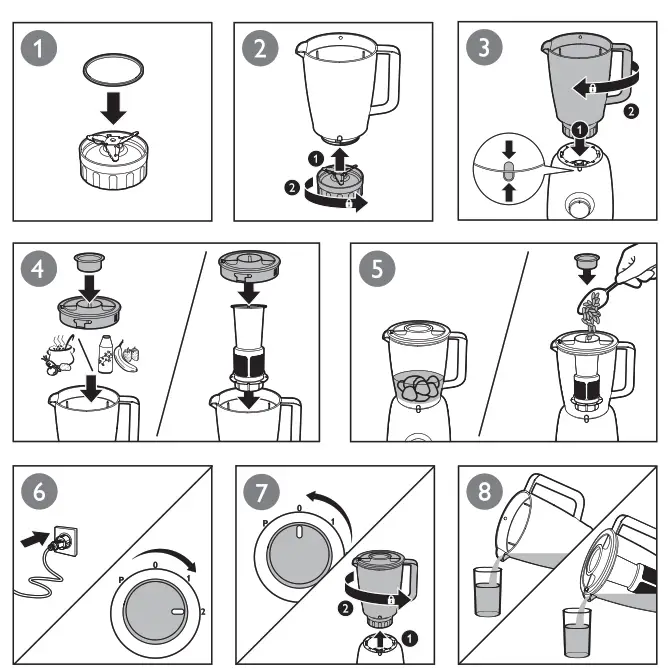

Using the blender

The blender is intended for:

• Blending fluids, e.g. dairy products, sauces, fruit juices, soups, mixed drinks, and shakes.
• Mixing soft ingredients, e.g. pancake batter or mayonnaise.
• Pureeing cooked ingredients, e.g. for making baby food.
  Tip: To process ingredients very briefly, turn the control knob to the pulse setting ( P ) several times. Never use the pulse setting longer than a few seconds at a time.
  Using the filter (HR2101/HR2103/HR2104) You can use the filter to obtain extra finely blended sauces, fresh fruit juices or cocktails. All pips and skins are caught in the filter.

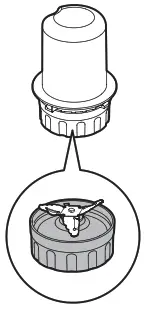

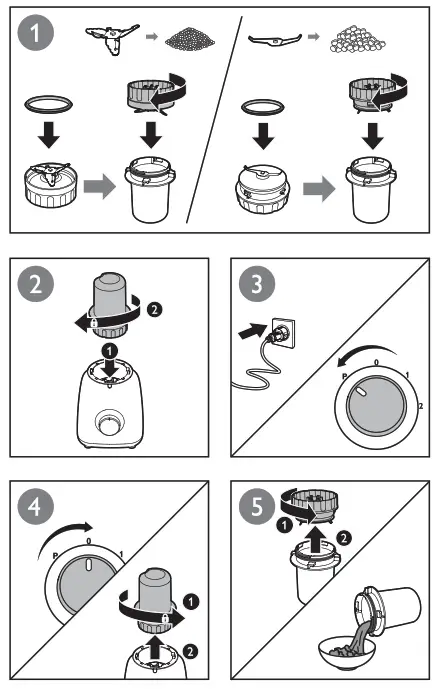

 Using the chopper and mill (HR2102/ HR2103/HR2104/HR2108)

The chopper is intended for chopping ingredients like onion, garlic, herbs, meat, etc. The mill is intended for grinding dry ingredients such as peppercorns, sesame seeds, rice, wheat, coconut flesh, nuts (shelled), coffee beans, dried soybeans, dried peas, cheese, breadcrumbs, etc.

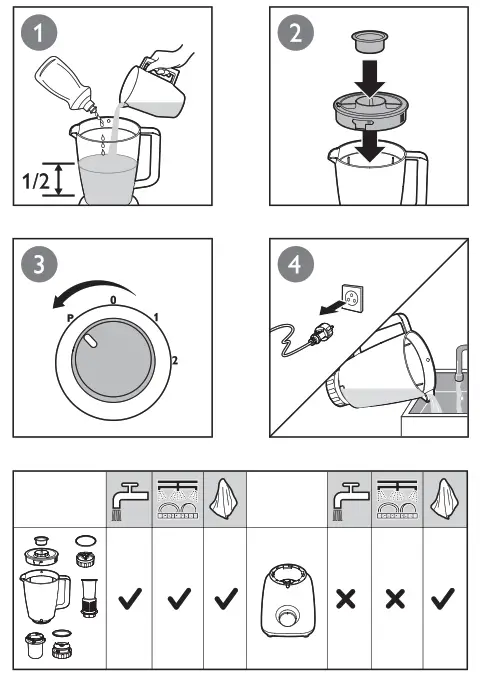

Easy clean: follow the steps: a b c d.
Note: make sure to turn the control knob to the pulse setting ( P ) a few times.

		(MAX)
		1250ml	2
		1250ml	2
		1250ml	2
		625ml	2
		1250ml	2
		1250ml	2
		675ml	2
		6 x	P
		50 g	2
		50 – 100g	2
		50 – 100g	2
		50 – 100g	2
		50 – 100g	2
	Sesame	50 – 100g	2
		50 – 100g	2
		50 – 100g	2
		50g	1 (on and off)
		50g	1 (on and off)
		50g	1 (on and off)
		90g	1 (on and off)
		180g + 500ml	2
		120g + 500ml	2

Sesame

Note: Always let the appliance cool down to room temperature after each batch you process.

Specifications are subject to change without notice
© 2014 Koninklijke Philips N.V.
All rights reserved.
HR2100_2101_2102_2103_2104_2108_EEU_UM_V5.0

3140 035 28905
