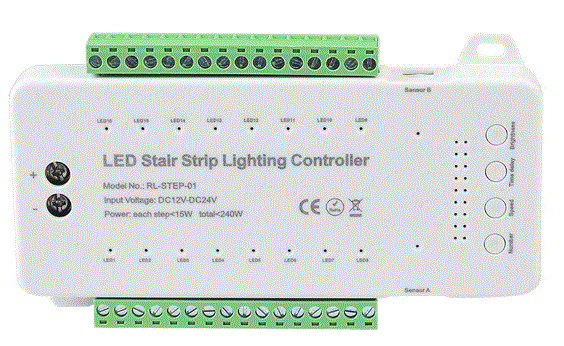

SuperLightingLED RL-STEP-01 LED Stair Strip Lighting Controller

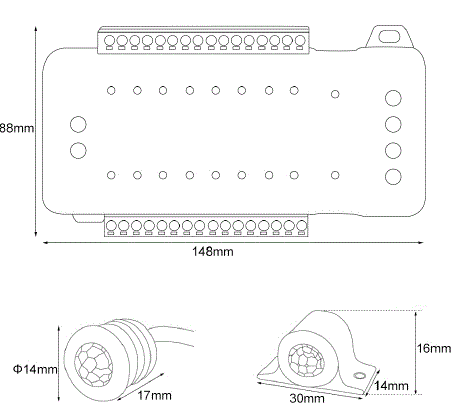

Stair Controller Dimension

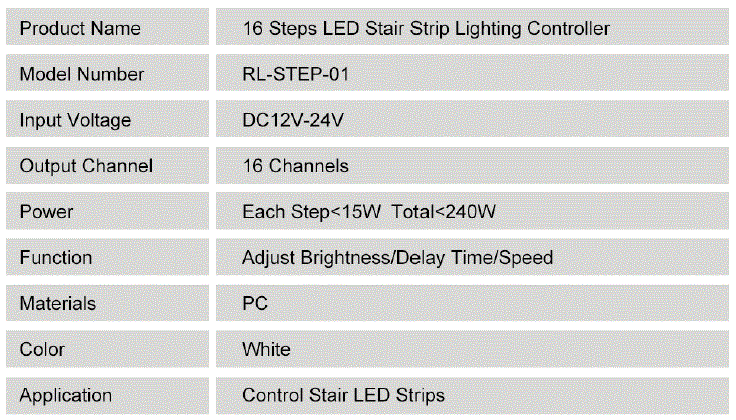

Product Parameters

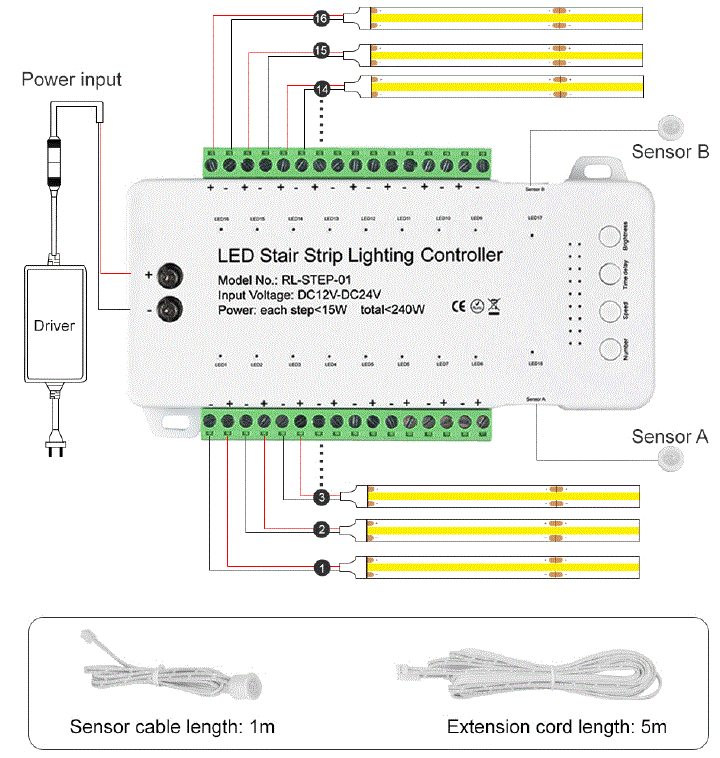

Installation Diagram
How To Use
- Set Step Number
This controller have 16 steps.
Long press the “Number” Key to set Step number.
Short press “Number Key to choose the step you want set.
Long press the “Number” Key to save this setting

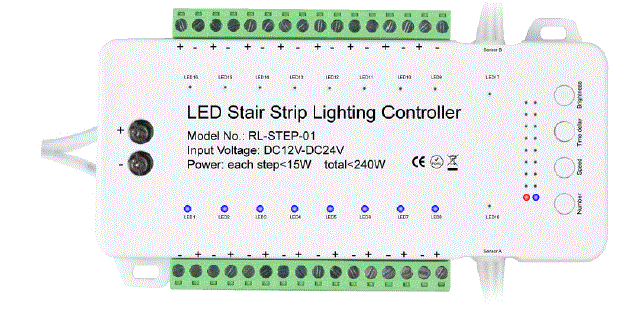

Each step will have a “Blue” signal light
This is only 8 Steps working, 8 pcs “Blue” signal light will light up

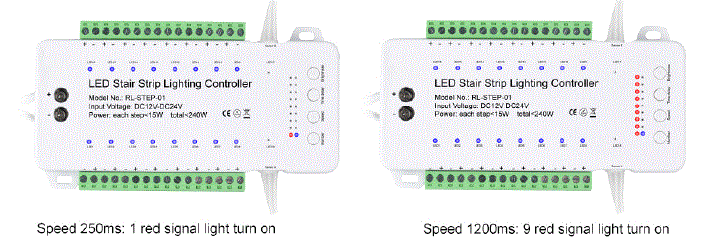

- Speed

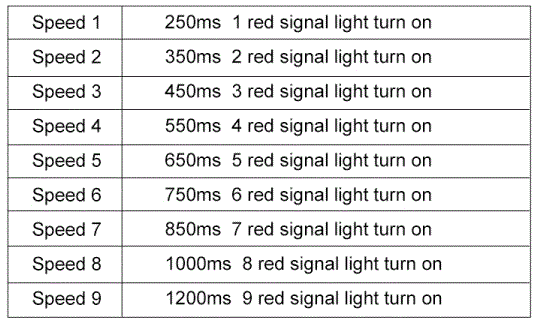

Total have 9 speed, it have a red signal light.
Short press the “Speed” Key to set

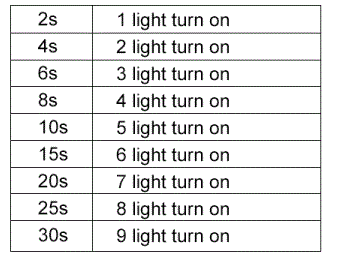

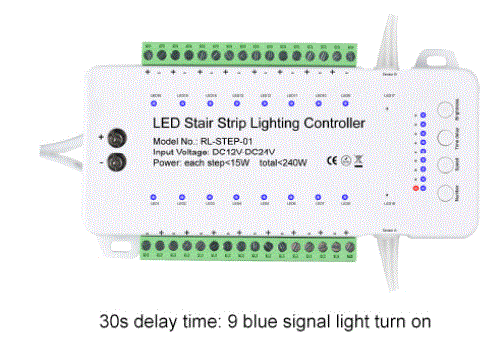

- .Delay time (This time is all steps turn on-turn off)
9-time setting, it have Blue signal light
- Dimming
Short press “Brightness” to set 25% 50%-75%-100% - Sensor installation method

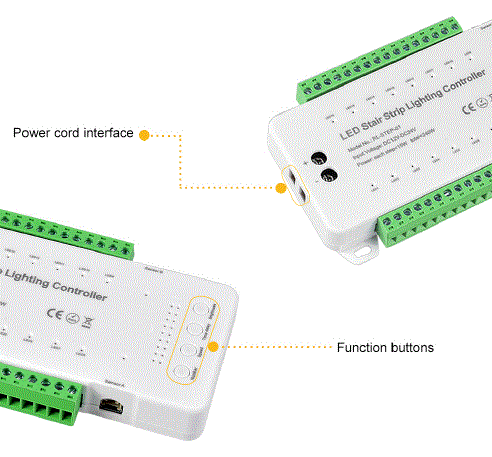

Product Details

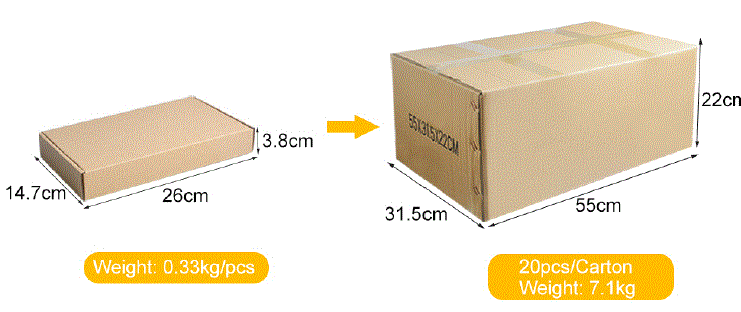

Package
