Anker PowerConf
User Manual

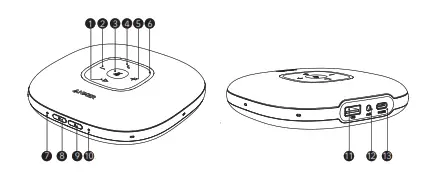

At a Glance
| 1 Multi-function button | 8 Power button |
| 2 Volume down button | 9 Bluetooth button |
| 3 Mute button | 10 Bluetooth LED |
| 4 Phone call button | 11 USB port (Type-A) for charge out |
| 5 Volume up button | 12 Audio output port |
| 6 Status LED | 13 USB port (Type-C) for charge in |
| 7 Power LED | |
Connecting

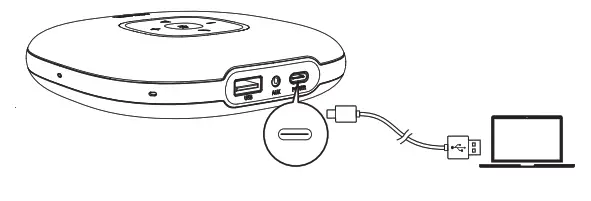

a) Connect to your computer by using a USB cable.

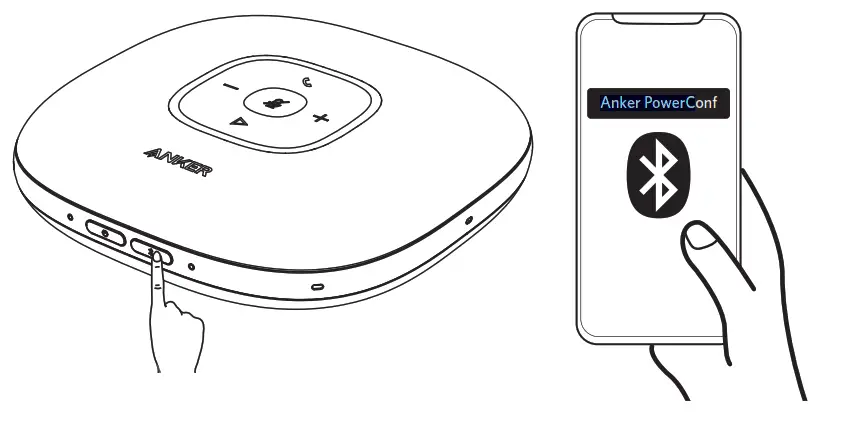

b) Connect to your computer or mobile device via Bluetooth pairing.
Power on this product for the first time, it will automatically enter the Bluetooth pairing mode.
 | Press | Enter Bluetooth pairing mode |
 | Flashes blue | Bluetooth pairing |
 | Steady blue | Bluetooth connected |
Each time you power on the product, it will automatically connect with the last successfully connected device if available.- To disconnect Bluetooth, press the Bluetooth button again.

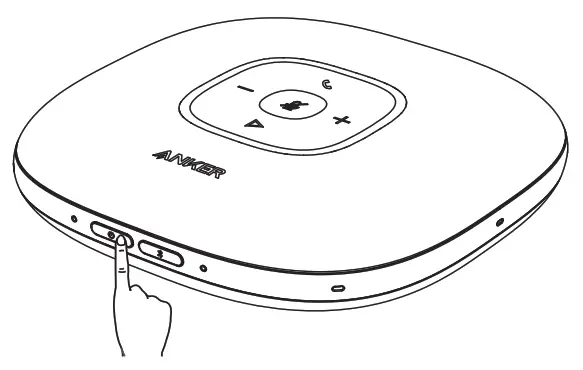

Powering On/Off
Press and hold the power button for 2 seconds to power on. The status LED will light on clockwise and then fade out. To power off, press and hold the power button for 2 seconds.
Power LED behavior
 | Steady white | Power on |
 | Light off | Power off |
- Once connected to your computer, it will automatically power on.
- It will automatically power off after 30 minutes of inactivity or no source.
Button Controls
 | Press or press and hold | Volume up / down |
 | Press | Answer / End a call |
| Press and hold for 2 seconds | Reject a call | |
 | Press | Mute or restore the microphone |
 | Press | Play / Pause music |
Status LED behaviors
| Lights up white for 2 seconds | USB connection to a computer |
| Breathes screen | Comic call |
| Lights up blue partly | Sound direction detected |
| Lights up blue clockwise or counterclockwise | Increase or decrease volume |
| Turns red | Muted |
| Lights up green | Press Power button to check the battery level |
Charging

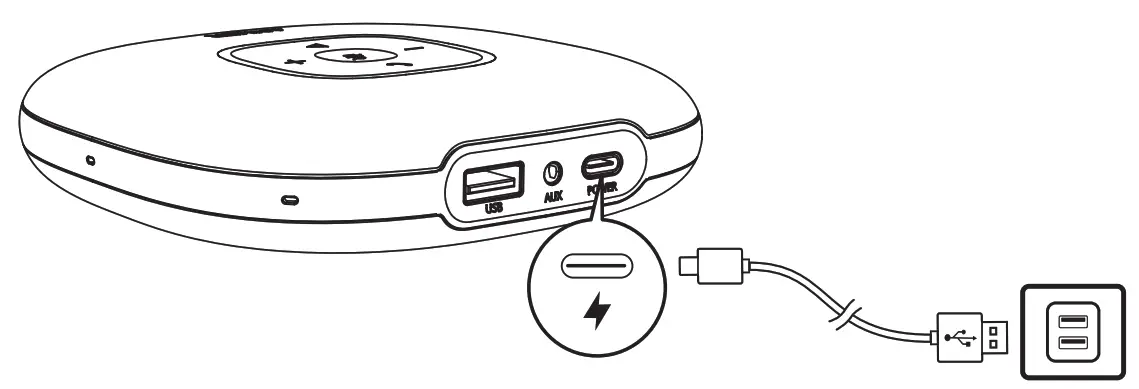

a) Charging this product
Power LED behavior
| Steady red | Being charged |
| Steady white | Fully charged |
| Flashes red | Low battery |

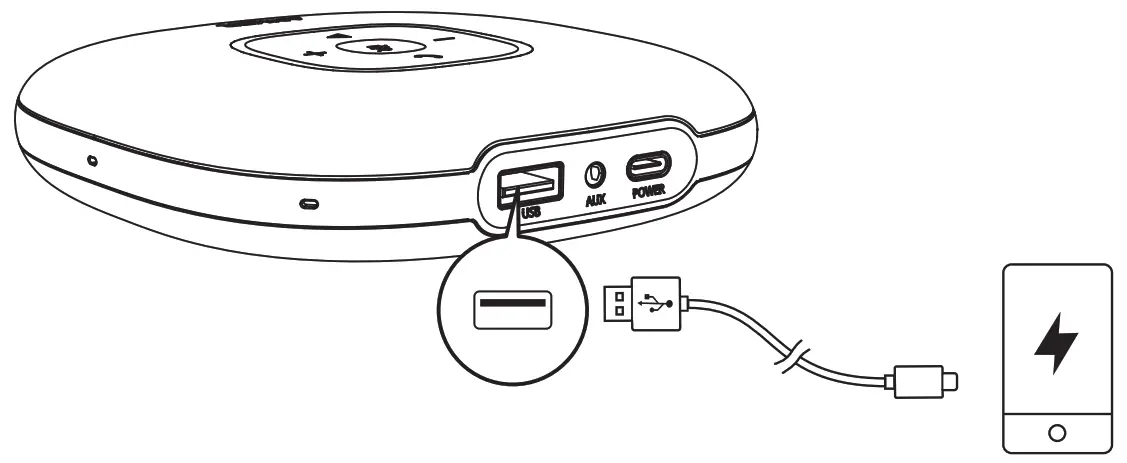

b) Charging an external device
- When powered off or being charged, it won’t charge out.
- When the remaining battery is less than 30%, the charge out current will be 5V
1A; if less than 10%, it won’t charge out.
Audio Output
Connect an external speaker to the AUX jack of this product by using an AUX cable (not provided). The audio will be played through the speaker.
Soundcore App
Download the Soundcore app for the software updates.
Specifications
Specifications are subject to change without notice.
| Charge input | 5V 2A |
| Charge out | 5V 2.1A |
| Rated output power | 3W RMS |
| Battery capacity | 6700 mAh |
| Charging time | 4 hours |
| Talktime | 24 hours |
| Driver size | 1 x 1.75” (full range) |
| Frequency response | 20 Hz – 20 kHz |
| Bluetooth version | V 5.0 |
| Bluetooth range | 10 m / 33 ft |
