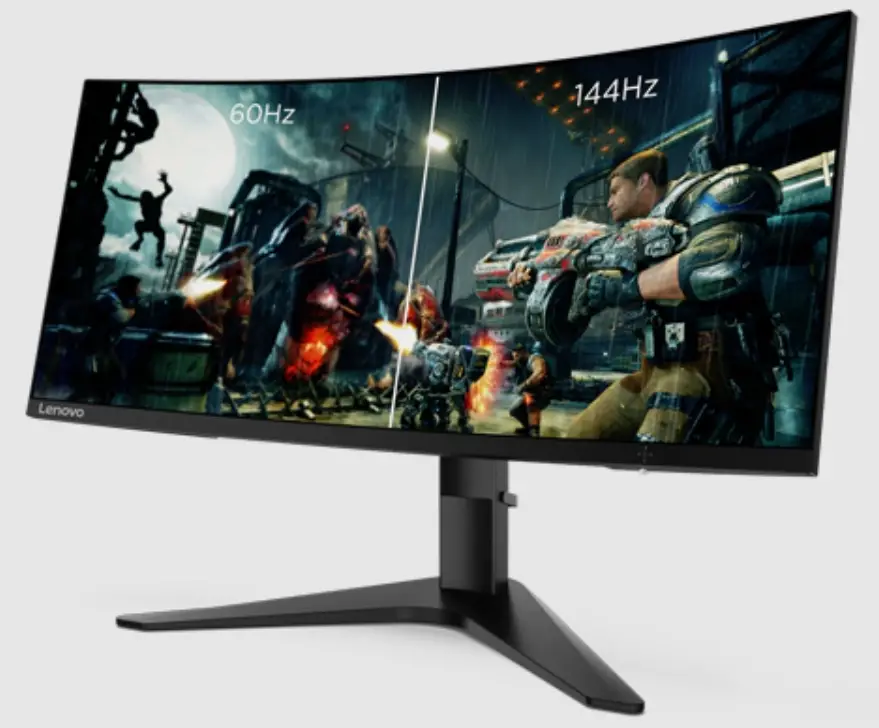

Lenovo G34w-30 WQHD Curved Monitor

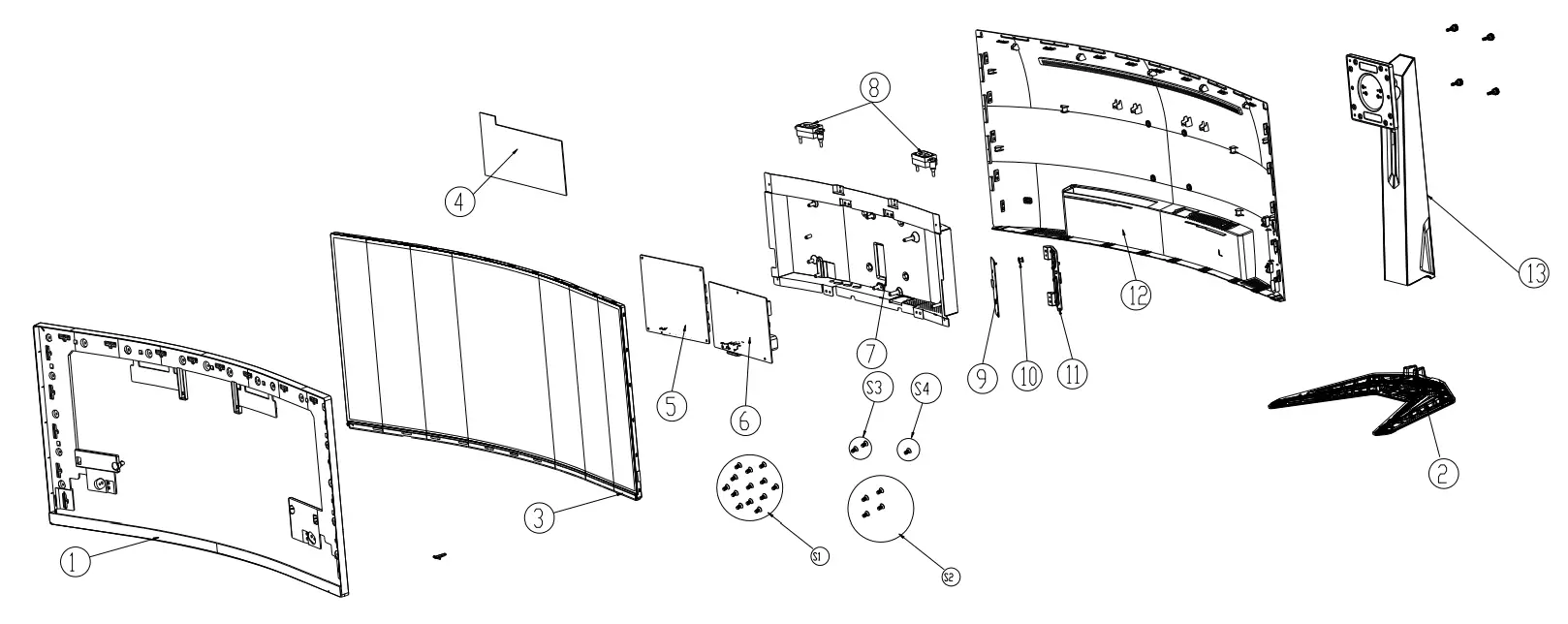

Exploded Diagram
Precaution
Please read the precaution as follows to prevent any damages to the LCD Monitor.
Make sure all power connector is removed. Be sure that the LCD Monitor is in power off status.

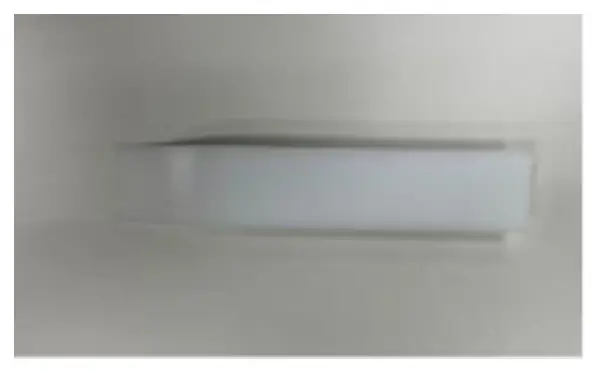

| Prepare soft cloth and sponge as working platform to place LCD monitor horizontally. |  |
| Hold LCD by the side carefully and DON’T touch or press panel directly. |  |
Appropriate tools
Select the Appropriate tools for disassembly and re-assembly.

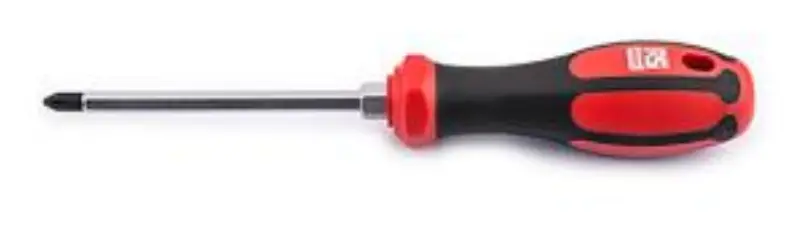

| Phillips screwdriver (#2) |  |

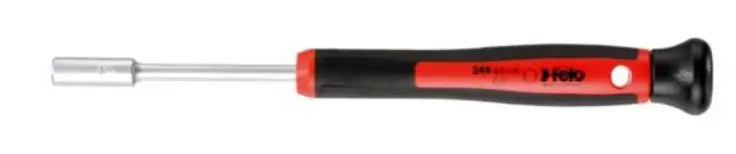

| spacer screwdriver |  |
| C/D disassembly tool |  |

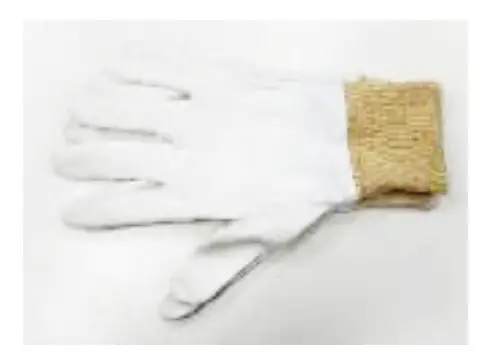

| Gloves or soft cloth |  |
Disassembly SOP

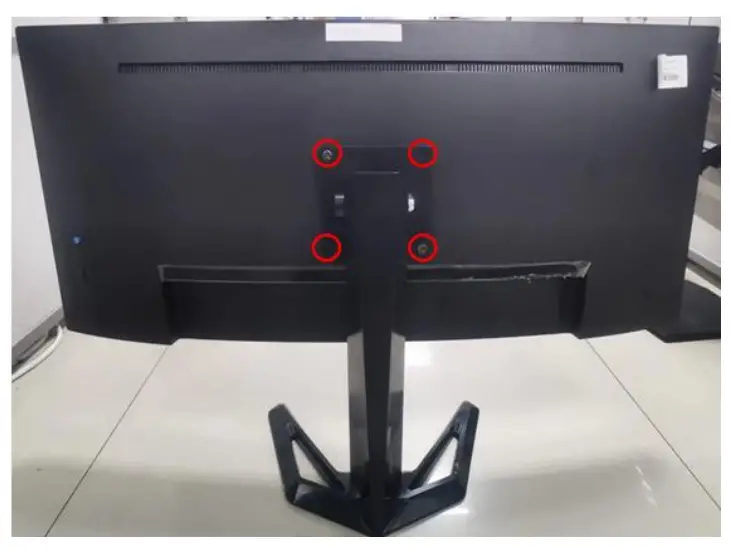

| Unscrew the screw*4pcs to remove the STAND-BASE ASS’Y Tool: Screwdriver #2 |  |

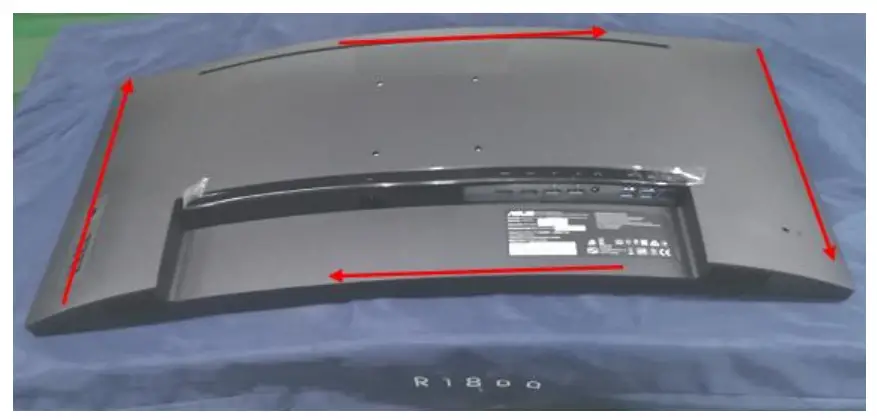

| Use disassembly tool to open all the latches along the edge of the Rear Cover. |  |

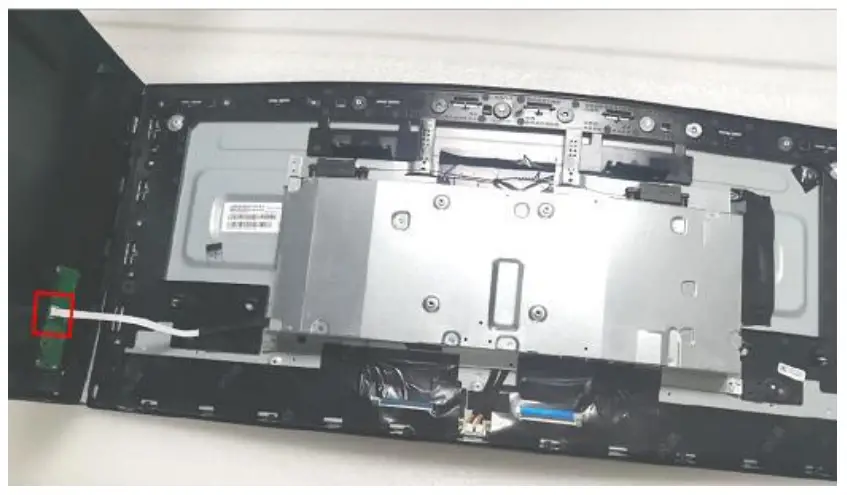

| Disconnect the connector of key board. (Note: Don’t damage the key board.) |  |

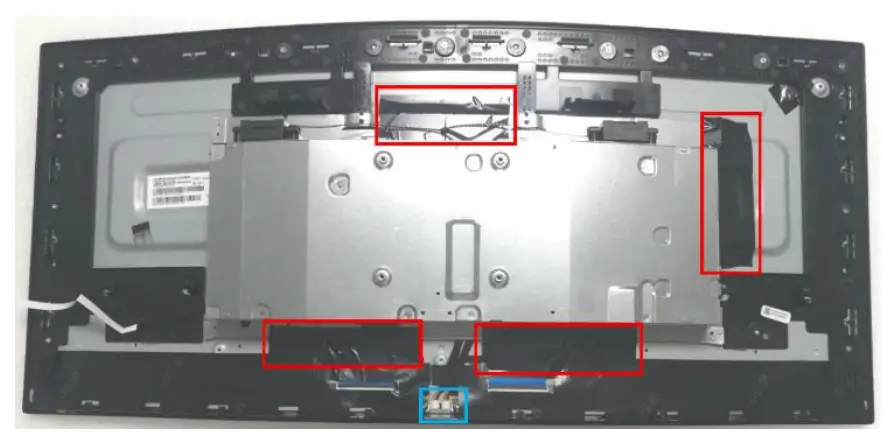

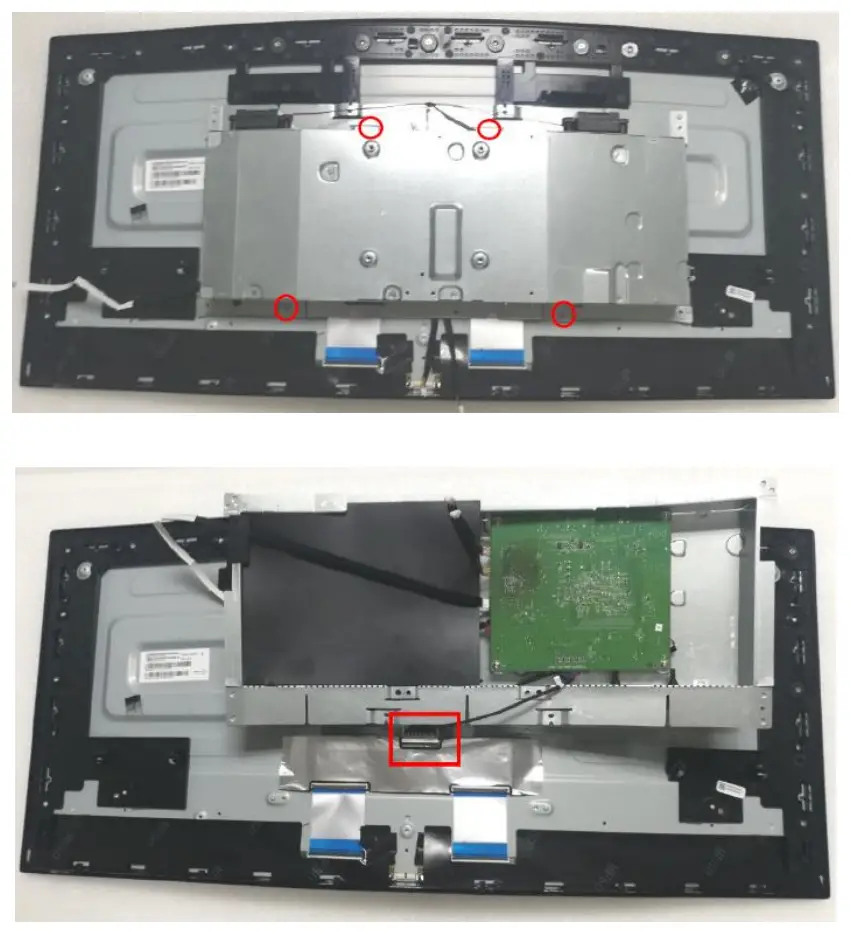

| Take off the tape and disconnect the connectors. |  |

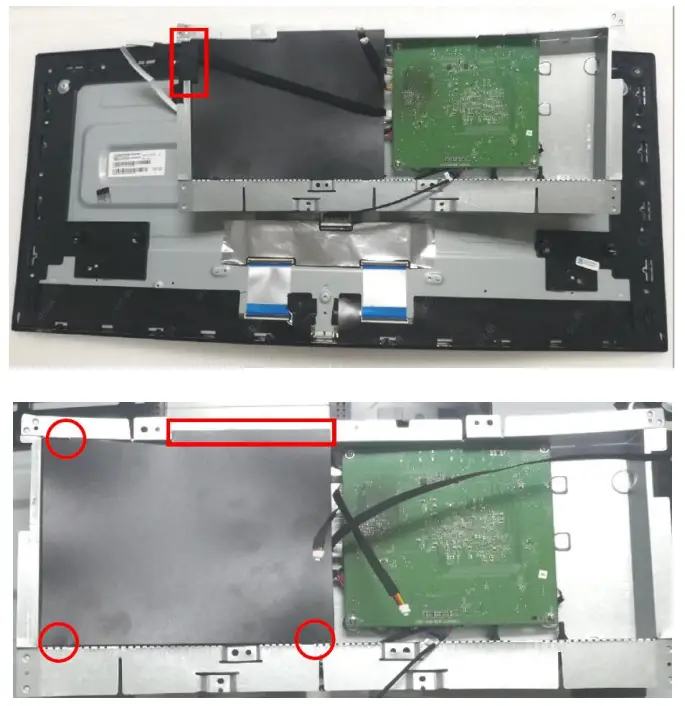

| Unscrew the screw*4 pcs to remove the main frame. Tool: Screwdriver #2 |  |

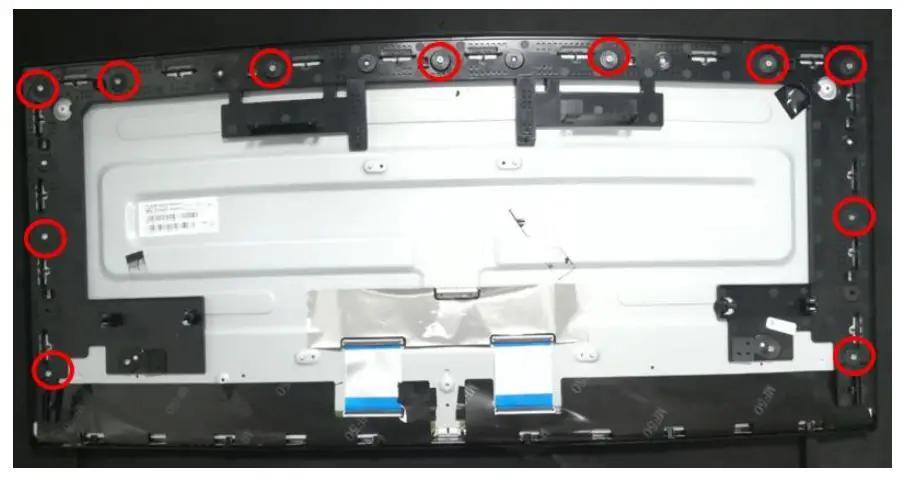

| Remove the screw*11 pcs to separate the panel and the middle frame. Tool: Screwdriver #2 |  |

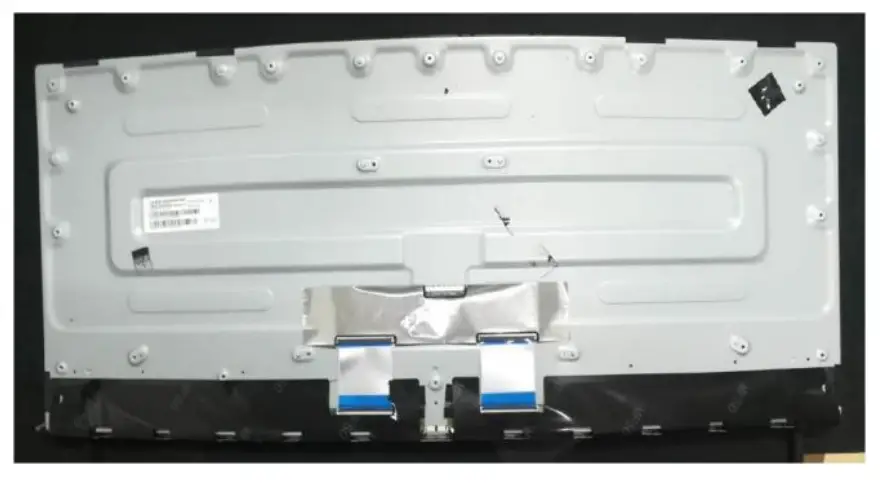

| The panel |  |

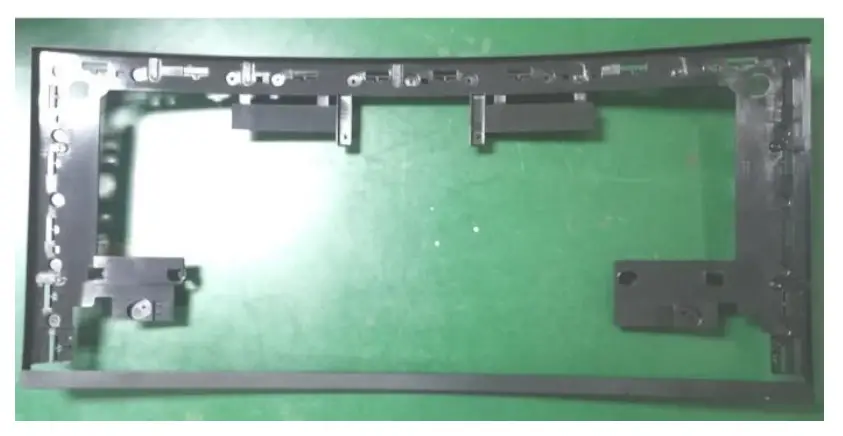

| The middle frame |  |
| Tear off the tape and take off the mylar. |  |

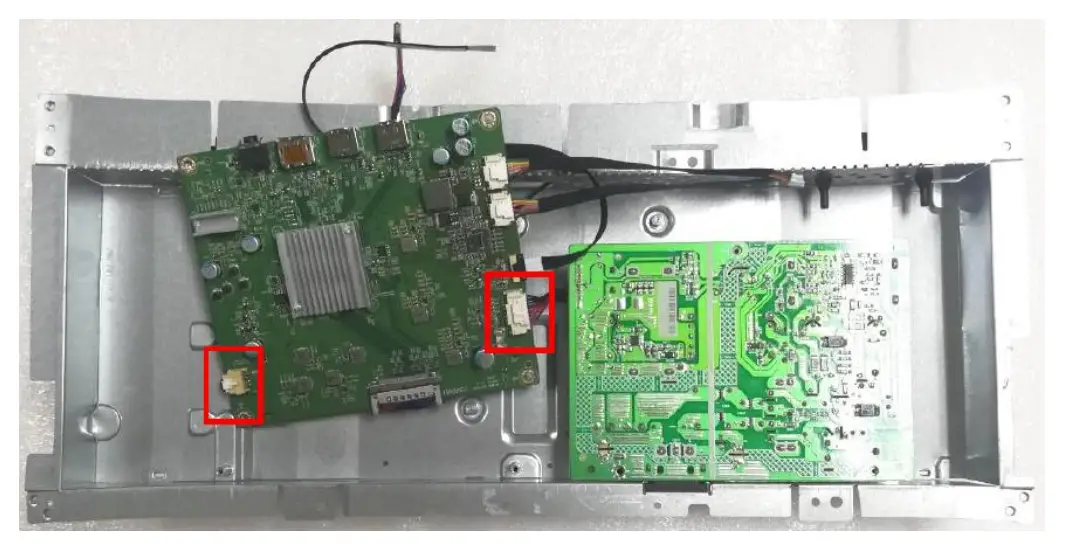

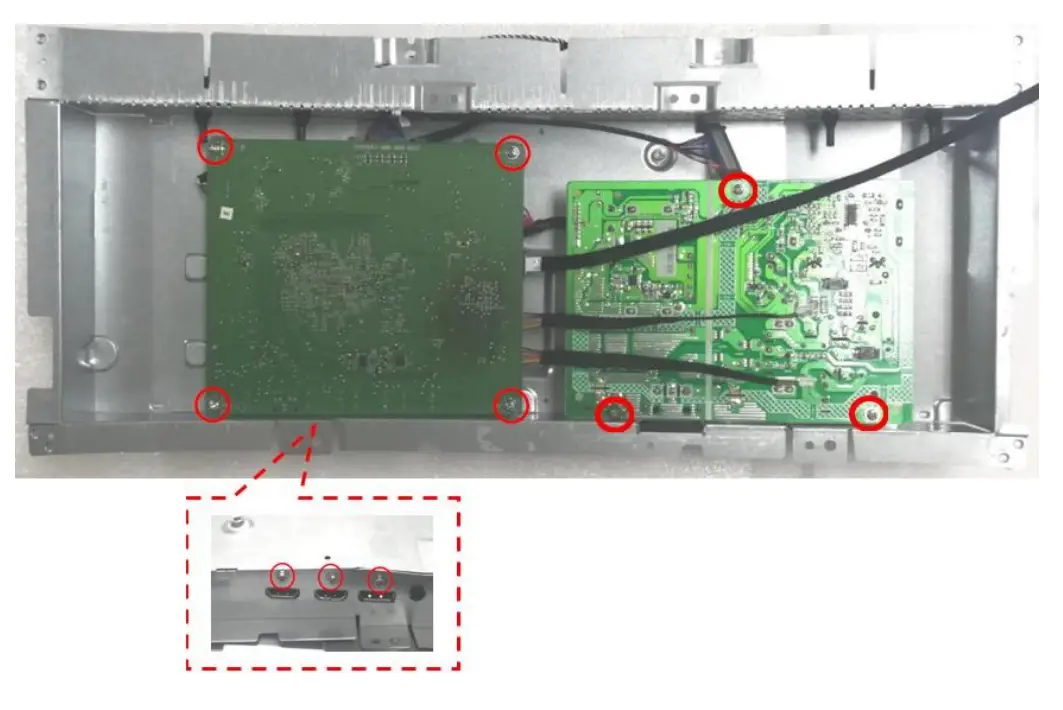

| Remove the screw*10pcs Tool: Screwdriver #2 |  |

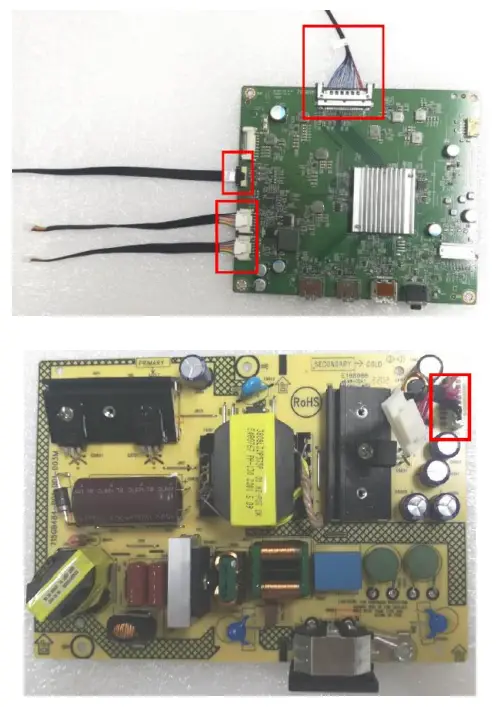

| Remove the pins and boards |   |

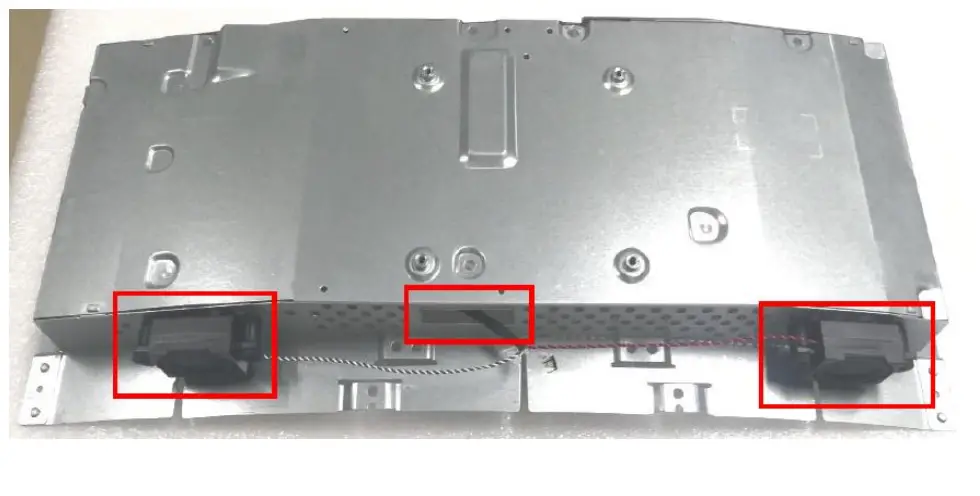

| Remove the speakers |  |

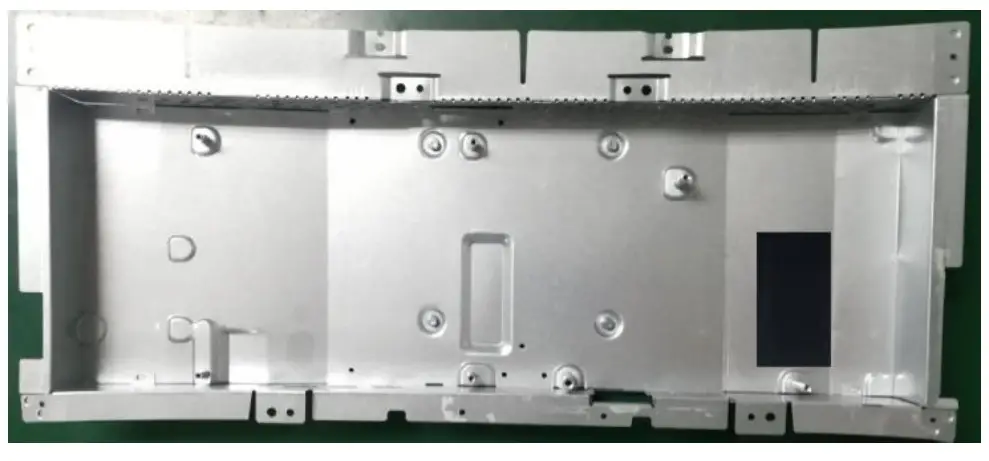

| The mainframe |  |

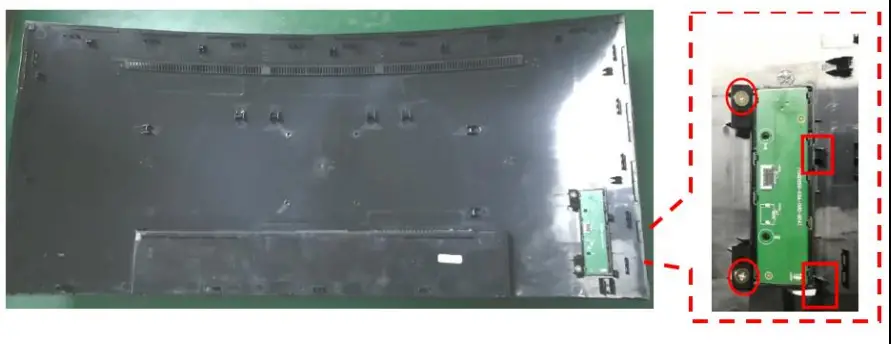

| Unscrew the screw*2 pcs to remove the key board from rear cover Tool: Screwdriver #2 |  |

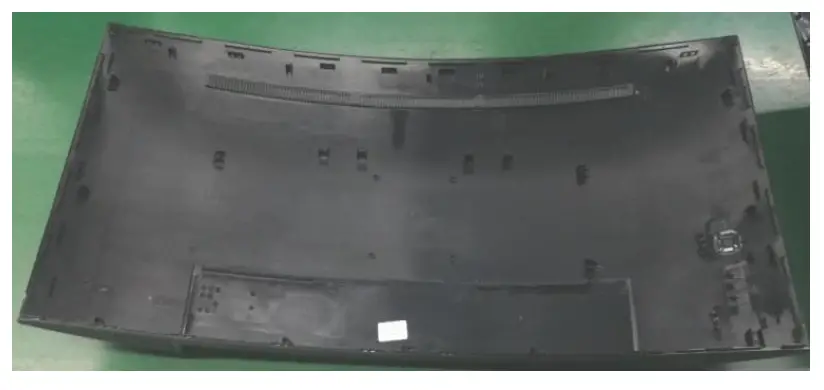

| The rear cover |  |
