ventair UCFR Universal Remote Control
UNIVERSAL REMOTE CONTROL
To suit Ventair New Generation Ceiling Fan range

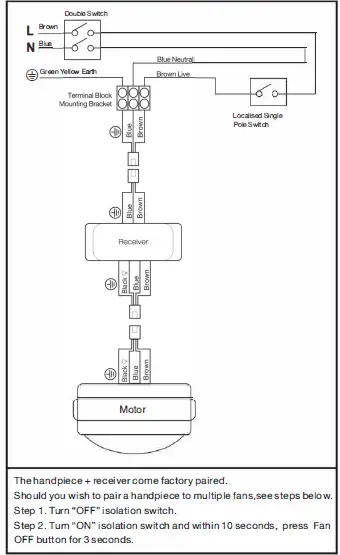

Model: UCFR Wiring Diagram / Configuration
CAUTION Read Instructions Carefully Before Proceeding
Technical specifications
- Operating voltage frequency: 240V~ 50Hz
- Maximum operating wattage for ceiling fan: 100W
- Maximum operating wattage for light: 300W
- Battery: AA 1.5V x 2
A localised single pole switch (isolation switch) and an all pole disconnection switch should be included in the fixed wiring. (A safetly switch in the switchboard can be considered as a double pole disconnection point.)
Operation
- Turn Wall Switch to “ON”
NOTE: For fan models “with light”, light will default to “ON”. - Speed Buttons: 3 SPEED – HIGH I MED I LOW
- Off Button: Ceases fan operation.
- Light Buttons: ON I OFF – Only applicable to fan models “with light”.
Warranty
Our goods come with guarantees that cannot be excluded under the Australian consumer Jaw. You are entitled to a replacement or refund for a major fault and compensation for any other reasonable foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major fault.
This product comes with a 12-month replacement warranty valid from the date of purchase. If you consider there is a manufacturer defect to the remote control, contact the warranty line on 1300 665 926 or log a claim at www.ventair.eom.au/warranty
