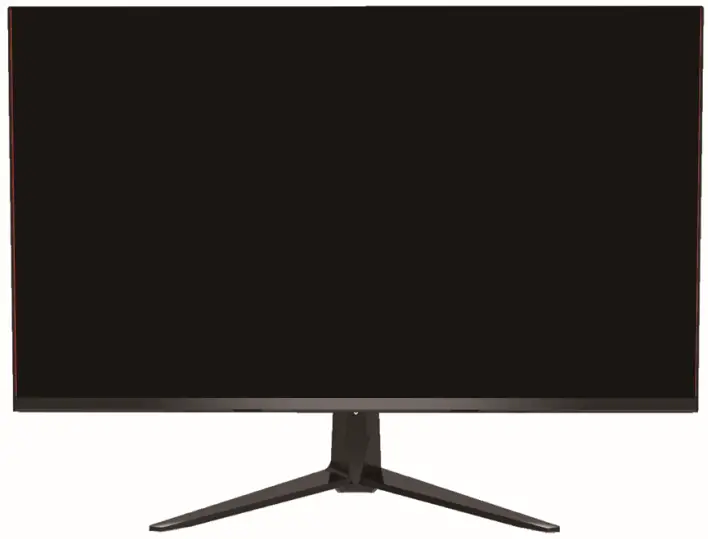

electriQ 25FHD280TFSGH 25 Inch FHD LED Monitor
SAFETY INFORMATION
- Read these instructions – All the safety and operating instructions should be read before this product is operated.
- Keep these instructions – The safety and operating instructions should be retained for future reference.
- Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
- Follow all instructions – All operating and usage instructions should be followed.
- Do not use this equipment near water, or in humid environments – The appliance should not be used near water or moisture e.g. in a wet basement or near a swimming pool.
- Clean only with a dry cloth. Do not use solvents or petroleum-based fluids.
- Do not block any ventilation openings.
- Do not install near any heat sources such as radiators, stoves or other apparatus (including amplifiers) that produce heat.
- Do not tamper with the supplied plug. This plug is a BS1363 standard plug.
- Protect the power cord from being walked on or trapped, particularly at the plug and at the point where it exits from the appliance.
- Only use attachments/accessories specified by the manufacturer.
- Use only with a cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus. When a cart or stand is used, use caution when moving it to avoid any injuries or damage from it tipping over.
- Unplug the apparatus during lightning storms or when unused for long periods of time.
- Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as if the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus or it has been exposed to rain or moisture, it does not operate normally or has been dropped.
- Please keep the unit in a well-ventilated environment.
- The monitor should only be connected to a main power supply as rated on the back of the equipment.
- To prevent overload, do not share the same power supply socket with too many other electronic components.
- Do not place any connecting wires where they may be stepped on or tripped over
- Do not place heavy items on the cable as this may cause damage.
- When removed from a socket hold by the plug and not the wires.
- Disconnect the power immediately and seek professional help if the plug or cable is damaged, liquid has spilt onto the unit, if accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the unit does not work normally
- Do not remove the safety covers. There are no user-serviceable parts
inside. Trying to service the unit yourself is dangerous and may invalidate the product’s warranty. Only qualified personnel should service this apparatus. - Do not block ventilation slots on the back cover. The monitor can be placed in a cabinet but ensure at least 5cm (2″) clearance all around. Do not tap or shake the screen, this may damage internal components.
- WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and objects filled with liquids, such as vases, shall not be placed on the apparatus.
- WARNING: The wall plug socket is used as a disconnection device and should remain readily accessible.
- WARNING: The batteries shall not be exposed to excessive heat such as direct sunlight or fire.
- Although every effort is made to maintain the accuracy of the manual, due to continuous product development, some variation from the manual is possible
- The availability of features and settings may vary depending on the input source and method of connection.
- Although every effort is made to maintain the accuracy of the manual, due to continuous product development, some variation from the manual is possible
- The availability of features and settings may vary depending on the input source and method of connection.
- The available resolutions and refresh rates may be limited by the capabilities and/or settings of the source device.

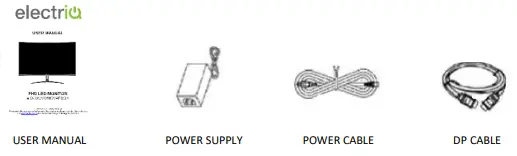

WHAT’S INCLUDED
CONNECTIONS AVAILABLE ON THE MONITOR
- 1POWER
- DP1 (Display Port 1.2, 280Hz, Free Sync)
- HDMI 1 (HDMI 2.0, 240Hz, Free Sync)
- HDMI 2 (HDMI 2.0. 240hz, Free Sync)
- 3DP2 (Display Port 1.2, 280Hz, Free Sync)
- 6AUDIO OUT
WALL MOUNTING
- The monitor is provided with mounting holes for a VESA approved wall mounting bracket (not supplied).
- The VESA mounting pattern is: 100x100mm and the size of the screws is 4 x M6 x 10 (not supplied)
- Do not use screws longer than specified or damage will occur to the internal components.
NOTE: As the monitor is considered heavy, please consult with a professional wall mount installer to perform
the installation

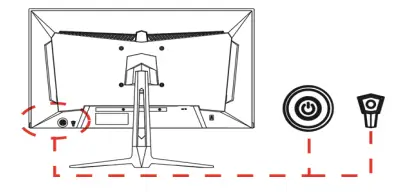

GETTING STARTED MONITOR CONTROLS
POWER
Press the middle of the joystick to turn on the monitor, and then press to enter the OSD menu.
JOYSTICK UP
Change the value on the selected menu / Navigate up the menu within the OSD.
JOYSTICK LEFT
Change the value on the selected menu / Move left within the OSD
JOYSTICK DOWN
Change the value on the selected menu/Navigate down the menu within the OSD.
JOYSTICK RIGHT
Change the value on selected menu / Move right within the OSD
LAMP BUTTON
Press to change the color of the light, and press and hold to turn off the light.
SHORTCUT BUTTONS
The monitor includes these options accessed by using the rocker switch.
| Middle | Press the joystick switch to access the shortcut buttons and OSD menu. Use the ◄and► buttons to navigate. Press the joystick switch again to enter the OSD menu. |
| Up | Access the picture mode menu. |
| Down | Activate crosshairs. |
| Left | Access the input menu. |
| Right | Access the contrast and brightness settings. |
INITIAL SETUP
Connect the monitor to a power socket.
- Press the POWER button on the monitor or to turn it on (The indicator will be blue).
- Connect the relevant cable to the corresponding input on the monitor. The source will be automatically detected.
- To change between inputs, use the joystick to enter the source menu. Move the joystick down to choose the input source between DP1, HDMI1, HDMI2, and DP2.
The menu for the monitor can be accessed by pressing the joystick switch twice. This menu is separated into the following sub menus: Input select, Manual image adjust, Colour adjust, View mode, Audio adjust and Setup menu. Details of each menu can be found in the following section.

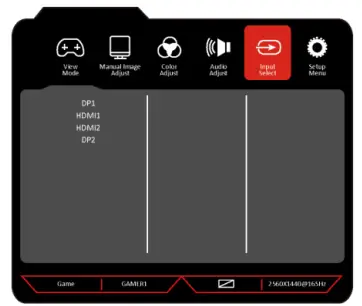

INPUT SOURCE
| Signal | Select the source between DP1, DP2, HDMI1 and HDMI 2 |

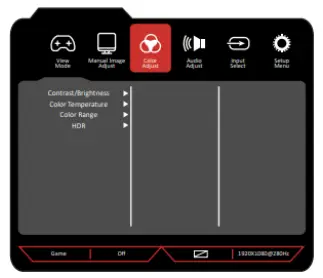

COLOUR SETTINGS
| Contrast / Brightness | Adjust the contrast /brightness of the display between 0 and 100. |
| Colour Temperature | Change the Colour Temperature of the display to standard, Warm, Cool or User Colour. When the User Mode is selected, the Red, Green, and Blue values can be adjusted independently between 0 and 100. |
| Colour Range | Auto, Full Range, Limited Range. |
| HDR | The HDR is divided into, Auto, Off, 2084. |

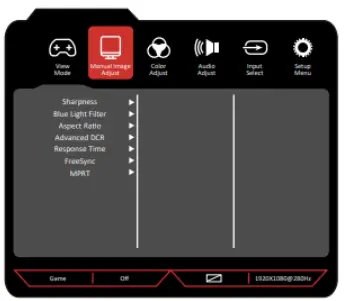

MANUAL IMAGE ADJUST
| Sharpness | Change the clarity from 0 to 100. |
| Blue light filter | Change the display blue light from 0 to 100. |
| Aspect Ratio | Change the image aspect ratio to Wide Screen, 4:3,5:4,16:9,16:10, Auto. |
| Advanced DCR | Change the Dynamic Contrast Ratio Feature between 0 and 100. |
| Response time | Off, Hight, Middle, Low. |
| FreeSync | Turn the FreeSync feature On or Off. |
| MPRT | Turn the MPRT feature On or Off. |

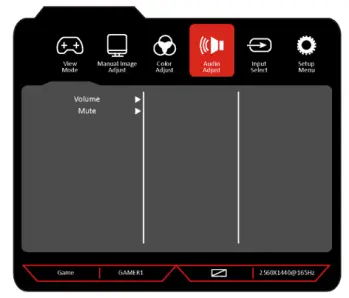

AUDIO
| Mute | Turn On and Off to mute and unmute the audio output. |
| Volume | Adjust the output volume between 0 and 100. |

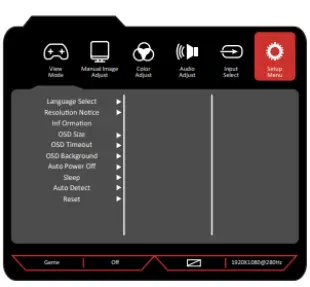

SETUP MENU
| Language | Change the OSD Menu display language between English, Chinese, Korean, Russian, Spanish, Japanese, French and Etc. |
| Resolution Notice | Turn the Resolution Notice feature On or Off. |
| Information | Resolution:1920×1080 Horizontal frequency: 271.2KHz Vertical frequency:240.1Hz Clock frequency: 564.0MHz. |
| OSD Size | Menu shows Native, Large. |
| OSD Timeout | Change the OSD Timeout from 0 to 60. |
| OSD Background | Turn the OSD Background feature On or Off. |
| Auto Power Off | Turn the Auto Power Off feature On or Off. |
| Sleep | Sleep time is 30,45,60,120, off. |
| Auto Detect | Turn the Auto Detect feature On or Off. |
| Reset | Restore factory default setting. |

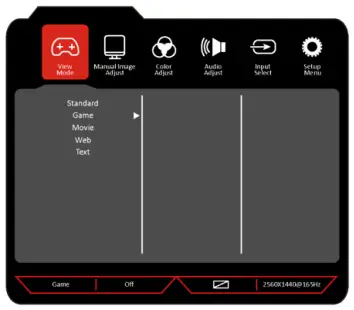

VIEW MODE
| Standard | Enter standard mode. |
| Game | The game mode is divided into FPS1, PFS2, RTS, Night, Vision, Gamer1, Gamer2, Gamer3. |
| Movie | Enter movie mode. |
| Web | Enter Web mode. |
| Text | Enter text mode. |

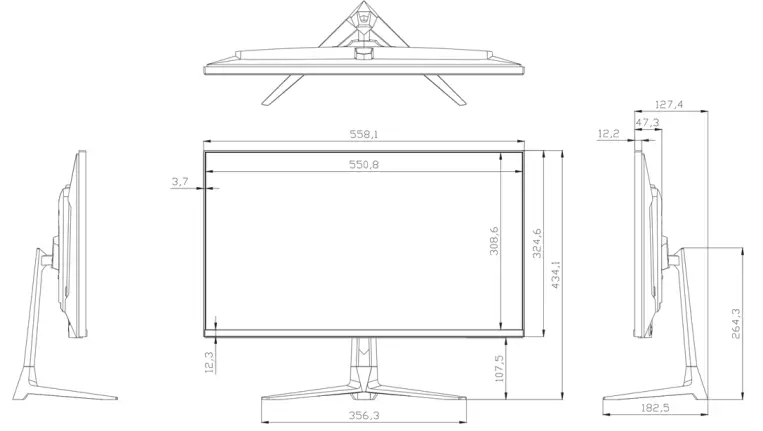

SPECIFICATION
| eiQ-25FHD280TFSGH | |
| Panel Type | 25” (16:9) LED Backlit Monitor |
| Case Type | Plastic |
| Best Resolution | 1920(H)x1080(V)@280Hz |
| Active Display Area | 543.744(H)×302.616(V) mm |
| Pixel Pitch | 0.2832(H)x0.2802(V) |
| Contrast Ratio | 1000:1 Typical |
| Brightness | 400 cd/m² |
| Response Time | 5ms (GTG) |
| Viewing Angle | 170°/160° CR≥10 |
| Display Colours | 16.7M |
| Video Compatibility | Multi-Standard for NTSC / PAL |
| Aspect Ratio | 16:9 |
| Speaker Multimedia Speakers | 2x3W |
| Sound Demodulation | Stereo. Audio |
| Operating Humidity | 20%-70% |
| Operating Temperature | -10 to 50℃ |
| IN/OUT INTERFACE | |
| Video Interface | HDMIx2, DPx2 |
| Audio Interface | Audio out x1 |
| Safety & EMC Certification | CE/FCC/ROHS |
| Stand Type | Desktop |
| Button Position | Right Hand Side |
| Power Input | DC 12V 4A |
| Power Consumption | ≤30W |
TROUBLESHOOTING
| Problem | Solution |
| No power | Insert the plug securely into the power outlet. |
| No picture | Ensure that the equipment is connected properly. |
| Ensure the correct input is selected. | |
| Buttons on the monitor don’t do anything | Disconnect the power plug and then reconnect it. (The unit may not be operating properly due to lightning, static, or other factors.) |
| Noise or other interference | Electronic equipment near the unit may be causing interference. Relocate the unit or move the equipment. |
ENVIRONMENTAL PROTECTION
Recycling facilities are now available for all customers at which you can deposit your old electrical products. Customers will be able to take any old electrical equipment to participate civic amenity sites run by their local councils. Please remember that this equipment will be further handled during the recycling process, so please be considerate when depositing your equipment. Please contact the local council for details of your local household waste recycling centers.
electriQ UK SUPPORT
www.electriQ.co.uk/support Call: 0330 390 3061 Office hours: 9 AM – 5 PM Monday to Friday www.electriQ.co.uk Unit J6, Lowfields Business Park Lowfields Way, Elland West Yorkshire, HX5 9DA
