USER MANUAL

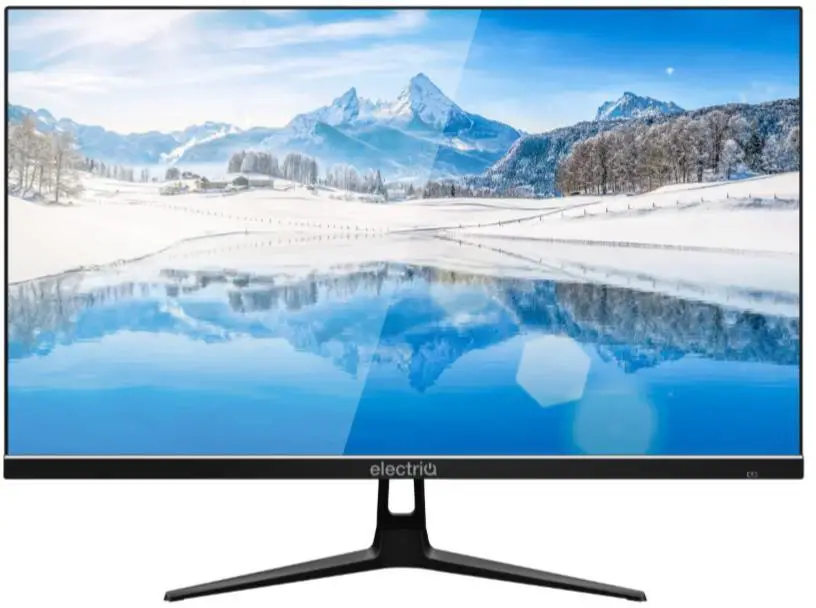

27” 4K LED MONITOR
eiQ-274KMB-HDR
Thank you for choosing electriQ
Please read the user manual before using this monitor and keep it safe for future reference Visit www.electriQ.co.uk to view our entire range of Intelligent Electricals
SAFETY INFORMATION
- Read these instructions – All the safety and operating instructions should be read before this product is operated.
- Keep these instructions – The safety and operating instructions should be retained for future reference.
- Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
- Follow all instructions – All operating and usage instructions should be followed.
- Do not use this equipment near water, or in humid environments – The appliance should not be used near water or moisture e.g. in a wet basement or near a swimming pool.
- Clean only with a dry cloth. Do not use solvents or petroleum-based fluids.
- Do not block any ventilation openings.
- Do not install near any heat sources such as radiators, stoves, or other apparatus (including amplifiers) that produce heat.
- Do not tamper with the supplied plug. This plug is an 8S1363 standard plug.
- Protect the power cord from being walked on or trapped, particularly at the plug and at the point where it exits from the appliance.
- Only use attachments/accessories specified by the manufacturer.
- Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart or stand is used, use caution when moving it to avoid any injuries or damage from it tipping over.
- Unplug the apparatus during lightning storms or when unused for long periods of time.
- Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as if the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus or it has been exposed to rain or moisture, it does not operate
normally or has been dropped. - Please keep the unit in a well-ventilated environment.
- The monitor should only be connected to the main power supply as rated on the back of the equipment.
- To prevent overload, do not share the same power supply socket with too many other electronic components.
- Do not place any connecting wires where they may be stepped on or tripped over.
- Do not place heavy items on the cable as this may cause damage.
- When removed from a socket hold by the plug and not the wires.
- Disconnect the power immediately and seek professional help if the plug or cable is damaged, liquid has spilled onto the unit, if accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the unit does not work normally.
- Do not remove the safety covers. There are no user-serviceable parts inside.
Trying to service the unit yourself is dangerous and may invalidate the product’s warranty. Only qualified personnel should service this apparatus. - Do not block ventilation slots on the back cover. The monitor can be placed in a cabinet but ensure at least 5cm (2″) clearance all around. Do not tap or shake the screen, this may damage internal components.
- Due to our continuous product development, the operation and or features of the product received may vary slightly from the information provided within the manual.
- The availability of features and settings may vary depending on the input source and method of connection.
- The available resolutions and refresh rates may be limited by the capabilities and/or settings of the source device.
- WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and objects filled with liquids, such as vases, shall not be placed on the apparatus.
- WARNING: The wall plug socket is used as a disconnection device and should remain readily accessible.
- WARNING: The batteries shall not be exposed to excessive heat such as direct sunlight or fire.
- Although every effort is made to maintain the accuracy of the manual, due to continuous product development, some variation from the manual is possible.
- The availability of features and settings may vary depending on the input source and method of connection.
- Although every effort is made to maintain the accuracy of the manual, due to continuous product development, some variation from the manual is possible.
 AT FULL VOLUME, PROLONGED LISTENING MAY DAMAGE THE USER’S HEARING. | ||
 This warning sign is to warn of dangerous voltage inside the product. |  CAUTION: To reduce the risk of electric shock, DO NOT remove the cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. |  This warning sign is to alert you of importantinstructions accompanying the product. |

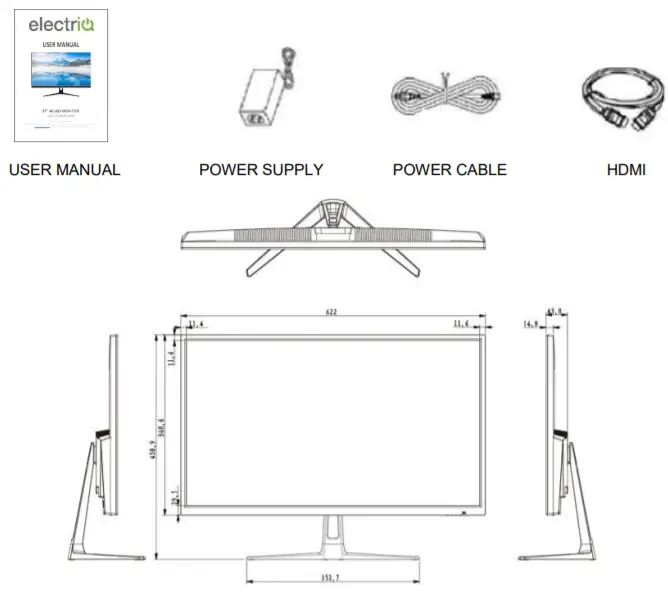

WHAT’S INCLUDED
 |  |

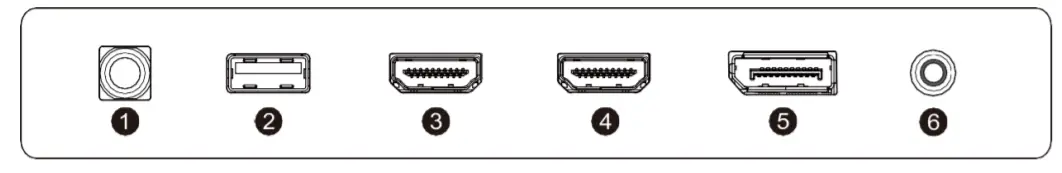

CONNECTIONS AVAILABLE ON THE MONITOR
| 1. POWER 2. USB 3. HDMI 2 | 4. HDMI 1 5. DP 6. AUDIO OUT |

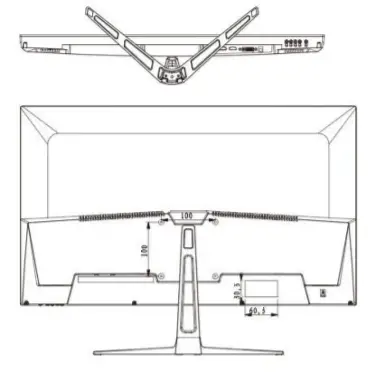

WALL MOUNTING
The monitor is provided with mounting holes for a VESA approved wall mounting bracket (not supplied)
The VESA mounting pattern is: 100x100mm and the size of the screws is 4 x M6 x 10 (not supplied)
Do not use screws longer than specified or damage will occur to the internal components.
NOTE: As the monitor is considered heavy, please consult with a professional wall mount installer to perform the installation.
GETTING STARTED

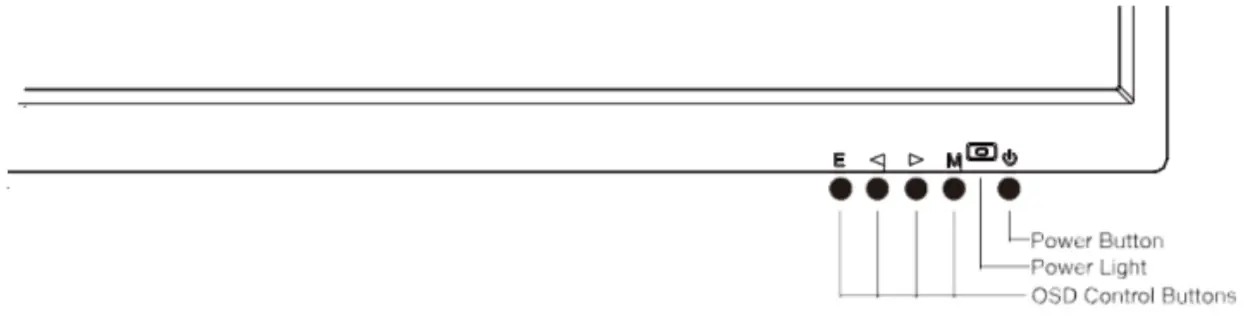

MONITOR CONTROLS
Select signal source or Exit the menu
Go Up within the Main Menu or increase the value of the selected item
Go Down within the Main Menu or decrease the value of the selected item
Enter the Main OSD Menu and Select submenu
Turn the monitor On or Off
SHORTCUT BUTTONS
The monitor includes one-touch options to access common settings.EDisplay the signal source menu. Use the ◄and► buttons to navigate and the M button to select the source.
◄Activate the Line of Sight feature. Press again to cycle between the colors or turn off.
►Activate the ECO Mode feature. Press again to cycle through the presets.
 |  |
INITIAL SETUP
Connect the monitor to a power socket.
- Press the POWER button on the monitor or turn it on (The indicator will be blue).
- Connect the relevant cable to the corresponding input on the monitor. The source will be automatically detected.

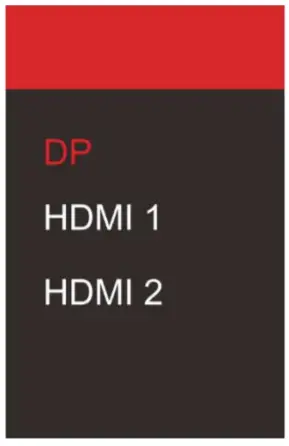

- To change between inputs, press the E button to enter the source menu. Use the ◄and ► buttons to choose the input source between DP, HDMI1, and HDMI2.
The menu for the monitor can be accessed by pressing the menu button on the control panel. This menu is separated into the following sub-menus: Input source, Brightness/Contrast, Colour Settings, Picture Quality Settings, Display, Audio, OSD (On-screen display), and others. Details of each menu can be found in the following section.

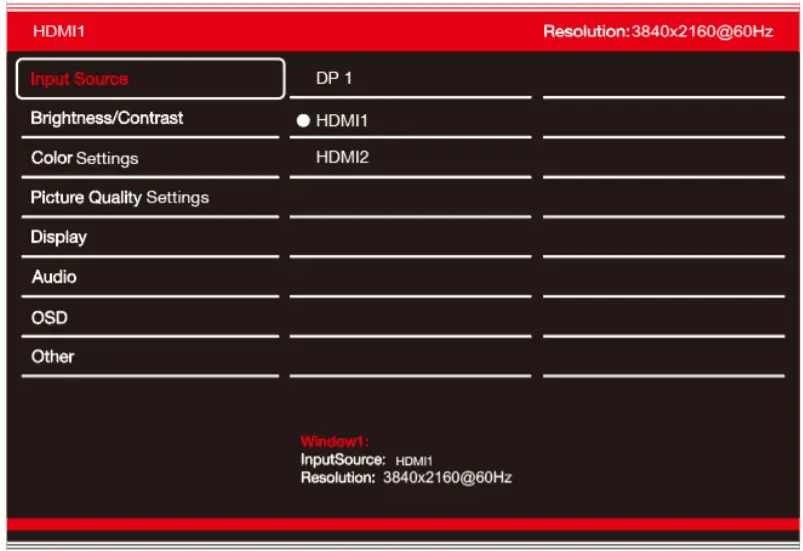

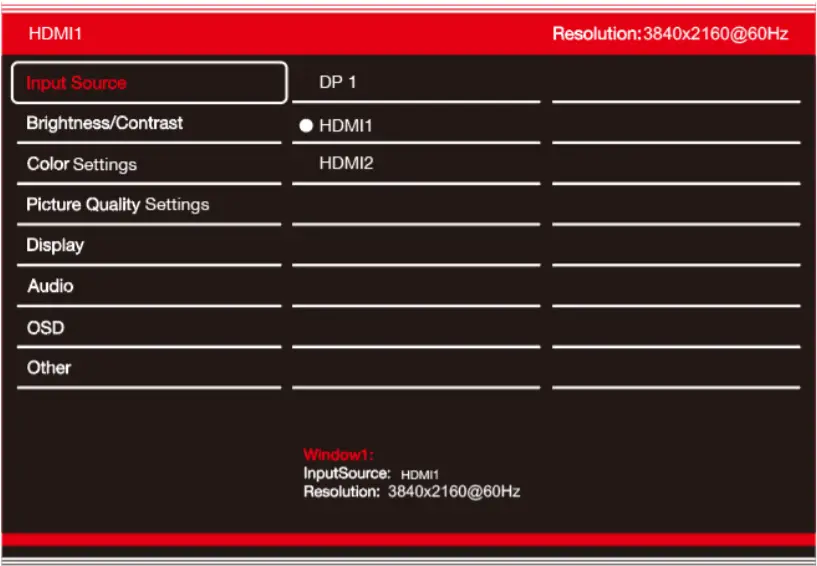

INPUT SOURCE
| Signal | Switch the signal input or select the source. DP, HDMI1, HDMI2 |
BRIGHTNESS/CONTRAST
| Brightness | Adjust the brightness of the display between 0 and 100. |
| Contrast | Adjust the contrast of the display between 0 and 100. |
| DCR | Turn the Dynamic Contrast Ratio Feature On or Off. |

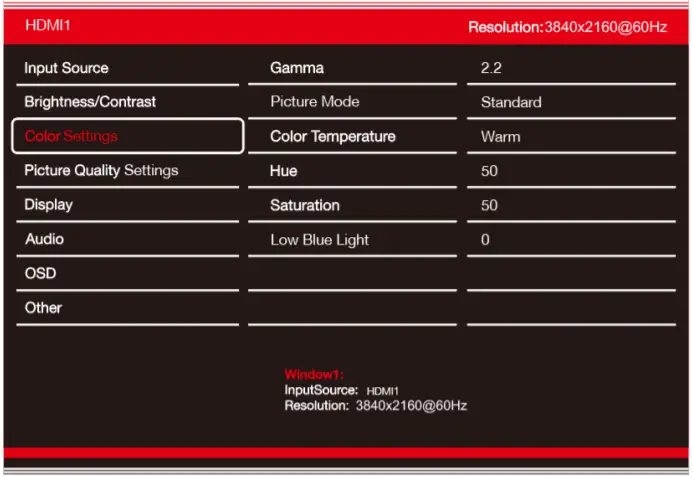

COLOR SETTINGS
| Gamma | Change the Gamma value for the display between 2.0/ 2.2/ 2.4. |
| Picture Mode | Change the picture mode between Standard, Photo, Movie, Game, FPS, and RTS |
| Colour Temperature | Change the display Color Temperature value to 7500K,6500K,9300K, or User. |
| Low Blue Light | Change the blue light emitted by the display between0 and 100. |
| Hue | Change the Hue value between 0 and 100. |
| Saturation | Change the Saturation of the display between 0 and 100. |

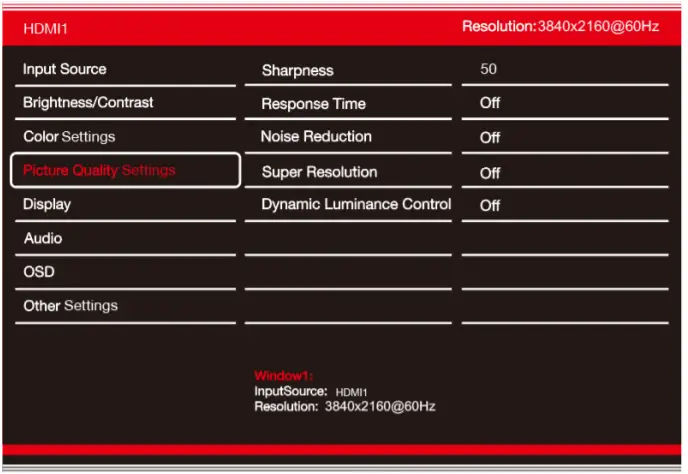

PICTURE QUALITY SETTINGS
| Sharpness | Change the display Sharpness between 0 and 100. |
| Response Time | Turn the Response Overdrive feature between Off, High, Middle of low |
| Noise Reduction | Adjust the level of Noise Reduction between Low, Middle, High, or Off. |
| Super Resolution | Change the Super Resolution value Low, Middle, High, or Off. |
| Dynamic Luminance Control | Turn the Dynamic Luminance Control Feature On or Off. |

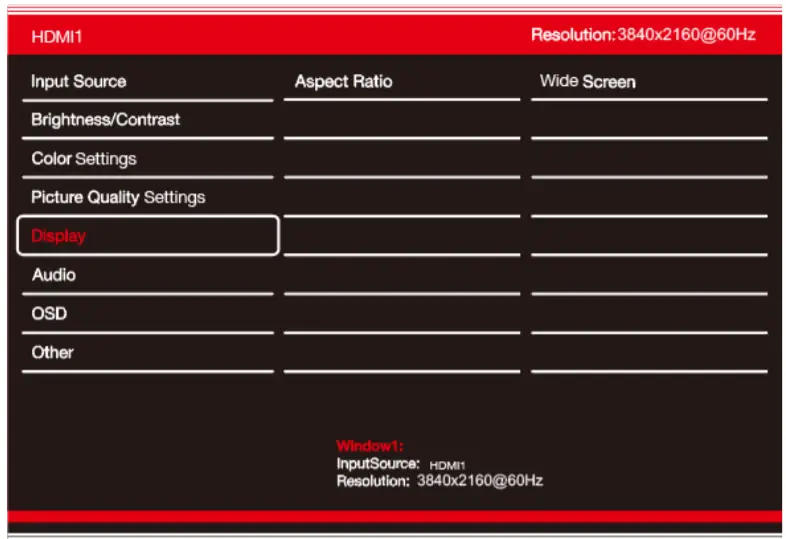

DISPLAY
| Aspect Ratio | Change the image aspect ratio to Wide-Screen. 4:3 Auto. 1:1 |

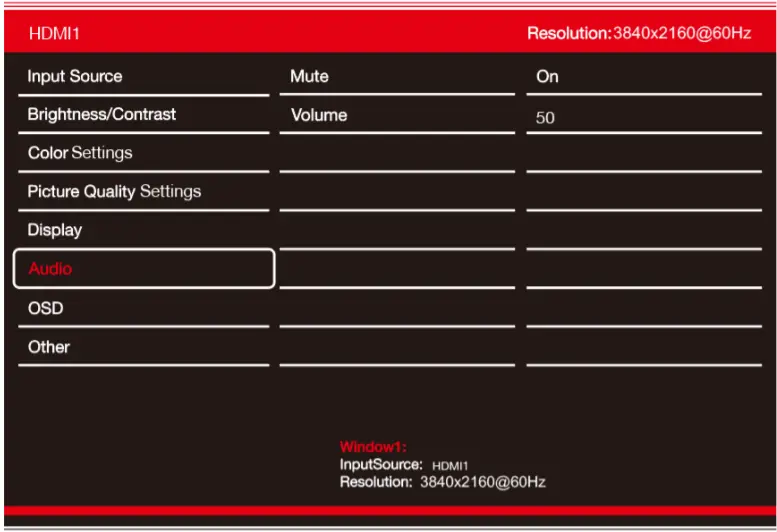

AUDIO
| Mute | Turn On and off to mute and unmute the audio output. |
| Volume | Adjust the output volume between 0 and 100. |

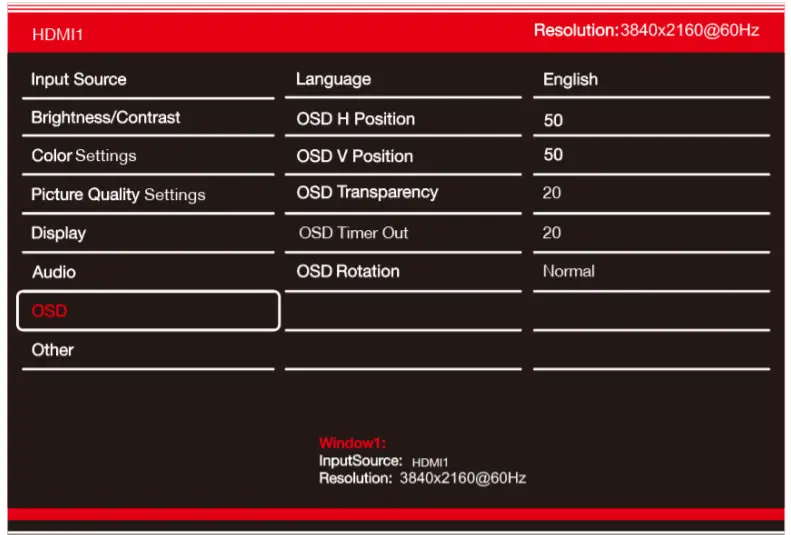

OSD
| Language | Change the OSD Menu display language between English, Chinese, Korean, Russian, Spanish, Japanese and French. |
| OSD H Position | Change the horizontal position of the OSD Menu. |
| OSD V Position | Change the vertical position of the OSD Menu. |
| OSD Transparency | Change the transparency value of the OSD Menu between 0 and 100. |
| OSD Time Out | Change how long the OSD Menu is on before it automatically exits. |
| OSD Rotation: | Rotate the OSD Menu for ease of use on rotated screens. |

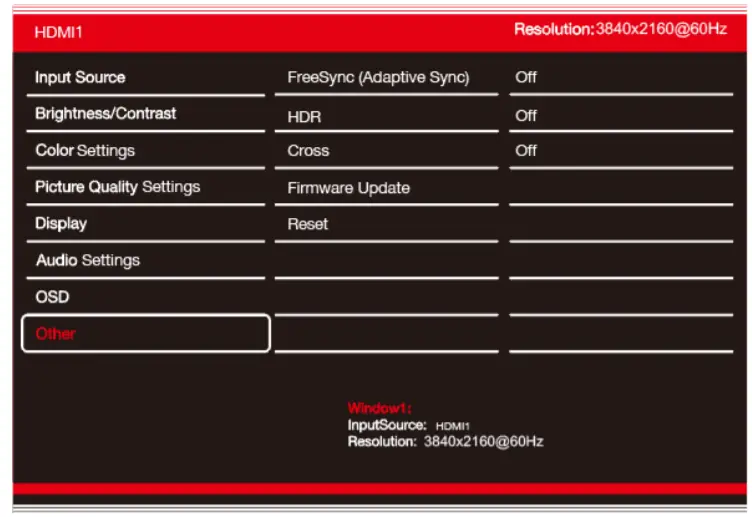

OTHER
| Free Sync Mode | Turn Free Sync On or Off. HDR: Turn HDR On (requires HDMI 2.0 input). |
| HDR | Turn HDR On or Off. |
| Cross | Turn Cross On or Off. |
| Firmware Update | Update the monitor firmware with proper firmware Using the USB port. |
| Reset | Restore factory default setting. |
SPECIFICATION
eiQ-274KMB-HDR | |
| Panel Type | 27” (16:9) LED Backlit Monitor |
| Case Type | Plastic |
| Best Resolution | 3840(H)x2160(V)@60Hz |
| Active Display Area | 596.736 (H) x 335.664 (V) |
| Pixel Pitch | 0.1554 (H) x 0.554 (V) |
| Contrast Ratio | 1000:1 Typical |
| Brightness | 300 cd/m² |
| Response Time | 14ms (GTG) |
| Viewing Angle | 178⁰ / 178⁰ CR≥10 |
| Display Colours | 1.07B( 8-bit) |
| Video Compatibility | Multi-Standard for NTSC / PAL |
| Aspect Ratio | 16:9 |
| Speaker Multimedia Speakers | 2x3W |
| Sound Demodulation | Stereo. Audio |
| Operating Humidity | 20%-70% |
| Operating Temperature | -10 to 50℃ |
| IN/OUT INTERFACE | |
| Video Interface | HDMIx2, DPx1, USBx1 |
| Audio Interface | Audio out x1 |
| Safety & EMC Certification | CE/FCC/ROHS |
| Stand Type | Desktop |
| Button Position | Right Hand Side |
| Power Input | DC12V 5A |
| Power Consumption | 47W |
TROUBLESHOOTING
Problem | Solution |
| No power | Insert the plug securely into the power outlet. |
| No picture | Ensure that the equipment is connected properly. |
| Ensure the correct input is selected. | |
| Buttons on the monitor don’t do anything | Disconnect the power plug and then reconnect it. (The unit may not be operating properly due to lightning, static, or other factors.) |
| Noise or other interference | Electronic equipment near the unit may be causing interference. Relocate the unit or move the equipment. |
ENVIRONMENTAL PROTECTION
 | Recycling facilities are now available for all customers at which you can deposit your old electrical products. Customers will be able to take any old electrical equipment to participating civic amenity sites run by their local councils. Please remember that this equipment will be further handled during the recycling process, so please be considerate when depositing your equipment. Please contact the local council for details of your local household waste recycling centers |
electriQ UK SUPPORT
www.electriQ.co.uk/support
If the unit fails to operate call: 0871 620 1057 or complete the online form
Office hours: 9 AM – 5 PM Monday to Friday
www.electriQ.co.uk
Unit J6, Lowfields Business Park
Lowfields Way, Elland
West Yorkshire, HX5 9DA
