Dji Mavic 2 Enterprise Advanced Aircraft User Guide

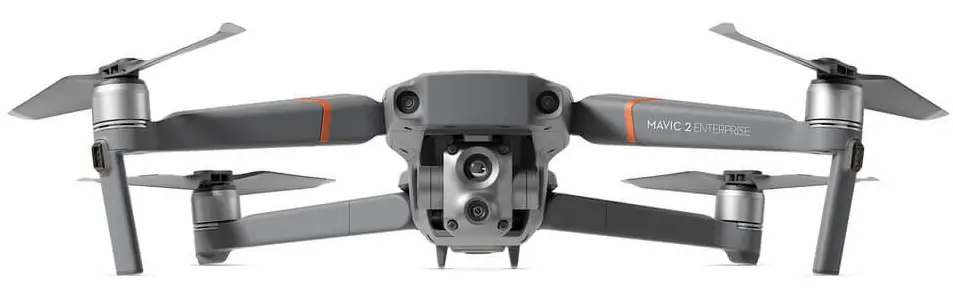

dji Mavic 2 Enterprise Advanced Aircraft

Aircraft

 Takeoff Weight (Without Accessories)

•  909g

 Max Takeoff Weight

•  1100g

 Dimensions (L×W×H)

•  Folded: 214×91×84mm
• Unfolded: 322×242×84mm
• Unfolded+Spotlight: 322×242×114mm
• Unfolded+Beacon: 322×242×101mm
• Unfolded+Speaker: 322×242×140mm
• Unfolded+RTK Module: 322x242x125mm

 Diagonal Distance

•  354 mm

 Max Ascent Speed

•  6 m/s (S-mode)
• 5 m/s (P-mode)
• 4 m/s (S-mode with accessories)
• 4 m/s (P-mode with accessories)

 Max Descent Speed

•  Descend Vertically
• 5 m/s (S-mode)
• 4 m/s (P-mode)
• Tilt
• 7 m/s (S-mode)
• 4 m/s (P-mode)

 Max Speed

•  72 kph (S-mode, without wind)
• 50 kph (P-mode, without wind)

 Max Service Ceiling Above Sea Level

•  6000 m

 Max Flight Time

•  31 min (measured while flying at 25 kph in windless conditions)
• 28 min (RTK module attached)
• 29 min (with beacon turned on)
• 30 min (with beacon turned off)
• 24 min (with spotlight turned on)
• 28 min (with spotlight turned off)
• 27 min (with speaker turned on)
• 28 min (with speaker turned off)

 Max Wind Speed Resistance

•  10 m/s (scale 5)

 Max Tilt Angle

•  35°(S-mode, with remote controller)
• 25°(P-mode)

 Max Angular Velocity

•  200°/s (S-mode)
• 100°/s (P-mode)

 Operating Temperature

•  -10° to 40° C

 GNSS

•  GPS+GLONASS

 Hovering Accuracy Range

•  Vertical:
• ± 0.1 m (with RTK)
• ± 0.1 m (with Vision Positioning)
• ± 0.5 m (with GPS Positioning)
• Horizontal:
• ± 0.1 m (with RTK)
• ± 0.3 m (with Vision Positioning)
• ± 1.5 m (with GPS Positioning)

 Operating Frequency

•  2.400-2.4835 GHz;
• 5.725-5.850 GHz

 Transmitter Power (EIRP)

•  2.400 – 2.4835 GHz
• FCC: ≤26 dBm；
• CE: ≤20 dBm；
• SRRC: ≤20 dBm;
• MIC: ≤20 dBm
• 5.725 – 5.850 GHz
• FCC: ≤26 dBm;
• CE: ≤14 dBm;
• SRRC: ≤26 dBm

 Internal Storage

•  24 GB

M2EA Thermal Camera

 Sensor

•  Uncooled VOx Microbolometer

 Focal Length

•  Approx. 9mm
• 35 mm format equivalent: Approx. 38mm
•  Sensor Resolution
•  640×512 @30Hz

 Accuracy of Thermal Temperature

•  Measurement: ±2℃ or ±2%, whichever is greater.

 Scene Range

•  -40 °C to 150 °C (High Gain)
• 40 °C to 550 °C (Low Gain)

 Digital Zoom

•  16 ×

 Pixel Pitch

•  12 μm

 Spectral Band

•  8-14 μm

 Photo Format

•  R-JPEG

 Video Format

•  MP4

 Metering Method

•  Spot Meter, Area Measurement

 FFC

•  Auto/Manual

M2EA Visual Camera

 Sensor

•  1/2” CMOS, Effective Pixels: 48 M

 Lens

•  FOV: 84°
• 35 mm format equivalent: 24 mm
• Aperture: f/2.8
• Focus: 1 m to ∞

 ISO Range

•  Video: 100-12800 (auto)
• photos: 100-1600 (auto)

 Digital Zoom

•  32×

 Max Image Size

•  8000×6000

 Still Photography Modes

•  Single shot interval: 2/3/5/7/10/15/20/30/60 s
• Panorama: Sphere

 Video Resolution

•  3840×2160@30fps
• 1920×1080@30fps

 Photo Format

•  JPEG

 Video Format

•  MP4

Gimbal

 Mechanical Range

•  Tilt: -135°- +45°
• Pan: -100°- +100°

 Controllable Range

•  Tilt: -90°- +30°
• Pan: -75°- +75°

 Stabilization

•  3-axis (tilt, roll, pan)

 Max control speed

•  120°/s

 Angular Vibration Range

•  ±0.005°

Sensing System

 Sensing System

•  Omnidirectional Obstacle Sensing[2]

 Forward

•  Precision Measurement Range: 0.5 – 20 m
• Detectable Range: 20 – 40 m
• Effective Sensing Speed: ≤ 14m/s
• FOV: Horizontal: 40°, Vertical: 70°

Backward

•  Precision Measurement Range: 0.5 – 16 m
• Detectable Range: 16 – 32 m
• Effective Sensing Speed: ≤ 12m/s
• FOV: Horizontal: 60°, Vertical: 77°

Upward

•  Precision Measurement Range: 0.1-8 m

 Downward

•  Precision Measurement Range: 0.5 -11m
• Detectable Range: 11-22 m

 Sides

•  Precision Measurement Range: 0.5 – 10 m
• Effective Sensing Speed: ≤ 8m/s
• FOV: Horizontal: 80°, Vertical: 65°

 Operating Environment

•  Forward, Backward and Sides:
• Surface with clear pattern and adequate lighting
• (lux > 15)
• Upward: Detects diffuse reflective surfaces(>20%) (walls, trees, people, etc.)
• Downward: Surface with clear pattern and adequate lighting
• (lux > 15)Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

Remote Controller

 Operating Frequency

•  2.400 – 2.483 GHz;
• .725 – 5.850 GHz

 Max Transmission Distance (unobstructed, free of interference)

•  2.400 – 2.483 GHz; 5.725 – 5.850 GHz
• FCC: 10000m
• CE: 6000m
• SRRC: 6000m
• MIC: 6000m

 Transmission Power (EIRP)

•  2.400-2.4835 GHz：
• 25.5 dBm（FCC）；18.5 dBm（CE）19 dBm（SRRC）；18.5 dBm（MIC）
• 5.725-5.850 GHz：
• 25.5 dBm（FCC）；12.5 dBm（CE）18.5 dBm（SRRC）

 Storage

•  ROM 16GB + MicroSD Extensible Storage

 Video Output Port

•  HDMI Port

 Built-in Battery

•  Type: 18650 Li-Po （5000 mAh @ 7.2 V）
• Charging Mode: Charged with USB charger at 12V/2A
• Rated Power 15 W
• Charging time: 2 hr (with a USB charger at 12V/2A)

 Operating Current/Voltage

•  1800mA ⎓ 3.83V

 Battery Life

•  Built-in Battery Approx. 2.5 hr

 Operating Temperature

•  -20° C – 40° C

 RC Size

• Folded without Joystick: 177.5 x 121.3 x 40 mm
• Unfolded with Joystick: 177.5 x 181 x 60 mm

Weight

• Approx. 630 g

Intelligent Flight Battery

• Main Link: 17.6V ⎓ 3.41A or 17.0V⎓3.53A
• USB: 5.0 V ⎓ 2.0 A

Intelligent Flight Battery

Capacity

• 3850 mAh

Voltage

• 15.4V

Max Charging Voltage

• 17.6V

Battery Type

• LiPo

Energy

• 59.29 Wh

Net Weight

• 297g

Charging Temperature

• 5℃ – 40℃

Operating Temperature Range:

• -10℃ – 40℃

Heating Methods:

• Manual Heating, Auto Heating

Heating Temperature

• -20℃ – 6℃

Heating duration

• 500s (Max)

Heating Power

• 5W (Max)

Charging Time

• 90 mins

Max Charging Power

• 80W

RTK Module

Dimensions

• 69 mm x 69 mm x 59mm

Connections

• Micro USB Port
• RTK Positioning Precision
• In RTK FIX
• 1cm+1ppm (Horizontal)
• 1.5cm+1 ppm (Vertical)

M2EA Spotlight

Dimensions

• 68×60×41mm

Connections

• Micro USB Port

Operating Range

• 30 m

Power

• Max 26W

Illuminance

• FOV17°, Max: 11lux @ 30m Straight

M2EA Beacon

Dimensions

• 68mm×40mm×27.8mm

Connections

• Micro USB Port

Power

• Avg. 1.6W

Controllable Range

• 5000 m

Light intensity

• Min Angle: 55 cd;
• Light intensity: 157cd

M2EA Speaker

Dimensions

• 68×55×65 mm

Connections

• Micro USB Port

Power

• Max 10W

Decibel

• 100 db @ 1 meter distance

Max Bitrate

• 16kbps

SD Cards

Supported SD Cards

• • Micro SD™
    • Supports a microSD with capacity of up to 128 GB.
    • A UHS-I Speed Grade 3 rating microSD card is required.

APP / Live View

Video Transmission System

• OcuSync 2.0

Mobile App

• DJI PILOT(Android Version)

Live View Quality

• Remote Controller:
• 720p@30fps / 1080p@30fps

Max Live View Bitrate

• 40Mbps

Latency

• 120 – 130 ms

Required Operating System

• ios 10.0 or later Android 5.0 or later

Others

Footnotes

[1] The accuracy of the temperature measurement is measured at a distance of 5m against a blackbody with an emissivity of 0.95 under ideal conditions. The actual accuracy is also affected by various environmental factors such as temperature and humidity, and needs to be corrected by post-processing software. Under ideal conditions, the temperature accuracy can reach ±2℃ or ±2%, whichever is greater. [2] Omnidirectional Obstacle Sensing includes left/right, up/down, and forward/backward obstacle sensing. Sensing for left/right directions is only available in Tripod Mode. Omnidirectional Obstacle Sensing does not fully cover the circumference of a 360-degree arc. And left and right obstacle sensing system only works in specific modes and environments. DJI warranty does not cover any loss caused by crashing when flying left or right, even when Tripod mode is activated. Please be aware of your surroundings and App notifications when operating the Mavic 2 to ensure safety.
