Mavic 3E Commercial Drone
User Guide
Aircraft
DJI™ MAVIC™ 3E/3T features both an infrared sensing system and upward, downward, and horizontal unidirectional vision systems*, allowing for hovering and flying indoors as well as outdoors and for automatic Return to Home while avoiding obstacles in all directions. With a precise three-axis gimbal to stabilize the high-performance multi-camera payload, the DJI PILOT™ 2 app can be used to view in real-time from the cameras and take photos and videos. Built-in DJI Air Sense detects nearby aircraft in the surrounding airspace to ensure safety, and the beacon helps identify the aircraft during flight. The aircraft is equipped with a PSDK port to connect compatible accessories that are used to adapt to different security, patrol inspection, and mapping scenarios.

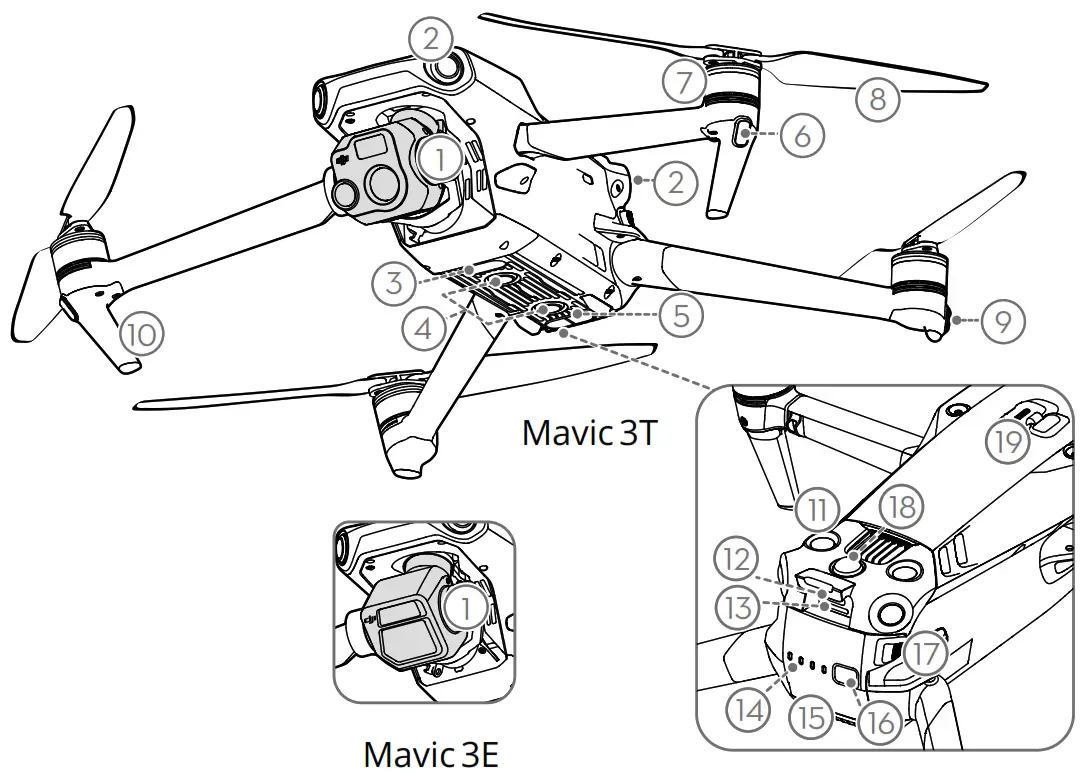

| 1. Gimbal and Camera** 2. Horizontal Unidirectional Vision System 3. Auxiliary Bottom Light 4. Downward Vision System 5. Infrared Sensing System 6. Front LEDs 7. Motors 8. Propellers 9. Aircraft Status Indicators | 10. Landing Gears (built-in antennas) 11. Upward Vision System 12. USB-C Port 13. micro SD Card Slot 14. Battery Level LEDs 15. Intelligent Flight Battery 16. Power Button 17. Battery Buckles 18. Beacon 19. PSDK Port |
* The vision and infrared sensing systems are affected by the surrounding conditions. Read the User Manual for more information.
** The Mavic 3E and Mavic 3T are equipped with different cameras. Refer to the actual product purchased.
Remote Controller
The DJI RC Pro Enterprise remote controller features O3 Enterprise, the latest version of DJI’s signature OCUSYNC™ image transmission technology, and can transmit a live HD view from the camera of the aircraft at a distance of up to 15 km*. The remote controller has a wide range of aircraft and gimbal controls as well as customizable buttons. The built-in microphone allows recording voice and the 5.5-in high brightness 1000 cd/m² screen boasts a resolution of 1920×1080 pixels. Users can connect to the internet via Wi-Fi and the Android operating system comes with a variety of functions such as Bluetooth and GNSS.

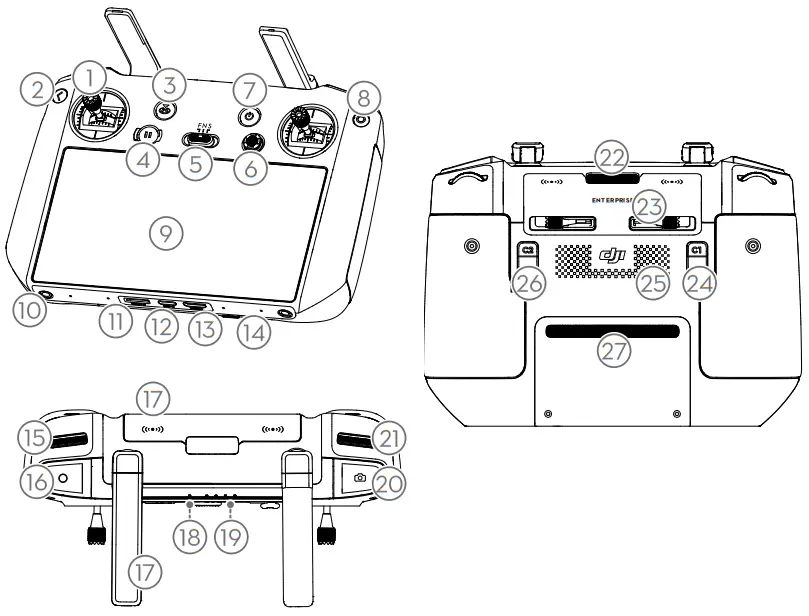

| 1. Control Sticks 2. Back/Function Button 3. RTH Button 4. Flight Pause Button 5. Flight Mode Switch 6. 5D Button 7. Power Button 8. Confirm Button 9. Touchscreen 10. M4 Screw Hole 11. microSD Card Slot 12. USB-C Port 13. Mini HDMI Port 14. Microphone | 15. Gimbal Dial 16. Record Button 17. Antennas 18. Status LED 19. Battery Level LEDs 20. Focus/Shutter Button 21. Camera Settings Dial 22. Air Vent 23. Control Sticks Storage Slot 24. Customizable C1 Button 25. Speaker 26. Customizable C2 Button 27. Air Intake |
* The remote controller can reach its maximum transmission distance (FCC) in a wide open area with no electromagnetic interference at an altitude of about 120 m (400 ft).
Watching the Tutorials
Scan the QR code or visit DJI official website to watch the tutorial videos.
https://www.dji.com/mavic-3-enterprise/video

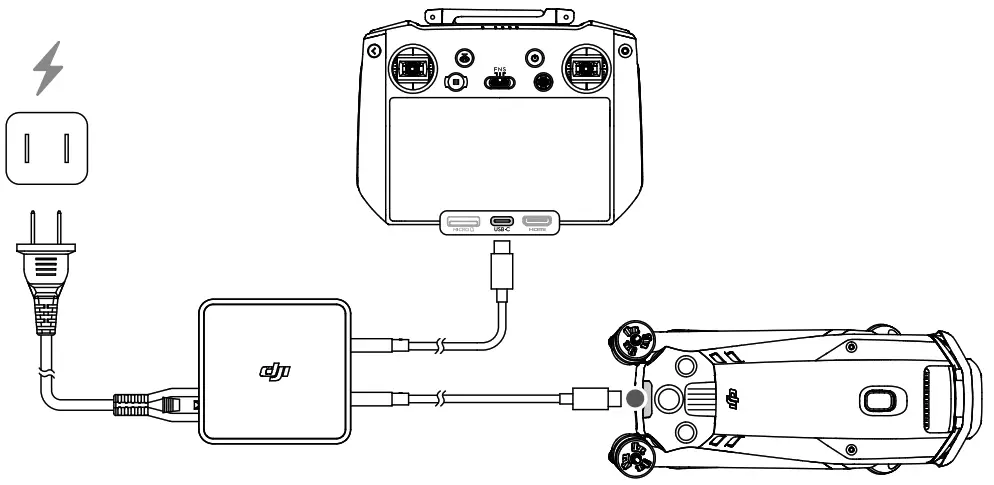

Charging the Battery
Charge to activate the Intelligent Flight Battery and the internal battery of the Remote Controller before using it for the first time.

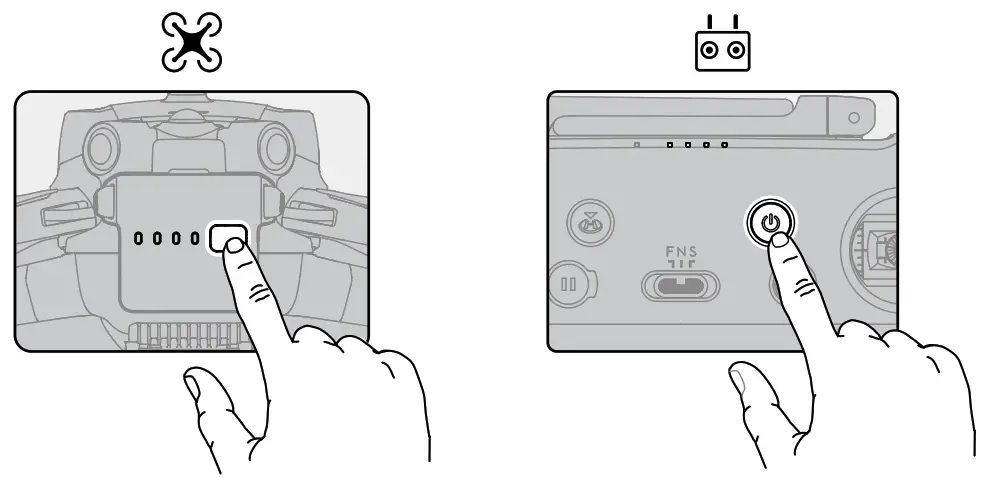

Check battery level: press once.
Power on/off: press, then press and hold.

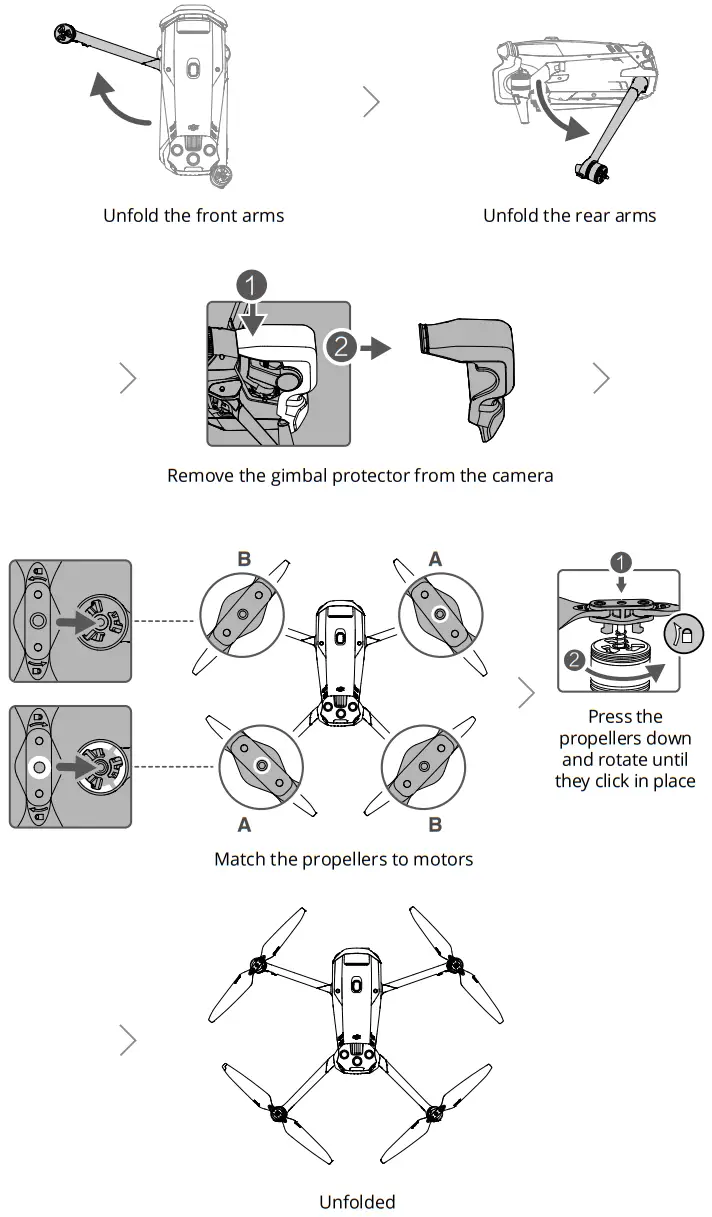

Preparing the Aircraft
Unfold the front arms before the rear arms. All arms and propellers must be unfolded before takeoff.

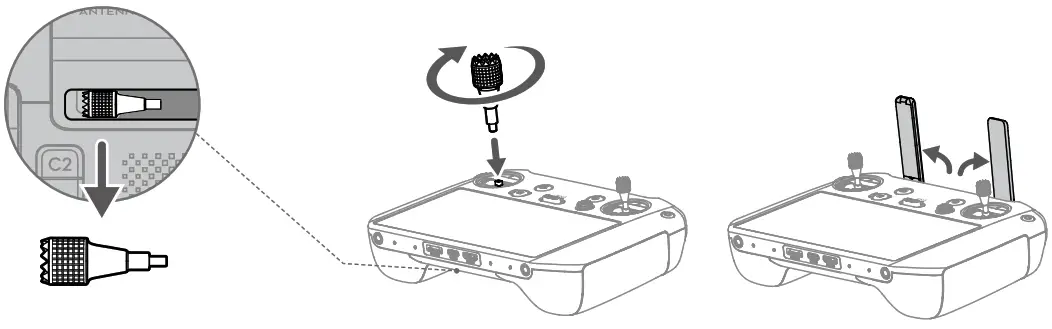

Preparing the Remote Controller
 | ||
| Remove the control sticks from the storage slots | Attach the control sticks and twist to secure | Unfold the antennas |

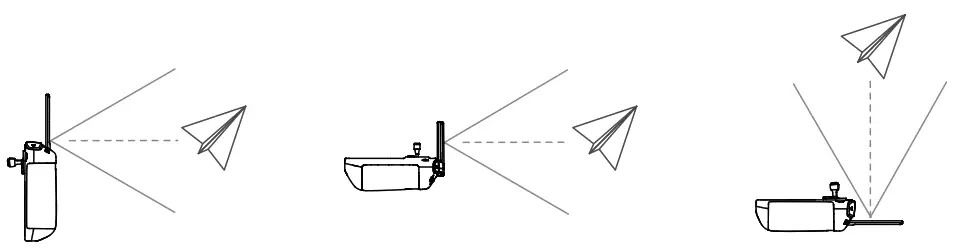

The optimal transmission range is where the antennas face the aircraft, with the angle between the antennas and the back of the remote controller being 180° or 270°.
- DO NOT operate other wireless devices at the same frequency as the remote controller, to avoid signal interference.
- A warning prompt appears in DJI Pilot 2 if the transmission signal is weak. Adjust the antennas to make sure that the aircraft is within the optimal transmission range.
Getting Ready for Takeoff
 | ||

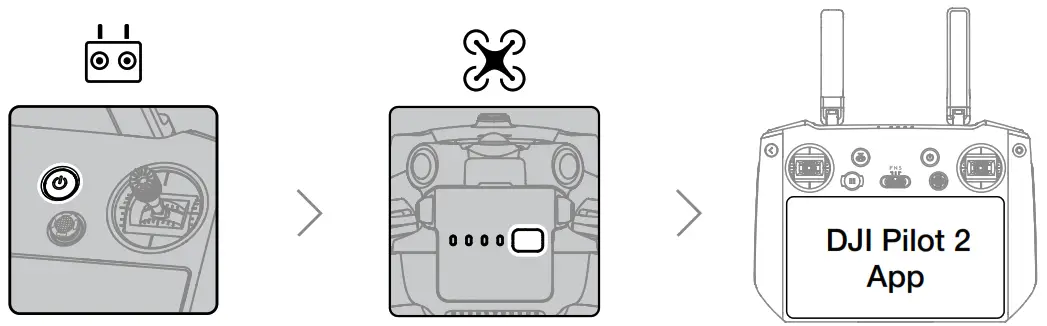

| Power on the remote controller | Power on the aircraft | Launch DJI Pilot 2 |
A DJI account and internet connection are required to activate the aircraft and the remote controller. Before activating the aircraft in DJI Pilot 2, power on the remote controller and follow the prompts to activate.
Flight
- Manual Takeoff/Landing

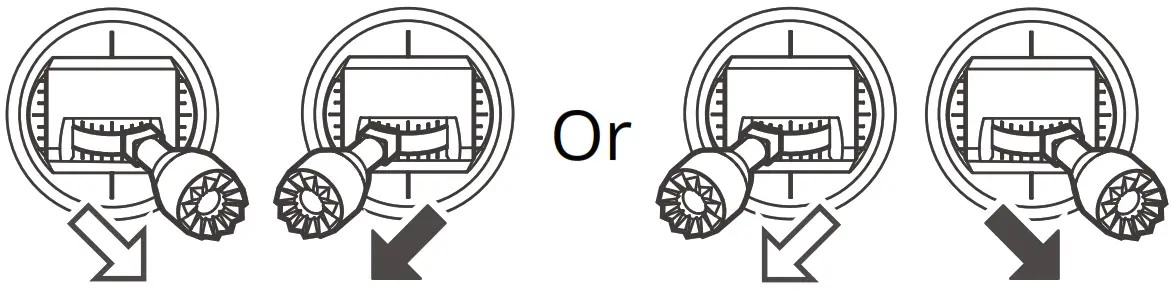

Start/Stop Motors: perform Combination Stick Command and hold for two seconds.

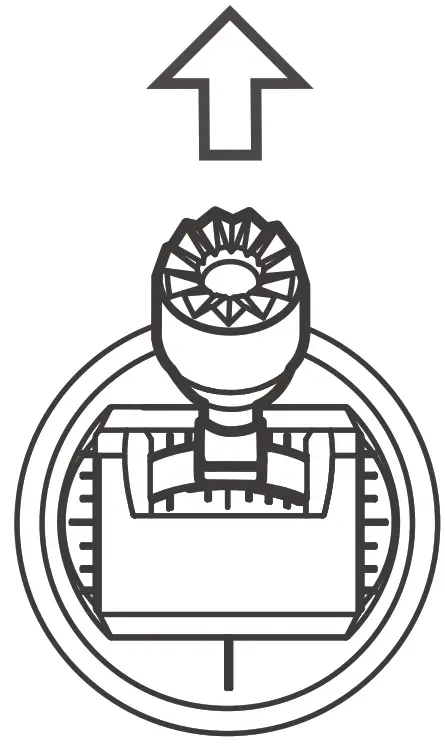

Takeoff: slowly push the left control stick (mode 2) up to take off.

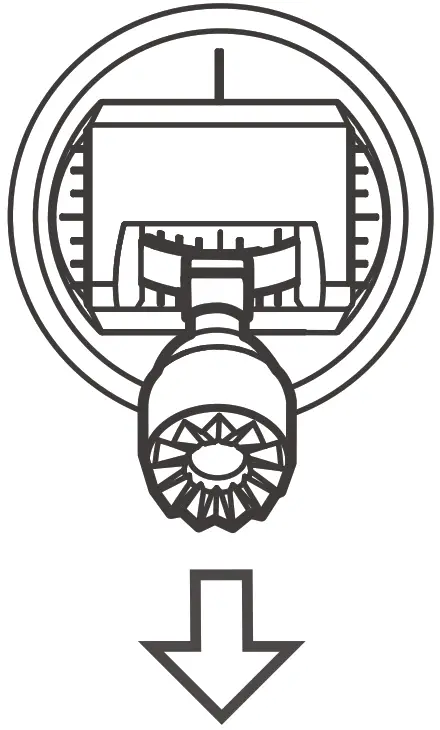

Landing: slowly push the left control stick (mode 2) down until the aircraft lands. Hold for three seconds to stop the motors.

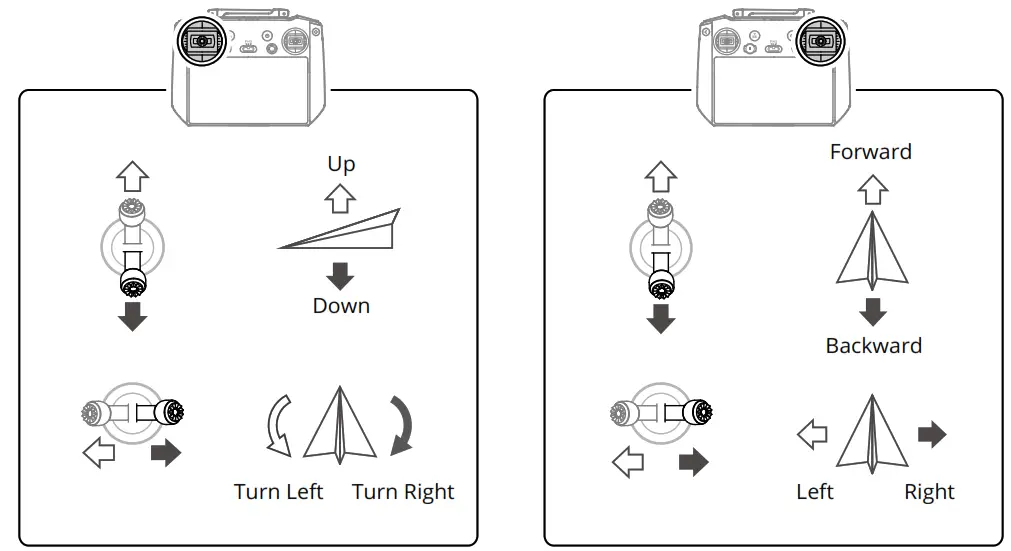

- Control Stick Mode
Takeoff: slowly push the left control stick (mode 2) up to take off.
Landing: slowly push the left control stick (mode 2) down until the aircraft lands. Hold for three seconds to stop the motors.
The default control stick mode is mode 2. The left control stick controls the altitude and heading of the aircraft, while the right control stick controls the forward, backward, and side-ward movements.
- Always set an appropriate RTH mode and RTH altitude before takeoff.
- Press the Flight Pause button for emergency braking during flight.
Specifications
Aircraft (Model: M3E/M3T)
| Takeoff Weight (with propellers) | 915 g (Mavic 3E), 920 g (Mavic 3T) |
| Max Takeoff Weight | 1050 g |
| Max Ascent Speed | 8 m/s (Sport mode) 6 m/s (Normal mode) |
| Max Descent Speed | 6 m/s (Sport mode) 6 m/s (Normal mode) |
| Max Horizontal Speed (near sea level, no wind) | 21 m/s (Sport mode), 19 m/s (Sport mode, EU), 15 m/s (Normal mode) |
| Max Service Ceiling Above Sea Level (without payload) | 6,000 m |
| Max Flight Time (without wind) | 45 mins |
| Max Hover Time (without wind) | 38 mins |
| Max Wind Speed Resistance | 12 m/s |
| Operating Temperature | -10° to 40° C (14° to 104° F) |
| GNSS | GPS + Galileo + BeiDou + GLONASS (GLONASS is supported only when RTK module is enabled) |
| Operating Frequency | 2.400-2.4835 GHz, 5.725-5.850 GHz* |
| Transmitter Power (EIRP) | 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC) |
| Interface | USB-C, microSD card slot, PSDK port |
| Gimbal | |
| Angular vibration range | ±0.007° |
| Controllable Rotating Range | Tilt: -90° to +35° |
| Wide Camera (Mavic 3E) | |
| Sensor | 4/3 CMOS; Effective pixels: 20 MP |
| Lens | FOV: 84° Format Equivalent: 24 mm Aperture: f/2.8-f/11 Focus: 1 m to ∞ (with auto focus) |
| Tele Camera (Mavic 3E/3T) | |
| Sensor | 1/2″ CMOS; Effective pixels: 12 MP |
| Lens | FOV: 15° Format Equivalent: 162 mm Aperture: f/4.4 Focus: 3 m to ∞ |
| Wide Camera (Mavic 3T) | |
| Sensor | 1/2″ CMOS; Effective pixels: 48 MP |
| Lens | FOV: 84° Format Equivalent: 24 mm Aperture: f/2.8 Focus: 1 m to ∞ |
| Thermal Camera (Mavic 3T) | |
| Thermal Image | Uncooled VOx Micrometeorite |
| Lens | DFOV: 61° Focal Length: 9.1 mm (equivalent: 40 mm) Aperture: f/1.0 Focus: 5 m to ∞ |
| Infrared Temperature Measurement Accuracy | ±2° C or ±2% (using the larger value) |
| Intelligent Flight Battery | |
| Capacity | 5000 mAh |
| Standard Voltage | 15.4 V |
| Max Charging Voltage | 17.6 V |
| Battery Type | LiPo 4S |
| Energy | 77 Wh |
| Weight | 335.5 g |
| Charging Temperature | 5° to 40° C (41° to 104° F) |
| Battery Charger | |
| Input | 100-240 V AC, 50-60 Hz, 2.5 A |
| Output | Max. 100 W (Total) When both ports are in use, the maximum output of one of the ports is 82 W. The charger will dynamically allocate the output of the two ports accordingly to the power load. |
Remote Controller (Model: RM510B)
| Weight | Approx. 680 g |
| Battery | Li-ion (5000 mAh @ 7.2 V) |
| Storage Capacity | ROM 64GB + expandable storage via microSD card |
| Operating Time | 3 hrs |
| Operating Temperature | -10° to 40° C (14° to 104° F) |
| Charging Temperature | 5° to 40° C (41° to 104° F) |
| GNSS | GPS + Galileo + GLONASS |
| O3 Enterprise | |
| Operating Frequency | 2.400-2.4835 GHz, 5.725-5.850 GHz* |
| Max Transmission Distance (Unobstructed, free of interference) | 15 km (FCC), 8 km (CE/SRRC/MIC) |
| Max Transmission Distance** (with interference) | Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC) Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC) Weak Interference (open landscape, abundant line of sight, few competing signals): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC) |
| Transmitter Power (EIRP) | 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <23 dBm (SRRC) |
| Wi-Fi | |
| Protocol | 802.11 a/b/g/n/ac/ax Support 2×2 MIMO Wi-Fi |
| Operating Frequency | 2.400-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz* |
| Transmitter Power (EIRP) | 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC) 5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE) |
| Bluetooth | |
| Protocol | Bluetooth 5.1 |
| Operating Frequency | 2.400-2.4835 GHz |
| Transmitter Power (EIRP) | <10 dBm |
* 5.8 GHz and 5.1 GHz frequencies are prohibited in some countries. In some countries, the 5.1 GHz frequency is only allowed for indoor use.
** The data is tested in an environment with no obstructions for a variety of typical interference intensity scenarios, without a guarantee of the actual flight distance, for reference only.
For more information, read the User Manual:
https://www.dji.com/mavic-3-enterprise
※ This content is subject to change without prior notice.
