User Guide
PR-41541-BAS
| 4.5 Fr. | 1 Lumen | 15 cm catheter length | .018 inch dia. spring-wire guide |

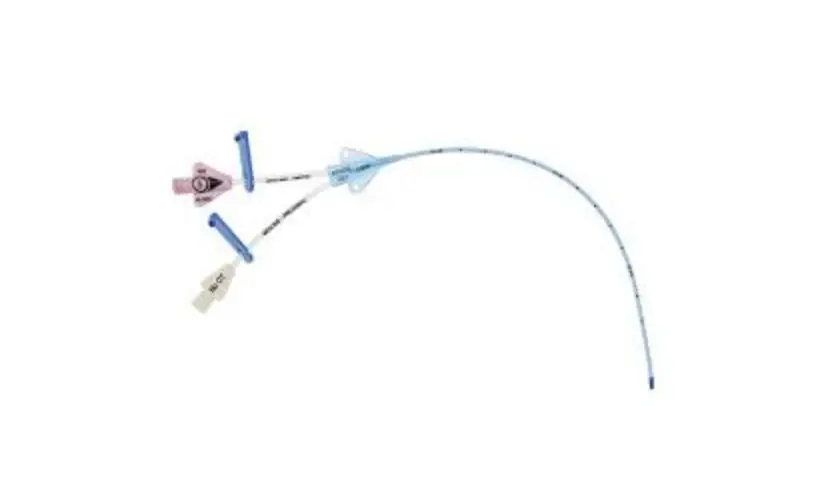

Pressure Injectable Arrowg+ard Blue Advance® One-Lumen Midline
Contents:
1: TaperFree® Catheter with Arrowg+ard Blue Advance™ Antimicrobial/Antithrombogenic Protection1: 4.5 Fr. (1.6 mm OD) x 15 cm, Pressure Injectable, Blue FlexTip®
1: GlideThrum Peel-Away Sheath: 4.5 Fr. x 2-3/4″ (7 cm) Radiopaque over 4.5 Fr. Dilator
1: Spring-Wire Guide, Nitinol, Marked: .018″ (0.46 mm) dia. x 17-3/4″ (45 cm) (Straight Soft Tip on One End – Straight Stiff Tip on Other)
1: Introducer Needle: Echogenic 21 Ga. x 2-3/4″ (7 cm) TW
1: Syringe: 10 mL Luer-Lock 1: Dust Cap: Non-Vented
1: SecondSite™ Adjustable Hub: Catheter Clamp
1: SecondSite™ Adjustable Hub: Fastener
1: SharpsAway® Disposal Cup
1: SharpsAway® II Locking Disposal Cup
1: Catheter Trimmer 1: Safety Scalpel: #11
1: Patient ID Card
1: Patient Information Booklet
1: Paper Tape Measure
1: Dressing: STATLOCK®2 Catheter Stabilization Device
¹Licensed under US Patent No. 7,329,412.
²A registered trademark of C. R. Bard, Inc.
Rx only
Warning: Read all package insert warnings, precautions, and instructions prior to use. Failure to do so may result in severe patient injury or death.
California Prop. 65
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
Not made with natural rubber latex.
Store below 25°C (77°F). Avoid excessive heat above 30°C (86°F).
Fluid path components are non-pyrogenic.
Contraindications: The Arrowg+ard Blue Advance Pressure Injectable Midline is contraindicated for patients with known hypersensitivity to chlorhexidine.
 | Priming Volume* (mL) | Gravity Flow Rate† (mL/hr) | Pump Flow Rate†† (mL/hr) | MAX Pressure Injection Flow Rate** (mL/sec) |
| Distal(17Ga.) | 0.31 | 2009 | 8820 | 5 |
* Priming volumes are approximate and are done without accessories.
† Flow rate values are approximate and are determined using deionized water at 100 cm head height.
††Pump flow rates are determined at a maximum pump pressure of 10 PSIG and represent approximate flow capabilities.
** Pressure injection flow rates are determined using media of 11.8 centipoises (cP) viscosity, with 152 cm administration set tubing.
Arrow International LLC
A subsidiary of Teleflex Incorporated
3015 Carrington Mill Blvd.
Morrisville, NC 27560 USA
www.teleflex.com
LBL057532 R00 (2021-11)
