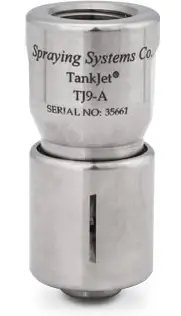

Spraying Systems 18250A TankJet Tank Cleaning Nozzle
GENERAL SAFETY INFORMATION
- Be cautious of any sharp threads
- Do not operate the nozzle (when it’s in the open) outside the container
- Do not attempt to touch the nozzle during operation rotation
- Handle all chemicals according to the corresponding MSDS
- WARNING: DO NOT USE TO SPRAY FLAMMABLE LIQUIDS –SUCH USE COULD RESULT IN FIRE OR EXPLOSION CAUSING BODILY INJURY OR DEATH
TECHNICAL SPECIFICATIONS
| Specifications | |
| Aplication: | Cleaning the inside of containers such as drums, barrels and tanks |
| Features: | The nozzles will fit through the 2 7/23” (60 mm) diameter hole. Reactionary force produced by the three flat sprays rotates the spray head providing 360° coverage. The pres- sure to the nozzle controls the spray head rotational speed |
| Temperature: | Maximum operating temperature is 360° F (170° C) |
| Pressure: | Maximum operating pressure is 100 psi (7 bar) |
| Material: | 316 stainless steel |
| Weight: | 1.5 lb. (0.68 kg.) |
| Parts List: | PL 18250A |
INSTALLATION
- The 18250A nozzle can be installed in any orientation
- Use teflon tape when installing the 18250A
- Screw the nozzle onto a 3/4” NPT pipe to 150 in/lbs.

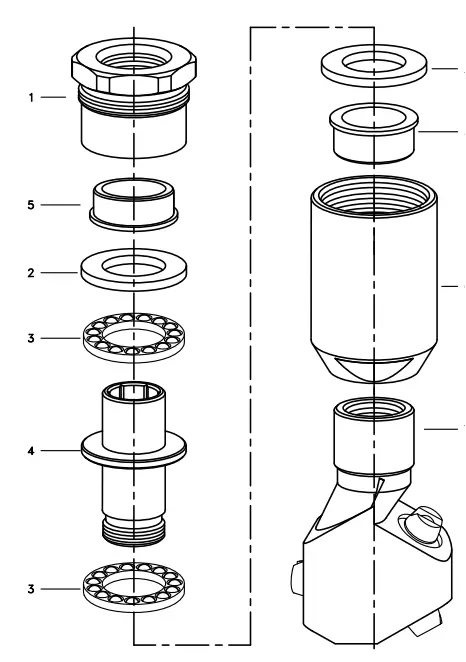

PARTS LIST
| Item | Part No. | Description |
|
1 | CP46951 – 316SS | Inlet cap, type 316 stainless steel for #18250A – 316SS_ _ – 316SS |
| CP46951 – 316SS | Inlet cap, type 316 stainless steel for #B18250A – 316SS_ _ – 316SS | |
| 2 | CP46939 – 316HSS | Upper & lower race, type 316 stainless steel Kolsterized (2 req’d) for #_18250A_ _ – 316SS_ _ – 316SS |
|
3 |
46952 | Bearing retainer assembly: retainer, polyphenylene sulfide and 3/16“ ball, type 316 stainless steel Kolsterized (2 req’d) for #_18250A_ _ – 316SS_ _ – 316SS |
| 4 | CP46938 – 316SS | Body connector, type 316SS stainless steel |
| 5 | CP46936 – SSTEF | Sleeve, 50% stainless steel filled teflon for #_18250A – 316SS_ _ – 316SS |
| 6 | CP46937 – 316SS | Retainer, type 316SS stainless steel |
|
7 | CP18255 – 21 – SSPV | Body & tip sub-assembly, type 316 stainless steel for #_18250A – 316SS21 – 316SS |
| CP18255 – 45 – SSPV | Body & tip sub-assembly, type 316 stainless steel for #_18250A – 316SS45 – 316SS |
EC DECLARATION OF INCORPORATION
Spraying Systems Co.®
North Avenue and Schmale Road, P.O. Box 7900,
Wheaton, IL 60187-7901
Tel: 1.800.95.SPRAY Intl. Tel: 1.630.665.5000
Fax: 1.888.95.SPRAY Intl. Fax: 1.630.260.0842
www.spray.com
in accordance with the following directive(s):
2006/42/EC The machinery directive
hereby declare that:
Equipment Tank Cleaning Devices
Model number 18250A, 21400A, 23240
is in conformity with the applicable requirements of the following documents:
Ref. no. Title Edition/ Date
- EN ISO 4413 Hydraulic fluid power — General rules and safety requirements for systems and their components 2010
- EN 12100 Safety of machinery – General principles for design risk assessment and risk reduction 2010
- BS EN ISO 14121-1 Safety of machinery – Risk assessment Part 1: Principles 2007
- ASME- B31.1 ASME Code for Pressure Piping 2020
I hereby declare that the equipment named above has been designed to comply with the relevant sections of the above-referenced specifications. The unit complies with all applicable Essential Requirements of the Directives.
