Spraying Systems 23240 TankJet Tank Cleaning Nozzle
INSTALLATION
Specifications:
Application:
Cleaning the inside of containers such as drums, barrels and tanks
Features:
The nozzles will fit through the 1 1/32” (260mm) diameter hole. Two flat spray orifices are position to produce the self-rotating force and provide side sprays. In model 23240-3 a top orifice is added resulting in a full spherical spray coverage
Temperature:
Maximum operating temperature is 350° F (177° C)
Pressure:
Maximum operating pressure is 200 PSI (13.8 BAR)
Material:
316 Stainless Steel
Weight:
1.5 lb. (0.23 kg)
Parts List:
PL 23240
Installation:
- The 23240 nozzles can be installed in any orientation
- Use PTFE on tape when installing the 23240
- Screw the nozzle onto a 3/4” NPT pipe to 150 in/lbs.
Precautions:
- Be cautious of any sharp threads
- Do not operate the nozzle outside of container
- Do not attempt to touch the nozzle while rotating
- Handle all chemicals according to the corresponding MSDS
WARNING: DO NOT USE TO SPRAY FLAMMABLE LIQUIDS–SUCH USE COULD RESULT IN FIRE OR EXPLOSION CAUSING BODILY INJURY OR DEATH

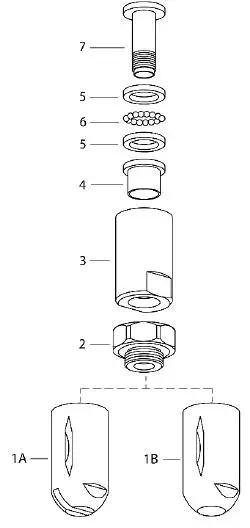

Parts List:
| ITEM | PART NO. | DESCRIPTION |
| 1A | 23247 – 3 – 5.7 – 316SS | Tip, type 316 stainless steel for #23240 – 3 – 5.7_ _ |
| 23247 – 3 – 7 – 316SS | Tip, type 316 stainless steel for #23240 – 3 – 7_ _ | |
| 23247 – 3 – 10 – 316SS | Tip, type 316 stainless steel for #23240 – 3 – 10_ _ | |
| 1B | 23247 – 2 – 5 – 316SS | Tip, type 316 stainless steel for #23240 – 3 – 5_ _ |
| 23247 – 2 – 8 – 316SS | Tip, type 316 stainless steel for #23240 – 3 – 8_ _ | |
| 2 | CP23243 – 316SS | Tip adapter, type 316 Stainless Steel |
| 3 | CP23241 – 316SS | Retainer, type 316 Stainless Steel |
| 4 | CP23244 – SSTEF | Sleeve, 50% stainless steel filled Teflon (standard) |
| CP23244 – TEF | Sleeve, Teflon (optional) | |
| 5 | CP23245 – 316SS | Race, type 316SS stainless steel (2 req’d) |
| 6 | CP7671 – 1 – 1/8 – 316SS | 1/8 ball, type 316 stainless steel (14 req’d) |
| 7 | CP23242 – 316SS | Body connector, type 316 stainless steel |
