IAN-384923 PARTY TABLE WITH ICE BUCKET
User Manual

PARTY TABLE WITH ICE BUCKET
IAN 384923_2107 www.lidl-service.com

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

List of pictograms used

	Read the instructions!
	Observe the warning and safety instructions!
	Danger to life and risk of accident for infants and children!
	Serious to fatal injuries
	The load on the product must not exceed 50 kg.

Party table with ice bucket

Contents hide

1 Introduction

2 Technical data

3 Safety instructions

9 Documents / Resources

10 Related Posts

Introduction

Congratulations! You have purchased a high-quality product. Familiarise yourself with the product prior to assembly. Carefully read the following installation instructions and safety advice. Only use the product as described and for its indicated purpose. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is suitable as a table with passive cooling (using ice cubes or ice packs) and is intended for outdoor use. Ice packs are not included. Any use other than previously described or any product modification is prohibited and can result in injuries and/or product damage. The manufacturer is not liable for damage caused by improper use. The product is not intended for commercial use.

Scope of delivery
1 Party table with a built-In ice bucket
4 Feet with screws
1 Set of assembly instructions

Technical data

Dimensions: closed: approx. 49.5 x 49.5 x 57 cm
extended: approx. 84.5 cm
Weight: approx. 5.700 g
Max. load: 50 kg

Safety instructions

PLEASE KEEP ALL SAFETY INSTRUCTIONS AND INSTRUCTIONS FOR USE FOR FUTURE REFERENCE!

DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. Suffocation hazard.

Keep children away from the area you are working in during assembly.
This product must be assembled by competent persons.
Be sure to place the product on a solid surface at floor level.

CAUTION! Do not leave children unattended! The product is not a climbing frame or toy! Make sure that nobody climbs or leans on the product, particularly children. The product may otherwise become unbalanced and tip over. This may result in injury and/ or damage.

CAUTION! Do not lift or move the product when weighed down in any way.

Keep children away from the product, particularly with the cover raised. A falling cover can cause serious injuries to a child‘s head or hands. Watch your own hands.
Keep animals away from the product. Out of control animals may tip the product over.
Do not stand or sit on the product. The product could tip over. Injuries and property damage could result. max. 50 kg
The load on the product must not exceed 50 kg. Failure to observe this advice may result in injury and/or product damage.

Assembly

Note: Assemble the product on an adequately sized, scratch-resistant surface. If necessary, cover the ground to prevent scratches.

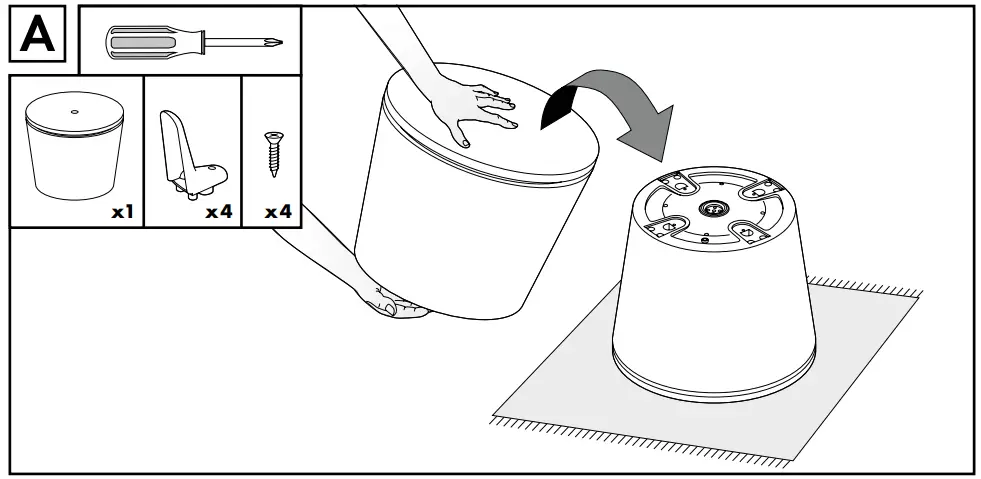

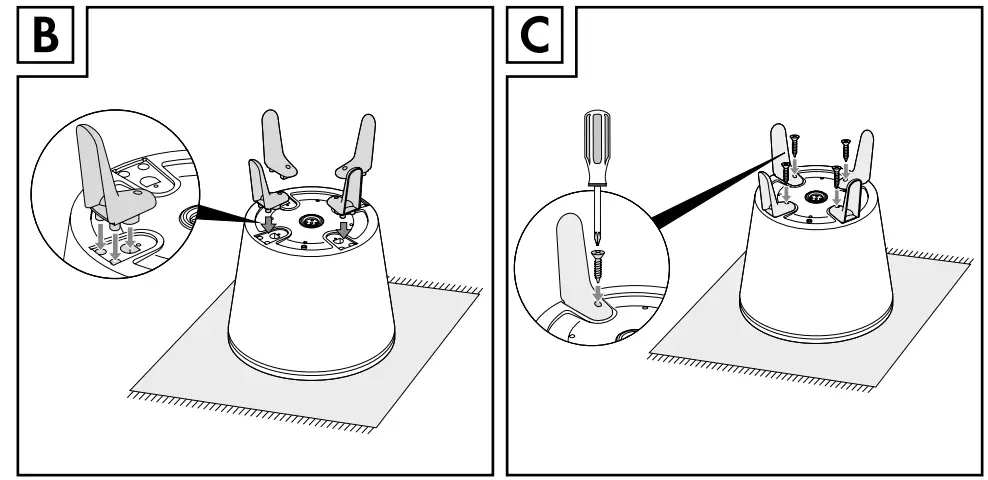

Install the 4 feet as shown in figures A to D.

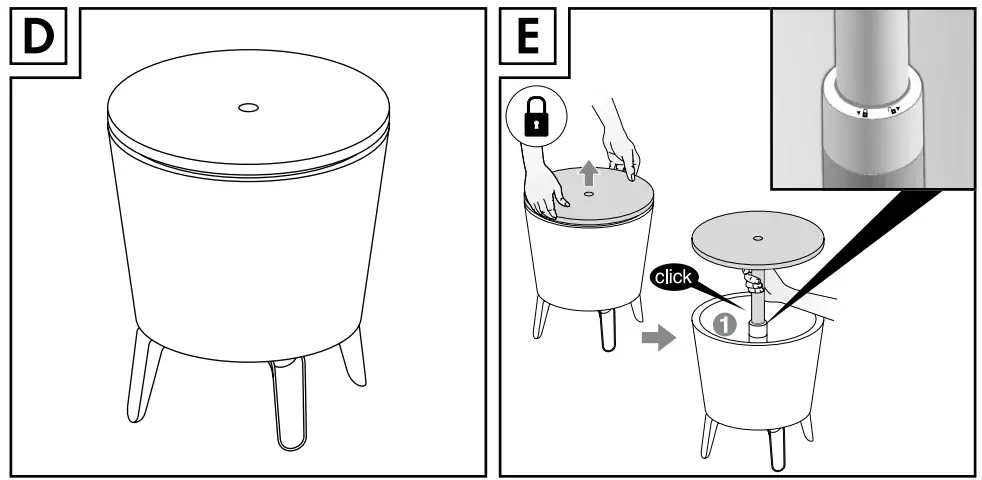

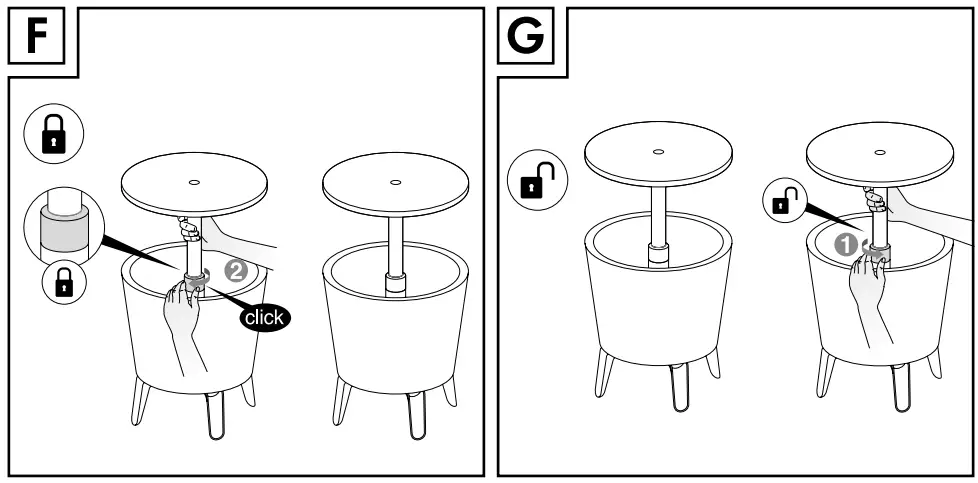

For the cover, please proceed as shown in figures E to H.
Note: Pull the tabletop up to the marking and turn the locking mechanism to the left (Fig. E + F).

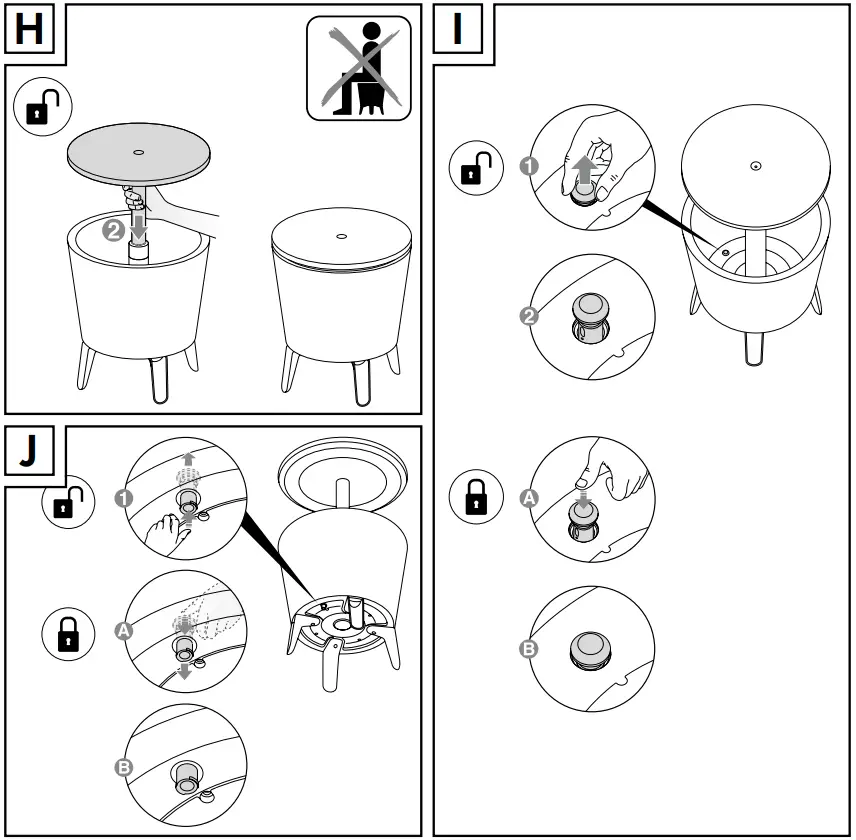

Open/close the drain as shown in Figures I and J, respectively.

Cleaning and care

To remove more stubborn dirt, use a damp cloth and, if necessary, a mild cleaning agent.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
