Kenwood Kmm021 7qt Chef Kitchen Machine User Guide

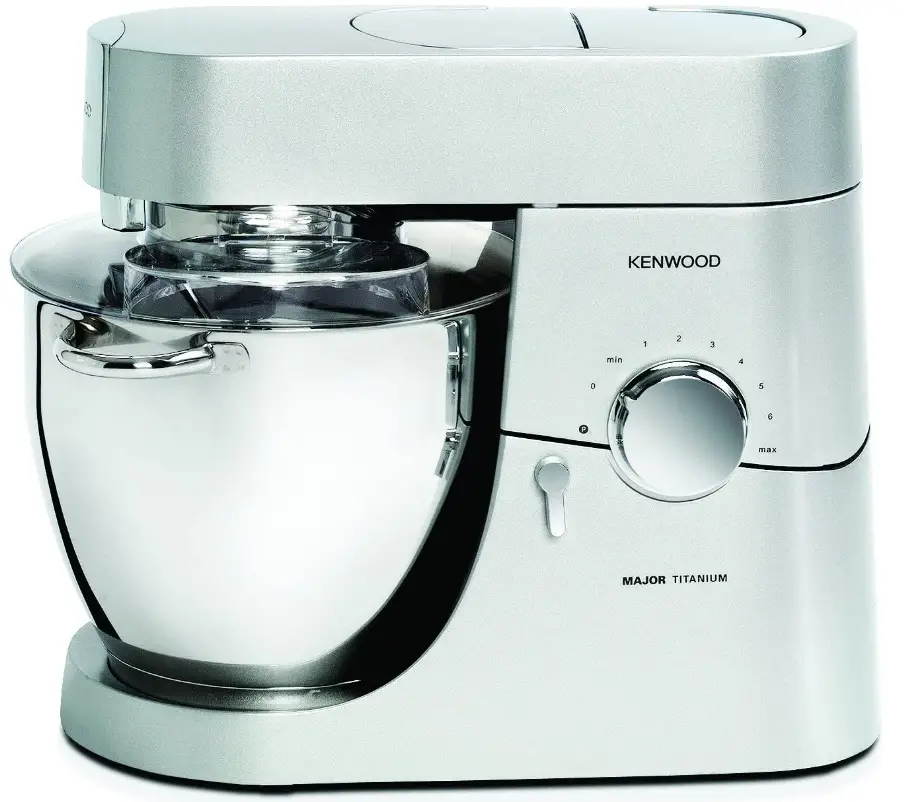

Kenwood KMM021 7QT Chef Kitchen Machine

INTRODUCTION

World-class chefs appreciate the Kenwood Chef Major, which is made for food enthusiasts. Your Chef Major will always provide a satisfying cooking experience thanks to its exceptional power and a range of extra accessories. Feel more creative and motivated than ever, and capable of mastering new tasks. With the electronic variable speed control, ingredients may be added gradually before being thoroughly mixed, ensuring that they stay in the bowl and off of your countertop. With the Kenwood Chef Major, you can modify your appliance with a wide range of add-on attachments thanks to four attachment hubs surrounding the machine that operate at various speeds.

Congratulations on buying a Kenwood. With such a wide range of attachments available, it’s more than just a mixer. It’s a state-of-the-art kitchen machine. We hope you’ll enjoy it. Robust. Reliable. Versatile. Kenwood.

SPECIFICATION

• DIMENSIONS:4″D x 16.1″W x 13.5″H
• WEIGHT:8 lb.
• WATTAGE: 800 watts
• MODEL: KMM021

Safety

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels.
• Switch off and unplug before fitting or removing tools/attachments, after use and before cleaning.
• Keep your fingers away from moving parts and fitted attachments.
• Never leave the machine on unattended.
• Never use a damaged machine. Get it checked or repaired: see ‘service and customer care’.
• Never operate the mixer with the head in the raised position.
• Never let the cord hang down where a child could grab it.
• Never let the power unit, cord or plug get wet.
• Never use an unauthorized attachment or more than one attachment at once.
• Never exceed the maximum capacities.
• When using an attachment, read the safety instructions that come with it.
• Take care when lifting this appliance as it is heavy. Ensure the head is locked and that the bowl, tools, outlet covers and cord are secure before lifting.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• Misuse of your appliance can result in injury.
• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Children should be supervised to ensure that they do not play with the appliance.
• Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions

before plugging in

• The wires in the cord are colored as follows:
  • Blue = Neutral
  • Brown = Live.
• The appliance must be protected by a 13A approved (BS1362) fuse.
• For non-rewireable plugs, the fuse cover MUST be refitted when replacing the fuse. If the fuse cover is lost then the plug must not be used until a replacement can be obtained. The correct fuse cover is identified by color and a replacement may be obtained from your Kenwood Authorised Repairer (see Service).
• If a non-rewireable plug is cut off it must be DESTROYED IMMEDIATELY. An electric shock hazard may arise if an unwanted non-rewireable plug is inadvertently inserted into a 13A socket outlet.

This appliance conforms to EC directive 2004/108/EC on Electromagnetic Compatibility and EC regulation no. 1935/2004 of 27/10/2004 on materials intended for contact with food.

know your Kenwood kitchen machine

before using for the first time

1. Remove all packaging.
2. Wash the parts: see ‘care and cleaning’.
3. Push excess cord into the cord stowage compartment at the back of the machine.
   know your Kenwood kitchen machine (To buy an attachment not included in your pack, see service and customer care.)

the mixer

the mixing tools and some of their uses

K-beater

For making cakes, biscuits, pastry, icing, fillings, éclairs and mashed potato.

Whisk

For eggs, cream, batters, fatless sponges, meringues, cheesecakes, mousses, soufflés. Don’t use the whisk for heavy mixtures (eg creaming fat and sugar) – you could damage it.

dough hook

For yeast mixtures.

to use your mixer

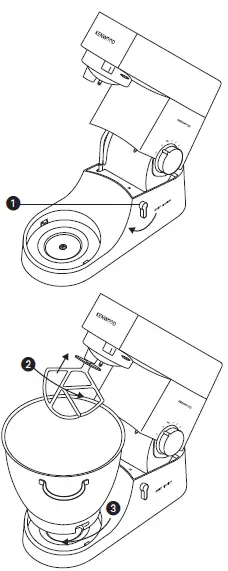

1. Turn the head-lift lever clockwise 1 and raise the mixer head till it locks. Ensure the bowl seating pad is correctly fitted with the symbol uppermost.
2. to insert a tool 2 Push up till it stops 2 then turn.
3. Fit the bowl onto the base – press down and turn clockwise 3
4. Lift the mixer head slightly then turn the head-lift lever clockwise and lower the mixer head till it locks.
5. Switch on by turning the speed switch to the desired setting.
   Switch to pulse P for short bursts.
6. Switch off and unplug after use to remove a tool 7 Turn and remove.

hints

• Switch off and scrape the bowl with the spatula frequently.
• Eggs at room temperature are best for whisking.
• Before whisking egg whites, make sure there’s no grease or egg yolk on the whisk or bowl.
• Use cold ingredients for pastry unless your recipe says otherwise.

points for bread making

important

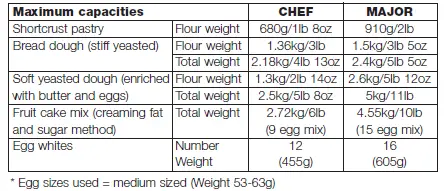

• Never exceed the maximum capacities below – you’ll overload the machine.
• If you hear the machine laboring, switch off, remove half the dough and do each half separately.
• The ingredients mix best if you put the liquid in first.

speed switch 4

K-beater

• creaming fat and sugar start on min, gradually increasing to ‘max’.
• beating eggs into creamed mixtures 4 – ‘max’.
• folding in flour, fruit etc min – 1
• all in one cakes start on min speed, gradually increase to max.
• rubbing fat into flour min – 2.

whisk

• Gradually increase to ‘max’.

dough hook

• Start on ‘min’, gradually increasing to 1.

Troubleshooting

Problem

The whisk or K-beater knocks against the bottom of the bowl or isn’t reaching the ingredients in the bottom of the bowl.
solution Adjust the height using the spanner provided. Here’s how:

1. Unplug the appliance.
2. Raise the mixer head and insert the whisk or beater.
3. Lower the mixer head. If the clearance needs to be adjusted, raise the mixer head and remove the tool. Ideally the whisk and K-beater should be almost touching the bottom of the bowl 1.
4. Using the spanner provided loosen the nut 2 sufficiently to allow adjustment of the shaft 3. To lower the tool closer to the bottom of the bowl, turn the shaft anti-clockwise. To raise the tool away from the bottom of the bowl turn the shaft clockwise.
5. Re-tighten the nut.
6. Fit the tool to the mixer and lower the mixer head. (Check its position see points above).
7. Repeat the above steps as necessary until the tool is set correctly. Once this is achieved tighten the nut securely.
   dough hook – this tool is set at the factory and should require no adjustment.

Problem
The mixer stops during operation.
solution
Your mixer is fitted with an overload protection device and will stop if overloaded to protect the machine. If this happens, switch off and unplug the mixer. Remove some of the ingredients to reduce the load, and allow the mixer to stand for a few minutes. Plug in and reselect the speed. If the mixer does not restart immediately allow to stand for additional time.

Cleaning and service

care and cleaning

• Always switch off and unplug before cleaning.

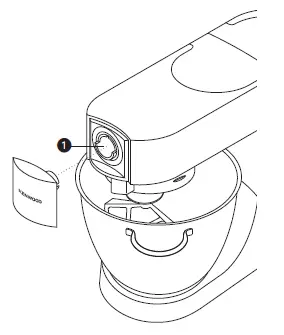

• A little grease may appear at outlet 1 when you first use it. This is normal – just wipe it off.

power unit, outlet covers

• Wipe with a damp cloth, then dry.
• Never use abrasives or immerse in water.

bowl

• Wash by hand, then dry thoroughly or wash in the dishwasher.
• Never use a wire brush, steel wool or bleach to clean your stainless steel bowl. Use vinegar to remove limescale.
• Keep away from heat (cooker tops, ovens, microwaves).

tools

• Wash by hand, then dry thoroughly or wash in the dishwasher.

Splashguard

• Wash by hand, then dry thoroughly.

service and customer care

If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorized KENWOOD repairer.

FREQUENTLY ASKED QUESTIONS

Does splash cover come with the machine?

Yes.

Is this mixer 1500 watts or 1000watts?

It is 800 watts.

Does the scraper come with this?

No

Does the mixer head shake while mixing ingredients?

No, the head doesn’t shake while mixing ingredients.

Does this mixer come with a splash guard?

Yes it does.

Is it 220 or110 volt?

It is 110V.

Can the chef XL grate cheese?

Yes, it can.

Will Kitchenaid pasta attachments fit this machine?

No.

How many liters is the machine?

The machine is 7 litres.

I’m looking for a mixer to make bagels. Would this model be able to handle dough like that?

Yes, it will.

How to stop mixer from walking on the counter?

You need a counter surface that is really smooth. No matter what speed I choose, the mixer stays in one spot when I set mine on our granite counters thanks to the rubber feet and weight.

How tall is this mixer when the top piece is fully lifted?

Approximately 20 inches.

Does the bowl have a handle?

Yes, it does.

Does this mixer have plastic or metal gears?

Stainless steel.
