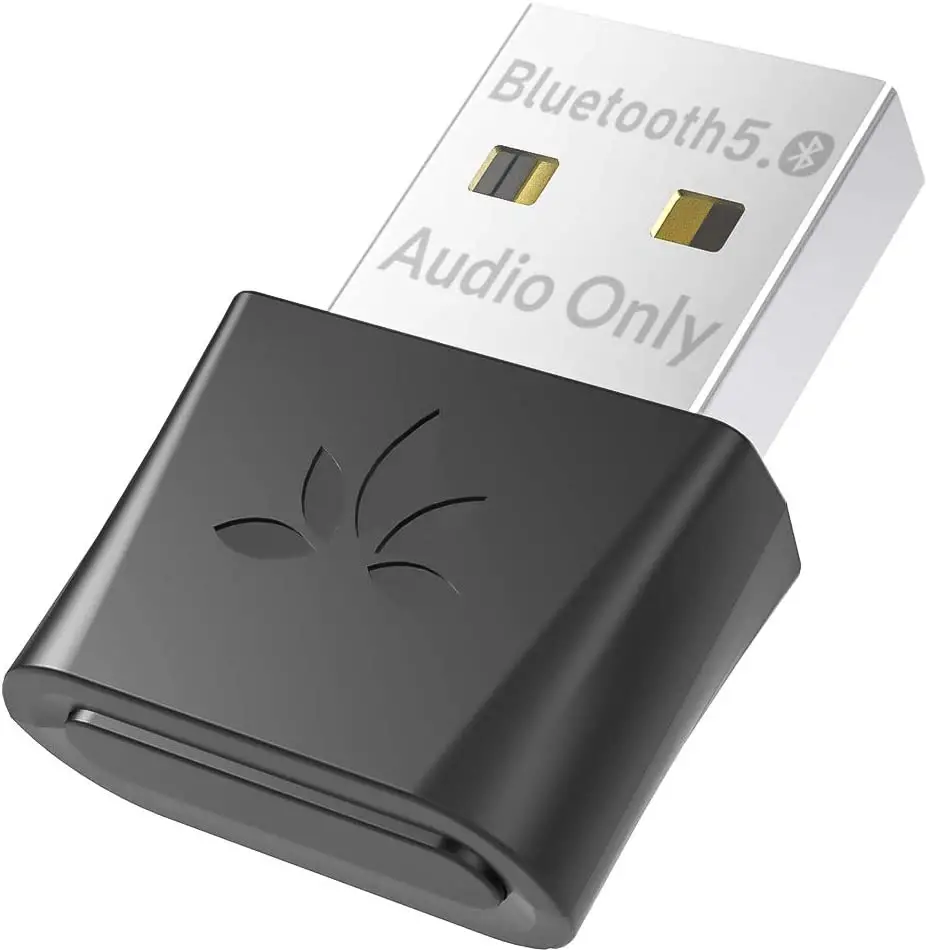

Avantree DG80 Bluetooth USB Audio Transmitter

Important Notice
NO BLUETOOTH icon will appear on the Taskbar when the DG80 is plugged into your PC. It should be recognized as a USB sound card/USB speaker.

Please watch the step-by-step video tutorial from avantree.com/dg80/video before installation.

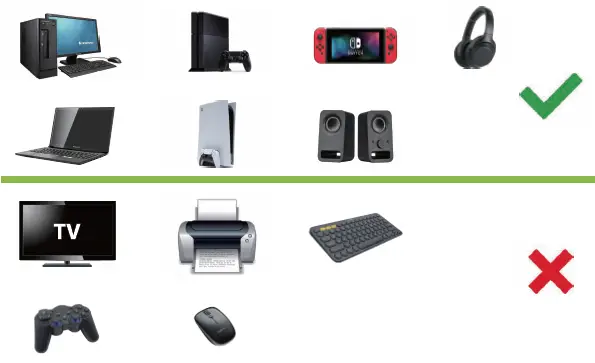

Compatibility

How To Use

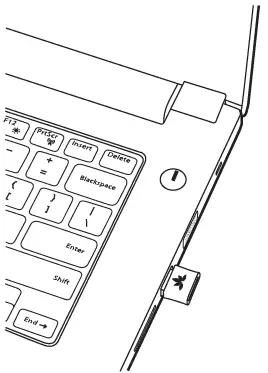

1. Plug the DGS0 into the USB port
2. 1″ -time Use – DGS0 automatically enters pairing mode with LED flashing BLUE & WHITE”

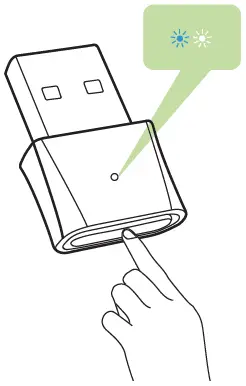

3. Non-1 ” time use, manually enter DGS0 into pairing mode: Press & Hold MFB until LED flashes BLUE & WHITE.

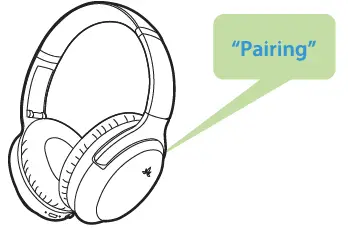

4. Put your Headphone/Speaker into “Bluetooth Pairing Mode”. Please refer to your device’s user manual.

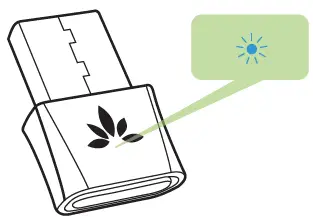

5. Once connected, the LED on DGS0 will turn SOLID BLUE

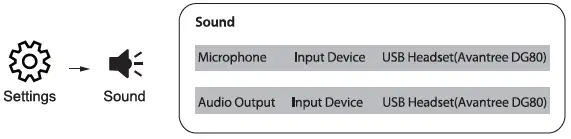

6. Set DGS0 as your default Input/Output device in your Computer/Gaming Console’s audio settings menu.

Microphone

Once in talk mode, the LED on DG80 will turn SOLID WHITE.

1. Work with Windows PC/ Macbook-Auto switch between talk mode & music mode.
2. Work with Linux and Chromebook-Double-click MFB to turn on Microphones

Work with PSS

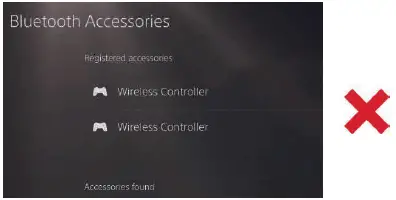

1. Connect to Bluetooth headphones – Follow steps 8 0 0, The pairing/connection happens through the DG80, not your PS5’s “Bluetooth accessories”.
2. PSS Set up
3. Microphone
   Once in talk mode, the LED on DG80 will turn SOLID WHITE.

   1. Use your headphones’ built-in mic. Double-click the MFB to turn on the mic and get a mono sound.
   2. Use the included mic or Avantree Faststream Bluetooth headphones. With these, you can get stereo sound.

Visit avantree.com/dg8D/ps5 for a step-by-step video guide.

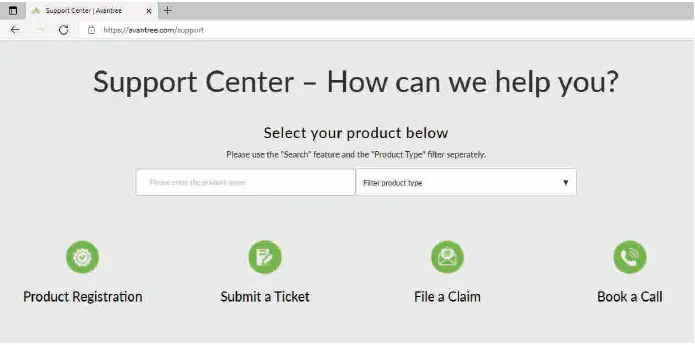

Online Support

Troubleshooting & FAQ

1. Cannot Pair?
2. Microphone not Working?
3. Audio delayed/Not-Working?
   More FAQs and User tips are available online.

FAQ Support:
avantree.com/support/dg80.

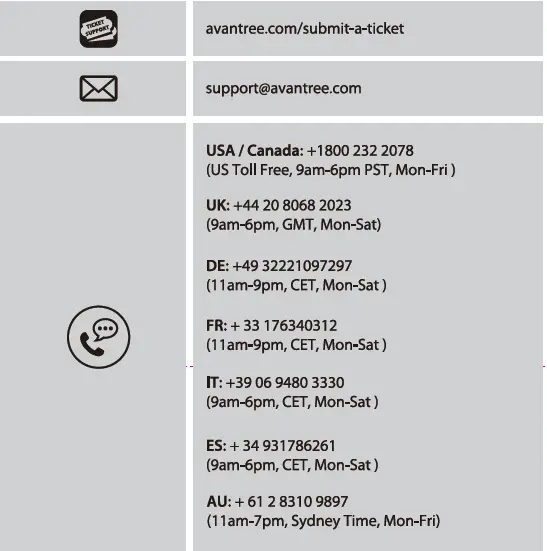

Contact Us

• avantree.corn/submlt-a-tlcket
• [email protected].
• USA/ Canada: + 1800 232 2078
  (US Toll-Free, 9 am-6 pm PST, Mon-Fri )
• UK: +44 20 8068 2023
  (9am-6pm, GMT, Mon-Sat)
• DE: +49 32221097297
  (11am-9pm, CET, Mon-Sat )
• FR: + 33 176340312
  (11am-9pm, CET, Mon-Sat J
• IT: +39 06 9480 3330
  (9am-6pm, CET, Mon-Sat )
• ES: + 34 931786251
  (9am-6pm, CET, Mon-Sat l
• AU: +61 2 8310 9897
  (11 am-7 pm, Sydney Time, Mon-Fri)

Register for your extended 24 Months warranty at
avantree.com/product-registration.

Model No: BTOG-80-SLK

Dispose of the packaging and this product in accordance with the latest provisions.
