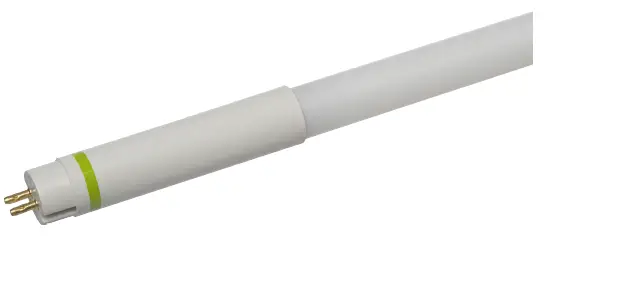

AURA LIGHT Aura LED Op T5 HE/HO AC G2
Specification
| Length (mm) | Base | Power (W) | Color Temperature (K) | Current (A) |
| 549 | G5 | 8 | 3000 / 4000 / 6500 | 0.036A |
| 1149 | G5 | 16 | 3000 / 4000 / 6500 | 0.073A |
| 1449 | G5 | 18.5 | 3000 / 4000 / 6500 | 0.085A |
| 1449 | G5 | 26 | 3000 / 4000 / 6500 | 0.120A |
| 1149 | G5 | 26 | 3000 / 4000 / 6500 | 0.120A |
| 1449 | G5 | 37 | 3000 / 4000 / 6500 | 0.170A |
WARNING
- Parts List: LED TS Compatible Tube, Installation instructions
- Please read the installation instructions careflly and follow instructions to ensure safety
- The LED tube is only suitable with direct connection to AC mains 230 V
- Only to apply in dry indoor usage and environments, outdoor applications requires IP rateded fixtures.
- LED lamps must be installed by a professional electrician.
- Once it is installed, do not change any components or structure of the LED lamp.
- This lamp is designed for general lighting service (excluding e.g. explosive athmospheres)
- Ambient temperature (Ta): -20’C TO 50°C (-4 ‘F TO 122 F)
- This lamp may not be suitable for use in all applications where traditional fluorescent lamp has been used. The temperature range of this lamp is more restricted. In case of doubt regarding the suitability of the application the manufacturer of this lamp should be consulted.
- Not suitable for use with dimmers
- The lamp is design to replace;
- HE 14W
- 1149 mm T5 G5 16W HE 28W
- 1449 mm TS G5 18,5W : HE 35W
HO 49W - 1149 mm T5 G5 27W HO 54W
- 549 mm T5 65 8W
- 1449 mm TS G5 26W
- 1449 mm TS G5 37W :HO 80W

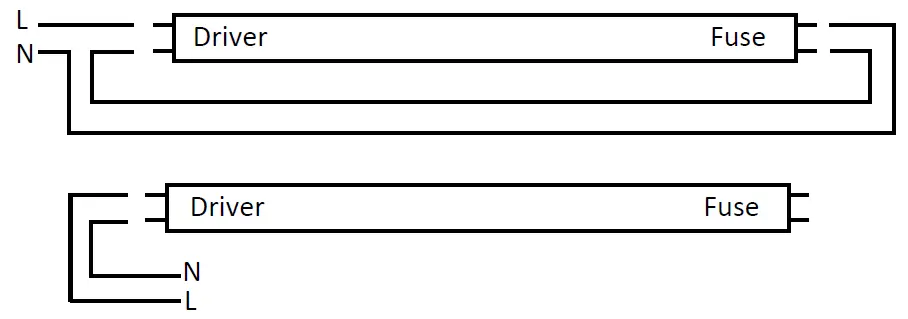

Wiring diagram
NOTE: L+N INPUT SIDE=PRINTED LOGO SIDE
