User Manual
LED INDUSTRIAL DRUM
LED-9-BK LED Industrial Drum
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS READ ALL INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
TOOLS AND MATERIALS REQUIRED:
SAFETY PRECAUTIONS:
- TURN OFF THE ELECTRICAL POWER BEFORE STARTING THE INSTALLATION OF THE LIGHT FIXTURE.
- THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A CERTIFIED ELECTRICIAN FAMILIAR WITH LOCAL MUNICIPAL CODES AND REQUIREMENTS.
- CAUTION – RISK OF ELECTRIC SHOCK. CONSULT A QUALIFIED ELECTRICIAN TO ENSURE THE CORRECT BRANCH CIRCUIT CONDUCTOR.

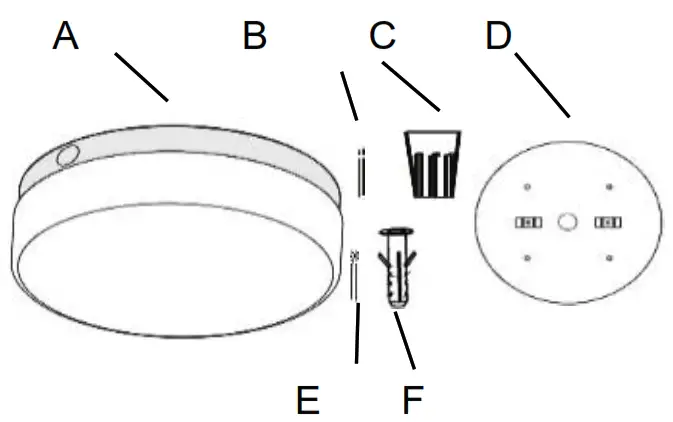

| PART | DESCRIPTION | QTY |
| A | LED light | 1 |
| B | Mounting screw | 2 |
| C | Wire nut | 3 |
| D | Mounting plate | 1 |
| E | Mounting plate screw | 4 |
| F | Screw anchor | 4 |
OPTION #1: JUNCTION BOX MOUNTING

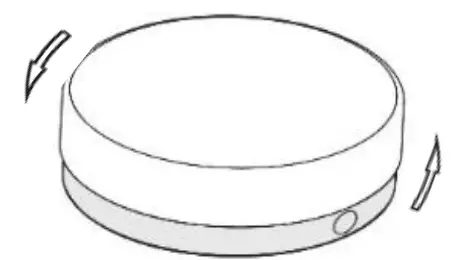

- Remove the glass lens by gently rotating and lifting it.

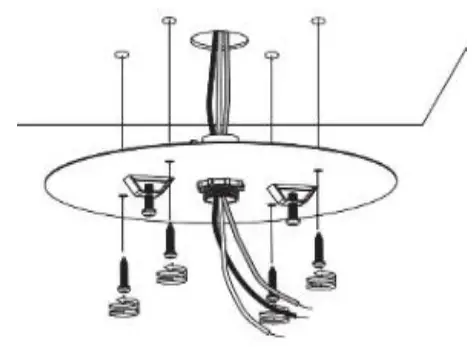

- Place mounting screws (included) in the mounting plate screwing in halfway. Add a 1/2″ Romex connector (not included) in the center hole and pull supply wires from the junction box.

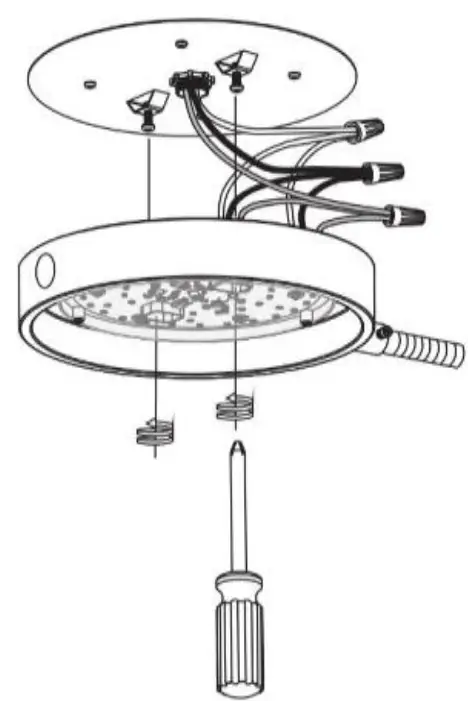

- Install the mounting plate before connecting supply wires to wires on the fixture with wire nuts. Connect white to white, black to black, green, or bare copper wire to the green wire.
If wiring to another light, also connect white to white, black to black, green, or bare copper wire to the green wire. Attach the fixture to the mounting screws, and turn the fixture counter-clockwise to lock. Secure the fixture by tightening the mounting screws.
- To install the glass lens, hold the lens up to the fixture, and rotate until notches in the lens line up with the tabs in the fixture. Continue rotating until the lens stops.
OPTION #2: FIXTURES LINKABLE MOUNTING (NO JUNCTION BOX)
- Remove the glass lens by gently rotating and lifting it.

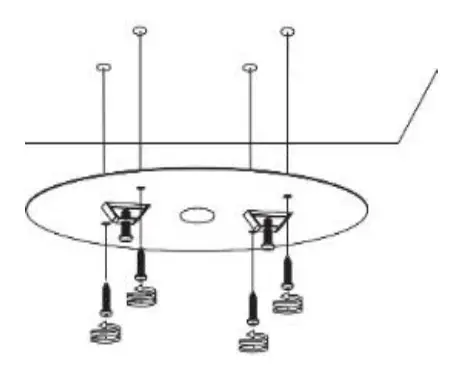

- Install the mounting plate with provided mounting plate screws in your desired direction (screw anchors included). Leave mounting screws in the mounting plate halfway for fixture fastening purposes.

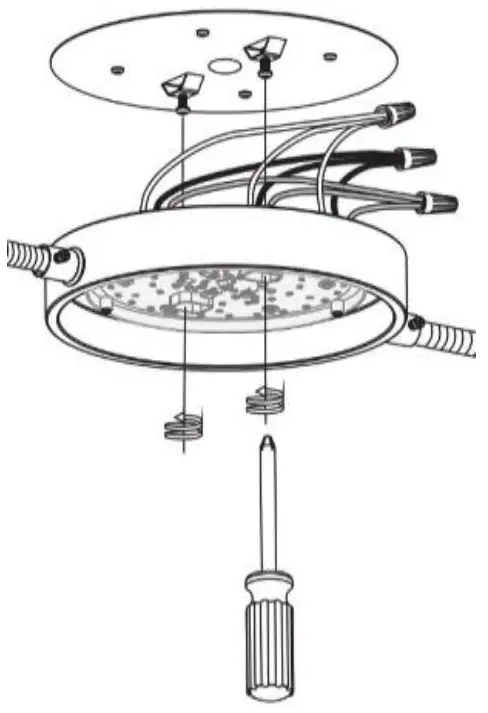

- Open blind knockout and install 1/2″ Romex connector (not included), fasten conduit, or flexible tube. Connect supply wires to wires on the fixture with wire nuts. Connect white to white, black to black, green, or bare copper wire to the green wire. If wiring to another light, also connect white to white, black to black, green, or bare copper wire to the green wire. Attach the fixture to the mounting screws, and turn the fixture counter-clockwise to lock. Secure the fixture by tightening the mounting screws.

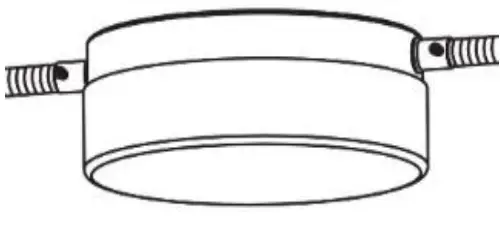

- To install the glass lens, hold the lens up to the fixture, and rotate until notches in the lens line up with tabs in the fixture. Continue rotating until the lens stops.
This LED light is compatible to be dimmed by LUTRON #DVCL-153P, MACL-153MH, TGCL-153P,
DV-600P; LEVITON #6633, 6633-P, 6672, 6674, IPL06.
Dimming levels may vary by the different dimmers.
Customer service: 888-945-5221
Do not return to the store.
Made in China
