X-SENSE SWS51 Smart Water Leak Detector User Manual
This user manual contains important information about the operation of your water leak sensor. To ensure proper use and trouble-free operation, please read this manual carefully and store it in a safe place for future reference.
Introduction
This water leak sensor sounds an alarm whenever it comes into contact with water. It can be placed near common household water sources like a dishwasher, hot water heater, or washing machine. With professional monitoring, you will be notified if your home is in danger.

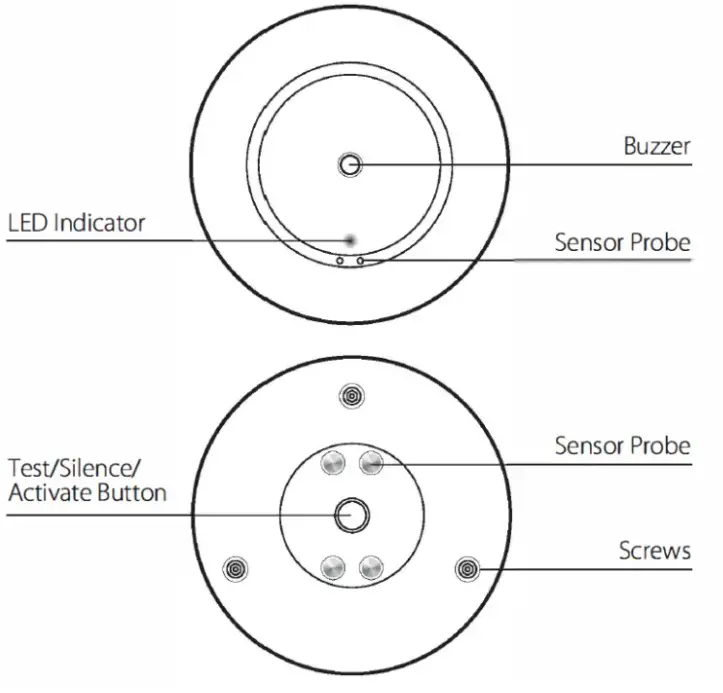

Produd Overview

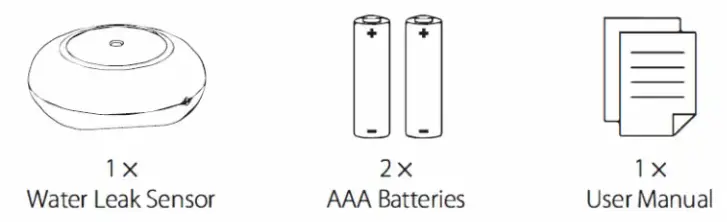

Package Contents
Operating Your Device
Activating the Device

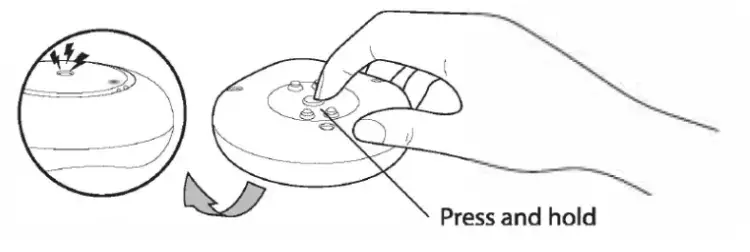

Press and hold the Activate button for 3 seconds. When the red LED flashes once and the alarm sounds one beep, then the product is activated and enters the normal working status.
Testing the Device

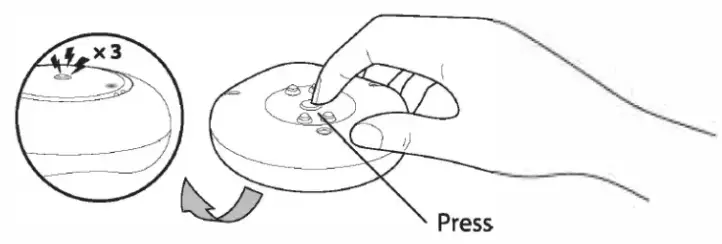

After the device is activated, you must test the device to ensure it is operating normally. Press the Test button at the bottom of the device. The alarm will deliver 3 beeps paired with the red LED flashing. The sound will automatically stop after the test is completed.
Water Leak Detection

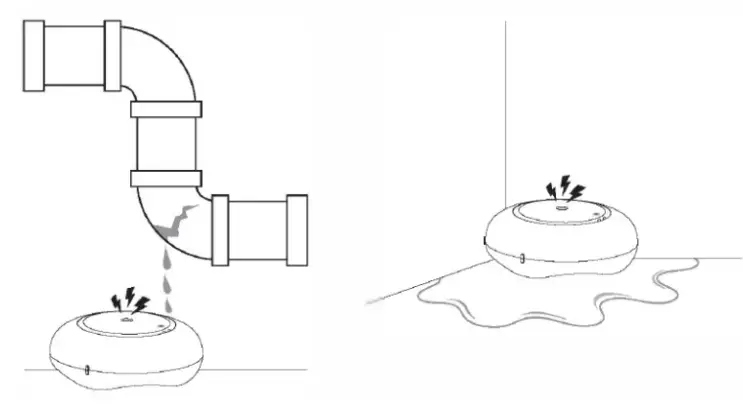

This water leak sensor is used to detect water leaks and floods. Once a water leak occurs, the device will sound an alarm continuously paired with a flashing red LED. If the user takes no action at this time, the device will continue to sound an alarm until the battery runs out.
SIiencing the Device

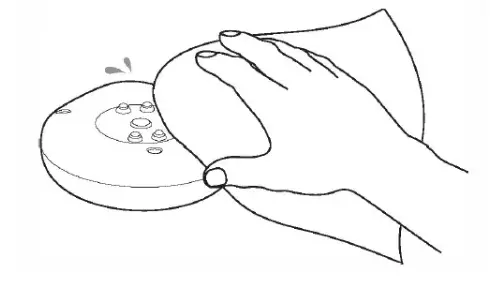

When the device is triggered, press the Silence button to mute the alarm, which will last for 10 seconds. After 10 seconds, the device will continue to sound an alarm. To disable the alarm, you must completely clean and dry the surface of the device.
Installing Your Device
Installation Location
You can use the device near places where water leaks are likely to occur such as near water pipes, basement sump pumps, dishwashers, washing machines, toilets, water heaters, window wells, etc.
Installation Method

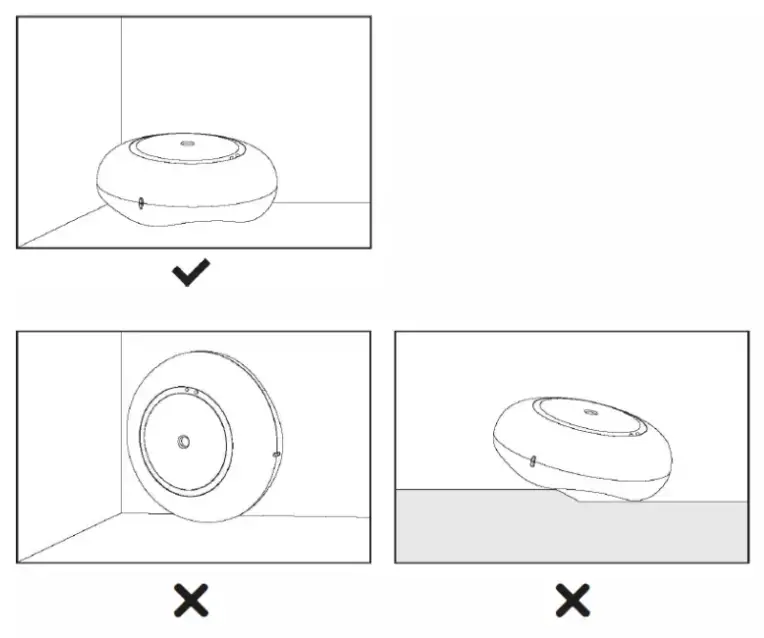

This sensor can simply be placed on a fiat surface.
Note
- Do not place the device upright, othe,wise no alarm will be triggered.
- Do not place the device on uneven surfaces as this may cause false alarms.
Battery Replacement

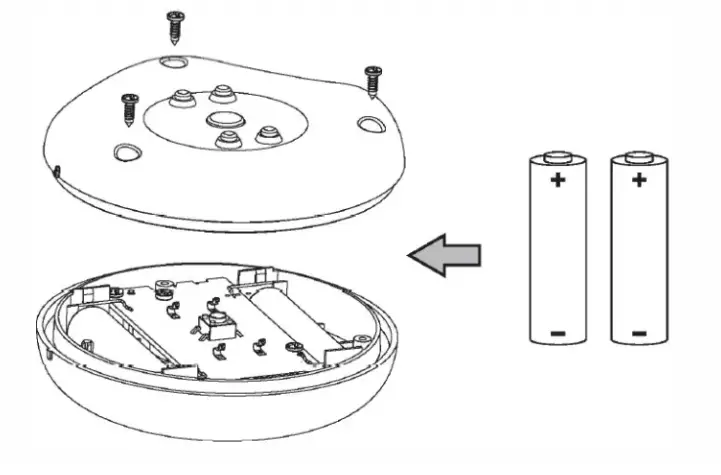

When the battery is low, the red LED will flash once every 60 seconds paired with one beep to remind the user to replace the batteries. To replace the batteries, remove all screws, take out the used batteries and replace with two new AAA batteries. Then, reinstall the screws and press and hold the Activate button for 3 seconds to activate the device. Then test the device once again.

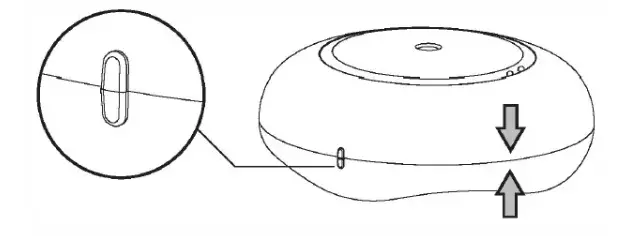

Note: After replacing the battery, you need to align the positioning points of the upper and lower cases to close the cover and then screw the device closed.
WARNiNG
- Keep the device operating at a temperature between 32-122°F (0-50°O and humidity below 90% RH.
- Do not disassemble the device by force. Otherwise, the device may become damaged.
Technical Specifications
| Power Supp ly | Replaceable 2 x 1.5 V AM batteres |
| Operating Life | 5 years |
| Battery Life | 3 years |
| Sensor Type | Sensor probe |
| Operating Temperature | 32-122°F (0-50°0 |
| Operating Relative Humidity | ,; 90% RH (non-condensing) |
| Alarm Volume | 105 dB |
| Silence Duration | 10 seconds |
| Waterproof Rating | IP66 |
Troubleshooting
| The device does The device is | Check whether the device is | ||
| not work.It is | not activated. | activated. The device needs to be | |
| not triggered | activated before it is used for the | ||
| when there is a | first time. Otherwise, the device | ||
| water leak. | will not be triggered (refer to | ||
| ·Activating the Device· section). | |||
| Upon activation, press the Test | |||
| button to make sure it is | |||
| operating properly. | |||
| The battery is | Please check whether the battery | ||
| low. | power is sufficient. When the | ||
| battery is low, the red LED will | |||
| flash once every 60 seconds | |||
| paired with one beep. Please | |||
| replace the battery immediately. | |||
| The alarm sound is low. | Water entered the alarm. | The device is waterproof and its performance will not be affected if water gets inside. Please take the device in your hand and shake it a few times to remove the water from the alarm opening until the alarm sound returns to normal. Then put the device back. |
Environmental Protection
Waste electrical products should not be disposed of with household waste. Please recycle where facilities are available. Please check with your local authorities or retailers for recycling advice.
Manufacturer and Service Information
X-Sense Innovations Co., Ltd.
Address: 84-503, Kexing Science Park 15 Keyuan Road, Shenzhen, 518057, CHINA
Email: [email protected]
