Alarmex Pro, wireless flood detector
CSALMWTD l.
INSTRUCTION MANUAL

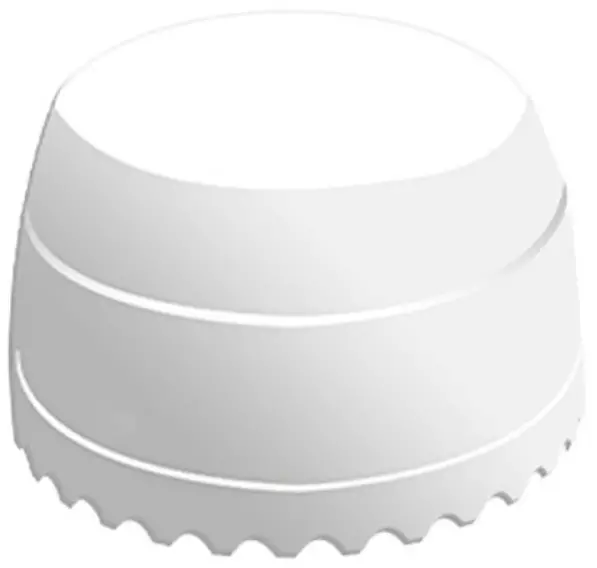

ACSALMWTD Water Leak Detector
Thank you for choosing our product. Please read these instructions carefully before use.
This product is only compatible with EVOLVEO Alarmex Pro, a smart wireless WiFi/GSM alarm. Pair with the control panel according to the instructions in the EVOLVEO Alarmex PRO user manual.
Product description
The sensor detects water leakage using the theory that the resistance changes when the electrode is flooded. It uses intelligent detection of the basic control chip with a stainless steel sensor, which makes the detector work stably and reliably with high accuracy and sensitivity. The product can be used in facilities with water storage or in places where water leakage may occur, such as cellars, machine rooms, warehouses, etc.
Installation description
Pair the detector according to the instructions in the EVOLVEO Alarmex Pro manual.
When prompted to activate the detector, place your fingers on both sensors on the underside at the same time.
Place the detector in the locations you want to monitor.
When the probes are immersed in the liquid, they send out a signal and an alarm is triggered.
Technical parameters
| Model | ACSALMWTD |
| Working voltage | 3V |
| Standby current | ≤10uA |
| Current on activation | ≤65mA |
| Working temperature | 0~60°C |
| Low battery warning | 2V (LED flashes rapidly) |
| Wireless connection parameters | 433MHz |
| Dimensions | 54 * 35 mm |
Warranty and post-warranty service
Repairs and servicing can only be carried out at an authorized service point for EVOLVEO products (more at www.evolveo.com), otherwise you may damage your mobile phone and lose your warranty.
Disposal: The crossed-out container symbol on the product, in the accompanying documentation or on the packaging means that in EU countries, all electrical and electronic equipment, batteries and accumulators must be disposed of separately at the end of their useful life as separated waste. Do not dispose of these products in unsorted municipal waste.
DECLARATION OF CONFORMITY
The company Abacus Electric, s.r.o. hereby declares that the EVOLVEO ACSALMWTD telephone meets the requirements of the standards and regulations that are relevant for the type of equipment.
The full text of the Declaration of Conformity can be found at http://ftp.evolveo.com/ce/
Importer
Abacus Electric, s.r.o.
Planá 2, 370 01, Czech Republic
Producer / Manufacturer
Naxya Limited
No. 5, 17/F, Strand 50, 50 Bonham Strand, Sheung Wan, Hong Kong
Made in China
Copyright © Abacus Electric, s.r.o.
www.evolveo.com
www.facebook.com/EvolveoCZ
All rights reserved.
The appearance and technical specifications of the product are subject to change without notice.
