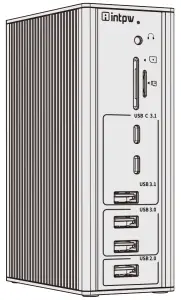

intpw IF508 Thunderbolt 3 Dual Monitor Docking Station
Model IF508
Instructions
- Plug and Play. No need to install drivers
- Support hot swap, providing current overload detection and protection.

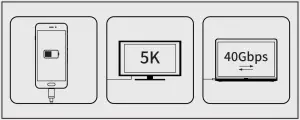

- Thunderbolt 3 port: Supports 5K (5120 x 2880@60Hz) audio and video synchronized transmission. In addtion, it supports 15W mobile phone charging and 40Gbps data transmission.

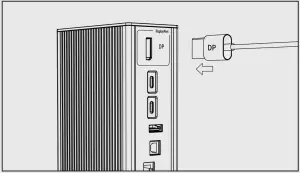

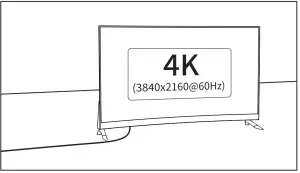

- DP 1.4 port: Connect your monitor to the DP port with a DP cable, you will easily get an extended monitor up to 4K(3840×2160@60Hz) resolution.

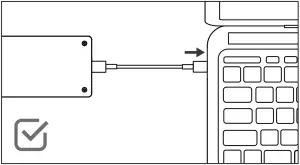

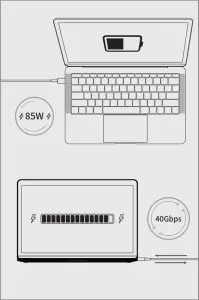

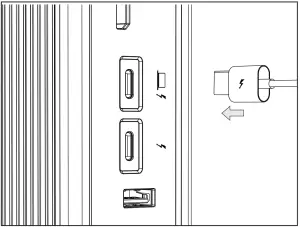

- Thunderbolt 3 port (Connect Host): Supports up to 85W laptop charging and 40Gbps data transmission.

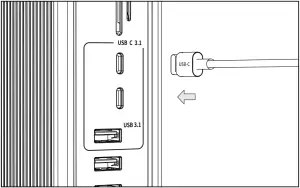

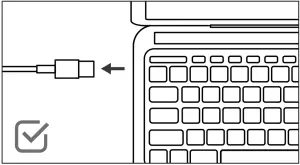

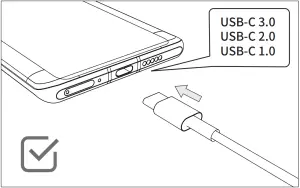

- USB-C 3.0 port*2: Expanding your USB C device.
Support USB-C 3.0 and backward compatible with USB-C 2.0/1.1, the highest transfer rate is 10Gbps.

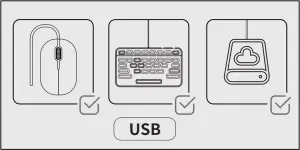

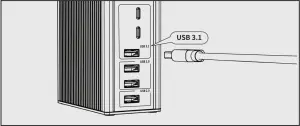

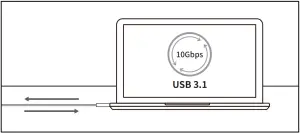

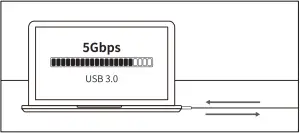

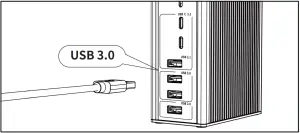

- USB-A 3.0 port*3: It supports USB 3.0 and is backward compatible. One of the USB 3.1 ports can have a transmission rate of up to 10Gbps, and the other two USB 3.0 ports can have a maximum transmission rate of 5Gbps. Used to extend the connection of USB devices, such as mouse/keyboard/mobile hard disk, etc.

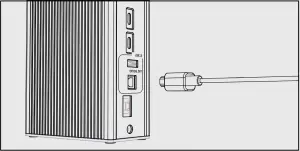

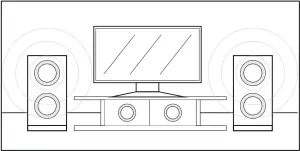

- S/PDIF port: Use the optical fiber audio port to connect your speakers, bringing you a high-quality sound experience.

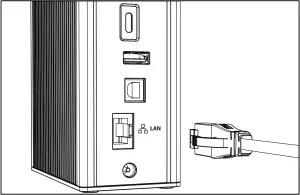

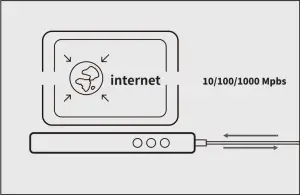

- RJ45(Ethernet port): Used to connect to the Internet through a network cable. Internet speed support 10/100/1000 Mpbs.

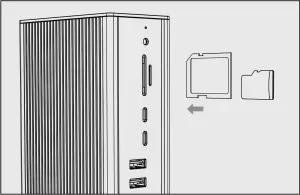

- SD/TF Card Reader: For external memory card, USB 2.0 card reader, support SD 3.0 specification.

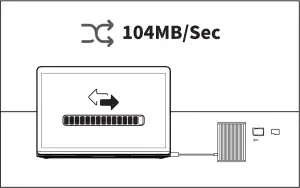

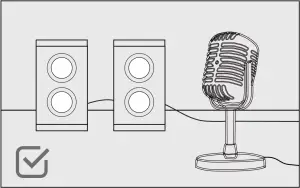

Data transfer rate up to 104MB/Sec. - 3.5mm stereo combo jack: Support microphone input/audio output.

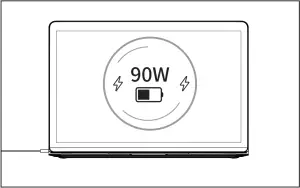

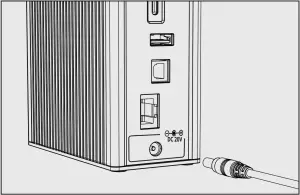

Bring you clear and pure sound quality. - DC port: Product power supply interface, and can charge the computer through the Thunderbolt 3 interface, he maximum support 90W.
Specification
| 5K(5120 x 2880@60Hz) for Thunderbolt 3 port, 4K(3840×2160@60Hz) for DP 1.4 port |
| USB-C 3.0 up to 10Gbps, USB-A 3.0 up to 10Gbps and 5Gbps |
| Mac OS X 10.X and future releases, Windows 8/10 32 and 64 bit and future releases. |
| 100*50*140 mm |
| 470g |
| 1*Thunderbolt 3 dock; 1*USB-C to USB-C cable 1*charging cable; 1*adapter |
OUTPUT
DATA TRANSFER
COMPATIBILITY
SIZE
WEIGHT
PACKAGECompatibility Tested by
| Apple MacBook Pro（2015/2016/2017/2018/2019） |
| Surface Pro (windows 10), 18362.1016 |
| Asus Zen Book (windows 10), 18362.418 |
 |
Attention

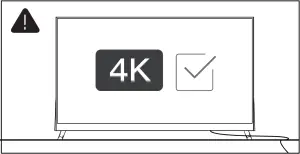

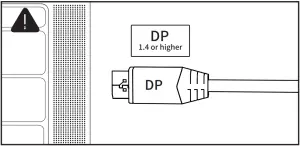

In order to enjoy 4K high-definition picture quality, please use DP cable version 1.4 or higher.

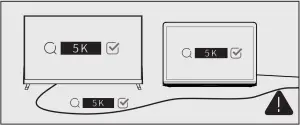

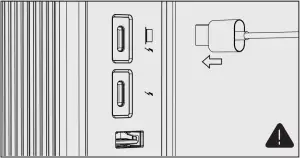

If you want to use the Thunderbolt 3 port to reach 5K image quality, please make sure that your notebook display resolution, cable and monitor that needs to be expanded are all up to 5K or higher.

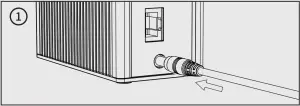

In order to ensure the normal operation of the product, please plug in the power supply before use (the power cord and adapter are included in the package)

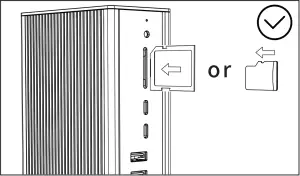

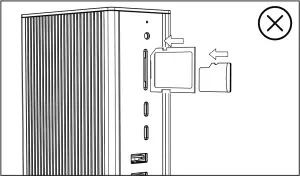

Note that SD/TF card readers cannot be used at the same time.
Apple laptops only support the mirror mode not the extended mode.
Please stay away from liquid.

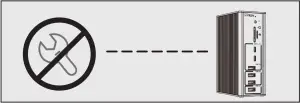

Do not disassemble.

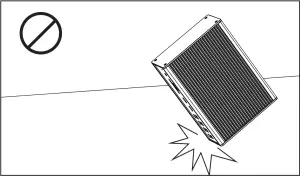

Avoid dropping the product.

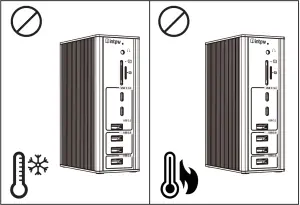

Avoid using in an environment where the temperature is too high or too low.
