Assembly instructions Weight Bench

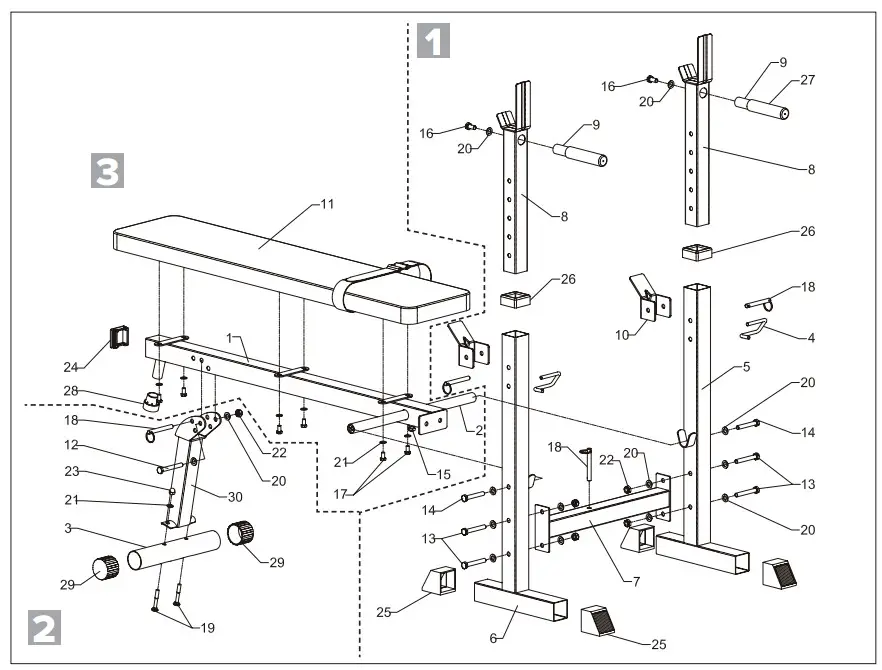

Package content:
| No. | Description | Quantity | No | Description | Quantity |
| 1 | Mainframe | 1 | 16 | Hexagon head screws M10*20mm | 2 |
| 2 | Cross tube | 1 | 17 | Hexagon head screw M8*20mm | 6 |
| 3 | The front tube of the Front support frame | 1 | 18 | Quick-release fastener bolt | 4 |
| 4 | Security bar | 2 | 19 | Lock screw M10*60mm | 2 |
| 5 | Rear support frame (left) | 1 | 20 | Washer M10 | 16 |
| 6 | Rear support frame (right) | 1 | 21 | Washer M8 | 6 |
| 7 | Connecting tube (square tube) | 1 | 22 | Nylon nut M10 | 5 |
| 8 | Adjustable tube | 2 | 23 | Nut M10 | 2 |
| 9 | Handlebar | 2 | 24 |  Cover 50mm | 1 |
| 10 | Adjustable plate | 2 | 25 | Plinth cover 50mm | 4 |
| 11 | Bench | 1 | 26 | Connector | 2 |
| 12 | Hexagon head screws M10*75mm | 1 | 27 | Handle | 2 |
| 13 | Hexagon head screws M10*70mm | 4 | 28 |  Cover 25mm | 1 |
| 14 | Hexagon head screws M10*65mm | 2 | 29 | Plinth cover 50mm | 2 |
| 15 | Hexagon head screws M10*45mm | 1 | 30 | Front support frame | 1 |
