Secure Dongle User Manual
Product Information
– Model Name: NCT8610 / NCT9610
– SIM card type: Nano SIM
Product Specification
– Dimension: 72 X 20 X 14.2mm (L x W x H)
– Interface: USB Type C
– Operating Voltage: 5 V DC (from USB port)
– Weight:12g
– Temperature: -20 ~ 60°C (-4~140°F)
– Humidity: 10-90% (non-condensing)
Communication system
NB IoT NB2 Support Band Numbers: B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66
LTE CAT M1 Support Band Numbers: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28, B66
| CAT-M1 Downlink Speed 375 kbps Uplink Speed 300 kbps | NB-IoT NB2 Downlink Speed 60 kbps Uplink Speed 30 kbps | Bluetooth RF Output Power 0 dBm RF Frequency Range 2480 MHz |
Installation and use
 |  |  |

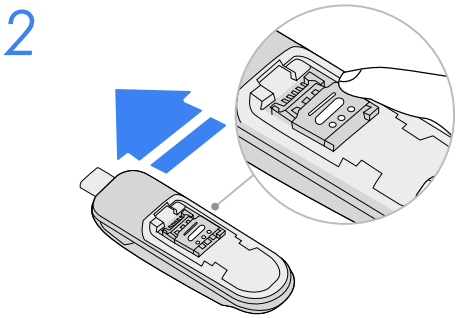

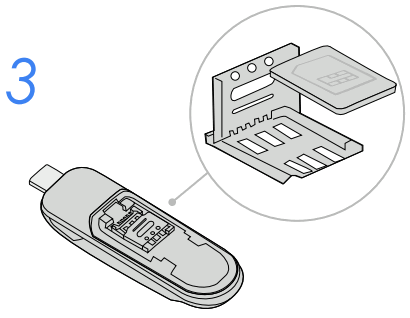

| Push down and slide open the back cover | Push the cover on the connector | Add graph that slides forward the metal SIM card holder and flip open, then place the SIM card on the connector. |
 |  |  |

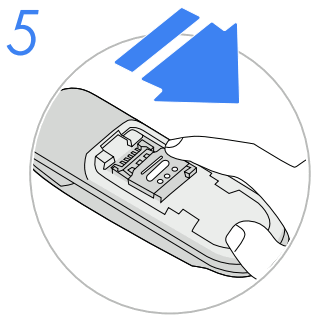

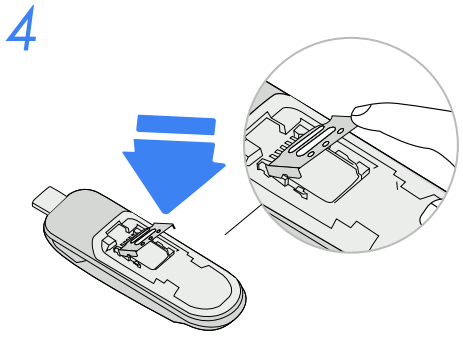

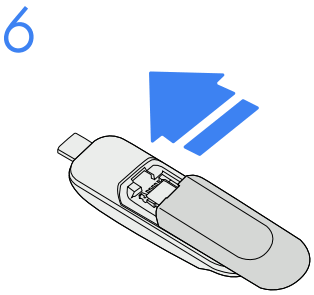

| Close the SIM card metal cover. | Pull back and tighten the cover | Slide back to close back dongle’s back cover. |
LED Light Color Display Description

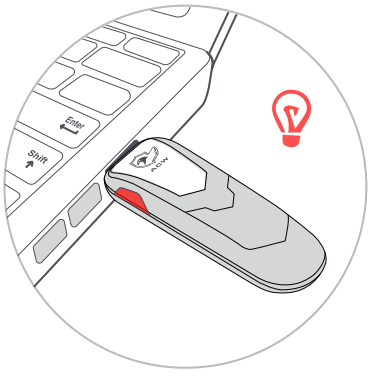

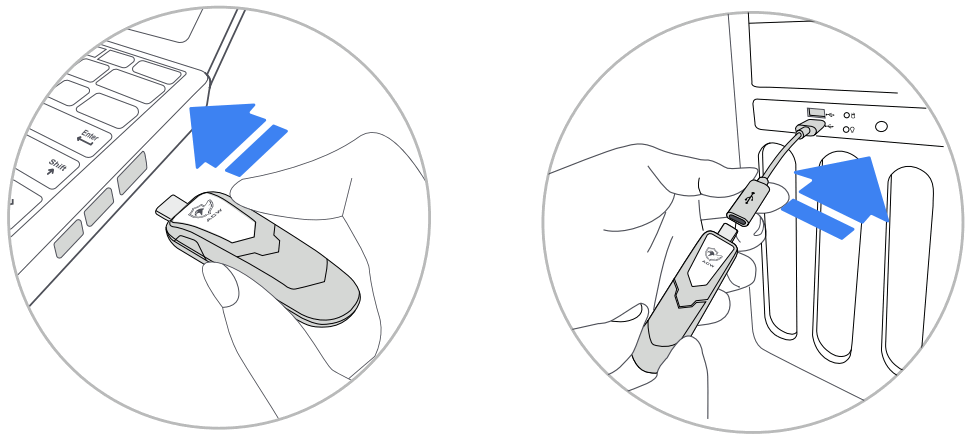

 | Insert dongle to computer LED: Red (get power from USB port) |

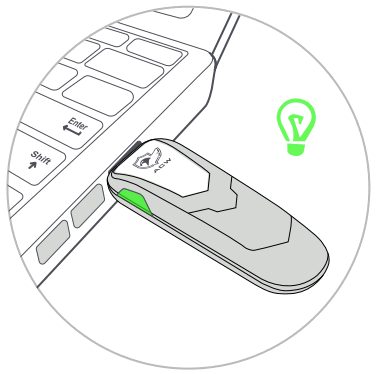

 | After about 10~15 sec LED: Green (connect to the tower for the first time) LED flashing: Green (dongle transmitting data) |

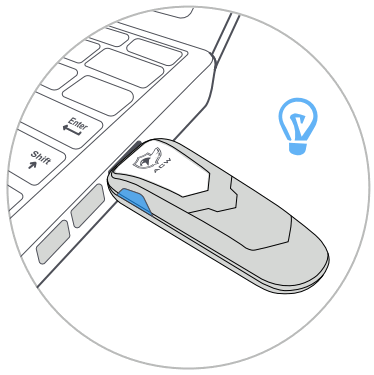

 | LED flashing: Blue (dongle receiving data) |
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Radiation Exposure Statement
These requirements set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR value reported under this standard during product certification is 0.4W/kg
NCC Statement
IMDA
This product has passed Singapore IMDA certification
NCC
This product has passed Taiwan NCC certification
