HIKVISION DS-3E2510P Gigabit Full Managed PoE Switch User Guide

Contents hide

1 Features and Functions

2 Specifications

3 Physical Interfaces

4 Documents / Resources

4.1 References

5 Related Posts

Features and Functions

DS-3E2510P supports the telecom-level Ethernet-ring protection protocol with a protection shift time of less than 50ms, STP/RSTP, backup of active and standby uplinks, and LACP link aggregation to cater to the requirements of high reliability of carriers;
DS-3E2510P has powerful ACL functions to access and control L2-L7 data, providing carriers flexible and various policy control methods;
DS-3E2510P supports In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade;
DS-3E2510P supports various L2 multicast functions such as IGMP-snooping, user fast-leave mechanism and trans-vlan multicast copy;
DS-3E2510P supports IEEE 802.3AF/AT standard, built-in large power supply, no need of external power supply, that is, 24-port AF full-load power supply.
DS-3E2510P supports the configuration of Base-T port priority when the power is inadequate.
DS-3E2510P supports POE port and up to 4KV power thunder-proof.
DS-3E2510P supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority to better streamline carrier’s services;
DS-3E2510P provides flexible bandwidth control policies, supporting port-/flow-based flow limit, and ensuring the line speed forwarding of each port to make sure the high quality of network services;
DS-3E2510P supports multiple queue schedule algorithms such as SP, WRR, or “SP plus WRR”;
Equipment-level security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP-related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions;
Perfect security authentication mechanisms: IEEE 802.1x, Radius and BDTacacs+;
DS-3E2510P supports storm/multicast/unicast limit which ensures the normal running of equipment in harsh network conditions;
DS-3E2510P supports perfect ring detection mechanism which ensures the long-term stable running of network;
DS-3E2510P supports port isolation within the same VLAN, DHCP-Snooping, and IP plus MAC plus Port binding for ensuring user data security;
DS-3E2510P supports many management modes such as the console port, Telnet, SSH;
DS-3E2510P supports the WEB management mode, which is easy and efficient so that it makes installation and debugging convenient;
DS-3E2510P supports TFTP-patterned file upload/download management;

Specifications

Item	DS-3E2510P
Port number	8 x 10/100/1000Base-T PoE ports, 2 1000Base-X SFP ports, 1 Console port
Switching capacity	20Gbps
Packet forwarding rate	15Mpps
MAC address table	8K
Dimensions(L × H × D)	280 mm × 45 mm × 179 mm
Consumption	<15W
POE standard	IEEE802.3af, IEEE802.3at
POE power budget	125W
Power supply	AC：100V-240V，50Hz±10%
Environment	Operating temperature/humidity: 0℃-45℃，5%-95% non-condensing Storage temperature/humidity: -20℃-70℃；5%-95% non-condensing
MAC exchange	Static configuration and dynamic MAC learning; MAC browsing and removal Configurable aging time of the MAC address; Limited number of learnable MAC addresses; MAC filtration
VLAN	4K VLAN; GVRP; QinQ; Private VLAN
STP	802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP) BPDU protection, root protection, and loopback protection
Multicast	IGMP v1/v2/v3 IGMP snooping IGMP Fast Leave Multicast group strategy and quantity limitation
QoS	Flow classification based on L2~4 protocols CAR flow limit 802.1P/DSCP priority re-labeling SP, WRR, and “SP+WRR” Congestion avoidance mechanisms like Tail-Drop and WRED Flow monitoring and flow shaping
Security	L2/L3/L4 ACL flow identification and filtration DDoS attack prevention, TCP’s SYN Flood attack prevention, UDP Flood attack prevention, etc Broadcast/multicast/unknown unicast storm-control Port isolation Port security, and “IP+MAC+port” binding
Reliability	Static/LACP link aggregation EAPS and ERPS
Management	Console, Telnet, SSH2.0, Web SNMP v1/v2/v3 TFTP RMON

Physical Interfaces

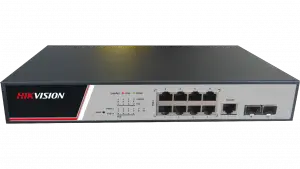

Front Panel

No.	Abbrev.	Name	Remarks
1	PWR	power indicator	If the switch is powered on, the indicator is on.
2	RESET	RESET	Resume to the default setting.
3	SYS	System indicator	If the indicator is always on, the system is started up. If the indicator flickers, the system works normally.
4	PoE	PoE indicator corresponding to each port	If the indicator is always on, the PoE works normally. If the indicator is off, the PoE does not work.
5	Lnk/Act	Lnk/Act indicator corresponding to each port	Green indicator is on: 10/100M is transmitted; Red indicator is on: 1000M is transmitted; No indicator is on: no signal is transmitted.
6	/	RJ45 interfaces	Realizes the PoE function and forwards 10/100/1000M Ethernet electrical signals
7	Console	Console	Manages the switch locally.
8	/	2 SFP ports	Realizes the forward of gigabit Ethernet optical signals.
