Wlt Ga-p701 Fast Wireless Charger Holder User Manual

Wlt Ga-p701 Fast Wireless Charger Holder User Manual

Wlt-GA-P701-Fast-Wireless-Charger-Holder-logo

Wlt GA-P701 Fast Wireless Charger Holder

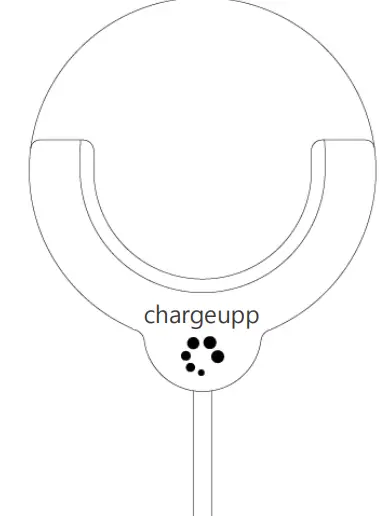

Wlt-GA-P701-Fast-Wireless-Charger-Holder-product

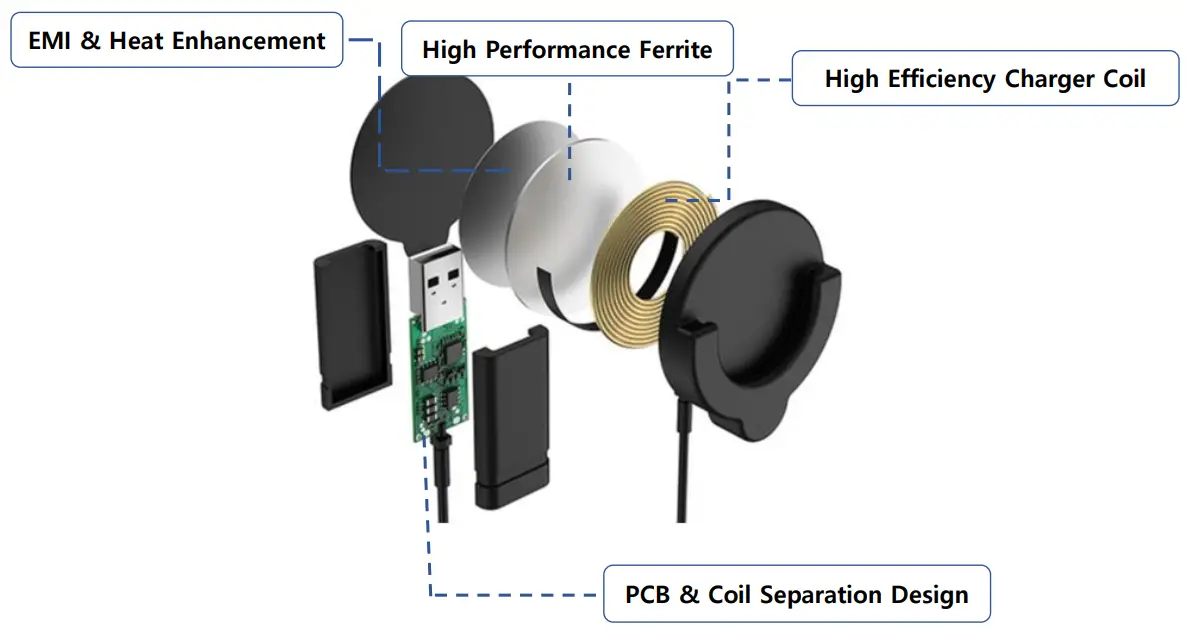

ParametersWlt-GA-P701-Fast-Wireless-Charger-Holder-fig-1

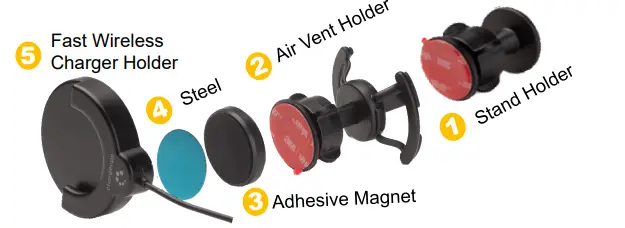

User guideWlt-GA-P701-Fast-Wireless-Charger-Holder-fig-2

  1.  Peel off 3M tape at the Air Vent Holder
  2.  Affix Adhesive Magnet into the Air Vent Holder
  3.  Peel-off sticky tape at the Steel
  4.  Affix Steel into the backside of the Fast Wireless Charger Holder
  5.  Affix all components together

Features

  •  This wireless charger is a wireless charging product specially designed for PopSockets PopGrip user and lover, and no more needs to separate PopGrip and cell phone case during the charging.
  •  This wireless charger only supports the plastic PopSockets PopGrip(No Metal, Aluminum and Jewelry type).
  •  The wireless charger design as separated between Coil part and PCB part improves heat control and continuous charging.
  •  Protections: FOD(Foreign Object Detection), OTP(Over Temperature Protection), OCP(Over Current Protection), OVP(Over Voltage Protection) and muti-safety protection.

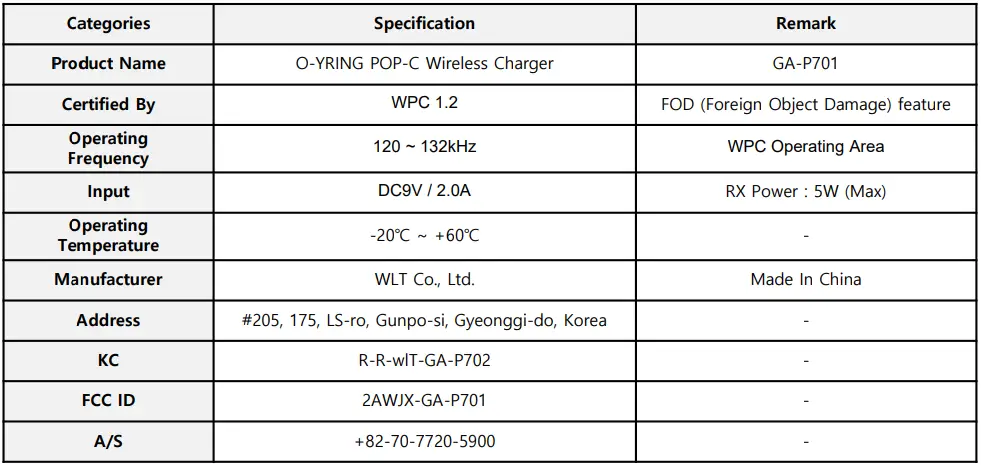

Product specification Wlt-GA-P701-Fast-Wireless-Charger-Holder-fig-3
