Fast Wireless Charger
Model: IICQI06
Instruction Manual
Specification
| Input: DCSV 2A DC9V 1.67A | Charging Efficiency:≥ 72% |
| Frequency: 110∼205KHz | Charging Distance: ≤10mm |
| Size: 66*117*18mm | N.W.: 125g |

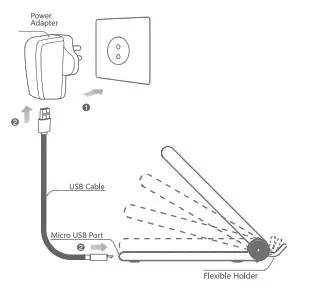

Connect to Power Adapter
Connect to Power Adapter
- Connect the power adapter to the socket.
- Connect the adapter to the USB 2.0 interface, the other Micro USB to pad.
- Charging pad indicator light keeps green after two seconds and enters standby mode. * There are spindles inside the charging stand, offering many kinds of charging angles according to your use. it’s controlled by the smart chipset, no worry about the long standby. * This product universally supports two modes of wireless charging
- Fast Wireless Charging (output 10W) It works with devices that support fast wireless charging, such as Samsung Galaxy S6 Edge +, Galaxy Note5, Galaxy S7, Galaxy S7 Edge, Galaxy S8, Galaxy S8+.
- Standard Wireless Charging (output 5W) It works with devices which only supports standard wireless charging, Such as Samsung Galaxy S6, S6 Edge, and other Qi-enabled devices. * Only Qualcomm quick charge adapter or Samsung original fast charge adapter support this product’s fast wireless charging function, you need to buy it separately.

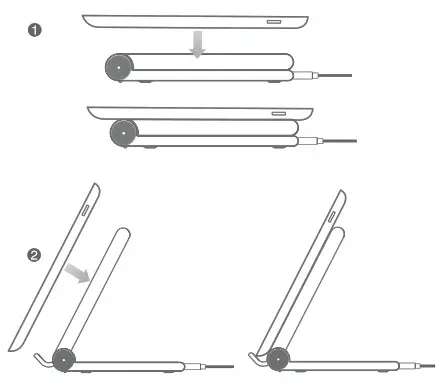

Charging Mode
- Make sure the charging pad is connected to the power supply, the indicator light is green and the charger is in standby mode.
- Put the wireless charging smartphone on the charging pad, the indicator light turns off, the charger enters into charging mode.
- Remove the receiver(wireless charging smartphone), the indicator light turns green, the charger enters into standby mode.
* When Samsung phones which are a built-in wireless charging function get fully charged with this product, if don’t move the phone in a long time, the battery power keeps in fully charged status(supplementary charge).
Notes
- Do not squeeze or subject to any kind of shock or knocking.
- Do not disassemble or throw into fire or water, to avoid causing a short circuit leakage.
- Do not use the wireless chargers in severely hot, humid, or corrosive environments, to avoid circuit damage and occurs leakage phenomenon.
- Do not place too close with magnetic stripe or chip card ( ID card, bank cards, etc. ) to avoid magnetic failure.
- Please keep the distance at least 20cm between implantable medical devices ( pacemakers, implantable cochlear, etc. ) and the wireless charger, to avoid potential interference with the medical device.
- To take care of the children, to ensure that they won’t play the wireless charger as a toy, to avoid unnecessary accidents.
Imported by iiglo
Østre KuHerod 4, N-3241 Sandefjord, Norway
www.iiglo.com Made in China
