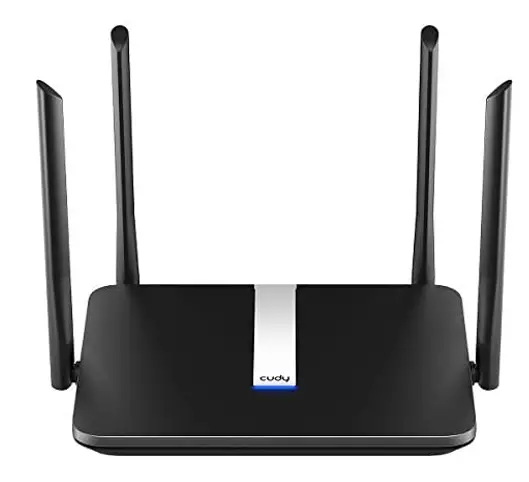

WR2100 Gigabit Dualband WLAN Mesh Router
Installation Guide Quick Installation Guide
WR2100 Gigabit Dualband WLAN Mesh Router
Email: [email protected]
Website: www.cudy.com
If your internet connection is through an ethernet cable directly from the wall instead of through a DSL/Cable/Satellite modem, connect the ethernet cable to the router’s
WAN port, and skip steps 1, 2 ,3.
- Turn off the modem, and remove the battery if it has one.

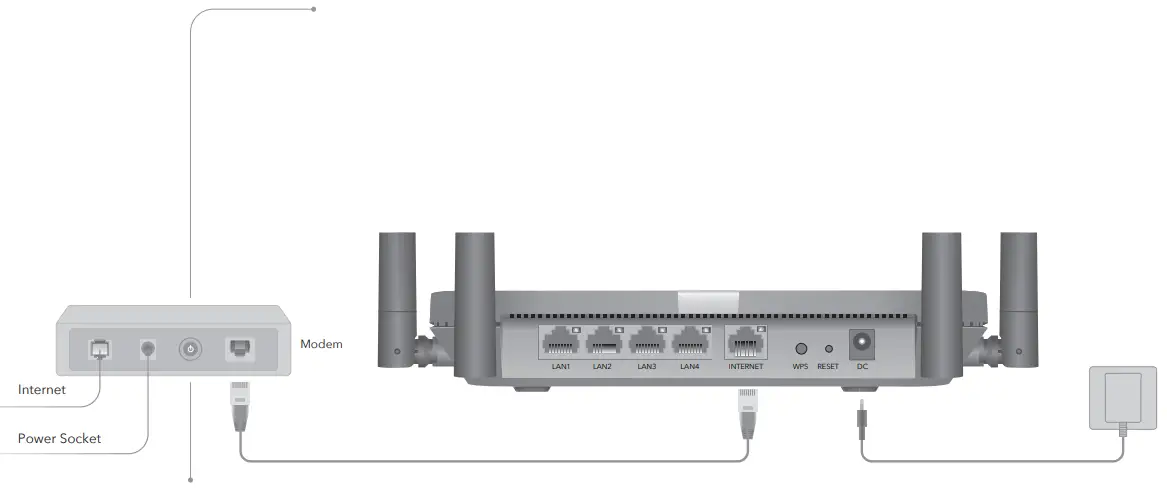

- Connect router’s INTERNET Port to DSL/Cable Modem/Ethernet.
- Turn on the modem and then wait about 2 minutes for it to restart.
- Connect the power adapter to the router, and wait 1 minute until the system LED changes from flashing to solid on red or blue , which means that the system startup is completed.
- Connect your computer to the router (Wired or Wireless)
Wired
Turn off the Wi-Fi on your computer and connect it to router’s LAN port via an ethernet cable.
Wireless
Connect your device to the router’s Wi-Fi using the SSID (network name) and Password printed on the bottom of the router.

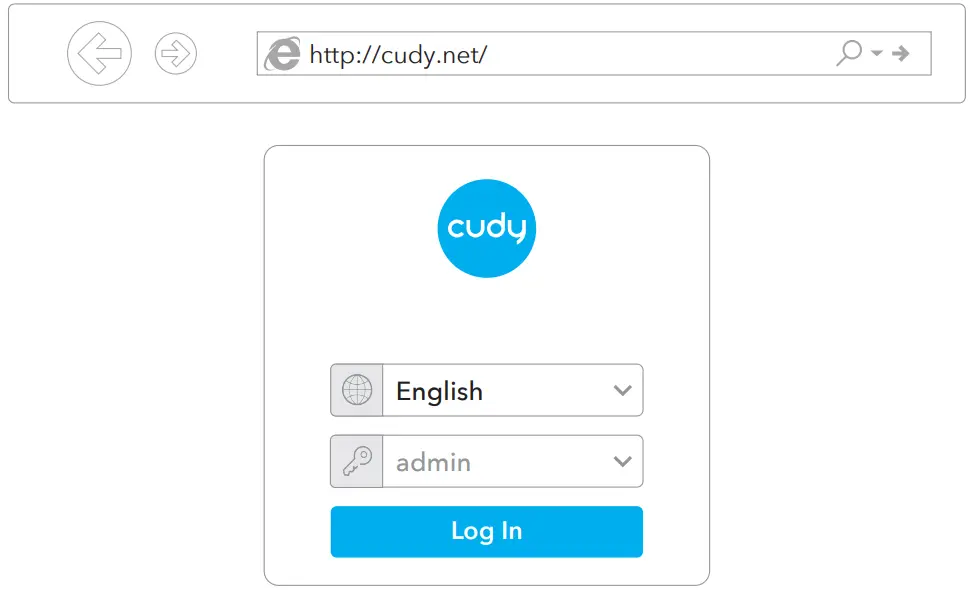

- Launch a web browser, and enter http://cudy.net/ or http://192.168.10.1/ in the address bar. Use admin for password to log in.

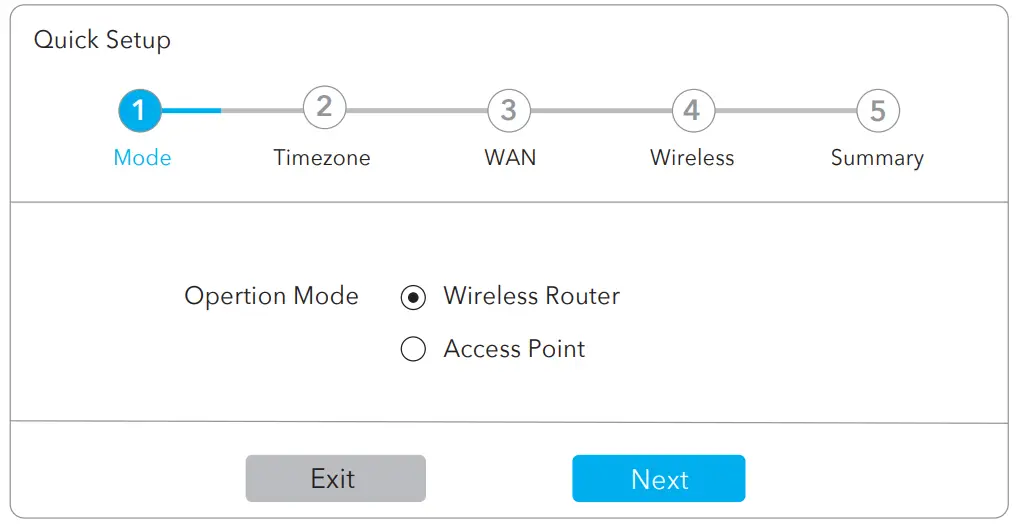

Note: If the login window does not appear, please refer to FAQ > Q1 - Then below popup will appear, please follow step by step instructions to set up the internet connections.
Note: If the pop-up window does not appear, please click Quick Setup on the status page.
Note: If the login window does not appear, please refer to FAQ > Q1
Note: If the pop-up window does not appear, please click Quick Setup on the status page.| Name | Status | Indication | |
| System LED | Solid On | Red | Internet is not connected |
| Blue | Internet is connected | ||
| Flashing | Red | System is starting up | |
| Blue | WPS is in progress | ||
| Red-Purple-Blue | Software upgrading | ||
| Off | Power adapter is not connected to the device. | ||
| Ethernet LED | On | The corresponding ethernet port is connected. | |
| Off | The corresponding ethernet port is not connected. | ||
| Button | WPS | Press and hold 1 second to enable the WPS function. | |
| Reset | Press and hold 6 seconds to reset the router to its factory default settings. |
Support
For technical support,the user guide and more information, please visit:
http://www.cudy.com/support
[email protected]
Frequently Asked Questions (FAQ)
– A1: If the computer is set to a static IP address, change its settings to obtain an IP address and DNS server address automatically.
– A2: Verify that http://cudy.net/ or 192.168.10.1 is correctly entered in the web browser.
– A3: Use another web browser and try again.
– A4: Reboot your router and try again.
– A5: Disable and then enable the network adapter being used.
– A: Please make sure the router is connected, power and broadband interface has no loose. If everything is normal but still no signal, please try to use computer to set, or restore the router to factory settings. If after restoring factory settings but still no signal, you can restart the router, if it still doesn’t work, maybe the router has fault.
– A: While the power is still on, keep pressing the reset button for 6 seconds, and wait for 1-2 minutes and it will restore to factory settings.
– A: Please make sure your mobile phone is connected to the Cudy Router Wi-Fi(default name is printed on the buttom of router), and make sure you enter the right site in the browser. (Please follow instructions FAQ -> Q1)
– A: After restarting the Router, maybe your phone or computer connect automatically to other Wi-Fi, please make sure your phone or computer is connected to Cudy Router Wi-Fi. (default name is printed on the bottom of router)
Enjoy the internet!
