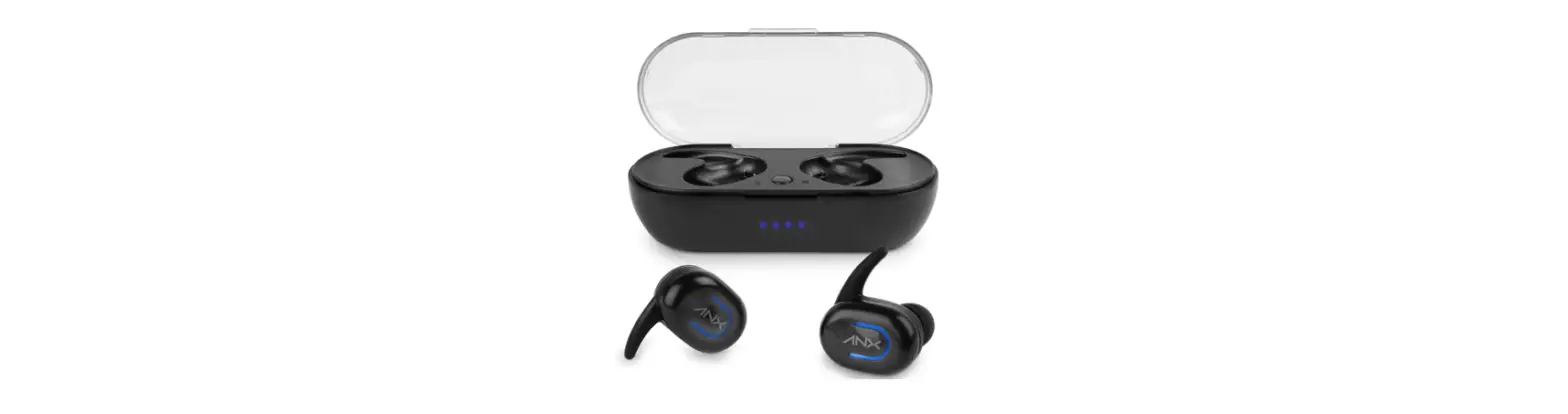

AX-50 TWS Cylndr Tch IPX5 Wireless BT Earbuds
User Guide
Thank you for purchasing our products. Please review this manual thoroughly before operating your device.
please read this manual carefully and keep it for future use.
Product Overview
| 1. SportClip” | 5. Eartips |
| 2. LED Indicator | 6. Charging Case Type-C Charging Port |
| 3. Multi-Function Button (MFB) | 7. Charging Case Battery level LED Indicator |
| 4. Charging Contacts |
| Earphones (Left & Right) | Eartips x 3 Pairs (S, M & L) |
| Charging Case | Type-C Charging Cable |
| SportClip” x 2 Pairs (S,L) |
Power On/Off
Take the earbuds out of the charging case, and the earbuds will automatically power on. When the earbuds are powered on, put the earbuds into the charging case, and the earbuds can be powered off and charged.

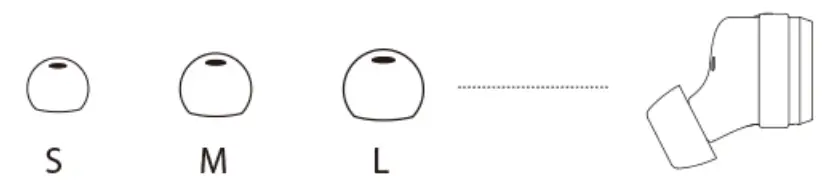

Experiment with the different sizes of ear tips to find your perfect fit.

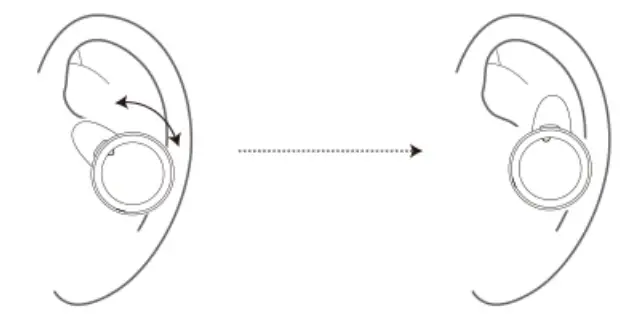

Twist the earphone until it fits securely and comfortably.
Pairing
Remove earphones from the charging case, the earphones will turn on automatically. Left and right earphones will be connected automatically. Wait for a few seconds, the “pairing” voice prompt will be heard.
For a new device connection, go to the Bluetooth settings on your mobile device and set it to search for new devices (new H702 device). Once the earphone is paired, you will hear”connected”.
Calling
Answer/End Call: double press the MFB button to answer/end the phone call
Reject Call: long press the MFB button for about 2 seconds to reject phone call
Music
Play/Pause: double press MFB once to play/pause music
Track forward: press and hold MFB on the right earphone for about 2 seconds
Track backward: Press and hold MFB on the left earphone for about 2 seconds
Voice Control
After connecting to the phone, triple-click the MFB to activate the voice assistant.
LED Indicator Guide
| Status | DESCRIPTION | Voice Prompt |
| Power On | The White LED indicator stays On for about 1 second | Power On |
| Power Off | The Red LED indicator stays On for about 1 second | Power Off |
| Pairing | Red White LED flash alternately | Pairing |
| Connect | White LED indicator off | Connected |
| Charging Earphones | The Red LED indicator stays On | |
| Charging Charging Case | The battery level LED Indicator flashes while charging. When the battery level LED indicator is off, it is fully charged. |
Caution
ONLY use computer USB output or standard 5 volts only (S00mA minimum) power adaptor for charging. Damage may occur if a non-standard USB power adaptor is used for charging. Do not charge if the connector and/or device is wet or damaged.
FCC Caution
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
RF warning for Portable device
The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.
