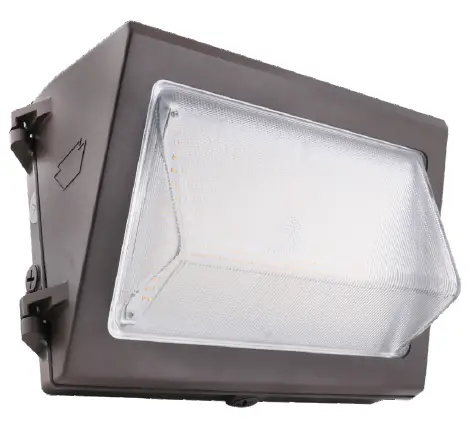

KEYSTONE KT-WPLED35-M1-8CSB-VDIM Traditional Non-Cutoff Led Wall Pack

DESCRIPTION

Traditional 35W Non-Cutoff LED Wall Pack | 120–277V Input | 3000–5000K | Medium-Size Housing | Bronze Finish | Glass Lens

APPLICATION
Building mount for exterior illumination (perimeters, pathways, loading docks, and other general security lighting requirements)

PRODUCT FEATURES

• Keystone Color Select technology (3000/4000/5000K)
• Traditional design that matches appearance and light distribution pattern of legacy HID fixtures. Optimized for one-for-one replacements
• Heavy duty die cast aluminum housing with (5) 1/2” threaded conduit hubs: (1) on back and (1) on all four sides
• Powered by Keystone 0–10V dimming LED drivers
• Built-in dusk-to-dawn photocell behind translucent 3/4″ threaded plug with anti-yellowing agent
• Borosilicate glass lens diffuses light source and provides uniform distribution
• Covers footprint of mid-size HID wallpacks
• Ambient operating temperature: −40ºC/−40ºF to 50ºC/122ºF
• UL Certified for wet locations; IP65 rated
• Fixture impact rating IK06
• Power Factor: >0.95
• THD: <20%
• LED chip lifetime: L70 >100,000 hrs @ 25ºC/77ºF ambient fixture temperature
• Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
• Compatible with Keystone LED Emergency Backups. See Accessories page for more details

PRODUCT SPECIFICATIONS

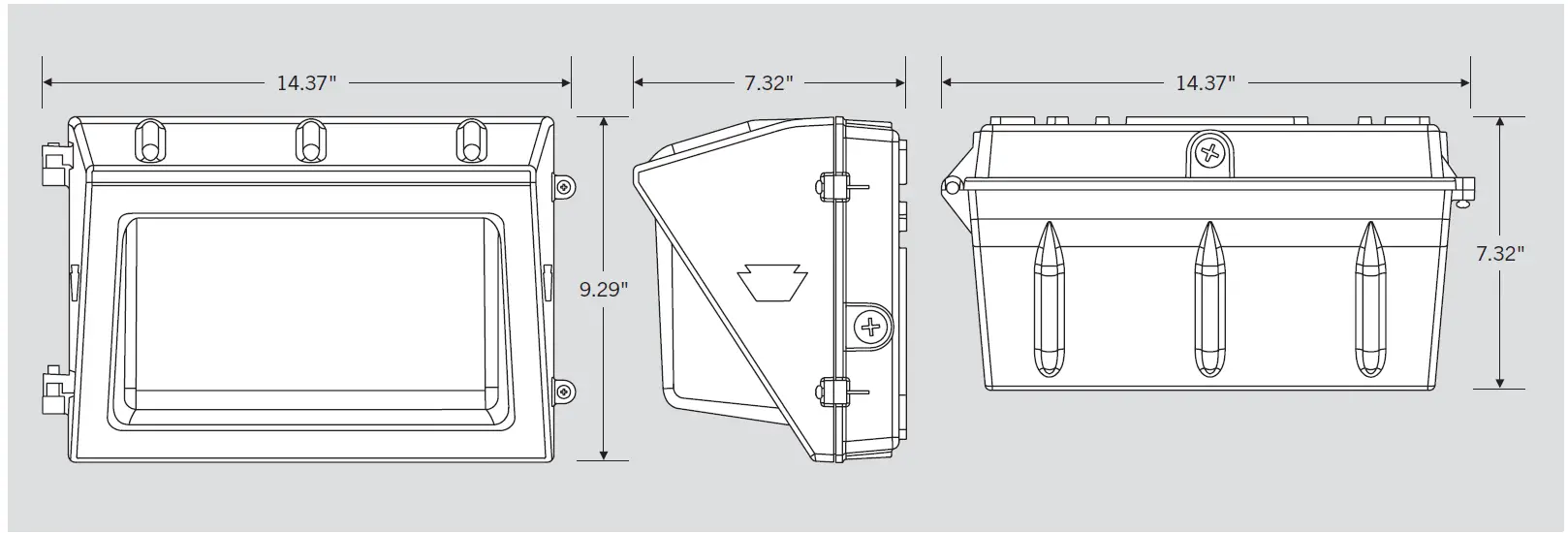

PHYSICAL SPECIFICATIONS

GENERAL SETUP INSTRUCTIONS

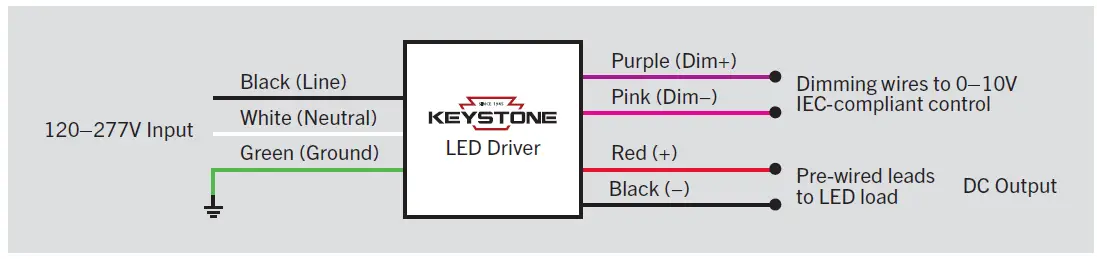

GENERAL WIRING DIAGRAM

Caution: Before installing, make certain that AC power to the fixture is off.
Caution: The electrical rating of this product is 120–277V. Installer must confirm that there is 120–277V at the fixture before installation.

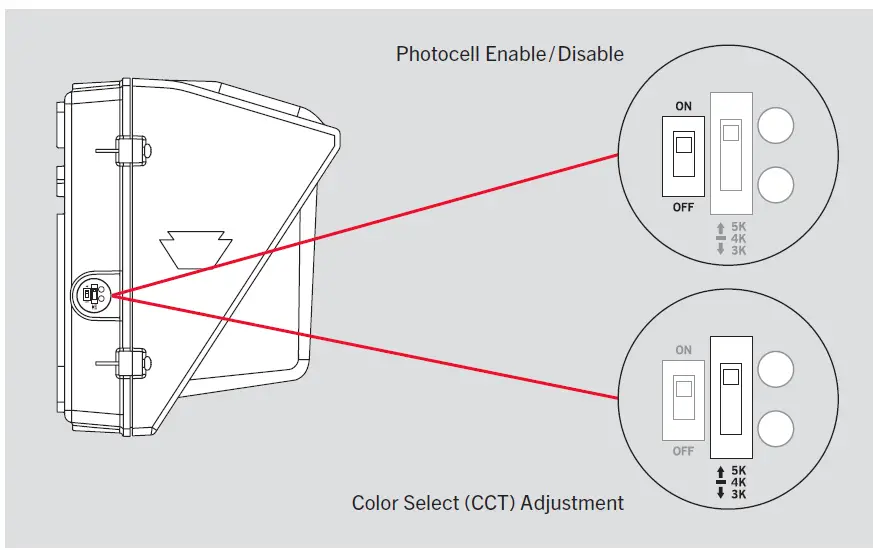

PHOTOCELL ENABLE / DISABLE
This fixture is equipped with a dusk-to-dawn photocell behind the translucent knock-out (KO) cover. Adjust the dip switch to enable (ON) or disable (OFF) the photocell function (see illustrations to the right). Fixture comes preset with photocell enabled unless otherwise noted.

COLOR SELECT (CCT) ADJUSTMENT
This fixture is equipped with Color Select technology. There is an adjustable dip switch behind the translucent knock-out (KO) cover to change CCT between 5000K, 4000K, and 3000K (see illustrations to the right). Fixture comes preset at 5000K unless otherwise noted.

PHOTOMETRIC SPECIFICATIONS

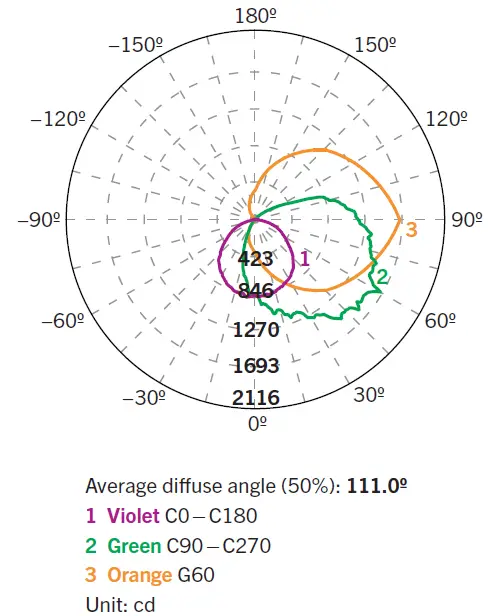

ISOCANDELA PLOT

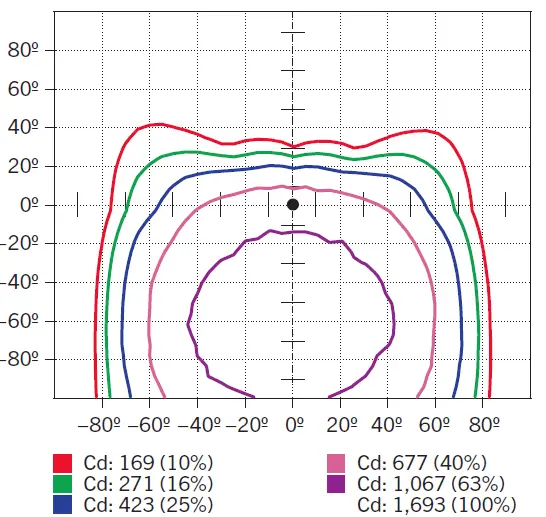

LUMINOUS INTENSITY DISTRIBUTION

FLUX DISTRIBUTION

MOUNTING
Side view

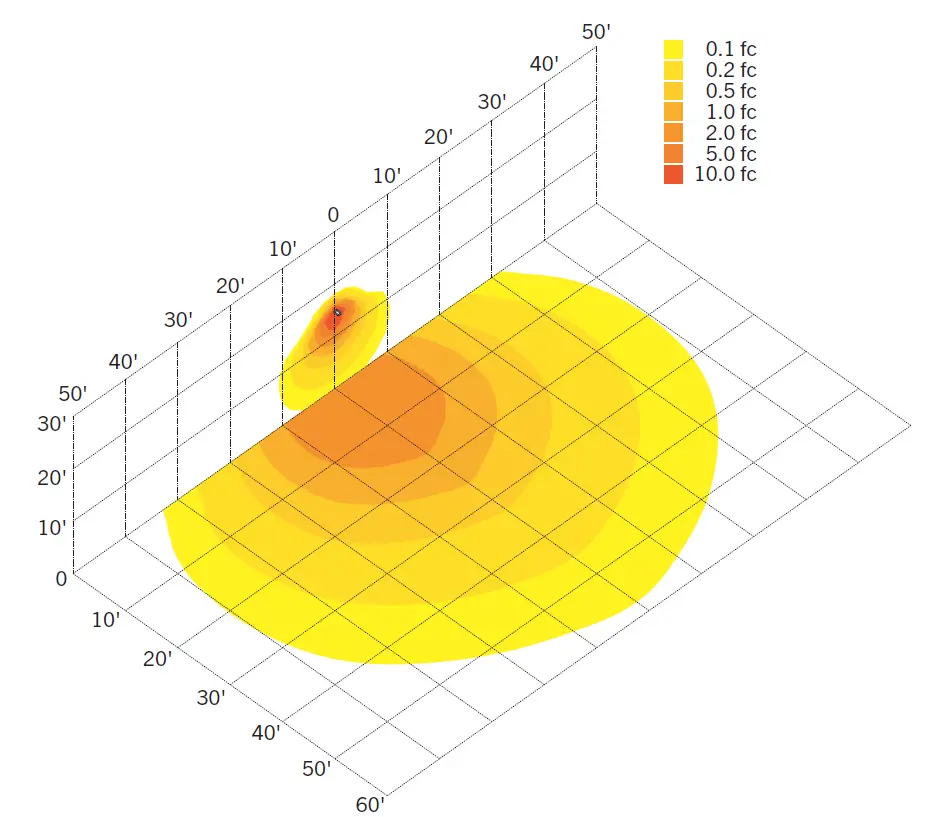

LIGHT DISTRIBUTION PATTERN

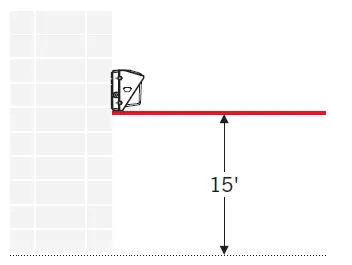

Isometric view from above; Luminaire mounted at 15′

ACCESSORIES

SENSORS
Factory-Installable OR Field-Installable (field-installable purchased separately).

✓	SUFFIX*	CATALOG NUMBER		DESCRIPTION	UPC	EASY CODE
	/MW3	KTS-MW3-UV-KO-K1		Microwave Sensor Kit, Includes 120-277V input to 12V DC convertor & 12V input sensor head, IP65. Bi-Level Control with Adjustable Hold Time, Dim Level and Standby Time. Installs via standard 1/2in KO	843654134147	BKG-51

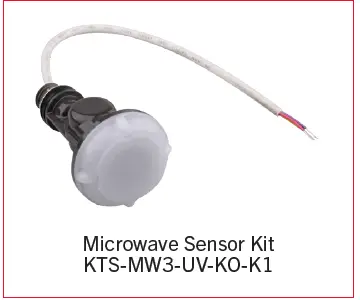

Microwave Sensor Kit KTS-MW3-UV-KO-K1			* For factory installation of accessory, add suffix to fixture part number (see ordering examples and instructions on last page of spec sheet).

CORD SETS
Factory-Installable OR Field-Installable (field-installable purchased separately).

✓	SUFFIX*	CATALOG NUMBER		DESCRIPTION	UPC	EASY CODE
	/515P6	KT-CS-515P-6-18/3		Cord set for high bay; 125V NEMA 5-15P; straight blade plug; 6′ SJTOW cable; 18/3 wire	843654140124	UKH-26
	/L515P6	KT-CS-L515P-6-16/3		Cord set for high bays; 250V NEMA L5-15P; twist lock plug; 6′ SJTOW cable; 16/3 wire	843654140186	POC-82
Cord Sets			* For factory installation of accessory, add suffix to fixture part number (see ordering examples and instructions on last page of spec sheet). Note: For cord sets not listed here, please contact your Keystone sales rep.

EMERGENCY BACKUP
Factory-Installable OR Field-Installable (field-installable purchased separately).

✓	SUFFIX*	CATALOG NUMBER			DESCRIPTION		UPC	EASY CODE
	/EM12	KT-EMRG-LED-12C-1200			LED Emergency Back-Up, 12W Constant Wattage Design. Approx 1200 Lumens. 120-277V Input. Remote Compact Battery Pack. CEC T20 Compliant.		843654103112	OJQ-32
	–	KT-EMRG-LED2-TS-IP65			IP65 Rated Wet Location Test Switch for 5W and 12W CEC Compliant LED Emergency Packs		843654130019	MDB-29

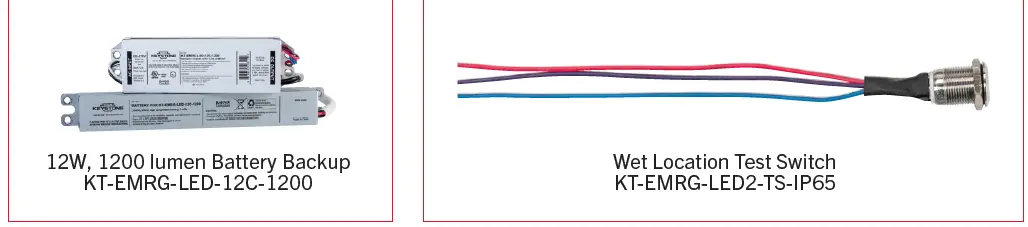

12W, 1200 lumen Battery Backup KT-EMRG-LED-12C-1200				Wet Location Test Switch KT-EMRG-LED2-TS-IP65

MOUNTS AND BRACKETS
Field-Installable / Field-Use ONLY (purchased separately).

✓	SUFFIX*	CATALOG NUMBER		DESCRIPTION	UPC	EASY CODE

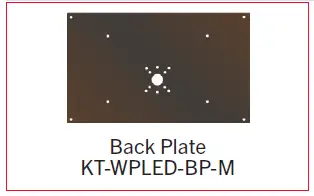

	–	KT-WPLED-BP-M		Back Plate for Medium Size Wallpacks, Covers Legacy Style Large HID Housing Dimensions. Standard Bronze Color.	843654130613	CCJ-21
Back Plate KT-WPLED-BP-M			* For factory installation of accessory, add suffix to fixture part number (see ordering examples and instructions on last page of spec sheet). Note: This is needed with EM – will be added when factory installing EM

SURGE PROTECTORS
Factory-Installable OR Field-Installable (field-installable purchased separately).

✓	SUFFIX*	CATALOG NUMBER		DESCRIPTION	UPC	EASY CODE

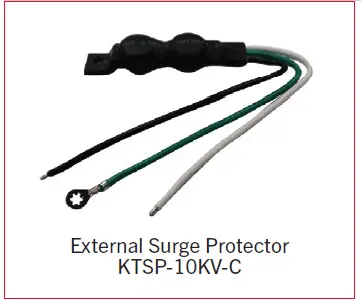

	/10KV	KTSP-10KV-C		External Surge Protector, compact design. Parallel Wiring, 120-277V Input, Max Peak Protection (10KV, 10KA)	843654129204	BUU-26
External Surge Protector KTSP-10KV-C			* For factory installation of accessory, add suffix to fixture part number (see ordering examples and instructions on last page of spec sheet).

ORDERING INFORMATION

CATALOG NUMBER BREAKDOWN

1. Keystone Technologies
2. Fixture Type
3. LED Lamp
4. Wattage
5. Size
6. Style
7. CRI
8. Color Select
9. Color Select Designation
10. Dimming
11. Accessories (see below for details)

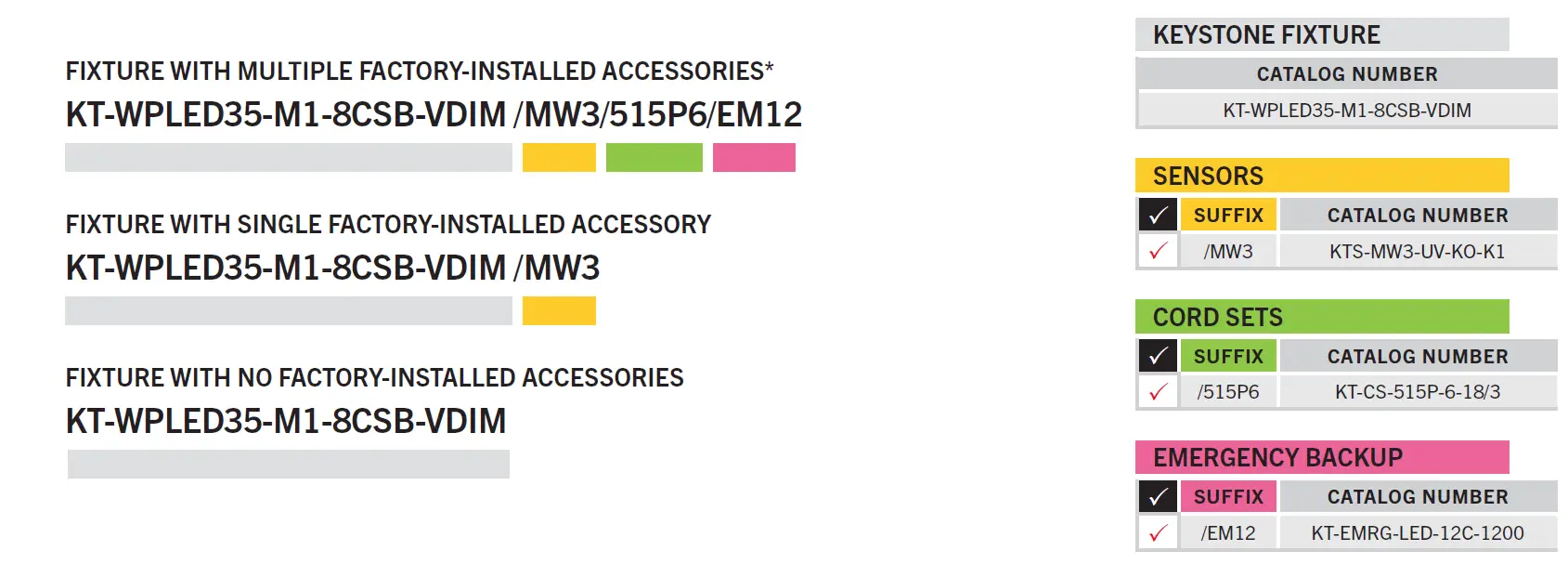

ORDERING EXAMPLES

Keystone Technologies • Philadelphia, PA
Phone (800) 464-2680
www.keystonetech.com
Specifications subject to change. Last revised on 01.23.23
