ARROW ASK-15703-PCA Pressure Injectable Three-Lumen CVC Kit

Contents

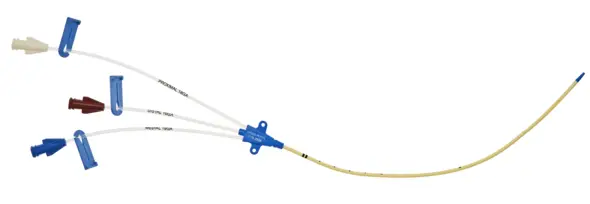

• 1: Three-Lumen Catheter: 7 Fr. (2.5 mm OD) x 20 cm, Pressure Injectable
• 1: Spring-Wire Guide, Marked: .032″ (0.81 mm) dia. x 23-5/8″ (60 cm) (Straight Soft Tip on One End – “J” Tip on Other) with Arrow Advancer
• 1: Catheter: 18 Ga. x 2-1/2″ (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
• 1: Pressure Transduction Probe
• 1: Introducer Needle: Echogenic 18 Ga. x 2-1/2″ (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
• 1: Injection Needle: Eclipse™1 22 Ga. x 1-1/2″ (3.81 cm) RW and 5 mL Luer-Slip Syringe
• 1: Injection Needle: Eclipse™1 25 Ga. x 1″ (2.54 cm) RW and 3 mL Luer- Lock Syringe
• 1: Syringe: 10 mL Luer-Lock 1: Tissue Dilator: 8.5 Fr. (2.8 mm) x 10.2 cm
• 1: SecondSite™ Adjustable Hub: Fastener
• 1: SecondSite™ Adjustable Hub: Catheter Clamp
• 1: SharpsAway® Disposal Cup
• 1: SharpsAway® II Locking Disposal Cup
• 1: Drape: 68″ x 110″ with 4″ fenestration
• 1: Towel
• 1: Needle Holder
• 1: Safety Scalpel: #11
• 1: Flow Rate Information Card with Injection Log
• 1: Checklist/CLIP Sheet
• 1: Sterile Procedure Sign
• 2: Gauze Pad: 2″ x 2″ (5 cm x 5 cm)
• 5: Gauze Pad: 4″ x 4″ (10 cm x 10 cm)
• 1: Dressing: Tegaderm®2 CHG 3-1/2″ x 4-1/2″ (8.5 cm x 11.5 cm)
• 1: Suture: 3-0 Silk with Curved Needle
• 1: HemoHopper® Fluid Receptacle
  • 1A trademark of Becton, Dickinson and Company.
  • 2A registered trademark of 3M Company.

• Priming volumes are approximate and are done without accessories. † Flow rate values are approximate and are determined using deionized water at 100 cm head height.
• Pressure injection flow rates are determined using media of 11.8 centipoises (cP) viscosity, with 152 cm administration set tubing.
