User Manual
Classic 2 Lite Wired Earphones
[email protected]
[email protected]
Contact us for any questions:
- Fit issue
- Sound quality
- Mic issue
- Quality related issue
- Others

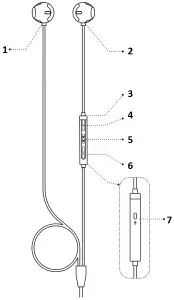

PRODUCT OVERVIEW
- L label
- R label
- In-line controller
- Volume +
- Play/Pause/Call
- Volume –
- Microphone
- 3.5 mm stereo jack
- Cord
WEARING
Step 1 Please check the “R” and “L” labels on the earbuds.
Step 2 Put the earbuds into the corresponding ears.
Step 3 Try rotating the pod to make sure the pod fits comfortably and securely in the ear canal.
GETTING STARTED
Step 1 Plug this pair of earphones into your audio device with a 3.5 mm stereo jack.
Step 2 Turn on your audio device to enjoy your Linklike Classic 2 Lite.
| Button | Control | |
 | Increase Volume | Press to adjust |
| Play / Pause | Press once | |
| Switch to Next Song | Press 2 times | |
| Switch to Previous Song | Press 3 times | |
| Answer / Hang Up Call | Press once | |
| Reject Call | Press and hold for 3s | |
| Activate Voice Assistant** | Long press and hold | |
| Decrease Volume | Press to adjust | |
* Designed for phones. Button and microphone features may not work on certain PCs.
** Voice Assistant feature only works for voice assistant enabled devices.
SPECIFICATIONS*
| Product | Wired Earphones |
| Model | Classic 2 Lite |
| Connector Type | 3.5 mm stereo jack |
| With Mic | Yes |
| Cord Length | ≈ 1.2 m |
| Rated Power | 3 mW |
| Max Power | 5 mW |
| Driver Size | Φ 14.2 mm |
| Impedance | 32 Ω ± 10% |
| Frequency Range | 20 Hz – 20 kHz |
| Driver Sensitivity | 102 ± 3 dB (IEC711 @ 1 kHz |
| Mic Sensitivity | -42 ± 3 dB (94 dB SPL @ 1 kHz) |
| Distortion | ≤ 3% (@ 100 Hz – 8 kHz) |
* Based on the test results of Linklike Lab, for reference only.
WARNING
- This product did not install any spare parts that can be maintained. Please do not disassemble, or refit the product on your own.
- Do not place or use this product in a hot or humid environment.
- Please do not throw this product into fire or water to avoid fire and explosion.
- Do not use this product for a long time, so as not to damage the hearing.
- Do not use this product in noisy environments or in situations that requires special attention (e. g. in traffic or when doing skilled work), to avoid danger.
- If there are any abnormal phenomena such as leakage from the drums, please don’t hesitate to stop using this product and contact the official customer service immediately.
- Keep the product, accessories and packaging parts out of reach of children and pets to prevent accidents and choking hazards.
WARRANTY CARD
Buyer Name: __________________________________
Phone Number: ________________________________
Order ID: _____________________________________
Issue: ________________________________________
Date of Purchase: ______________________________
Address: ______________________________________
Warranty Period: __________12 Months____________
Email us to enroll our VIP program and gain an extra half a year warranty.
[email protected] [email protected]
Linklike is a trademark registered in the USA and other countries. All rights reserved.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Made in China
Linklike (Shenzhen) Technology Co., Ltd.
ADD: RM1709, BLK C, Zhantao Technology
BLDG, Minzhi Avenue, Minzhi ST, Longhua
DIST, Shenzhen, China
