THERMON THS2031-0821 Round Tubular Rail Heaters

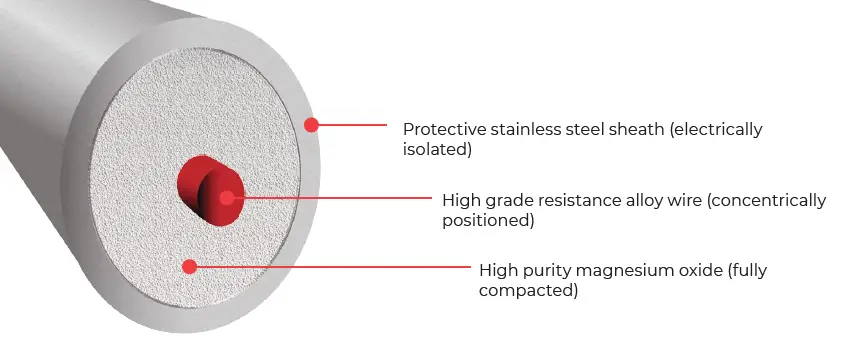

The Fastrax™ electric round tubular rail heater is ideal for older switch installations that do not have the relief available for flat profile heaters. It resides within the recess web area of a rail to keep railway switch components free of ice and snow. The heavy duty stainless steel construction resists corrosion and offers protection and durability in rugged environments. The heater is designed to withstand heavy shock and vibration found in rail traffic, and is suitable for use in extreme weather conditions. The wire inside of the heating element is made of high grade resistance alloy and provides the source of heat. The resistance wire is surround by highly compacted magnesium oxide insulation, which provides excellent electrical and thermal properties.Thermon has internal capabilities dedicated to the production of the highest quality tubular heating elements. We use only the best commercially available materials and we use design parameters proven to maximize element life expectancy.

Features

Electrically isolated sheath

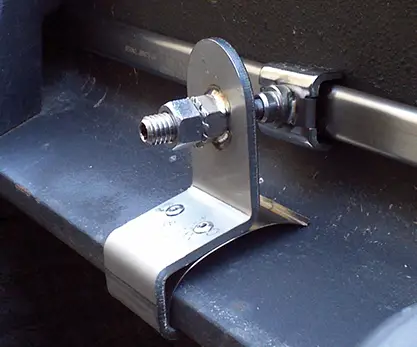

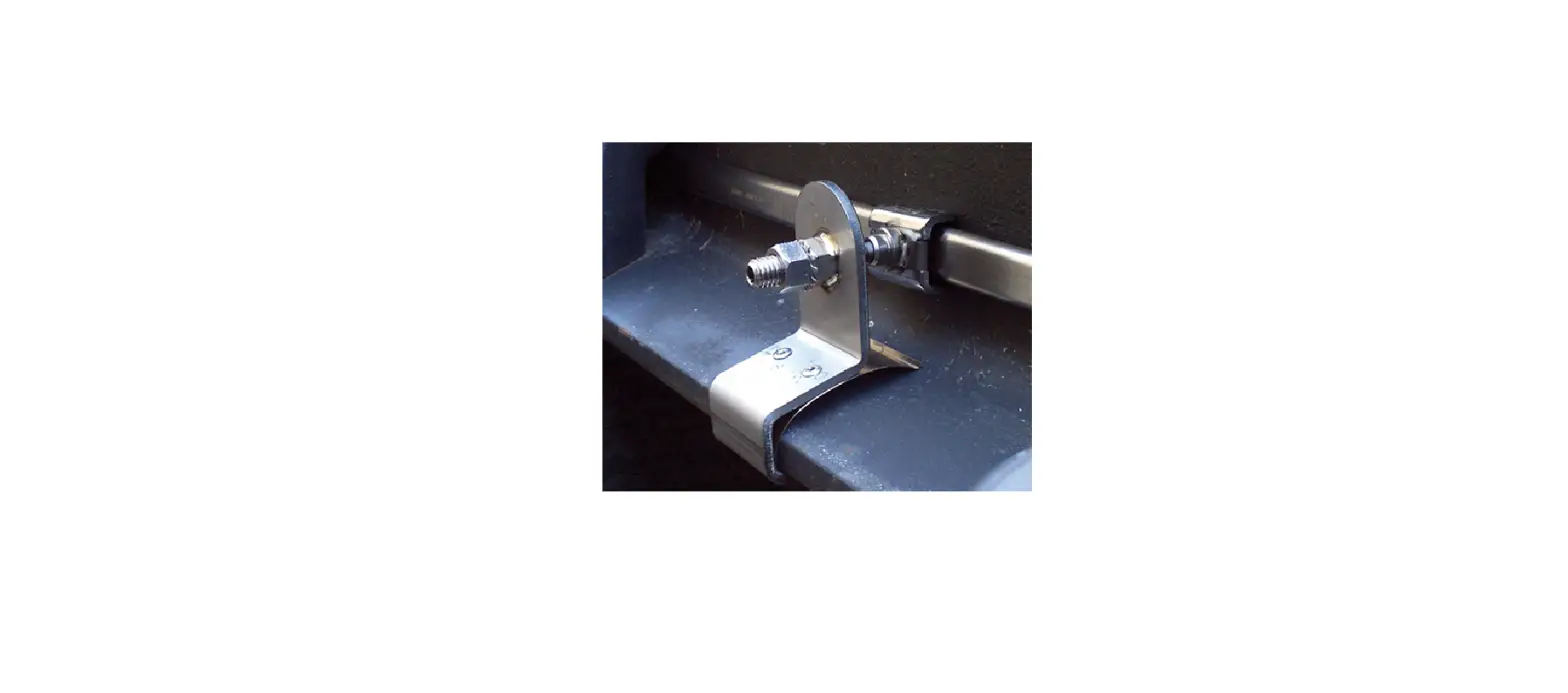

Fastrax™ patented spring clamp technology allows for expansion and contraction of the heater without binding or losing contact with the rail
premium grade marine power cable lead is resistant to chemicals and severe weather
Standard lengths ranging from 12’ to 36’
Available in AC or DC voltages, from 208V to 750V

Benefits

Easy to install, no drilling required
Excellent internal electrical insulation and heat conduction ࢦ Compatible with most rail lines
Capabilities to develop any type of round heater required in the rail industry
Annealed specifically for easy application around railroad obstructions
Watt density matches the SwitchBlade® heater output
Custom lengths and wattages available

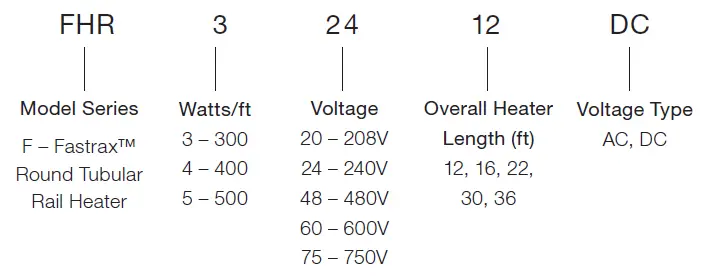

Model Coding

Table 6 – Round Tubular Rail Heater Selection Guide

Overall Length	Heater Length	Voltage	Watts/Ft	Total kW	Part Number	Overall Length	Heater Length	Voltage	Watts/Ft	Total kW	Part Number
12′	10′-8″	208	300	3.2	FHR32012	22′	20′-8″	480	300	6.2	FHR34822
16′	14′-8″	208	300	5.0	FHR32016	30′	28′-8″	480	300	8.6	FHR34830
22′	20′-8″	208	300	6.2	FHR32022	36′	34′-8″	480	300	9.6	FHR34836
30′	28′-8″	208	300	8.6	FHR32030	12′	10′-8″	480	400	4.4	FHR44812
36′	34′-8″	208	300	9.6	FHR32036	16′	14′-8″	480	400	6.6	FHR44816
12′	10′-8″	208	400	4.4	FHR42012	22′	20′-8″	480	400	8.2	FHR44822
16′	14′-8″	208	400	6.6	FHR42016	30′	28′-8″	480	400	12.0	FHR44830
22′	20′-8″	208	400	8.2	FHR42022	36′	34′-8″	480	400	14.0	FHR44836
30′	28′-8″	208	400	12.0	FHR42030	12′	10′-8″	480	500	5.2	FHR54812
12′	10′-8″	208	500	5.2	FHR52012	16′	14′-8″	480	500	8.2	FHR54816
16′	14′-8″	208	500	8.2	FHR52016	22′	20′-8″	480	500	10.2	FHR54822
22′	20′-8″	208	500	10.2	FHR52022	30′	28′-8″	480	500	14.2	FHR54830
12′	10′-8″	240	300	3.2	FHR32412	36′	34′-8″	480	500	17.2	FHR54836
16′	14′-8″	240	300	5.0	FHR32416	12′	10′-8″	600	300	3.2	FHR36012
22′	20′-8″	240	300	6.2	FHR32422	16′	14′-8″	600	300	5.0	FHR36016
30′	28′-8″	240	300	8.6	FHR32430	22′	20′-8″	600	300	6.2	FHR36022
12′	10′-8″	240	400	4.4	FHR42412	30′	28′-8″	600	300	8.6	FHR36030
16′	14′-8″	240	400	6.6	FHR42416	36′	34′-8″	600	300	9.6	FHR36036
22′	20′-8″	240	400	8.2	FHR42422	12′	10′-8″	600	400	4.4	FHR46012
30′	28′-8″	240	400	12.0	FHR42430	16′	14′-8″	600	400	6.6	FHR46016
36′	34′-8″	240	400	14.0	FHR42436	22′	20′-8″	600	400	8.2	FHR46022
12′	10′-8″	240	500	5.2	FHR52412	30′	28′-8″	600	400	12.0	FHR46030
16′	14′-8″	240	500	8.2	FHR52416	36′	34′-8″	600	400	14.0	FHR46036
22′	20′-8″	240	500	10.2	FHR52422	12′	10′-8″	600	500	5.2	FHR56012
30′	28′-8″	240	500	14.2	FHR52430	16′	14′-8″	600	500	8.2	FHR56016
36′	34′-8″	240	500	17.2	FHR52436	22′	20′-8″	600	500	10.2	FHR56022
12′	10′-8″	480	300	3.2	FHR34812	30′	28′-8″	600	500	14.2	FHR56030
16′	14′-8″	480	300	5.0	FHR34816	36′	34′-8″	600	500	17.2	FHR56036
