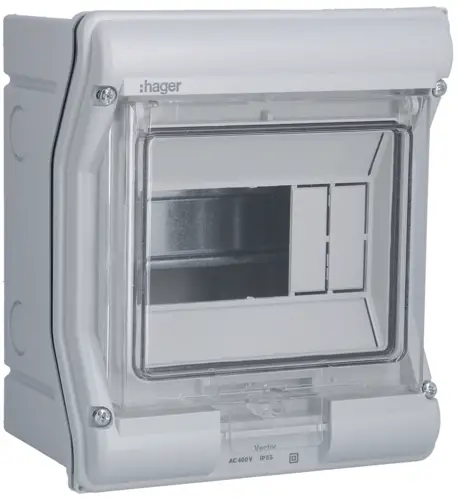

hager VE106U 6 Module Insulated IP55 Enclosure
IMPORTANT INSTRUCTIONS

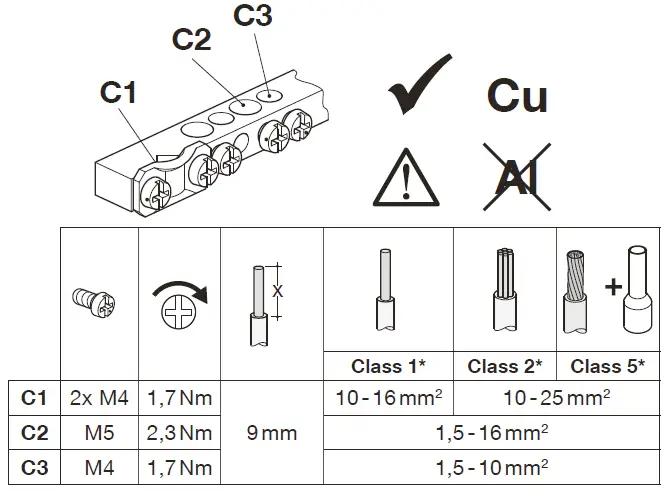

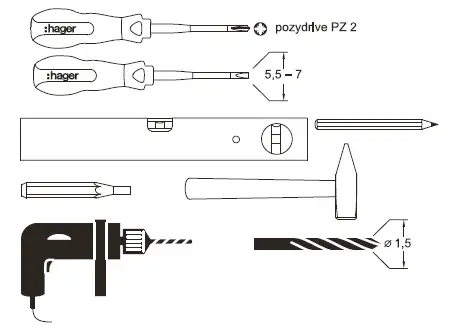

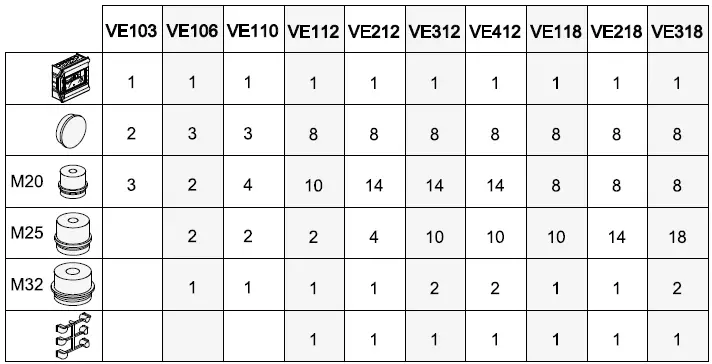

TOOLS

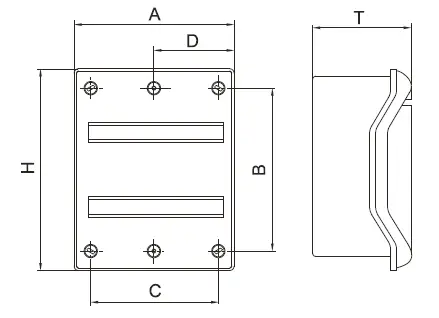

DIAGRAM

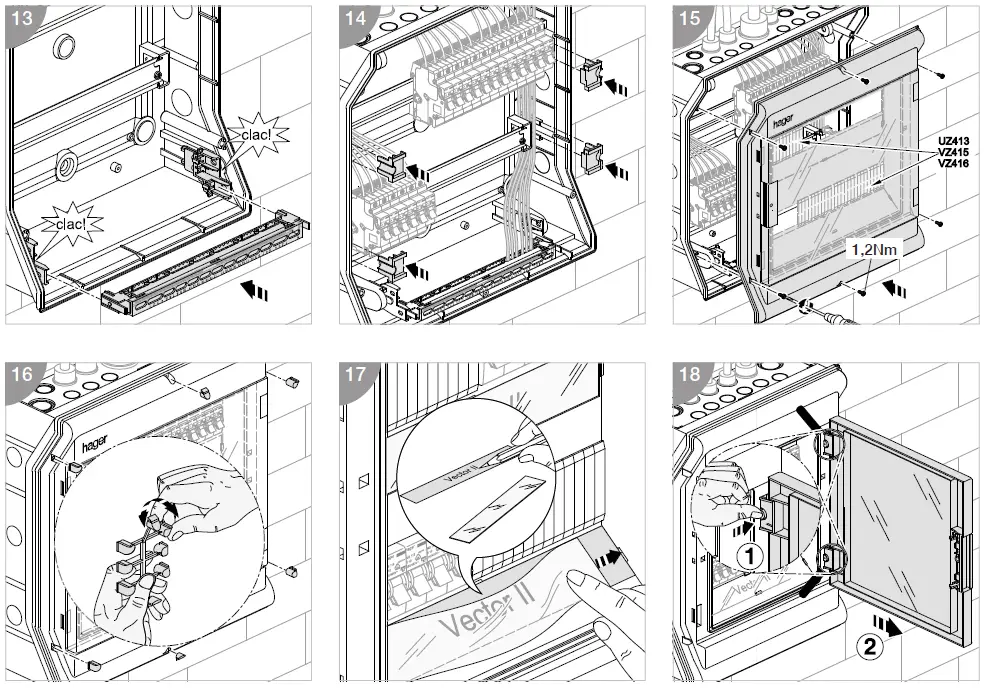

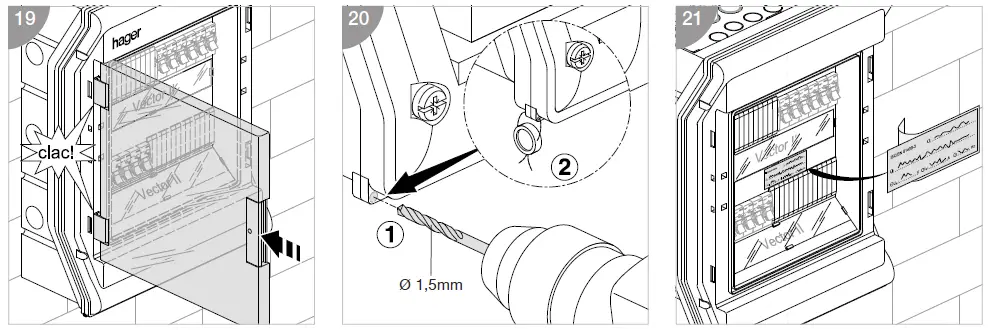

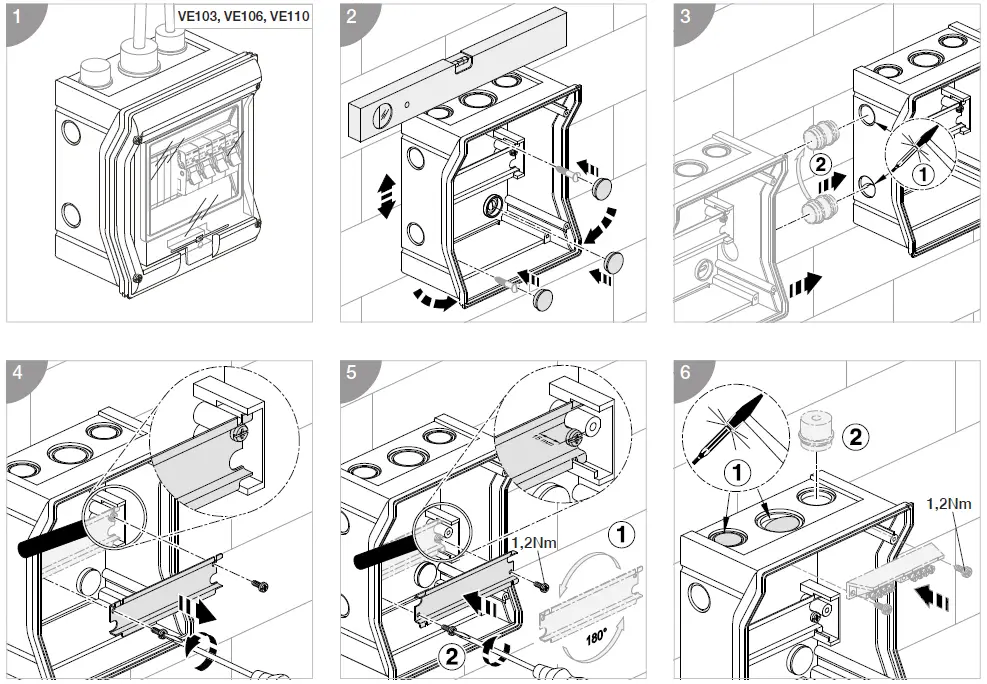

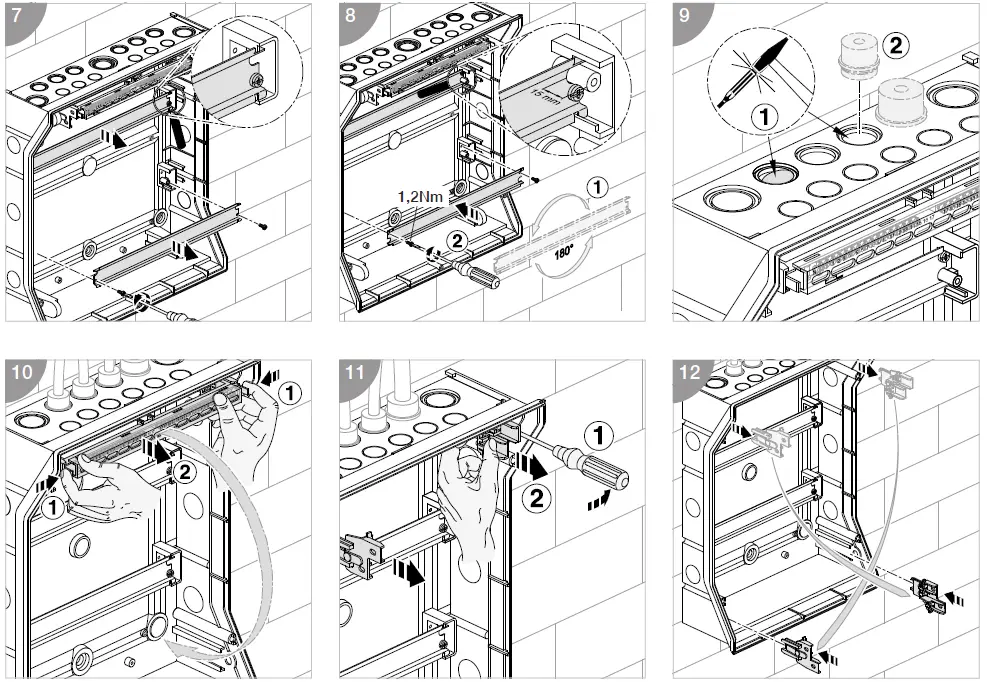

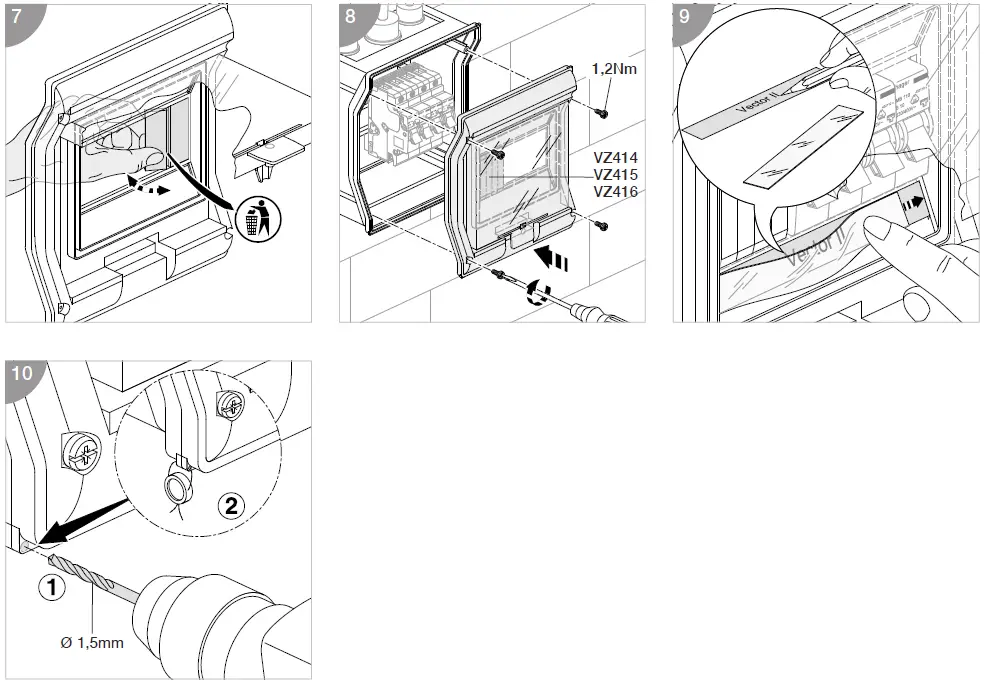

Mounting instructions
Attention!
It is critical that any enclosure is sized and selected to accomodate and dissipate heat rise generated from all installed devices.
The table (right) provides maximum permissible heat dissipation for each golf enclosure size. Please ensure that you calculate internal heat generated from your installation and select the correct enclosure accordingly.
|
Reference | Admissible thermal dissipation loss for surface mounted distribution boards at temperarture rise ∆T* | ||||
| 10K W | 15K W | 20K W | 25K W | 30K W | |
| VE103.. | 2,4 | 4,0 | 5,7 | 7,5 | 9,4 |
| VE106.. | 3,2 | 5,3 | 7,6 | 10,1 | 12,6 |
| VE110.. | 4,5 | 7,4 | 10,6 | 10,0 | 17,6 |
| VE112.. | 7,7 | 12,8 | 18,3 | 24,2 | 30,3 |
| VE212.. | 9,5 | 15,7 | 23,5 | 29,7 | 37,3 |
| VE312.. | 11,3 | 18,8 | 26,8 | 35,4 | 44,4 |
| VE412.. | 13,2 | 21,8 | 31,2 | 41,2 | 51,7 |
| VE118.. | 9,9 | 16,4 | 23,5 | 31,0 | 38,9 |
| VE218.. | 12,3 | 20,4 | 29,2 | 38,6 | 48,4 |
| VE318.. | 14,8 | 24,6 | 35,2 | 46,4 | 58,2 |
This the temperature difference between the upper limiting temperature of the installed equipment and the ambient air temperature of the distribution board.

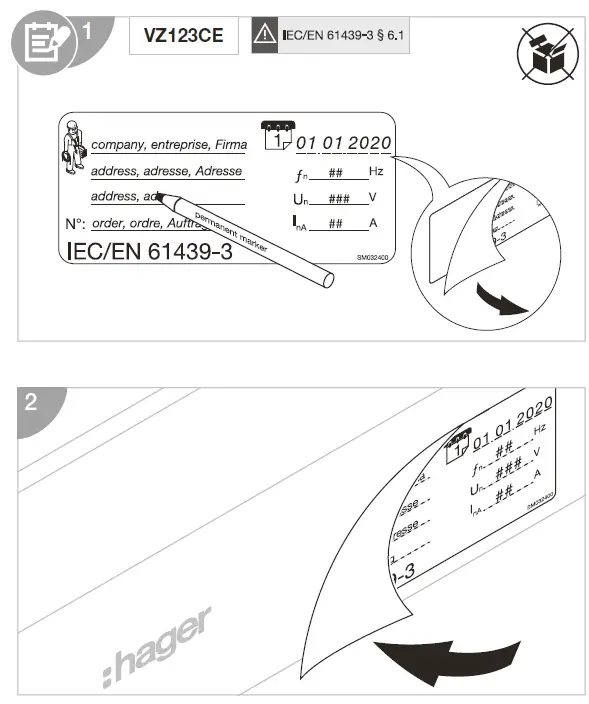

The Assembly (DBO) designated markings must be completed as specified in IEC/EN 61439 – 3 clause 6.1.
T +34 93 842 47 30 F +34 93 842 24 64 [email protected] hager.com – 02.2022
