Connecting the remote control to your Lights.

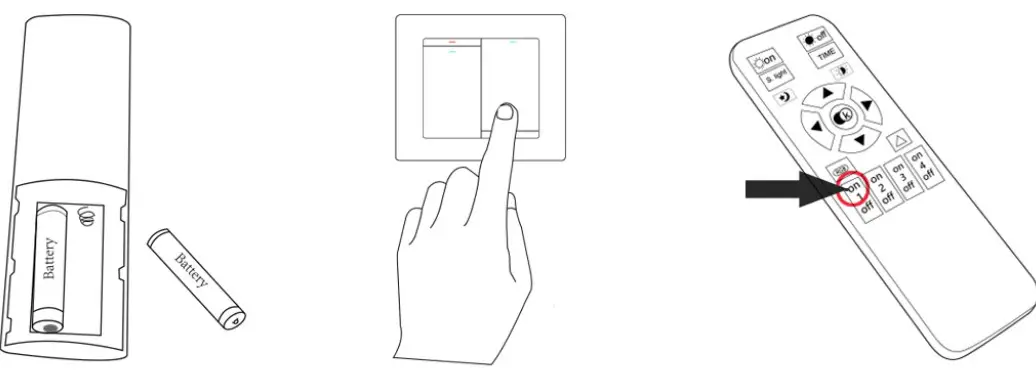

STEP 1: Put battery inside the remote Make sure it’s workable
STEP 2: Turn on the light
STEP 3: Press the “ON 1” button within 3 seconds after turning the light on
Connecting the APP to your Lights.
STEP 1: Download the app by scanning the QR Code, and installing it on the phone
http://www.jasonghost.com/lampsmartpro/

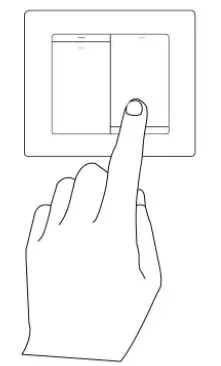

STEP 2: Turn on the light

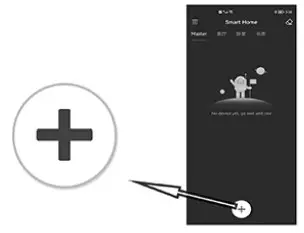

STEP 3: Open the Bluetooth and click this button to search the light, and follow the instruction to finish the pairing between the phone and light.
Installation steps

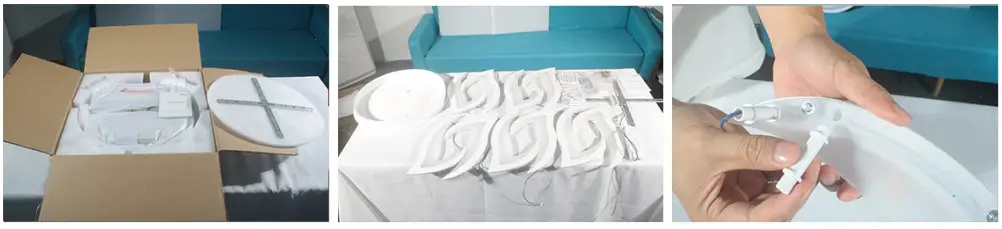

- Open the box and take out the parts
- Get every part unpacked and start to assemble.
- Assemble the short tubes to petals the short end of the tube goes into the petal.
- Assemble the long tubes to the rest petal, the short end of the tubes will be twisted into the petal as well.

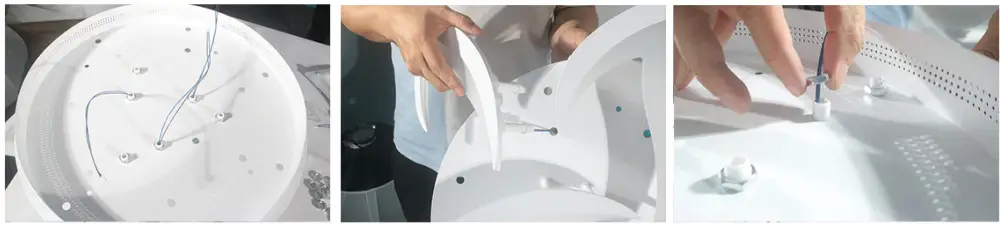

- Assemble the petals with long tubes to the plate
- Fix the petals to the plate with nuts.
- Assemble all the 3 petals with short tubes to the plate as shown.
- Assemble the petal with short tubes to the corner of the plate.
- Fasten the petal with nuts.

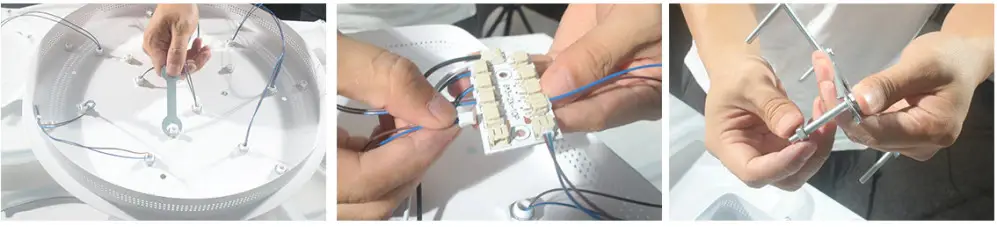

- Use a wrench to tighten up the nuts further.
- Connect all the wires to the collector plate as shown.

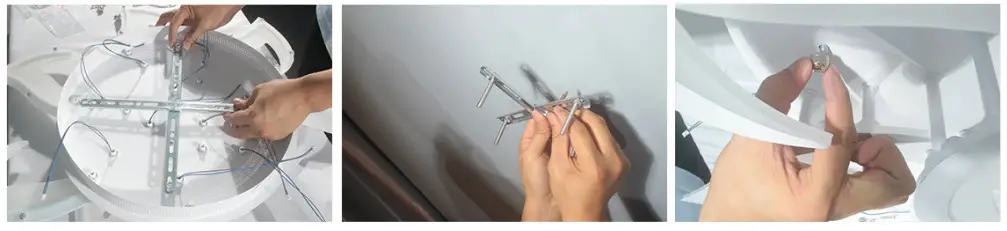

- Install the screws with flat heads to the cross, use the small nuts to settle the position of each screw.
- Put down the cross, find out the four small holes on the plate, make sure all the screws installed on the cross can go through the holes on the plate.
- Install the cross with the sharp point screws to the ceiling, do not move the four flat-headed screws
- Life up the light and install it to the cross, the four flat-headed screws go through the plate and then use the nuts to fasten the light.
