User Manual
Par Light with Remote Controller

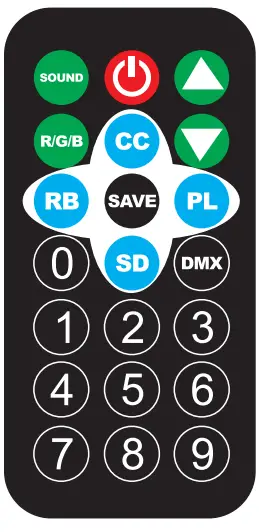

 | ON/OFF LED Through the key quickly ON or OFF light |
| Manual dimming 0-255 R/G/B, through the up and down keys, to change the LED light The brighter the degree, the greater the numerical | |
| colors Level 1-64 change, through the up and down keys, to select different color combinations | |
| The gradient Level 1-64 change, through the up and down keys, to select different color combinations | |
| Pulse variable Level 1-64 change, through the up and down keys, to select different color combinations | |
| Jump Level 1-64 change, through the up and down keys, to select different color combinations | |
| save Settings click this button after saving, starting up the current interface functions | |
| Console mode By means of the numerical key to add and subtract the address or between numerical keys Select address code values; No access control table, d001 as from machine model | |
| Sound Along with the music rhythm changes | |
| Up Increase the numerical | |
| Down To reduce the numerical | |
| Digital keys 0-9 By control, the table chooses a different address |
LCD Digital display function:
| Key-press | Mode | Description |
| [MENU] | Function | DMX control/colors selection/colors pulse/colors transition/sound control/amnual set |
| [UP] | Up | Increase values |
| [DOWN] | Down | Decrease values |
| [ENTER] | Enter | Confirmation button-After pressing this button, all setting values will be saved |
Operation Instructions
| MENU | Description |
| D001-D512 | DMX mode, change the numerical value by up and down |
| CC01-CC64 | Colors selection, select different colors up and down |
| RBO 1-RB 16 | Colors shade, change speed by up and down, the bigger values, the faster |
| PLOI-PL16 | Colors pulse transform, change speed by up and down, the bigger values, the faster |
| SD01-SD16 | Colors transition, change speed up and down, the bigger values, the faster |
| Sound | Sound control mode |
| R000-R255 | Manual set R, Red color brightness setting, change the brightness by up and down |
| G000-G255 | Manual set G, Green color brightness setting, change the brightness by up and down |
| B000-B255 | Manual set B, Blue color brightness setting, change the brightness by up and down |
DMX Control Parameter Chart
| Channels | Value | Function |
| CH1 | 0-255 | Color brightness control(this change should use together with CH2, CH3 or CH4) |
| CH2 | 0 | Red light off |
| 1-255 | Red brightness from dark to bright | |
| CH3 | 0 | Greenlight off |
| 1-255 | Green brightness from dark to bright | |
| CH4 | 0 | Blue light off |
| 1-255 | Blue brightness from dark to bright | |
| CH5 | 0-7 | No strobe flash |
| 8-255 | Strobe flash(from slow to fast), the bigger values, the faster | |
| CH6 | 0-10 | Manual control(CH1-CH5) |
| 11-60 | Colors selection(colors contorted by CH7) | |
| 61-110 | Colors shade(colors contorted by CH7), the bigger values, the faster | |
| 1 11-160 | Colors pulse transform(speed contorted by GH7)the bigger values, the faster | |
| 161-210 | Colors transition(speed contorted by CH7)the bigger values, the faster | |
| 211-255 | Sound control | |
| CI-17 | 0-255 | Colors selection/colors shade(the bigger values,the faster) |
