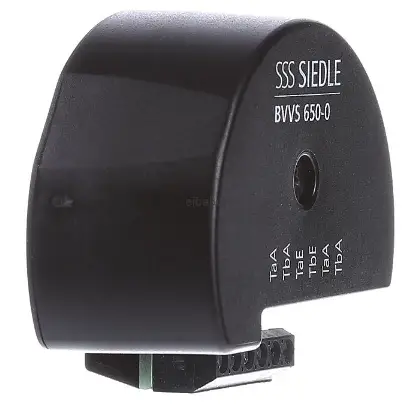

BVVS 650-0 Symmetrical Bus Video Distributor
User Manual
Product information
Symmetrical bus video distributor
BVVS 650-0 Symmetrical Bus Video Distributor
Application
Symmetrical bus video distributor for coupling/decoupling InHome: Video users, e.g. for the creation of rising lines. Screw terminals for bus input and 2 x bus output.
Electrical voltage
Mounting, installation and servicing work on electrical devices may only be performed by a suitably qualified electrician.
Scope of supply
- BVVS 650…
- This product information

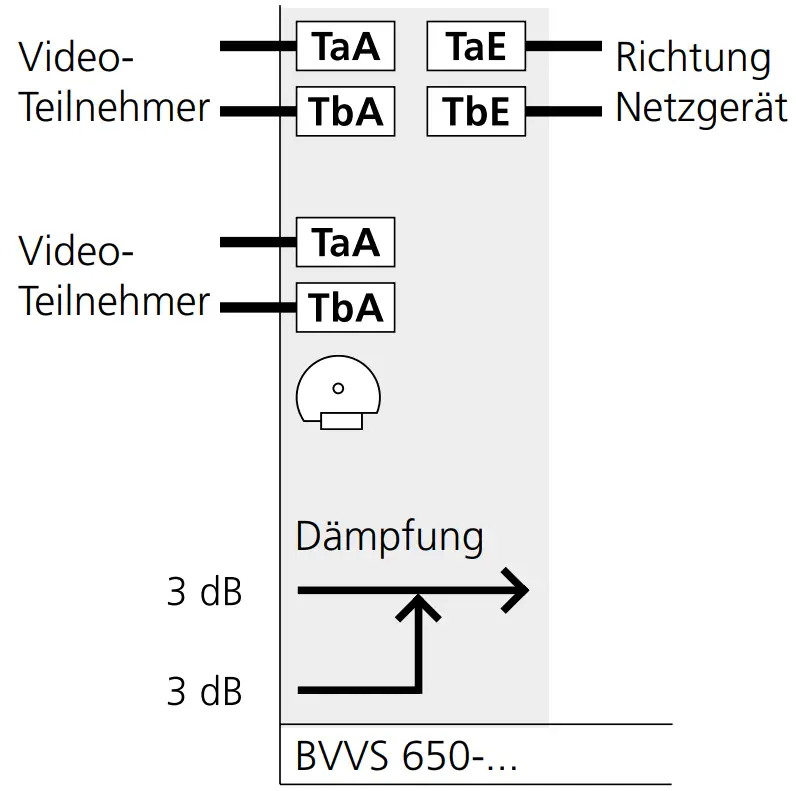

Terminal assignment
| TaE, TbE | Input |
| TaA, TbA | Output |
| TaA, TbA | Output |

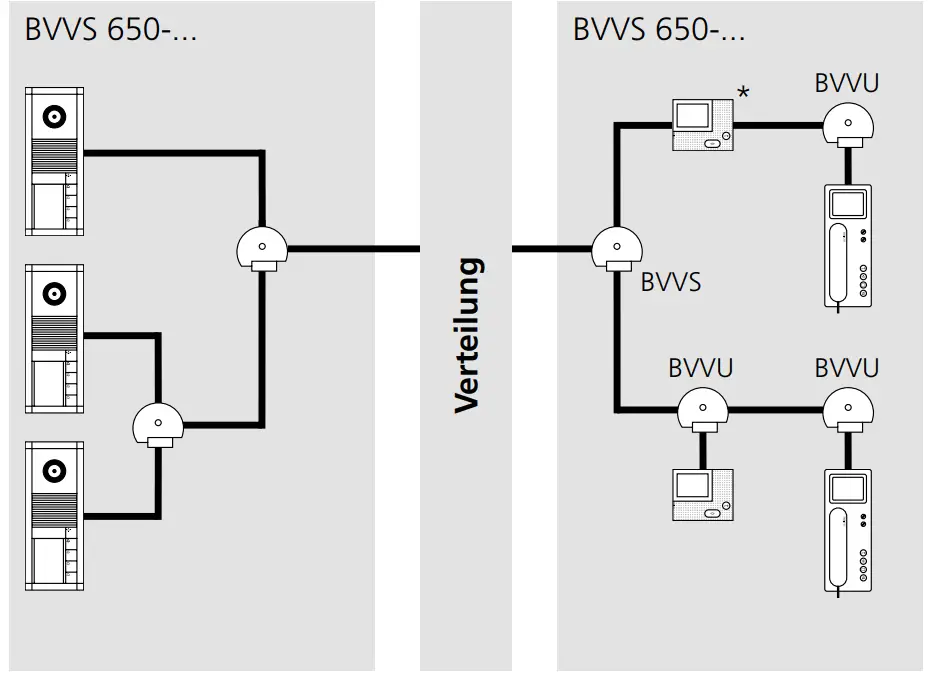

Wiring diagram
BVVS 650-… in the camera branch:
More than one video door station in the camera branch with “star shaped” conductor routing.
BVVS 650-… in the monitor branch:
Within the InHome bus: Video more than one side circuit is required.
Attenuation:
The attenuation from BVVS 650…,
BVVU 650… and the conductor length must be taken into consideration.
* Direct connection of devices is only permitted for permanent installations.
Unconnected output terminals must always be terminated with an RC element.
Specifications
Protection system: IP 20
Ambient temperature: 0 °C to +40 °C
Dimensions (mm) dia. x H: 51 x 23
S. Siedle & Söhne
Telefon- und Telegrafenwerke OHG
Postfach 1155
78113 Furtwangen
Bregstraße 1
78120 Furtwangen
Telefon +49 7723 63-0
Telefax +49 7723 63-300
www.siedle.de
[email protected]
© 2002/11.21
Printed in Germany
Best. Nr. 200032247-00
