Skytech Stv32v8050 Smart Tv User Manual

STV32V8050 Smart TV
User Manual

Safety Information

CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
High voltages are used in the operation of this product.to reduce the risk of electric shock,do not remove cover of the cabinet, refer servicing to qualified service personal If the TV any changes or coarse adjustment, electric shocks to be hurt, do not attempt to open a machine-maintenance, customer contact centres needed overhaul.

	The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating in the literature accompanying the appliance.
	Warning The lightning flash with arrowhead symbol within an equilateral triangle,is inten ded to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Important Safety Precautions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install ne ar any heat sources such a s radiators, heat registers, stoves, or other apparatus(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. Apolarized plug has two blades with one wider than the other. A grounding typeplug has two  blades and a third grounding prong. The wide blade or the third prong are provided for your safety, If the provided plug does not fit into your outlet, consult an  electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly a t Plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments /accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used caution when moving the  cart/apparatus combination to avoid in jury tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
    Caution:
14. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
15. The mains plug is used as disconnect device, the disconnect device shall remain readily operable.
16. The socket-out shall be installed near the equipment and shall be easily accessible.
17. This product should never be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacture’s instructions have been  adhered to.
18. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquid, such as vases, shall be placed on the apparatus.
19. Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).
20. Wall or Ceiling Mounting – The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
21. Never place the TV, remote control or batteries near naked flames or other heat sources, including direct sunlight. To prevent the spread of fire, keep candles or other flames away from the TV, remote control and batteries at all times.
22. The USB terminal should be loaded with 0.5 A under normal operation.
    These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions. unless you are qualified to do so.
23. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
24. This equipment is a Class I! or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth
25. The maximum using environment temperature is 45 degrees.
    The Maximum using altitude is 2000 meters

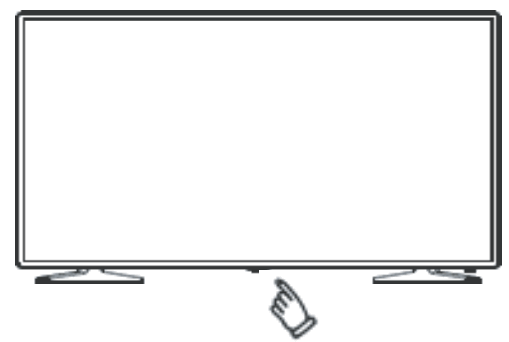

Front Panel Diagram

Note: The key instructions are subject to below.

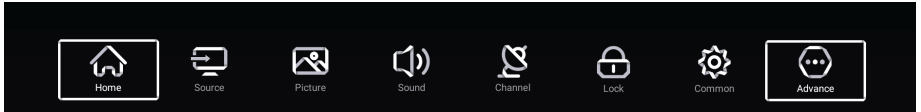

Display \ Hide keyicon : When there is no button icon popping up, press the key, the key icon will pop up like the picture shows above, the key icon will automatically turn off after 5 seconds of inactivity.
Icon selection : Short press the button, move the loop to the right, select the icon.
Icon function selection : Long press the key to achieve the function o f the selected icon.
Icon Description:

: Power off Icon : Corresponding to the “POWER” button o f remote.
: Menu Icon : Corresponding to the “MENU” button o f remote.
: Source Icon : Corresponding to the “SOURCE” button o f remote.
: CH+ Icon : Corresponding to the “CH+” button of remote.
: CH- Icon : Corresponding to the “CH-” button of remote.
: Volume+ Icon : Corresponding to the “VOL+” button o f remote.
: Volume- Icon : Corresponding to the “VOL-” button o f remote.

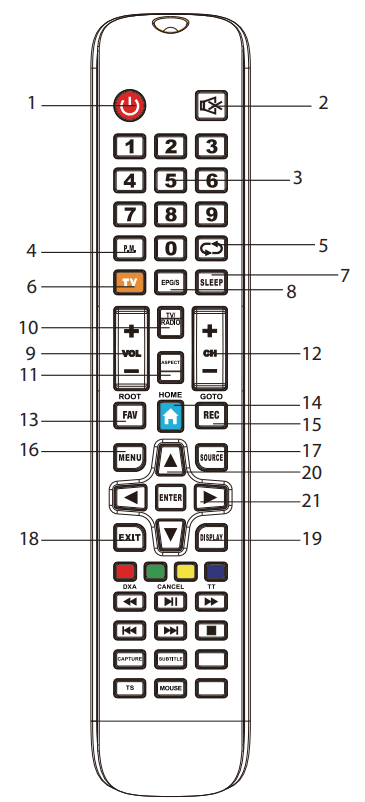

Remote Control Functions

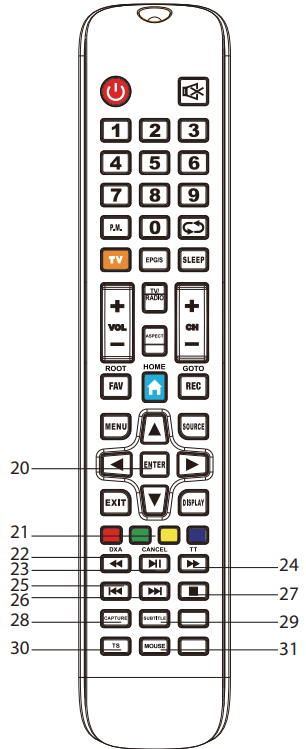

24ST1000 / 32ST1000 / 328711001 / 32ST1100 / 40811102 43S81T1102 / 50ST1104 / 55811104 / 65ST1104

1. POWER: Set your TV to power on or standby mode.
2. MUTE: Press to mute the sound. Press again or press  VOL+ to unmute.
3. 0-9 : Press 0~9 to select a TV channel directly while watching TV. The channel will change after 2 seconds.
   Applicable for entering page number in teletext mode and so on.
4. P.MODE : Press to cycle through the different picture settings
5. Return to the previous viewed program.
6. TV : Switches between antenna types (air, cable, satellite) when in broadcast mode. Switches to Satellite Mode when on SmartTV.screen.
7. SLEEP: Select amount of time before TV turn itself off automatically.
8. EPG : Shows the broadcast program of the watched channel.
9. VOL+/VOL-: Press to increase / decrease the sound level.
10. TV/RADIO : When watching channel, allows you to switch between TV and Radio modes.
11. ASPECT : Changes the aspect ratio of the image viewed in the TV function.
12. CH+/CH-: Press to scan through channels.
13. FAV : Press to open the favorite list, then you can select the favorite channel.
14. HOME : Switches to the SmartTV homepage.
15. REC: Record begin in PVR mode.
16. MENU: Allow you to navigate the on-screen menus.

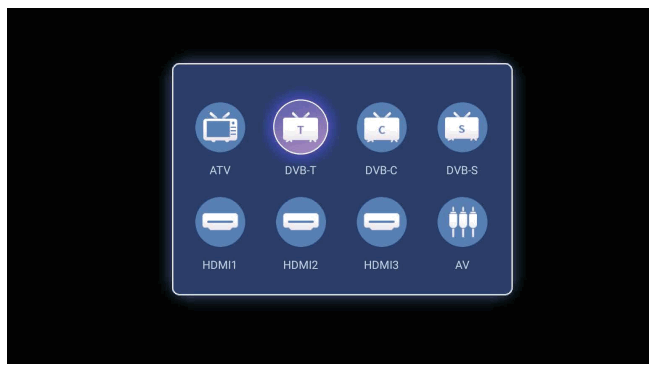

17. SOURCE: Open the main menu ,press to list the sources.
18. EXIT: Exit from the menu or sub-menu and cancel the function in process (if applicable).
19. DISPLAY: Press to display the source and channel’s info.
20. AY 4 ENTER:Allow you to navigate the on-screen menus and adjust the system settings to your preference.
21. COLOR BUTTONS: Teletex switch of the analog parts, the items selection in the menu of the digital parts and the practice of the MHEG5 in the DVB menu.
22. : Fastly rewinds while the multimedia file is playing.
23. : Pauses multimedia files, and resumes playback when pressed again.
24. : Displays teletext on the TV tab. Fast forwards while playing multimedia files on the SmartTV screen.
25. : Returns to the previous file while playing the multimedia file.
26. : Goes back to the next file while playing the multimedia file.
27. : Ends the started recording.
28. CAPTURE : Takes a screenshot of the video currently being watched.
29. SUBTITLE:To show and set the language of current DTV.
30. TIME SHIFT: 1.DTV channel time shift Function. 2.play on PVR or Media Player mode.
31. MOUSE: When the key is pressed, the mouse displays on the SmartTV screen.

Battery Installation:
Remove the battery compartment lid on the rear of the remote control by sliding the lid down, then off. Put two AAA batteries inside the battery compartment with  their + and- ends aligned as indicated. Do not mix old and new batteries or different types of batteries.
Slide the lid until you hear it click into place.
Using the Remote Control:
Unless stated, otherwise, the remote control can operate all the features ofthe TV.
Always point the remote control directly at the remote sensor in front of the TV.

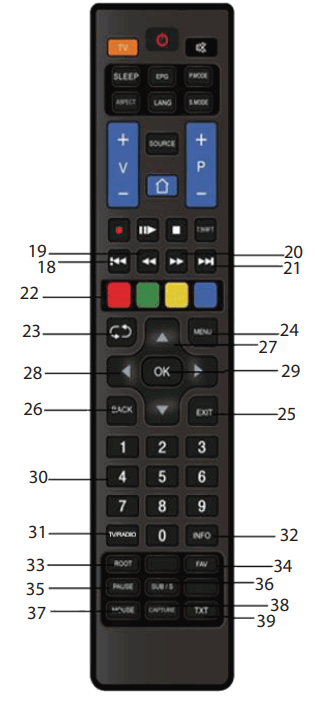

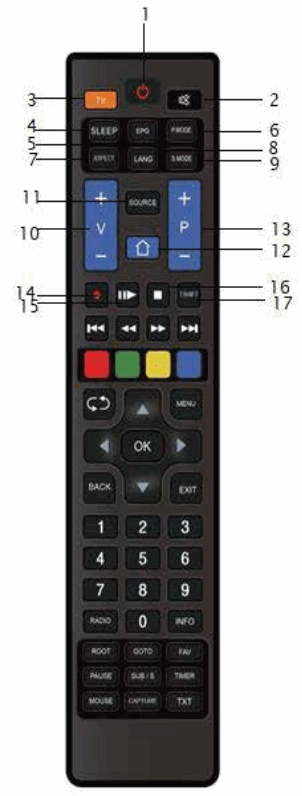

32872000/ 32ST2100 / 40ST2102  42872102 / 50812104 / 55ST2104 / 65ST2104

1. POWER: Set your TV to power on or standby mode.
2. MUTE: Press to mute the sound. Press again or press VOL+ to unmute.
3. TV : Switches between antenna types (air, cable, satellite) when in broadcast mode. Switches to Satellite Mode when on SmartTV screen.
4. SLEEP: Select amount of  time before TV turn itself off automatically.
5. EPG : Shows the broadcast program of the watched channel.
6. P.MODE : Press to cycle through the different picture settings.
7. ASPECT : Changes the aspect ratio of the image viewed in the TV function.
8. LANG: Changes the audio language of the watched channel. (On supported satellite broadcasts)
9. S.MODE: Press to cycle through the different sound settings.
10. VOL+/VOL-: Press to increase / decrease the sound level.
11. SOURCE: Open the main menu ,press to list the sources.
12. HOME : Switches to the SmartTV homepage.
13. P+/P- : Press to scan through channels.
14. REC: Record begin in PVR mode.
15. Pauses multimedia files, and resumes playback when pressed again.
16. Ends the started recording.
17. TIME SHIFT: 1.DTV channel time shift Function. 2.play on PVR or Media Player mode.
18. : Returns to the previous file while playing the multimedia file.
19. : Fastly rewinds while the multimedia file is playing.
20. : Displays teletext on the TV tab. Fast forwards while playing multimedia files on the SmartTV screen.
21. : Goes back to the next file while playing the multimedia file.
22. COLOR BUTTONS: Teletex switch of the analog parts, the items selection in the menu of the digital parts and the practice of the MHEG5 in the DVB menu
23. G5 Return to the previous viewed program.
24. MENU: Allow you to navigate the on-screen menus.
25. EXIT: Exit from the menu or sub-menu and cancel the function in process (if applicable).
26. BACK : Returns to the upper menu. Returns to the previous operation performed.
27. : The section you want to adjust is selected with the keys. Increases / decreases the channel number.
28. : The selected section can be adjusted with the keys.
29. OK : Used to save/confim selected or set menu options.
30. 0-9 : Press 0~9 to select a TV channel directly while watching TV. The channel will change after 2 seconds.
    Applicable for entering page number in teletext mode and so on.
31. TV/IRADIO : When watching channel, allows you to switch between TV and Radio modes.
32. INFO: Provides information about the current viewing mode. Provides information about the currently playing multimedia file.
    It shows the recording information during recording.

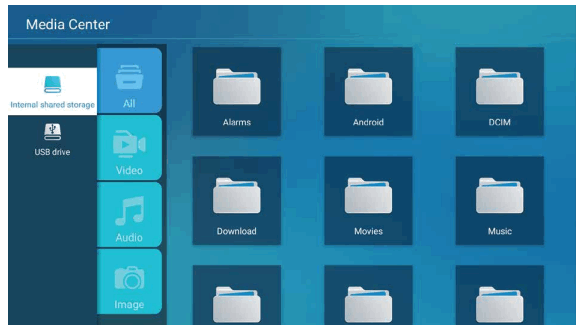

33. ROOT : Opens the media center.
34. FAV : Press to open the favorite list, then you can select the favorite channel.
35. PAUSE : The multimedia file is paused while playing.
36. SUB/S : Shows subtitle options on supporting broadcasts.
37. MOUSE : Activates the mouse when on the SmartTV main screen.
38. CAPTURE :: Takes a screenshot of the video currently being watched.
39. TXT : Displays teletext.

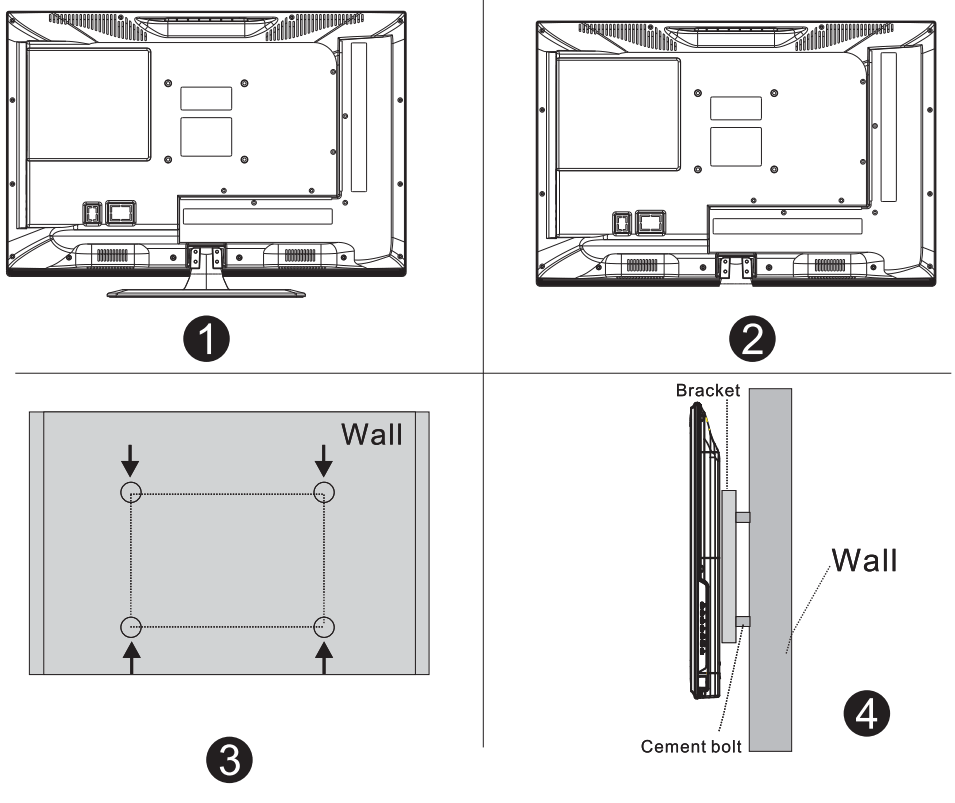

TV Bracket Assemble

Fix the TV on the wall

1. First,put the TV on the table smoothly and put some soft cloth on the table to avoid scratching the screen. a7

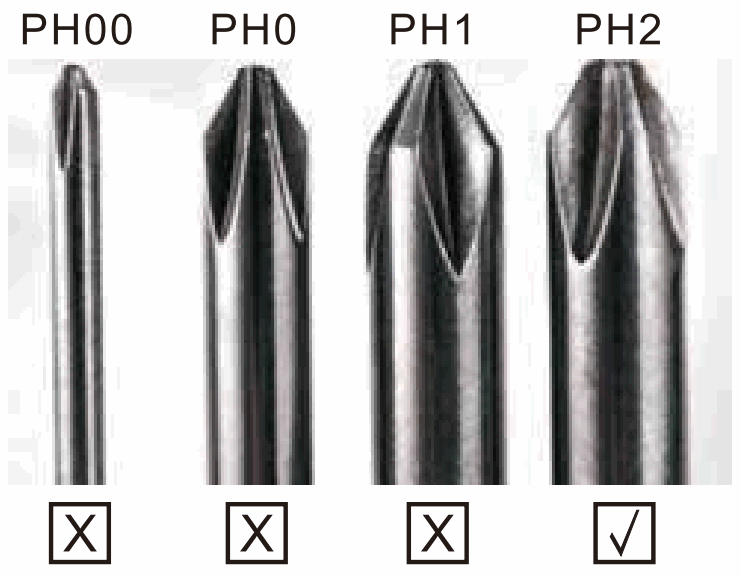

2. User the screw driver to take off the screws which are fixed on the bottom stand (the direction of the arrow, refer to the ptoto1).And take off the bottom stand(please take off the screws and bottom stand carefully).
3. Make one bracket which can fix on the wall according to the size of arrow direction of photo2 and photo3.
4. Drill four holes properly on the wall (the size only for reference) and put into four screws. (optional parts) Drill four holes properly on the wall (the size only for  reference) and put into four screws. (optional parts)
5. according to the step 4,use the screwdriver to lock the screw on the back of the TV. then hang the TV on the wall.

Note:

1. The bracket fixed on the wall is optional part.
2. when you assemble the TV, there should be no other articles on the around and front and please keep the distance from other articles.
3. When assemble the TV, please ask the career man to fix in order to avoid the danger.
4. The fixing picture is only for reference.
5. Please follow the use manual about bracket assemble to fix the TV.
6. Attach the mounting bracket from the VESA compatible wall mounting kit.

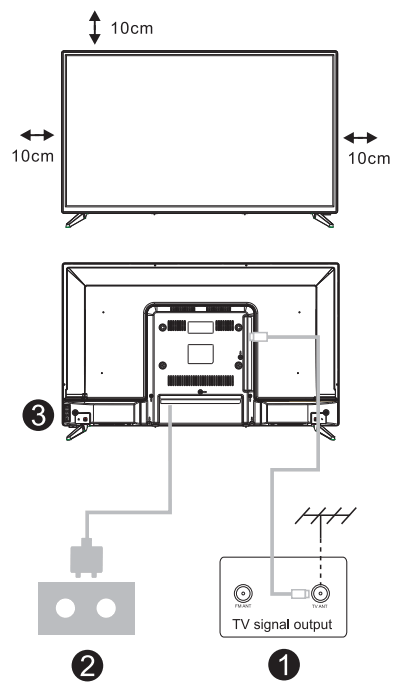

Install And Connect TV

Set your TV
To put your TV ina firm place which can bear the weight of the TV.
To avoid danger, please don’t expose the TV near water or heating place (such as light, candle, heating machine),do not block the ventilation at the back of TV.

Connect antenna and power

1. Connect the antenna cable to the antenna socket on the back of the TV.
2. To plug the power cord of TV. (AC 100-240V~ 50/60HZz).
   Turn on TV
3. Press the power button of the TV the indication light will turn to green. if it is on standby mode (the light is red),press the power button on the remote control to turn on the TV.

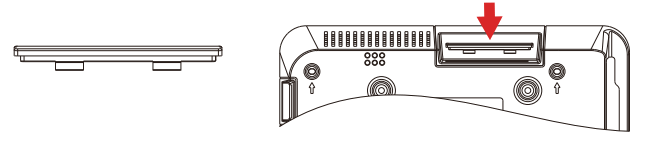

Note: If the model has a Cl card slot on its top, a silicone plug for the C l card slot can be found in the accessory bag (for models without Cl card slot , there is no such silicone plug), please insert the silicone plug into the slot when the Cl card is not in use.

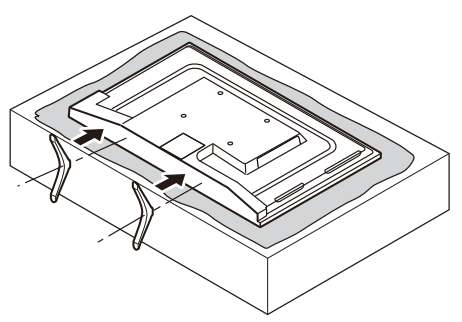

TV Stand Installation Instructions

Stand Installation Guide
The TV is packaged with the TV stand separated from the cabinet. To setup the TV table stand, please carry out the installation according t o the instructions below.

1. The panel can be scratched easily, so please:
   Place asof t cloth on the table and place the TV face down on the cloth.
   Note: Always unplug the AC cord first when installing/removing the stand.
2. Take the base. Please align the screw holes of the base and the TV, and then insert the screws into the holes on the base and tighten them.
   Note: To ensure that the TV is stable, please lock all screws.
   The stand of some TV models i s designed with snap-in type, easily installed by snapping into stand groove, instead of screw.

Please take note of the base direction:

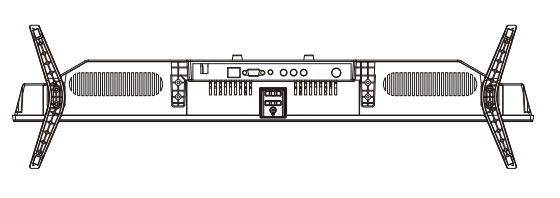

The bottom view of the TV (Front cabinet faces down)
(The illustration is for reference only, Please prevail i n kind)

Suggestion:
To make it more convenient for base installation and to avoid any risk of scratches and damage, we advise you using the type of PH2 screwdriver.

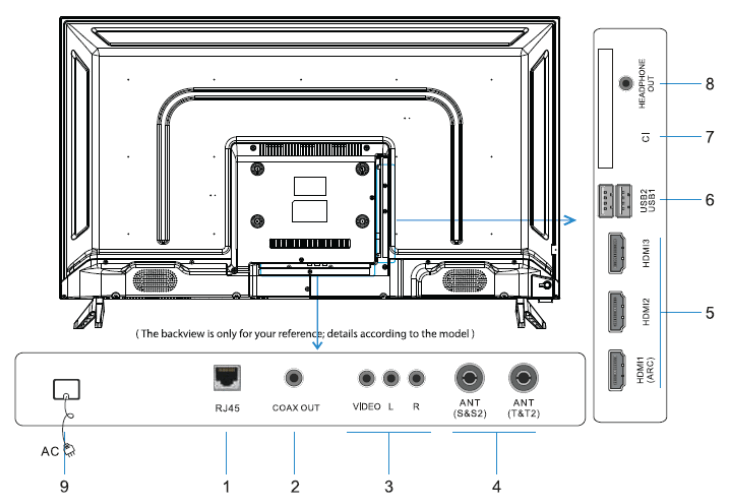

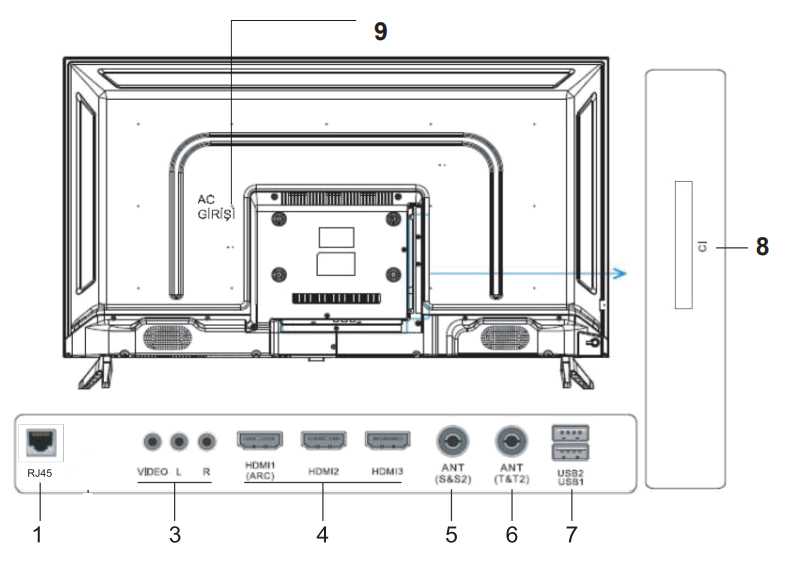

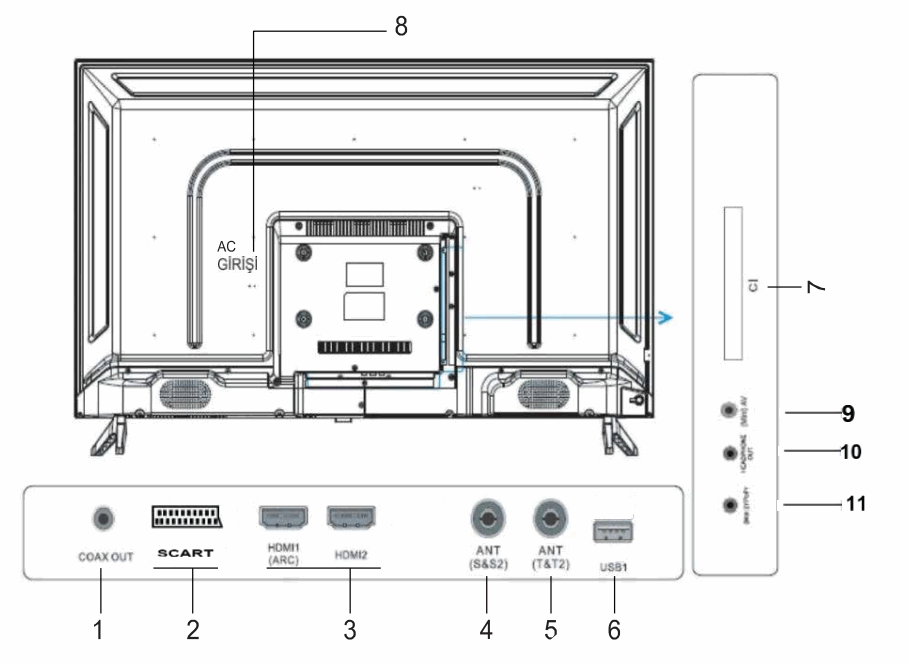

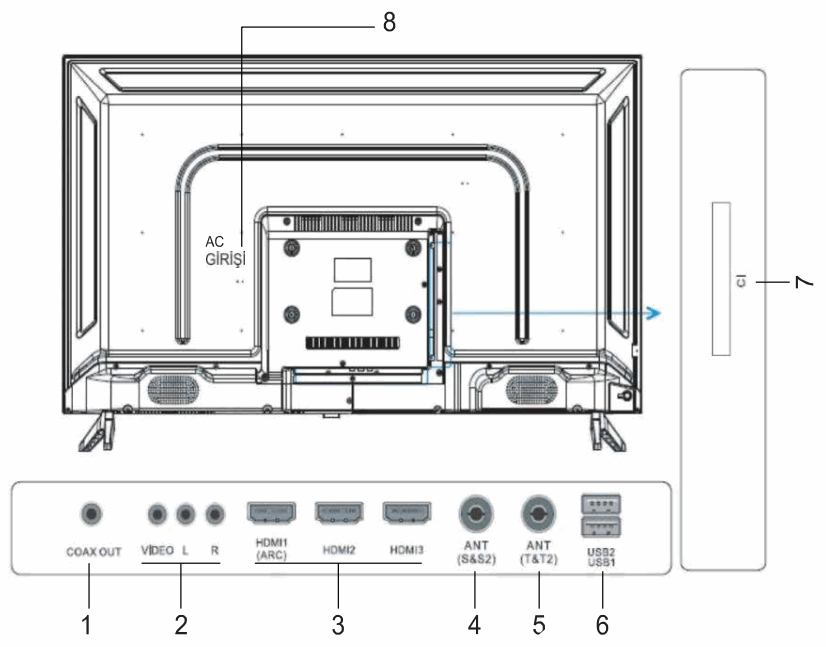

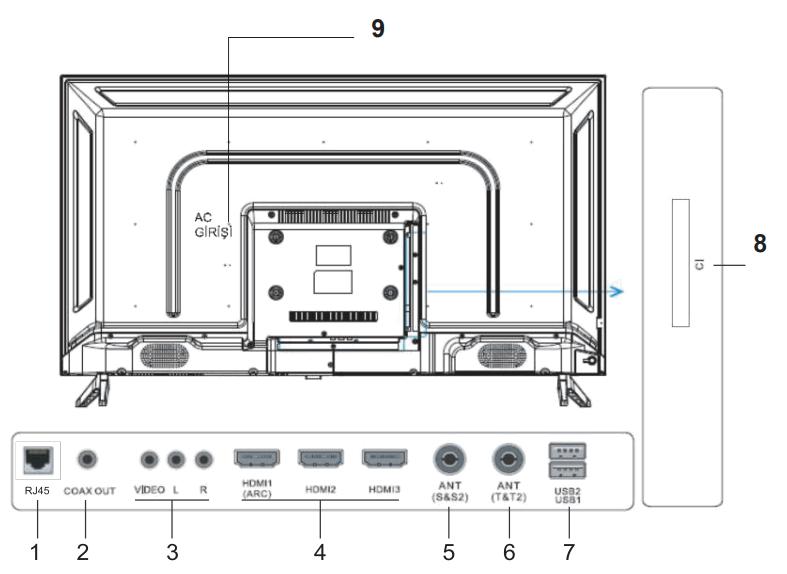

Rear Panel Diagrams

32ST2000 LED TV

24ST1000 / 32ST1000 / 32ST1001 LED TV

SMART LED TV

32ST1100 / 40ST1102 / 43ST1102 SMART LED TV

50ST2104 / 55ST2104 / 65ST2104 UHD SMART LED TV

50ST1104 / 55ST1104 / 65ST1104 UHD SMART LED TV

User Manual

32ST2000 / 32ST1001 / 32ST1000 / 24ST1000 HD LED TV

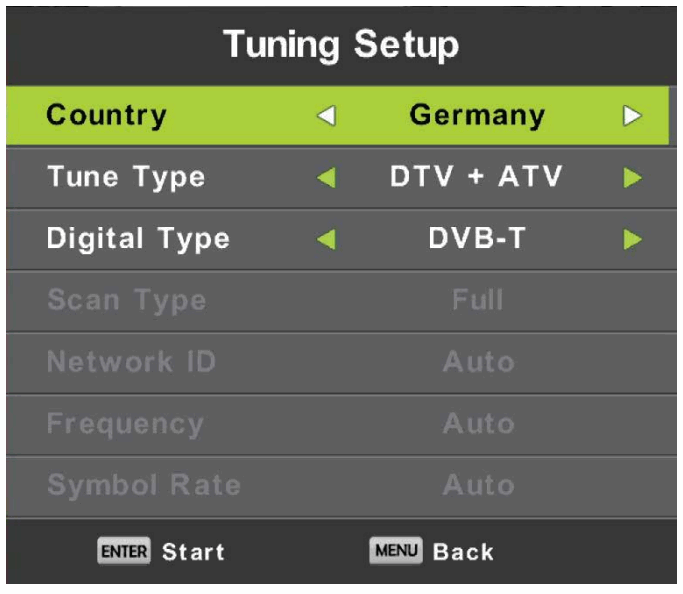

Auto Tuning
Press button to select Auto Tuning, then press Enter/ button to enter.

TV Function Menu

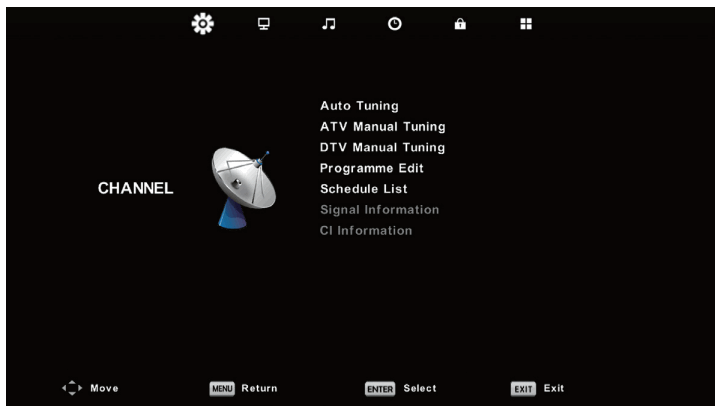

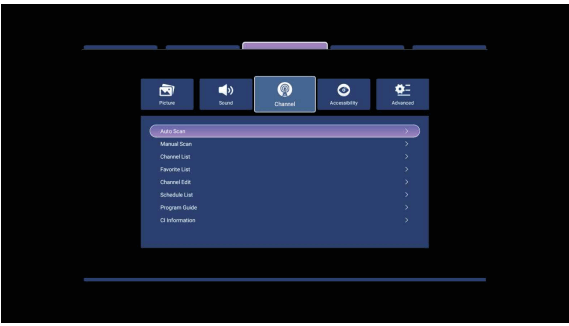

Channel Menu
Press MENU button t o display the main menu.
Press button to select CHANNEL in the main menu.

1. Press V/A button to select the option that you want t o adjust in the CHANNEL menu.
2. Press Enter button t o adjust.
3. After finishing your adjustment, Press Enter button t o save and return t o the previous menu.

Auto Tuning
Press button to select Auto Tuning, then press Enter/ button to enter.

ATV Manual Tuning
Current CH
Set the channel number.
Color System
Select the color system
(Available System: AUTO,PAL, SECAM )
Sound System
Select the Sound system
Fine-Turn
Adjust the frequency of the channel finely.
Search
Start searching channel.

DTV Manual Tuning
Press button to select DTV Manual Tuning, then press Enter button to enter sub-menu.
Press button to select channel, then press Enter button t o search program.

Program Edit
Press button to select Program Edit, then press Enter button to enter sub-menu.
The three colored key is the shortcut key for programming the channel.
First pressw to highlight the channel you want to select, then:
Press the Red button to delete the program in the list.
Press the Yellow button to move the channel in the list.
Press the Blue button to skip the selected channel.
Press Fav button to add o r remote the channel to your favorite list.
(Your TV set will skip the channel automatically when using CH+/- to v i e w the channels.)

Schedule List
Press button to select Schedule List, then press Enter button t o enter sub-menu.
Itis available in DTV and satellite source.

Signal Information
Press button to select Signal Information, press the Enter button t o see the detail information
about the signal. Only available when there is signal in DTV.

Cl Information (Need to support the Cl function)
Press button to select Cl Information, then press the Enter button t o display detail if you has inserted the Cl card

The CHANNEL List in Satellite Source.(Need to support the DVB-S2 function)
Auto Tuning
Press button to select Auto Tuning, then press Enter/> button to enter.
Dish Setup
Press button to select Dish Setup.then press Enter/ > button t o enter.

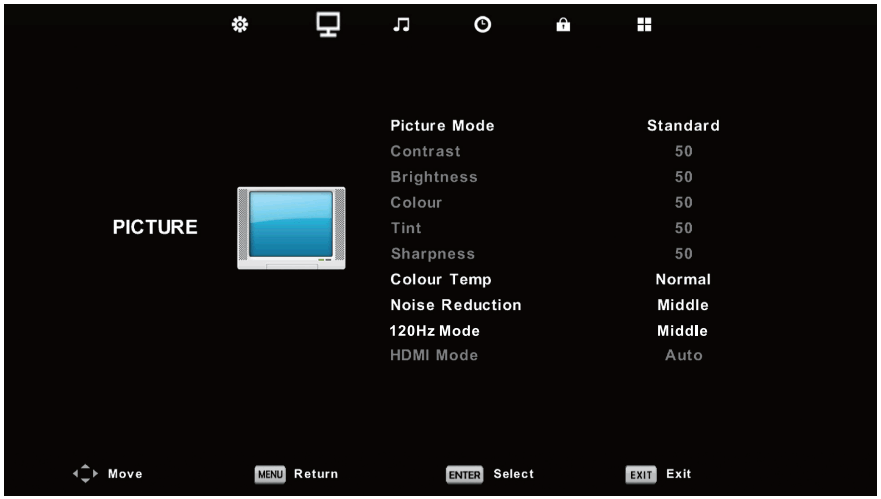

Picture Menu

Press MENU button t o display the main menu.
Press button to select PICTURE in the main menu.

Note: 120HZ MODE Function only supported with UHD TV

1. Press button to select the option that you want to adjust in the PICTURE menu.
2. Press OK button to adjust.
3. After finishing your adjustment, Press MENU button t o save and return back to the previous menu.

Picture Mode
Press button to select Picture Mode, then press OK button to enter sub-menu.
You can change the value of contrast, brightness, color, sharpness and tint when the picture i s in
Personal mode.
TIPS: You can press PMODE button t o change the Picture Mode directly.

Contrast/ Brightness/ Color/ Tint / Sharpness
Press button to select option, thenpress Enter/ button to adjust.
Contrast Adjust the highlight intensity of the picture, but the shadow of the picture i s invariable.
Brightness Adjust the optical fiber output of the entire picture, it will effect the dark region of the picture.
Color Adjust the saturation o f the color based on your own like.
Tint Use in compensating color changed with the transmission in the NTSC code.
Sharpness Aadjust the peaking in the detail of the picture.

Color Temp
Change the overall color cast of the picture.
Press button to select Color Temperature , then press OK button to enter sub-menu.
Press button to select. (Available Picture mode: Cool, Medium, Warm).
Cold Increase the blue tone for the white.
Normal Increase the sex-linked colors for the white.
Warm Increase the red color for the white.

Noise Reduction
To filter out and reduces the image noise and improve picture quality.
Press  button to select Noise Reduction , then press OK button to enter sub-menu.
Off Select to turn off video noise detection.
Low Detect and reduce low video noise.
Middle Detect and reduce moderate video noise.
High Detect and reduce enhanced video noise.
Default Set as Default

120Hz MODE (Only with UHD TV)
Adjust the motion compensation.
Higher setting may improve the motion performance when watching sports or playing games.
Press button t o select(Off/Low/Middle/High)

HDMI Mode
Press  button to select HDMI Mode, then press OK button to enter sub-menu.
Press button to select .(Available Picture mode:Auto, Video,PC).

Sound Menu
Press MENU button t o display the main menu.
Press button to select SOUND in the main menu.

1. Press W/Abutton t o select the option that you want to adjust in the SOUND menu.
2. Press Enter button t o adjust.
3.  After finishing your adjustment, Press Enter button t o save and return to the previous menu.

Sound Mode
Press button to select Sound Mode, then press Enter button to enter sub-menu.
Press button to select.

You can change the value of Treble and Bass when the sound is in Personal mode.
TIPS: You can press SMODE button on the remote control t o change the Sound Mode directly.
Standard Produces a balanced sound in all environments.
Music Preserves the original sound.Good for musical programs.
Movie Enhances treble and bass for arich sound experience.
Sports Enhances vocals for sports.
Personal Select to customize picture settings.
Note: The treble and bass are only available in personal mode,you can adjust them as you l i k e .

Balance
Press button to select option, Press bution to adjust.
Auto Volume level
Press button t o select Auto Volume Leve, then press button t o select On o r Off.
SPDIF Mode
Press v/a button to select SPDIF Mode, then press button to select Off / PCM / Auto.
AD Switch
Press button to select AD Switch, then press button t o select On or Off.
Amblyopia function for the blind, the tracks will be mixed describe the current screen.
It need codestream to support.

NOTE:
Balance: This item can adjust the speaker’s output, it enables you t o listen t o best at your position.
Auto Volume: This item i s used for reducing the difference between channel and program’s volume automatically.

Time Menu
Press MENU button t o display the main menu.
Press button to select TIME in the main menu.

1. Press button t o select the option that you want to adjust in t h e TIME menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

Time Zone
Press button to select time zone.

Sleep Timer
Pressvbutton to select Sleep Timer, then press Enter button to enter sub-menu.

Press button to select.
(Available options are:Off,15min,30min,45min,60min,90min, 120min,240min).

Auto Standby
Press button t o select Auto Standby, then press Enter button to enter sub-menu.
Press button to select.
Tips: The remote control does not make any operation i n the hypothesis time, it will close down automatically. If you do any operation, it will reset the time.

OSD Timer
Press button to select OSD Timer, then press Enter button t o enter sub-menu.
Press button to select.

Lock Menu
Press MENU button t o display the main menu.
Press / button to select Lock in the main menu.

1. Press button to select the option that you want t o adjust in the LOCK SYSTEM menu.
2. PressEnter// button t o adjust.
3. After finishing your adjustment, Press MENU button to return back t o the previous menu

Lock System
Press button to select System Lock,
then press Enter button to make the following 3 options valid.
Default password is 0000/8888,and i f forget what you set , please call the service center.
Set Password
Press  button t o select Set Password, then press Enter button t o enter sub-menu t o set new password.

Channel Lock
Press button to select Channel Lock then press Enter button t o enter sub-menu t o select.
Press Green button to lock or unlock the channel.

Parental Guidance
Press button to select Parental Guidance,
then press Enter button to enter sub-menu to select the number of age
which is suitable for your children.

Key Lock
Press button to select Key Lock, then press button t o select Off or On.
When Key Lock’s statue is on, you can’t use the Key panel button.

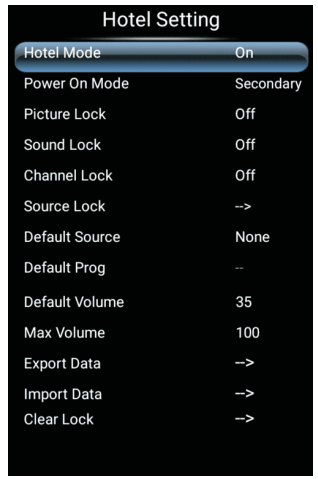

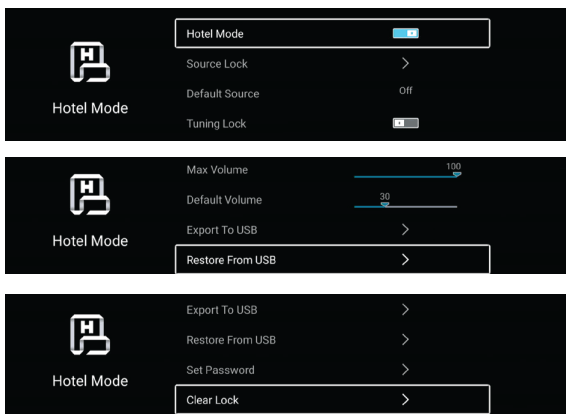

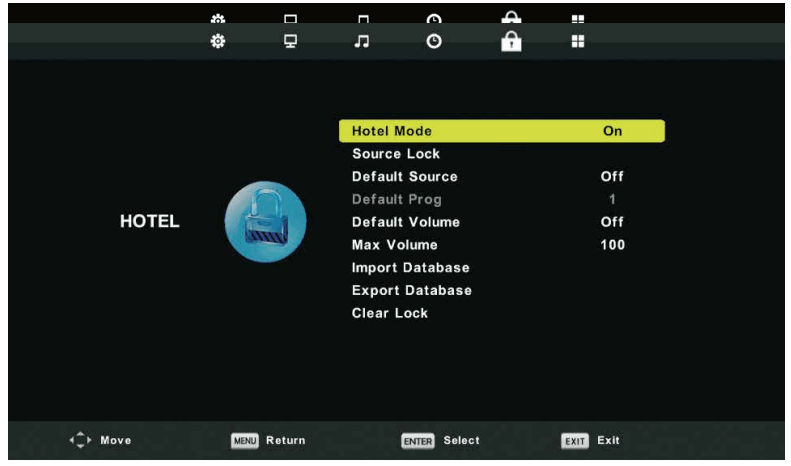

HOTEL MODE (Need support the Hotel Mode)

1. Press button on the remote control to select hotel mode in the Lock menu.
2. Press Enter button on the remote control to enter the sub-menu.
3. After finishing your adjustment, Press MENU button t o save and return back to the previous menu.

Hotel Mode
Press button to select Hotel Mode, then press button to select on or off.
Source Lock
Press button to select Source Locke, then press Enter button to enter sub-menu to select.
Default Source
Press button to select Default Source, then press Enter button to enter sub-menu to select.
Default Prog
Press button to select Default Prog, then press button to adjust.
It is available when the default source is TV.
Max Volume
Press button to select Max Volume, then press button to adjust.
Clear Lock
Press button to select Clear Lock, then press Enter button to clear the setting you have done before.

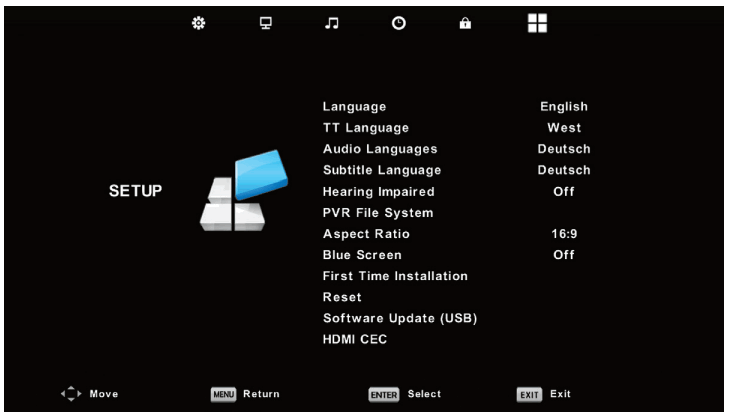

Setup Menu
Press MENU button to display the main menu.
Press button to select SETUP in the main menu.

1. Press button t o select the option that you want to adjust in the SETUP menu.
2. Press Enter button t o adjust.
3. After finishing your adjustment, Press Enter button to save and return t o the previous menu.

OSD Language
Select an OSD menu language can be displayed.Default English is selected as menu language.
Press // button to select Menu Language.

TT Language
Press button to select TT Language, then press Enter button to enter sub-menu.
Press button to select TT language.

Audio Languages
Press button to select Audio Languages, then press Enter button t o enter sub-menu.
Press button to select the primary o f Audio Languages.
Press button to select the Audio Languages.

Subtitle Language
Press button to select Subtitle Language, then press Enter button to enter sub-menu.
Press button to select the primary of Subtitle Language.
Press button to select the Subtitle Language.

Hearing Impaired
Press button t o select Hearing Impaired, then press Enter button to select On or Off.

PVR File System
Press button to select PVR File System, then press Enter button t o enter sub-menu.
Press button to select Check PVR File System, then press Enter button to enter. Then it will check the USB speed.

Aspect Ratio
Press button to select Aspect Ratio, then press Enter button to enter sub-menu.
Press button to select aspect ratio. (Available options are: Auto, 4:3,16:9, Zoom1, Zoom2).

Blue Screen
Press button to select Blue Screen, then press Enter button to select On or Off.

First Time Installation
Press button to select First time installation, then press Enter button to enter.

Reset
Press  button t o select Reset, then press Enter button to enter sub-menu.

Software Update(USB)
Press button to select Software Update (USB), plug your USB device in the USB slot, then press Enter button to update the right software.

HDMI CEC(Need to support the HDMI CEC/ARC function)
Press button t o select HDMI CEC, then press Enter button t o enter the sub-menu.
HDMI CEC Press button to turn the HDMI CEC on or off.
HDMIARC Press button t o turn the HDMI ARC on or off.
Auto Standby Press button to turn the Auto Standby on or off.
Device List Press Enter button to open the main menu of device.

Screen Menu
Press MENU button t o display the main menu.
Press button t o select SCREEN in the main menu.

1. Press button to select the option that you want t o adjust in the SCREEN menu.
2. Press Enter button t o adjust.
3. After finishing your adjustment, Press Enter button t o save and return to the previous menu.

Auto Adjust
Press Enter button to start adjusting H-Offset/V-Offset/Size/Phase automatically.

H-Offset.
Adjust the horizontal position of the picture.
Press  button to select H-Offset, then press Enter button to enter sub-menu.

V-Offset
Adjust the vertical position of the picture.
Press button to select V-Offset, then press Enter bution t o enter sub-menu.

Size
Adjust the display size.
Press  button to select Size, then press Enter button to enter sub-menu.

Phase
Adjust the horizontal interfering lines.
Press  button to select Phase, then press Enter button t o enter sub-menu.

Position Reset
Press button to select Position Reset, then press Enter button to enter.

Notes:

1. Noise Reduction in PICTURE option i s invalid.
2. AD Switch in SOUND option i s invalid.
3. TIME menu and description are the same as that for Air mode.
4. Block Program and Parental Guidance in LOCK option i s invalid.
5. Audio Languages, Subtitle Language, Hearing Impaired and PVR File System in SETUP option i s invalid.
6. PC mode has no CHANNEL menu.

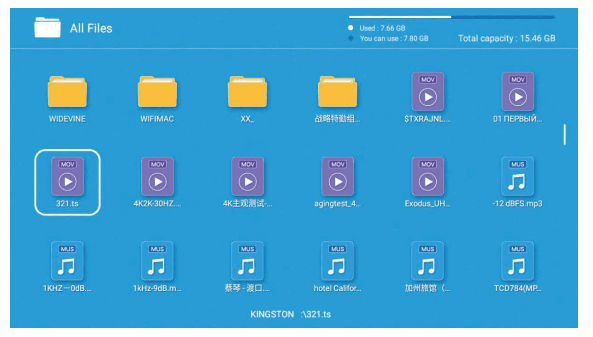

Media Operations

Note: Before operating Media menu,Plug i n USB device,then press Source button to set the Input Source to Media .
Press button to select Media in t h e Source menu, then press Enter button to enter.
Press button to select the option you want to adjust in the main Media menu, then press Enter button to enter.

Technical Specifications

32ST2100 / 40ST2102 / 42ST2102 50ST2104 / 55ST2104 / 65ST2104 32ST1100 / 40ST1102 / 43ST1102 SMART LED TV

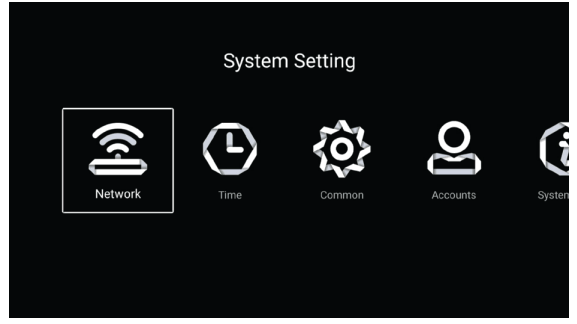

The system setting will appear when you open the TV on the first time.Please set according t o the on-screen guide.Press OK button to start the setup.

TV Setting

Press MENU button to enter the TV Setting.
Press < / > button to highlight the desired menu icon, and press OK button t o select.
( Optional: Home/Source/Picture/Sound/Channel/Lock/Common/Advance)

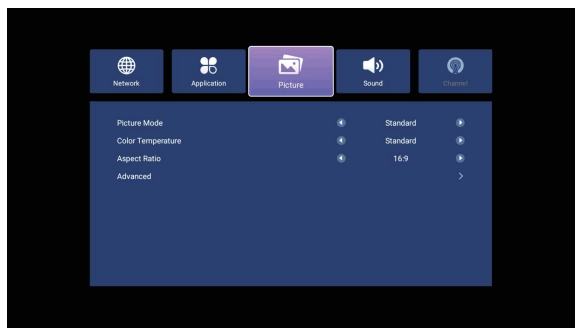

Press MENU button to enter the main menu.
Press button to select the Picture.
Press OK button to enter the sub-menu.
Press button to select Picture Mode/Contrast/Brightness/Color/Sharpness/Backlight/Noise Reduction/Aspect Ratio/Color Temp/More Settings.
Press MENU or EXIT button to quit.

Sound
Press MENU button t o enter the main menu.
Press button to select the Sound.
Press OK button to enter the sub-menu.
Press button to select Sound Mode/Sound Out/Bass/Treble/Balance/AVC/Mulit-Track Sound/More Settings.
Press MENU or EXIT button to quit.
Sound Out
Pressv button to select Sound Out.
Press ?/? button to select Internal TV Speaker/SPDIF/HDMI ARC.

Channel
Press MENU button to enter the main menu.
Press button to select Channel.
Press OK button to enter the sub-menu.

ATV
Press button to select Scan/Channel List.
Press MENU or EXIT button to quit.

OVB-T
Press button to select Country/Antenna Type/Scan/Audio Language/Subtitle/Channel List/EPG/CI Card.
Press MENU or EXIT button to quit.

DVB-C
Press button to select select Air/Cable/Satellite.
Press MENU or EXIT button to quit.

DVB-S
In DTV source, set the Antenna Type as Satellite.(It only available with DVB-S funtion.)
Press button to select Country/Antenna Type/Scan/Cl Card/Signal Information/Audio Language/ Subtitle/Channel List/EPG/Cl Card.
Press MENU or EXIT button to quit.

Lock
Press MENU button to enter the main menu.
Press button to select Lock,
Press OK button to input password to enter the sub-menu.(Default password is the one you set on the FTI page)
Pressv button to select Change Password/System Lock.

Common
Press MENU button to enter the main menu
Press button to select Common.
Press OK button to enter the sub-menu.
Press button to select PVR Setting/Timer Setting/Autostandby Timer/Sleep Timer/Blue Screen/Teletext/Audio Language 1st/Audio Language 2nd/Subtitle  Language 1st/Subtitle Language 2nd/HDMI CEC Setup/Scene mode/ECO Mode/MenuReset.

HOMICEC Setup
Press button to select HDMI CEC Setup.
Press OK button to enter the sub-menu.
Press button to select CEC/TV Auto Power On/Device Auto Power Off/Device List.
Note: All the Options are available only when the CEC select On.

Hotel Mode

Press MENU+7906 by default to enter Hotel Mode.

Press button to select Hotel Mode, and then press button to select ON/OFF.

Settings

SETTINGS
Press button to select OTHERS.
Press button to select the SETTINGS , and press OK button to enter the System Setting.
Press button to select Network/Time/Commen/Accounts/System Info.

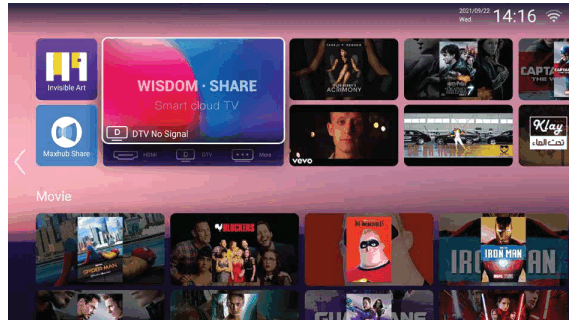

Home page

Press button to select Home page in Setup Wizard or press button to select Home in the menu of TV input.

Press button to select Movie/TV/HOT APP/FAV APP/MUSIC.
You can choose the program you want on the home page.

Media

Press button to select Multimedia in OTHERS on the Home page or press MEDIA button on the remote, ahd press OK button to enter enter the Media Center.
Press button to select All/Video/Audio/Image.

Technical Specifications

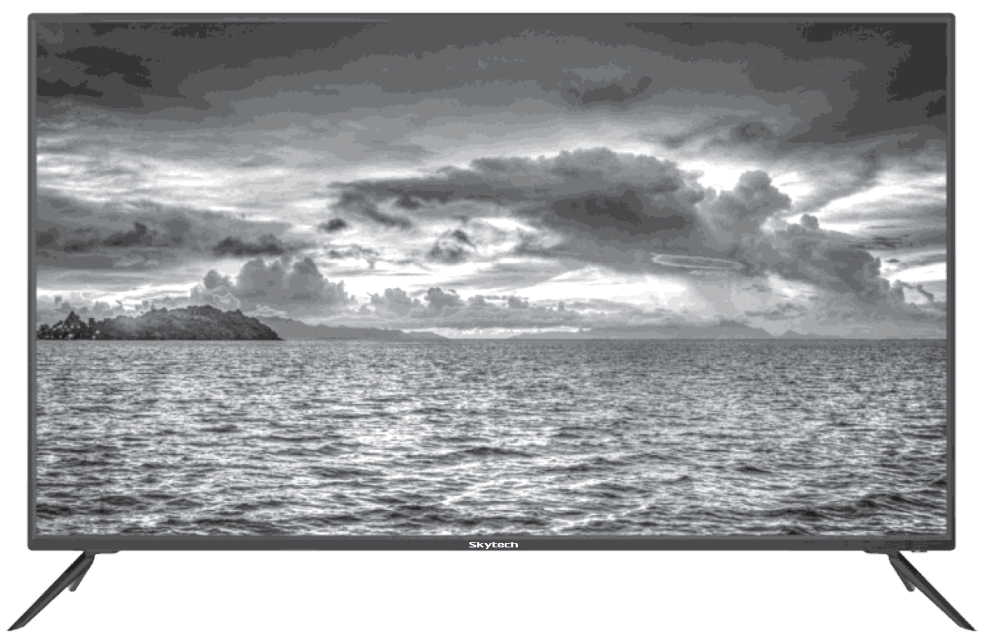

50ST1104 / 55ST1104 / 65ST1104 SMART LED TV

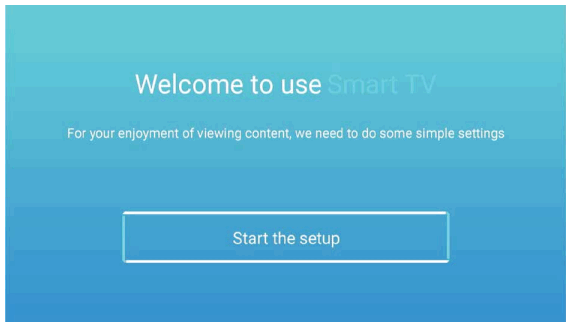

Boot Wizard

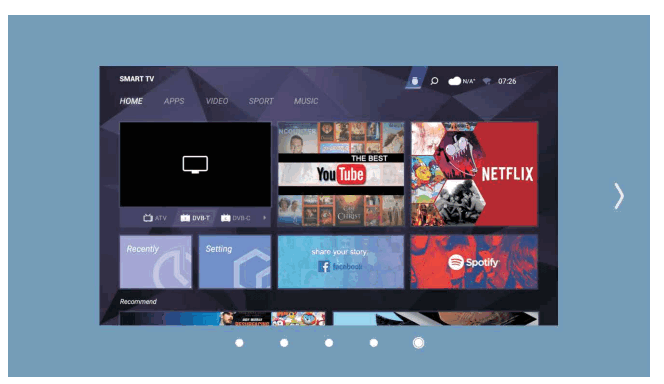

After the Boot Wizard setting completion , you can enter the SmartTv home interface.

Inputs
Press [SOURCE] button to open the input source list, then press button to highlight an input and press[] button to switch.

Main Menu
Press [MENU] button to open the main menu interface.Press [] button to select the o&fon then press [] button to enter the sub-menu. Then press [MENU] or [EXIT] to back to main-menu.

Press [] button to select the option then Press to decrease the parameter.
Press to increase the parameter.

Function Description:
Picture Mode Standard->Dynamic->Movie->Energy Saving->User
Color Temperature Standard -> Warm -> Cool
Aspect Ratio 16:9->4:3->Zoom1->Zoom2->Full->Auto
Advanced (select the Advanced option then press [OK/P ] button to enter the sub-menu).
NR->DLC->HDR->HDMI Mode (Available only in HDMI source.)

Sound
Press (] button to select the option then Press to decrease the parameter.
Press to increase the parameter.

Function Description:
Sound Mode Standard->Sport->Movie->Music->User
Surround OFF->ON
AVC OFF->ON
Advanced(select the Advanced option then press [OK/P ] button to enter the sub-menu).
Balance->Digital Output

Channel
Press [] button to select the option then Press [] button to enter the sub-menu.

Function Description:
Auto Scan Enter the auto tuning scan interface and start scan
Manual Scan Enter the manual tuning scan interface
Channel List Enter the channel list interface
Favorite List Enter the favorite list interface
Channel Edit Enter the channel edit interface
Schedule List Enter the schedule list interface
Program Guide Enter the program guide interface
Clinformation Enter the Cl information interface

Accessibility
Press [] button to select the option then Press  to decrease the parameter.
Press to increase the parameter.

Advanced
Press [] button to select the option then Press [] button to enter the sub-menu.

Function Description:
Blue Screen Off->On
Source Setting Setting input source show or hide. Press [OK] button to rename input source.
HOMI Setting HDMI CEC and ARC setting interface
Teletext Language West Eur->Eest Eur->Russian->Farsian->Arabic->
Audio Language Audio language setting interface(Available only in DTV source)
Subtitle Language Subtitle language setting interface(Available only in DTV source)
PVR File System Record program file system setting interface(Available only in ATV/DTV source)
Locked System lock, channel lock, Parental controls setting interface

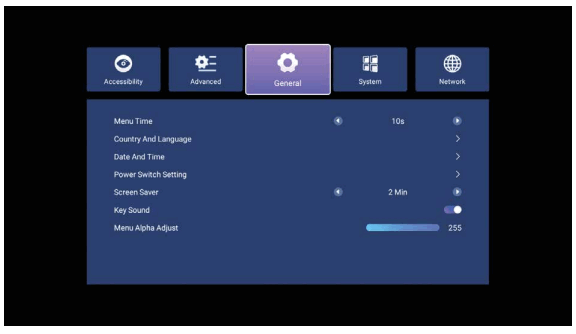

General
Press [A4/¥| button to select the option then Press [P] button to enter the sub-menu.

Function Description:

Menu Time Off->5s-> 10s->20s->30s->60s
Country And Language _ the turning station country and OSD language setting interface
Date And Time System Date And Time. TimeZone setting interface
Power Switch Setting Power switch setting interface
Screen Saver Off->2Min->5Min->10Min->20Min->30Min
Key Sound Off->On
Menu Alpha Adjust Q->255

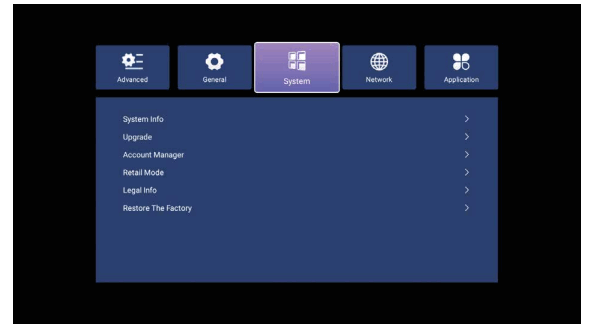

System
Press (| button to select the option then Press [] button to enter the sub-menu.

Function Description:
System Info View system info
Upgrade Local upgrade and network upgrade setting interface
Account Manager setting up your email address interface
Retail Mode Off->On
Legal Info legal information note interface
Restore The Factory Restore system setting

Network
Press [] button to select the option then Press [] button to enter the sub-menu.

Function Description:
Wi-Fi Connnect wifi, refresh and add wifi network setting interface
Ethernet Ethernet network setting interface

Application
Press [] button to select the option then Press [] button to enter the sub-menu:

Function Description:
APP Manager AllAPP manager interface
One Key Clean One key clean cache file
Remove External StorageRemove external storage device interface
Format External StorageFormat external storage

File Manager

Click the usb icon in the upper right corner of the home page to enter the file manager page. As shown below:

Hotel Mode
Press the remote control combination key Source +1147 Hotel menu UI main interface

Technical Specifications

Help

WARNING
Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death.
Many injuries, particularly to children, can be avoided by taking simple precautions such as: va

1. Using cabinets or stands recommended by the manufacturer of the television set.
2. Only using furniture that can safely support the television set.
3. Ensuring the television set is not overhanging the edge of the supporting furniture.
4. Not placing the television set on tall furniture (for example, cupboards or bookcases).without anchoring both the furniture and the television set to a suitable support.
5. Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture,
6. Educating children about the dangers of climbing on furniture to reach the television set or its controls.
   If your existing television set is being retained and relocated, the same considerations as above should be applied.
   Wall-mounted screw:22-24inch M4, 28-70inch M6, 7Sinch M8
   Note: don’t hang at an angle to avoid the risk of falling off.
   The actual effects and functions of some products will be fine-tuned, please refer to the actual product.

MANUFACTURER / IMPORTER COMPANY
SKY INOVASYON VE TEKNOLOJIA‘S. :
Basaksehir Mah. Hurriyet Bulvari
No: 119 Bagaksehir/ Istanbul/ Turkiye
Phone Number :444 23 30 (pbx)
[email protected] / www.skytech.com.tr
USING LIFE SPAN IS 10 (TEN) YEARS.

References

• SKYTECH
