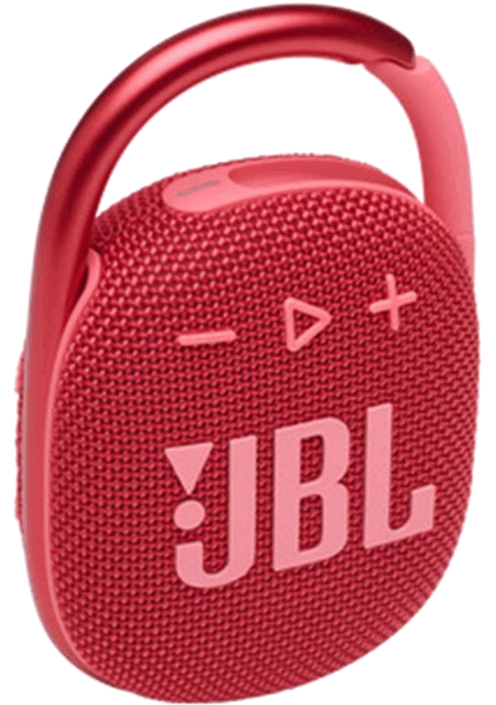

Clip 4 Portable Bluetooth Mini Speaker
User Guide
QUICKSTART GUIDE

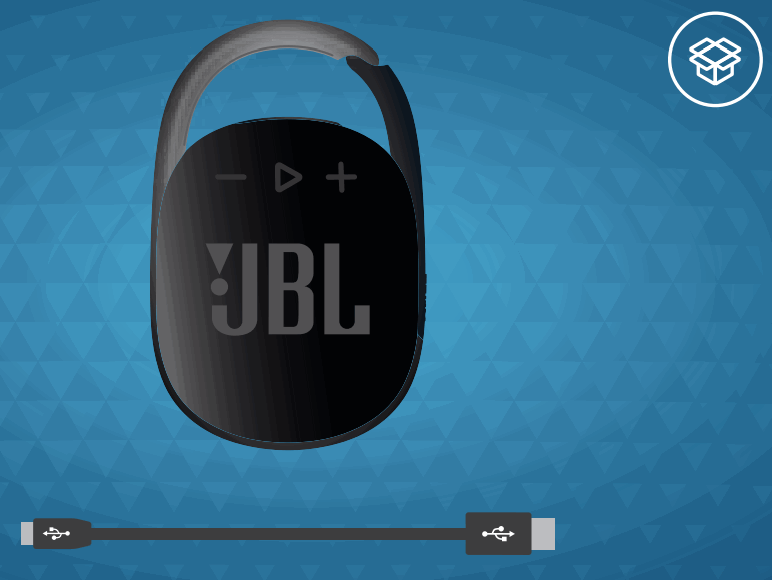

WHAT’S IN THE BOX

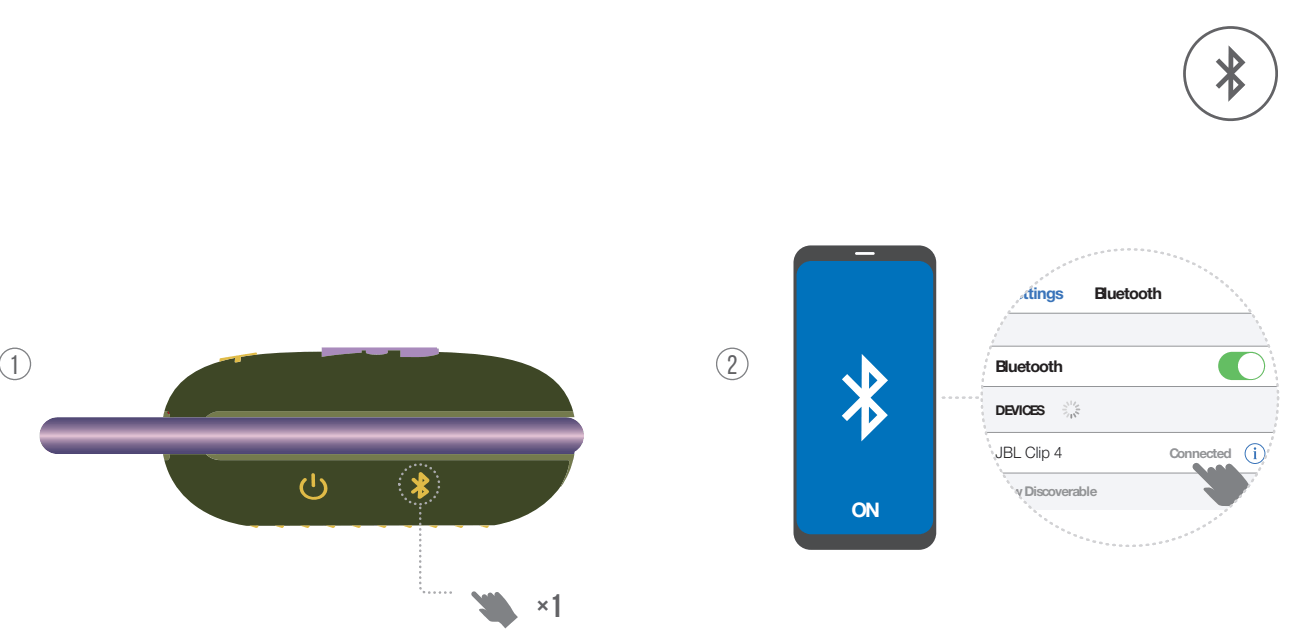

Bluetooth pairing

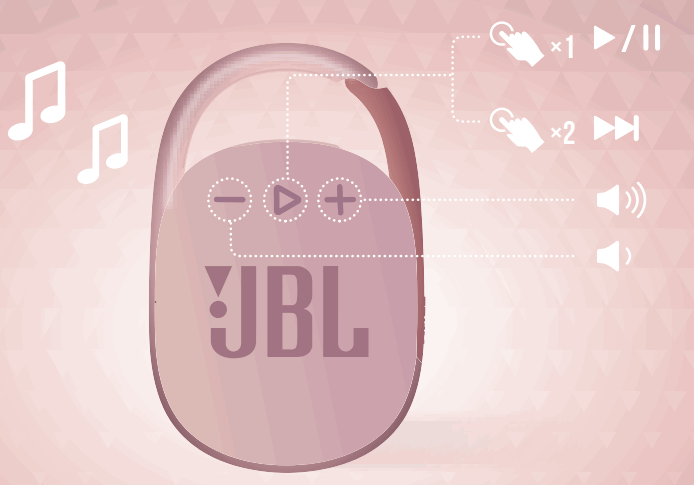

Play

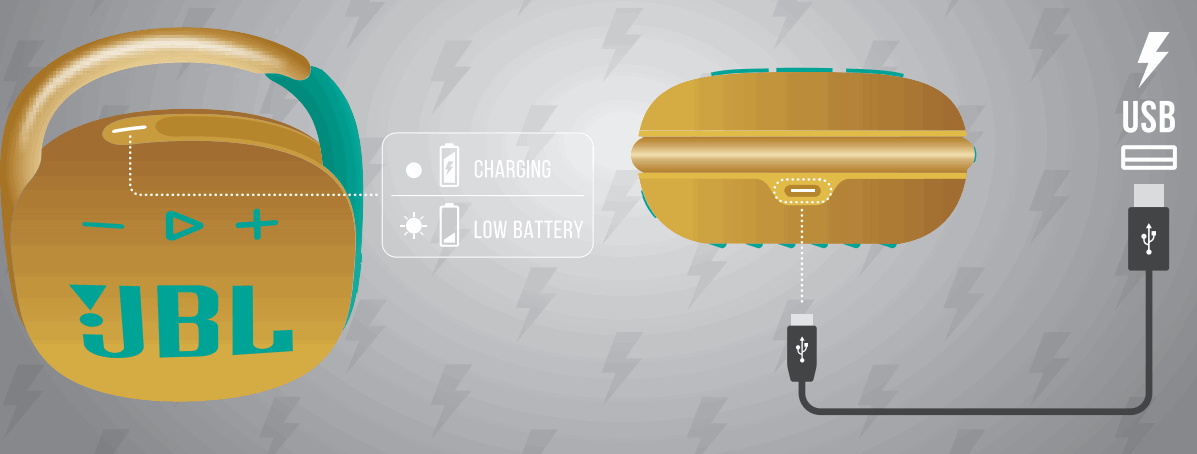

CHARGING
Play
CHARGING

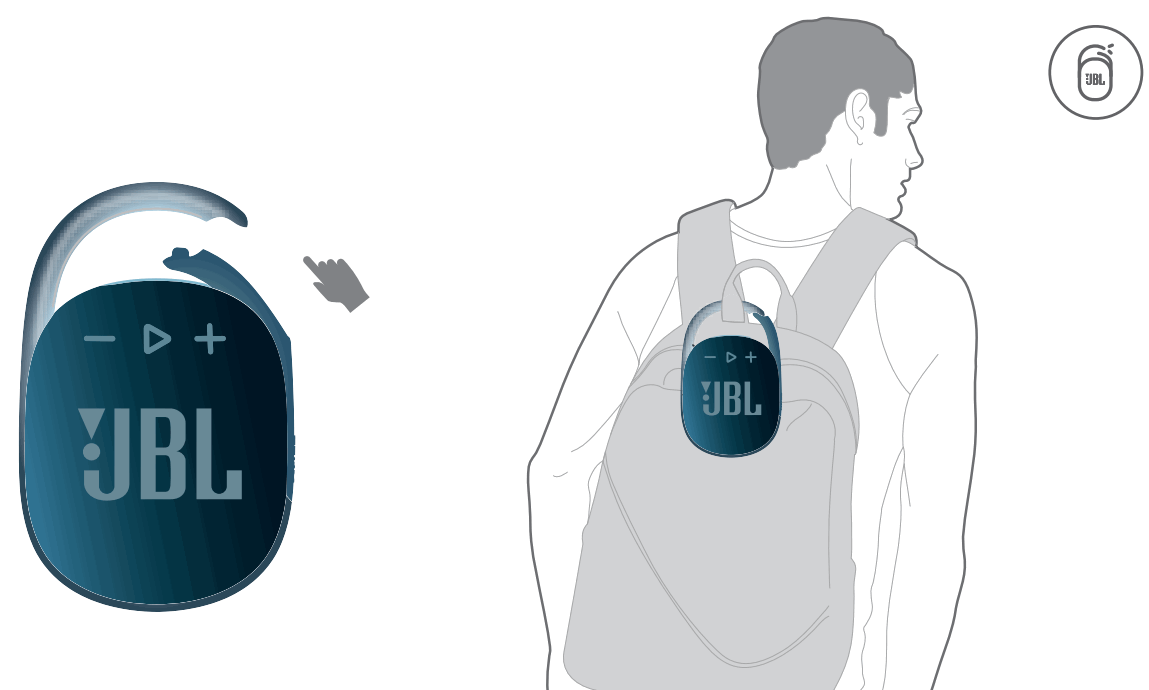

Carabiner

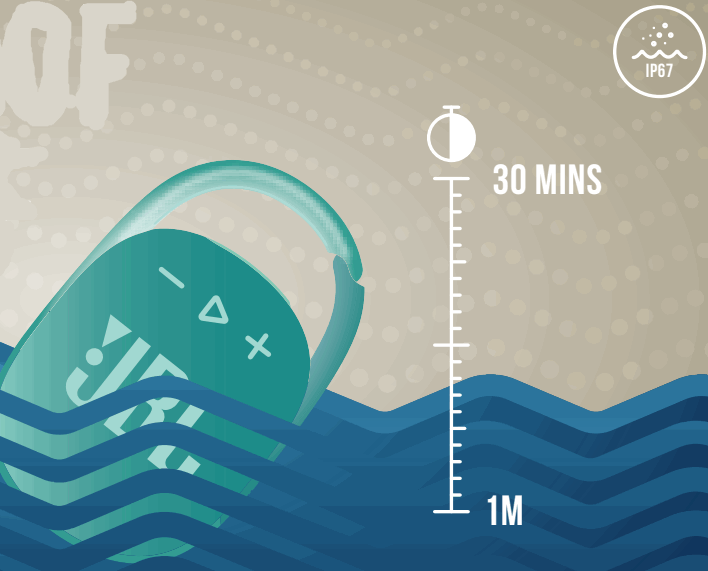

WATERPROOF DUSTPROOF IP67
TECHSPEC
| Transducer: | 40 mm/ 1.5” |
| Output power: | 5 W RMS |
| Frequency response: | 100 Hz – 20 KHz |
| Signal-to-noise ratio: | > 85 dB |
| Battery type: | Lithium-ion polymer 3.885 Wh |
| Battery charge time: | 3 hours (5 V / 500 mA) |
| Music playtime: | up to 10 hours (varies by volume level and audio content) |
| Bluetooth® version: | 5.1 |
| Bluetooth® profile: | A2DP 1.3, AVRCP 1.6 |
| Bluetooth® transmitter frequency range: | 2400 – 2483.5 MHz |
| Bluetooth® transmitter power: | ≤ 10 dBm (EIRP) |
| Bluetooth® transmitter modulation: | GFSK, π/4 DQPSK, 8DPSK |
| Dimensions (W x H x D): | 86.30 x 134.50 x 46.0 mm / 3.4” x 5.3” x 1.8” |
| Weight: | 0.239 kg / 0.527 lbs |
To protect battery lifespan, fully charge at least once every 3 months. Battery life will vary due to usage patterns and environmental conditions. Do not expose the JBL Clip 4 to liquids without removing the cable connection. Do not expose JBL Clip 4 to water while charging. It may result in permanent damage to the speaker or power source. After a liquid spill, do not charge your speaker until it’s completely dry and clean. Charging when wet might damage your speaker. When using an external adapter, the output voltage/ current of the external adapter should not exceed 5V/3A.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
Anatel — Agência Nacional de Telecomunicações
