Molift Bm30499 Unosling Ambulating Vest User Manual

by Etac
Molift
UnoSling Ambulating Vest
User manual
BM30499 Rev. A 2022-12-01

BM30499 UnoSling Ambulating Vest

Molift UnoSling / www.etac.com

Labels and symbols

Molift UnoSling Ambulating Vest A patient specific, disposable sling

http://q.etac.com/005y

Name:
Barcode according to GS1-128
(OL XXX XXKKAXANKA( LL RXKKKX (DL XRKKKKKK ‘(01):EAN number (LAYYMMBDD(21):Serial number

Material: Polypropylene ,Polyester

Symbols:

	Manufacturer
	CE marked
	Refer to user manual
	N – Date of manufacture. YYYY-MM-DD (year/month/date)
	This Way up, this side is outside
	max user weight
MD	Medical device
	Single patient – Multiple use
SN	Serial number
REF	Article number
	UKCA marked

Wash symbols:

	Do not wash
	Do not tumbledry
	Do not iron
	Do not dry clean
	Do not bleach

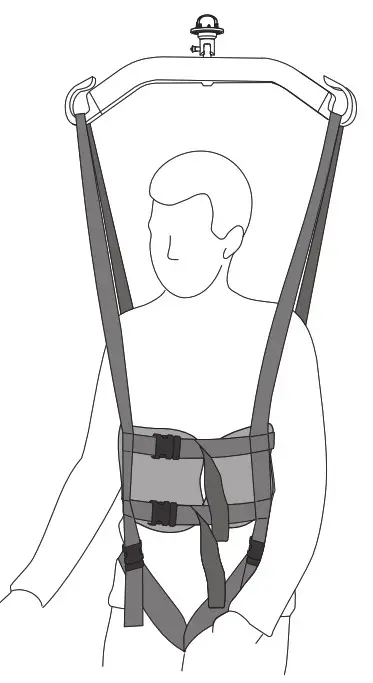

Molift UnoSling Ambulating Vest

The Molift UnoSling Ambulating Vest is a consumable for single patient use. Etac supplies a wide selection of slings for different types of transfers. The Molift UnoSling Ambulating Vest is intended to be used for rehabilitation / mobilization to facilitate standing, walking and balance training. It is designed to be used with a 2-point sling bar. Molift UnoSling Ambulating Vest is intended for users who can follow instructions, have core balance and are able to take load on the legs. It is approved for users weighing up to 350 kg and is avai lable in sizes S-XL. The sling is placed around the user’s waist and is secured with the belt buckles and possibly the groin straps. The groin straps have padding and prevents the sling from sliding up. The groin straps are removable. The sling has a non-slip lining inside the waist belt, which helps keep the sling in place.

Definition
The person described as “the user” in this Instruction for Use is the person who is lying in the product. ”The carer” is the person who applies the product.
Intended purpose
To be used with a hoist for supporting one specific user, who requires support to stand and/or walk; e.g. for gait training or similar.
Intended target group
Used for users who require support to stand and/or walk; e.g. persons with limited ability to move and who require body support during transfers. Not an exhaustive list.
Intended environment
For indoor use in acute care, long term care, home care.
Indications
The device can be used for children, adults and elderly people when there is a need for a patient specific product.
The target group for the device is based on individual health and mobility function, and not a specific diagnose or age.
Contra indications
Make sure the sling fits the user.
The user should be able to take load on the legs and have core stability.
The sling is non-washable and should be disposed when dirty or when user leaves the facility.
The Molift UnoSling Ambulating Vest sling is a consumable for single patient use, it has a limited service life.
Write the user’s name and the date on the product label before using the product.
The Molift UnoSling Ambulating Vest is manufactured from non-woven material. Ensure that no pointed or sharp objects come into contact with the sling. Avoid pulling hard on the sling when applying it to or removing it from the user.
The Molift UnoSling Ambulating Vest should be taken out of use:
– when it has become dirty or damp, or if there is a risk that the sling has been exposed to contamination;
– if it has been damaged;
– when the user no longer requires it.
The sling should be disposed of in accordance with applicable procedures for the health care facility.

Things to remember
– Read through the manual before starting to use the sling.
– It is important to understand the contents of the user manual before using the equipment. Read the manual for both hoist and sling.
– Molift slings shall only be used to lift persons. Never use the sling to lift or move objects of any kind.
– Make a decision on whether one or more assistants are required. Plan the lifting operation in advance to ensure that it is as safe and smooth as possible. Remember to work ergonomically.
– Lifting and transferring a person always involves a certain risk. Only informed personnel should use the equipment described in this user manual.
If the maximum load (SWL) differs between the sling bar and the sling, the lowest maximum load  should always be used.
– Carry out a risk assessment and document it. As the assistant, you are responsible for the safety of the user.
– Never leave a user unattended in a lifting situation.
– Make sure that the wheels on the wheelchair, bed, etc. are locked during the movement.
– Remove the sling carefully to ensure that there is no sudden fall. The following inspection should be carried out daily or before use
– The user must have the bodily functions required for the use of the sling.

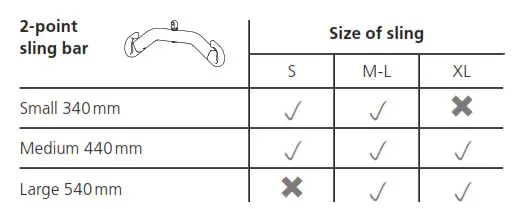

– Make sure the sling is suitable for the hoist/sling bar to be used.
– Check that the sling has no visible damage or faults.

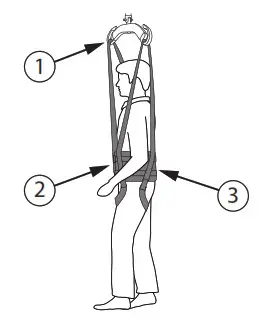

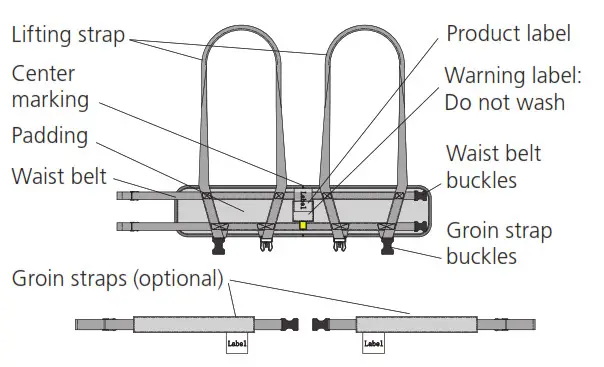

Sling checkpoints

Lifting checkpoints

1. Check that the sling is correctly fitted around the user and that the strap loops are correctly fitted to the sling bar hooks.
2. Start lifting. Ensure that the lifting straps are stretched tense, and pause before continuing. Check that all lifting loops are attached correctly to the sling bar.

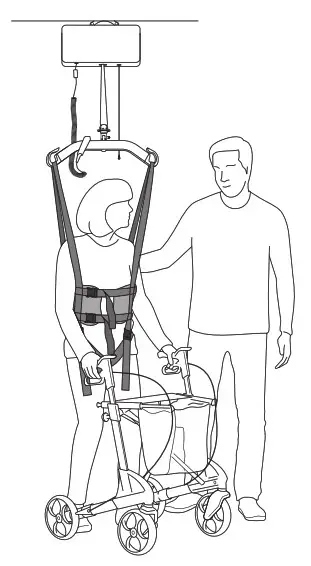

3. Continue lifting the user and carry out the planned training / rehabilitation activity.

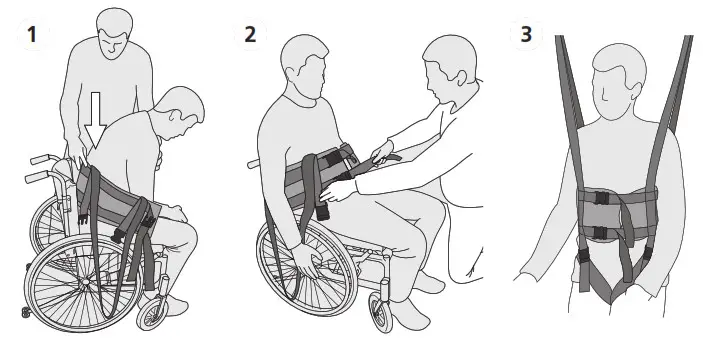

Sling application

1. Hold sling with one hand and use the other hand to support the user. Slide the folded sling down behind the user’s back until it reaches the seat.
2. Fix the waist belt and tighten. The belt can be retightened after the patient is raised up.
3. The user’s arm should be placed in between the lifting straps.

Groin strap (optional)

1. Put the groin strap under the thigh.
2. Connect the buckles. The groin strap can be retightened after the patient is raised up.

Removing sling

1. Lower user into chair. Release straps from sling bar. Release groin strap buckles and remove groin strap.
2. Release waist belt buckles.
3. Use one hand to support and lean the user forward while removing the sling from the back with the other hand. Make sure not to pull to hard or fast, this may cause the user to fall out of the chair.

The Molift UnoSling Ambulating Vest, as described in this manual, is CE labelled and complies with the Council of Europe’s directive on medical devices MDR (EU) 2017/745, class 1, and has been tested and approved in accordance with the EN ISO 10535:2021 standard.
This symbol indicates especially important safety information.
Follow these instructions carefully.
Do not wash. If the sling is washed, this symbol disappears and another symbol appears. The sling should then be  disposed of.
Do not use. If this symbol appears the sling has been washed and should be disposed of.
The sling should not be stored in direct sunlight.
Safe Working Load (SWL): 350 kg (770 lbs) Material: Polypropylene, polyester

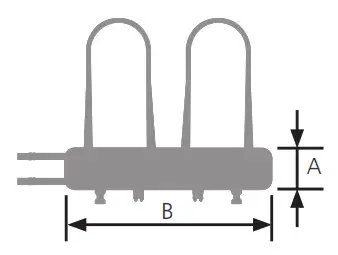

Measurements in the table should be used as a reference. Correct size depends on the user’s weight, function and body shape. Measure the waist size and back height of the user in sitting position. Try the sling with most the correct measurements to make sure it fits.

Visit www.etac.com to download documentation to ensure that you have the latest version.

UK responsible person:
Etac Ltd, Unit 60
Hartlebury Trading Estate
Hartlebury Kidderminster DY10 4JD
Etac A/S
Parallelvej 3
DK-8751 Gedved
www.etac.com
