Molift Bm15501 Nomad Cart Ii User Manual

Etac Cart II
User manual

Important
This User Manual contains important safety instructions and information regarding the use of this product and accessories.
Warning!
This symbol indicates important information related to safety. Follow these instructions carefully.
Read the User Manual before use!
It is important to fully understand the content of the user manual before attempting to use the equipment.
Visit www.etac.com for a download of documentation to ensure you have the latest version.

General

CE declaration
The product, and its related accessories, described in this instruction for use (IFU), are in compliance with the regulation (EU) 2017/745 of 5. April 2017 – as a medical device, risk class I.
Any serious incident that occurs in relation to the device should be reported to the manufacturer and the competent authority of the Member State in which the user and/or patient is established.
Conditions for Use
Only for transportation of Molift Nomad lifter, HoverTech fan, and accessories. Only trained personnel are allowed to use the equipment and accessories mentioned in this user manual.
Modifications and use of components made by other manufacturers.
We recommend only using Etac Molift components and spare parts. Etac is not responsible for the warranty if any modifications are made to the product. Etac shall not be liable for faults or accidents that can occur when using components made by other manufacturers.
Only certified personnel are allowed to perform service or repair.
Warranty notice
Two-year warranty against defects in workmanship and materials of our products.
Please refer to www.etac.com for terms and conditions.

Etac Cart II

(Nomad version)

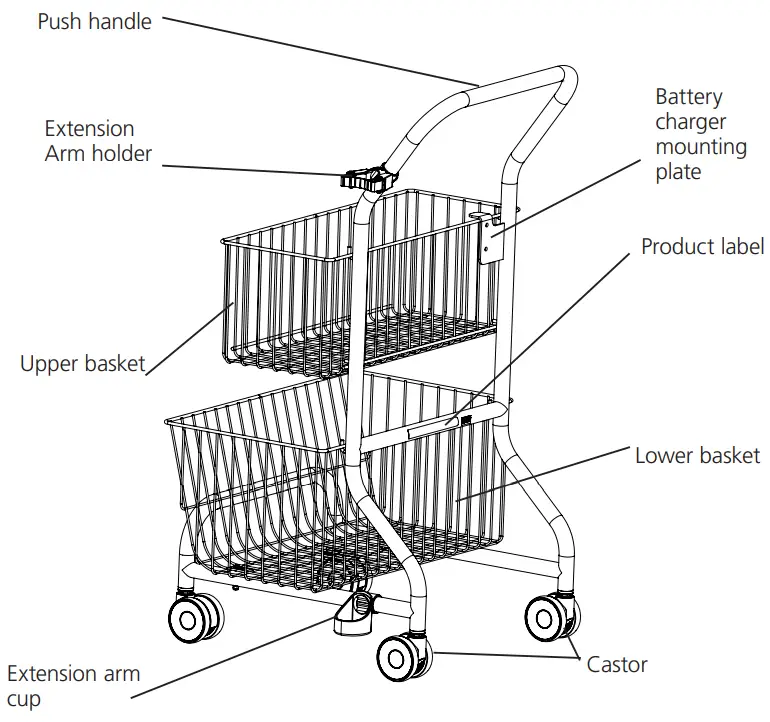

Cart components:

Etac Cart II (Nomad version)

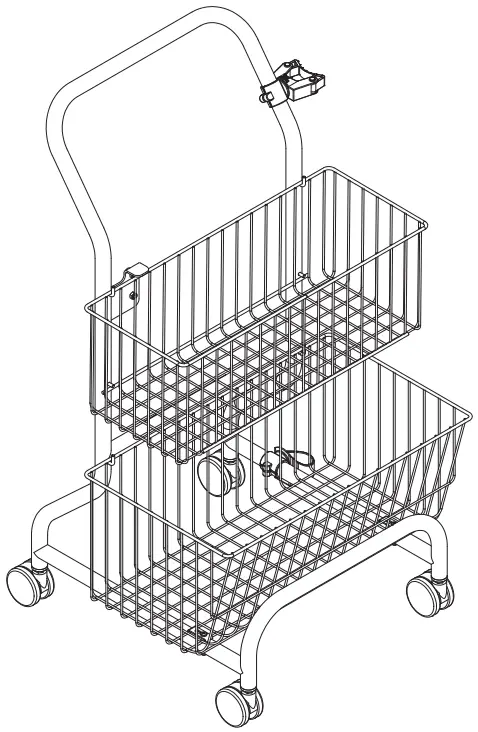

Etac Cart II (Nomad version) is an accessory for the transportable Molift Nomad ceiling hoist. The Cart is intended for storing, transporting, and charging (optional) the Molift Nomad ceiling hoist. The cart is made of steel and has 4 castors, 2 baskets for storing of Nomad ceiling hoist, and slings. It also has a holder for the Nomad Extension arm (accessory).
It is ideal for hospital and institutional care settings but can also be used in private homes.
Etac Cart II (HoverTech version)

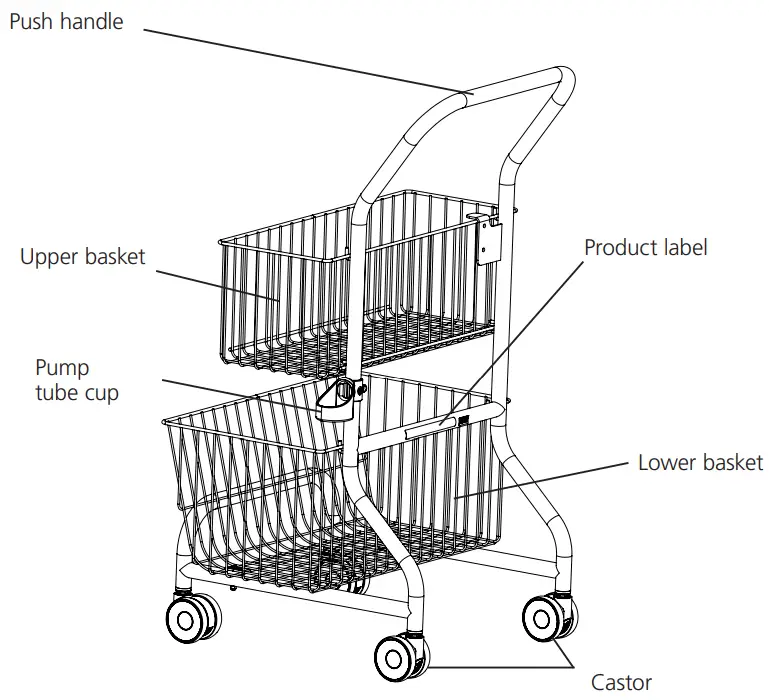

Cart components:

Etac Cart II (HoverTech version)
Etac Cart II (HoverTech version) is an accessory for the transportable HoverTech pump. The Cart is intended for storing and transportation. The cart is made of steel, has 4 castors, and 2 baskets for storing of HoverTech pump and accessories. It is ideal for hospital and institutional care settings but can also be used in private homes.

Technical Data

Nomad version

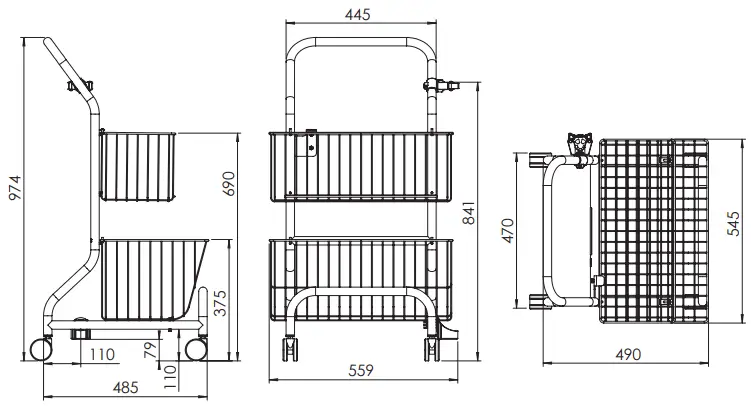

Dimensions (Width, Length, Height): 559 x 485 x 975 mm
Weight of unit: 8,2 kg/ 18 lbs
Material: Steel, Plastic
Turning diameter: 100 cm (39.4 inches)
Max load: Upper basket: 10 kg (22 lbs)
Lower basket: 25 kg (55 lbs)

HoverTech version
Dimensions (Width, Length, Height): 545 x 485 x 975 mm
Weight of unit: 8,2 kg/ 18 lbs
Material: Steel, Plastic
Turning diameter: 100 cm (39.4 inches)
Max load: Upper basket: 10 kg (22 lbs)
Lower basket: 25 kg (55 lbs)

Product identification
Product label
The Product labels barcode contains the article number and EAN code

Warning labels and Symbols
Symbols used on the product are explained in more detail:

	Manufacturer
	Date of manufacture
	Catalog number
	Serial number
	Medical Device

Assembly

Assembly parts

1. Upper basket
2. Toolflex cup
3. Toolflex holder
4. Toolflex tube mount (2x)
5. M6x16 screw (2x)
6. M6 nylock nut (2x)
7. Strips
8. Screwdriver Ph2
9. User manual

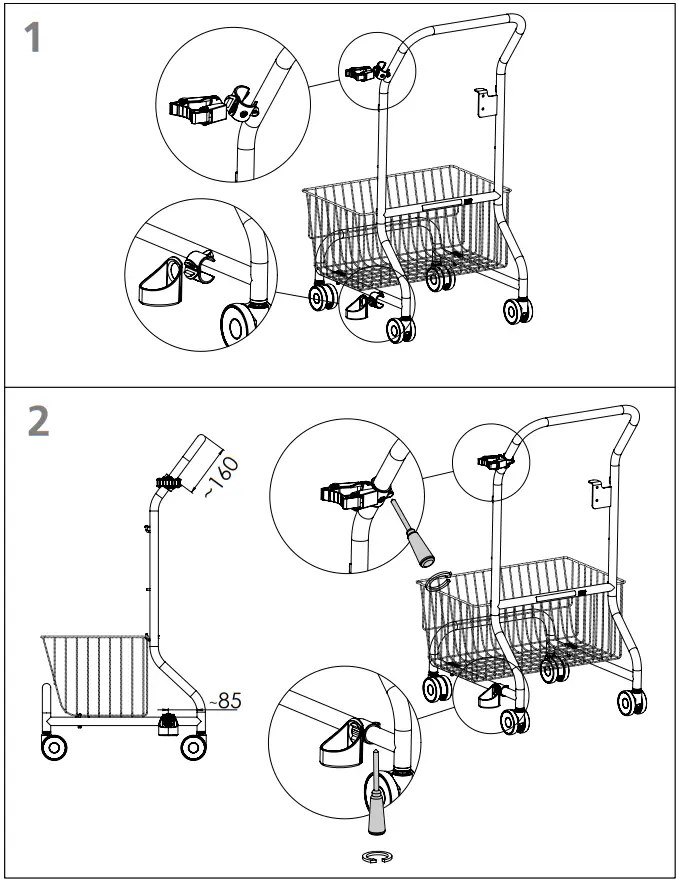

Cup and arm holder ( Nomad version)

1. Open up the tube clamp. Insert the cup holder/arm holder together with the clamp. Close the clamp around the tube. The cup/ arm holder will now connect to the clamp.
2. Use templates on page 7 for positioning of the cup and arm holder. 160mm for the arm holder and 85mm for a cup holder.
3. Use the applied Phillip screwdriver and tighten the screws for the pipe clamp.

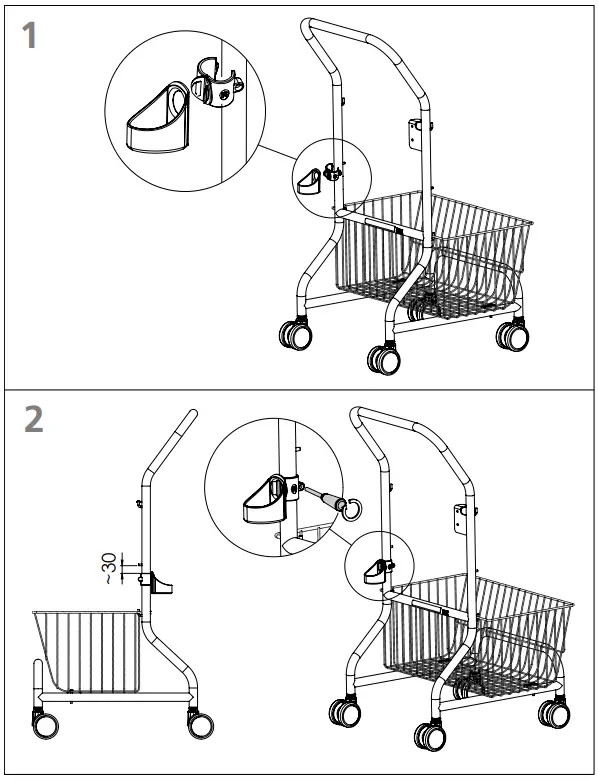

Cup holder (HoverTech version)

1. Open up the tube clamp. Insert the cup holder together with the clamp. Close the clamp around the tube. The cup will now connect to the clamp.
2. Use template 30 mm on page 7 for positioning of the cup holder.
3. Use the applied Phillip screwdriver and tighten the screws for the pipe clamp

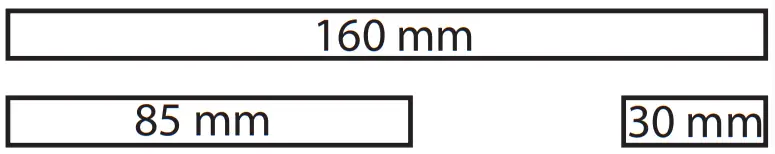

Measuring templates

Basket

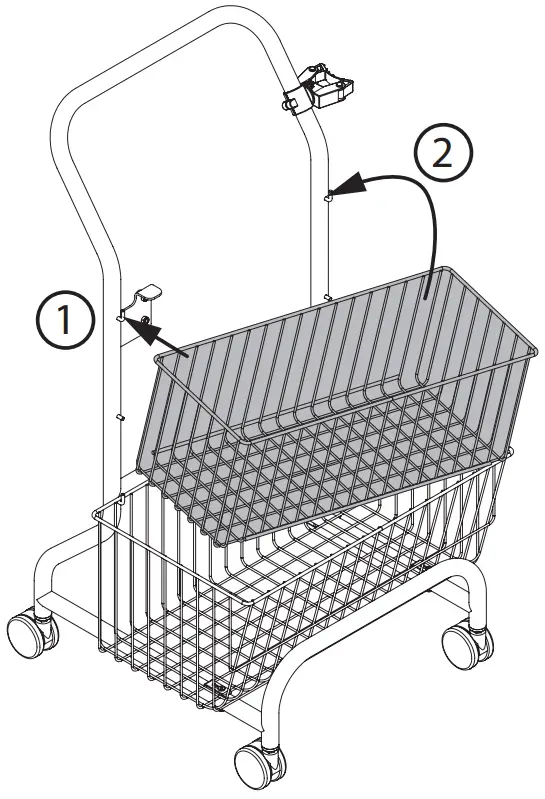

Stand in front of the Nomad Cart and attach the upper basket first on the left side hook (1) and thereafter on the right side hook (2).

Fixed basket (optional)

The Upper basket can be permanently mounted with the cable tie. Fasten around the basket and frame on the right side. Cut away the excess cable tie.

Checklist after assembly
Do not start using the cart before completing control according to the checklist after assembly.
Use this checklist to verify that the Nomad cart is properly assembled and can operate correctly and safely before use.

• Make sure the basket is properly fastened
• Make sure the cart feels steady and all 4 wheels roll freely. The cart should move in a straight line and not steer away in any direction when pushed on an even floor.

The cart is intended for indoor use only.

How to use Etac Cart II

Nomad version

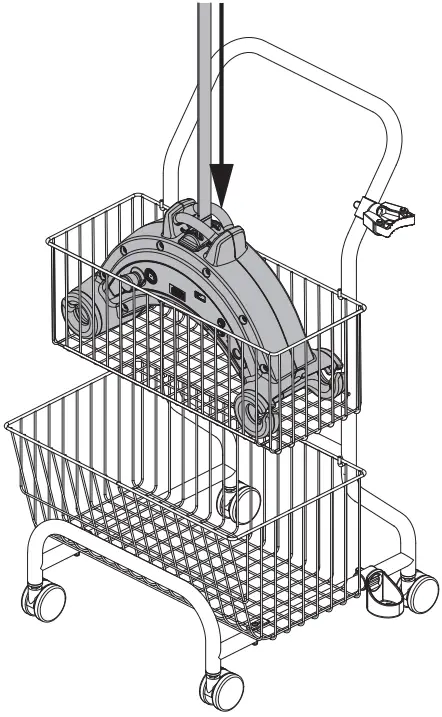

The nomad ceiling hoist fits in the upper basket.
The lower basket can be used for storing slings.
Connecting Nomad to rail with extension arm

Place the Nomad ceiling hoist in the upper basket. Push down the button on the hand control to drive out the lifting strap. Use extension arm (accessory) to connect lifting strap to trolley in rail.
HoverTech version

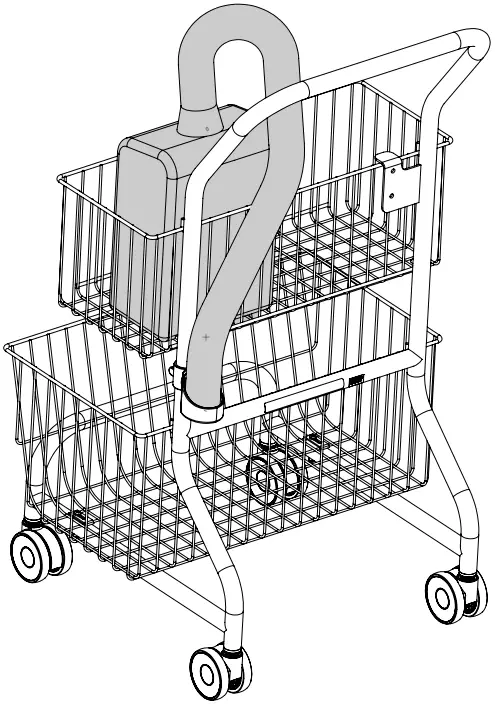

HoverTech pump fits in the upper basket. Insert the end of the tube into the cup holder.

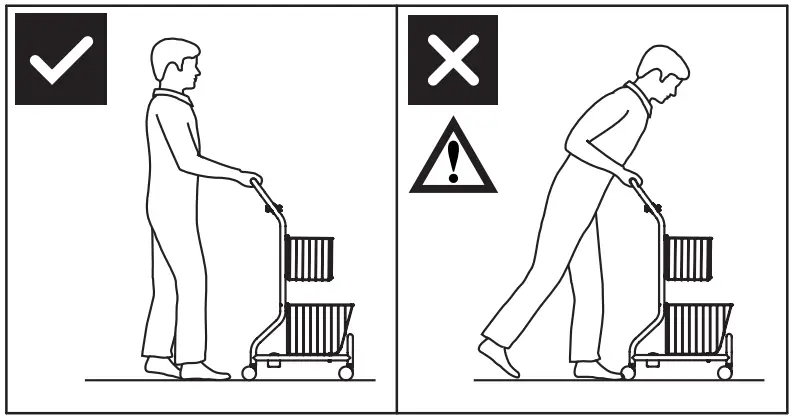

Stand behind and push the cart with a push handle.
Do not lean over or put your own weight on the cart.

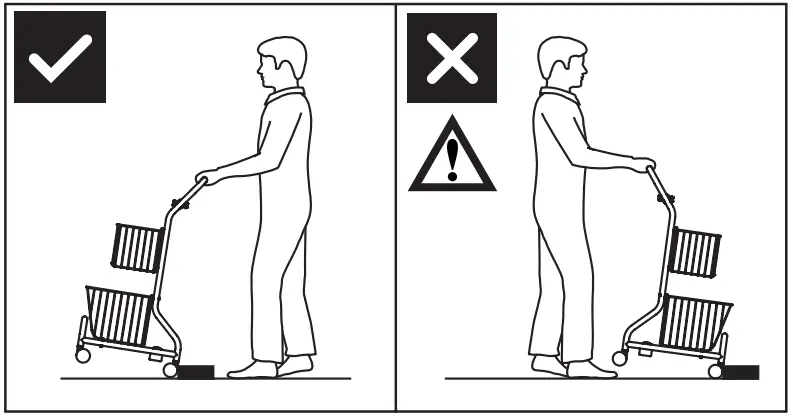

Pull the cart over thresholds or other obstacles.
Do not push the cart on deep pile carpets, over high thresholds, or other obstacles.

Accessories

Recommended optional equipment and accessories for Etac Cart II.
Battery charger

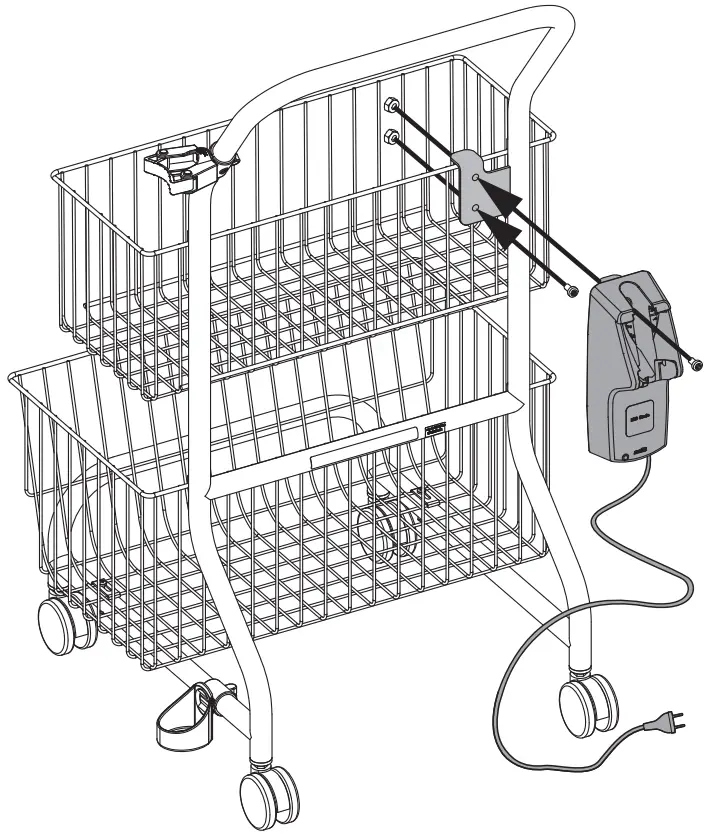

The nomad ceiling hoist is charged through hand control. The hand control charger can be mounted on the Nomad Cart. Use the screws and nuts supplied with the Nomad Cart and mount them on the battery charger mounting plate.

Charger for handcontrol Molift Nomad/AIR.
Art. no.: 1240100
Extension arm

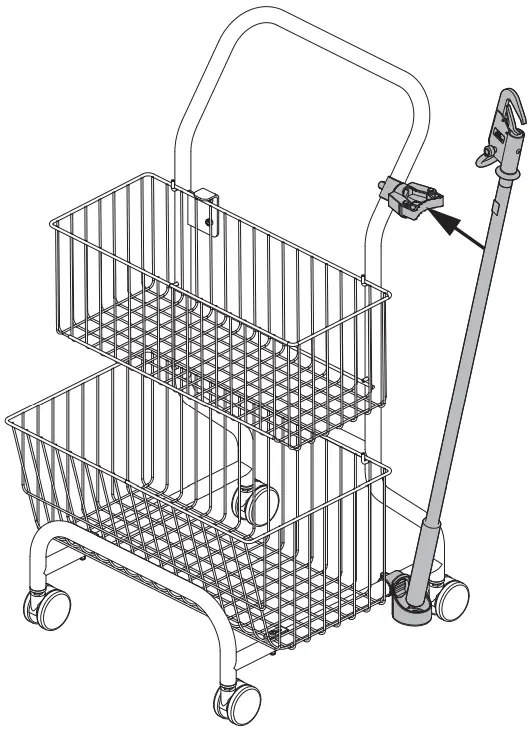

Molift Extension Arm is made for safe and easy mounting of Molift Nomad to the trolley in a rail system. The Nomad Cart has a holder for the extension arm. The extension arm is available in 2 different lengths.

Molift Extension Arm 900 mm
Art. no.: 1200004
Molift Extension Arm 1050 mm
Art. no.: 1200006

Maintenance

Cleaning and disinfection
Clean on a regular basis. Clean surfaces with a damp cloth using an appropriate pH-neutral detergent. Do not use solvents or strong liquids, this may damage surfaces on the lifter. For disinfection when needed; use isopropyl alcohol. Avoid abrasive cleaning products. Remove hair and pile from the castors and verify that the castors rotate freely.
Make sure not to damage or remove labels when cleaning.
Recycling
Etac Cart II can be disposed of as metal waste without a battery charger. The battery charger must be removed and disposed of as Electrical equipment.
Spare Parts
Wheel Ø65
Art. no.: 0920107
Extension arm holder parts
Toolflex holder (top)
Art. no.: 1220200
Toolflex tube mount (the part around the tube)
Art. no.: 1220201
Toolflex cup (bottom)
Art. no.: 1220202

Troubleshooting

Etac A/S
Parallelvej 3
DK-8751 Gedved
www.etac.comBM15501 Rev B 2021-09-10
