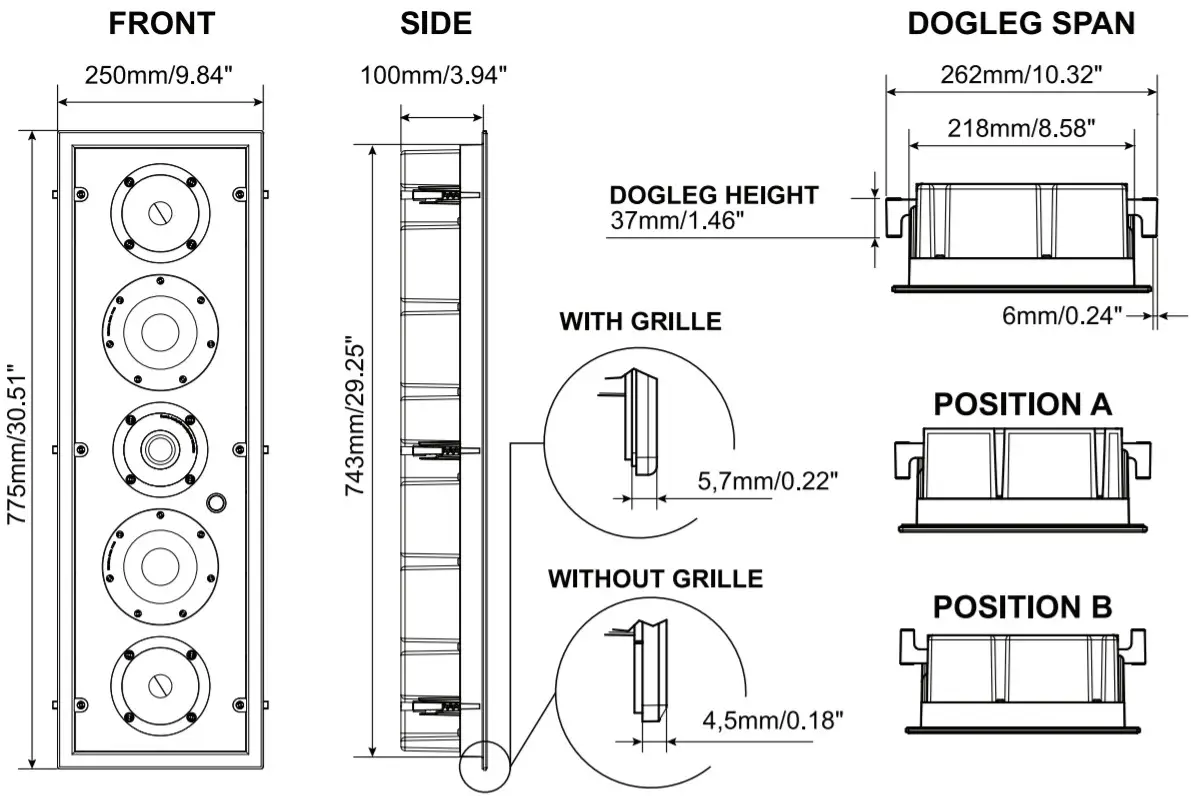

DALI logoSPEAKER DIMENSIONS – PHANTOM M-SERIES

DALI PHANTOM M-series Speaker - fig 1

Contents hide
1 MOUNTING IN PLATE WALL
2 MOUNTING IN MASSIVE WALL
3 Documents / Resources
4 Related Posts

MOUNTING IN PLATE WALL

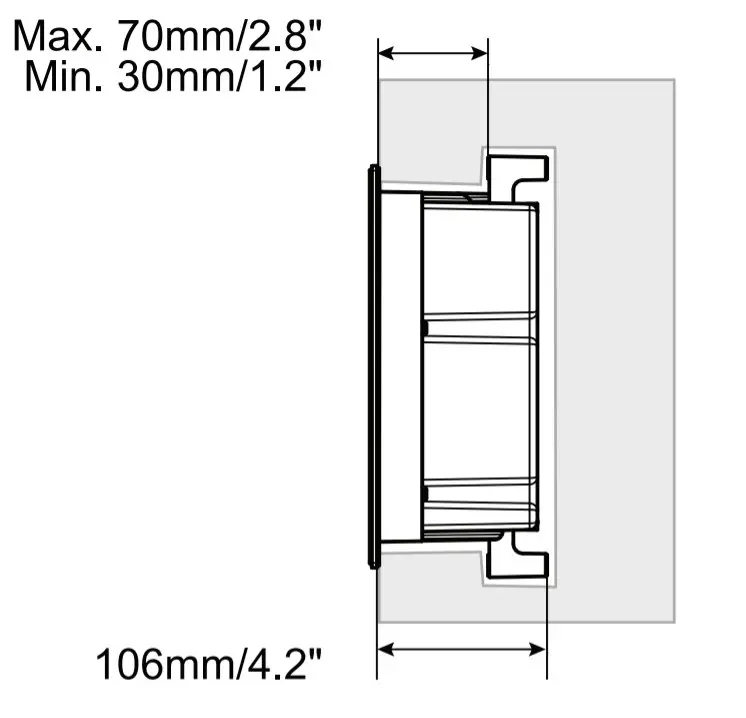

WALL THICKNESS < 70mm

DOGLEG POSITION A

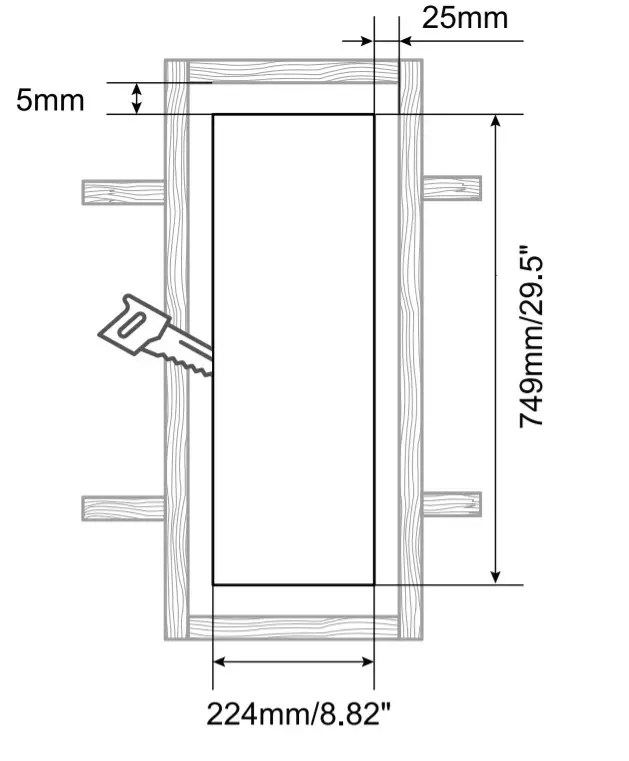

CUTOUT DIMENSIONS
Minimum clearance to allow dogleg grip.

DOGLEG POSITION A

DALI PHANTOM M-series Speaker2DALI PHANTOM M-series Speaker - fig 7

Item no. 951099-0-0 Rev.A

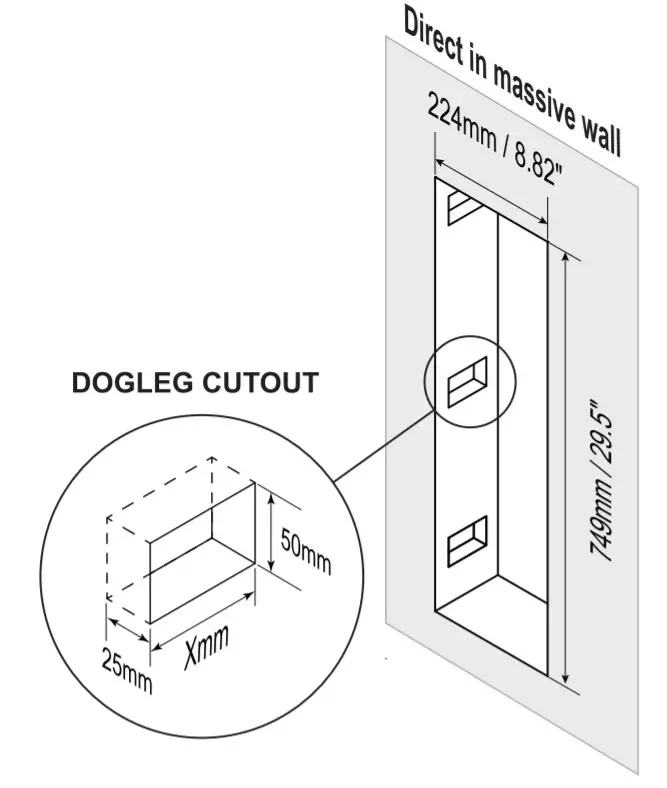

MOUNTING IN MASSIVE WALL

DOGLEG POSITION B

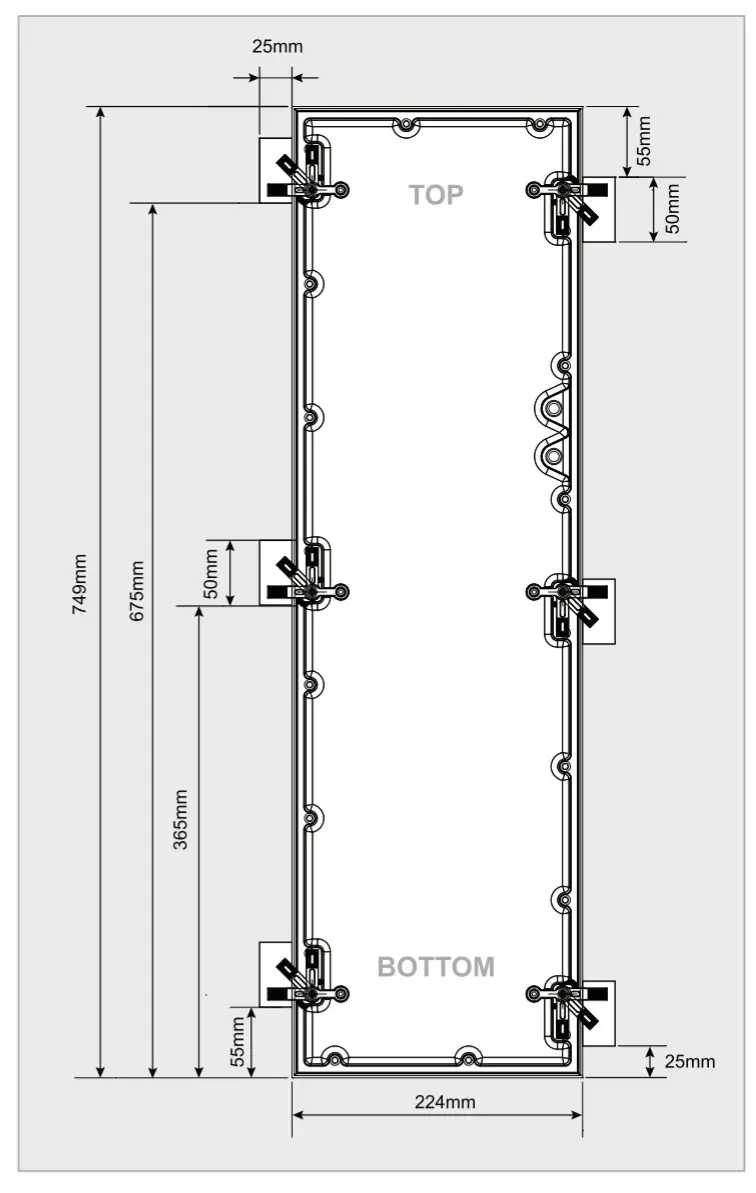

CUTOUT DIMENSIONS BACK VIEW

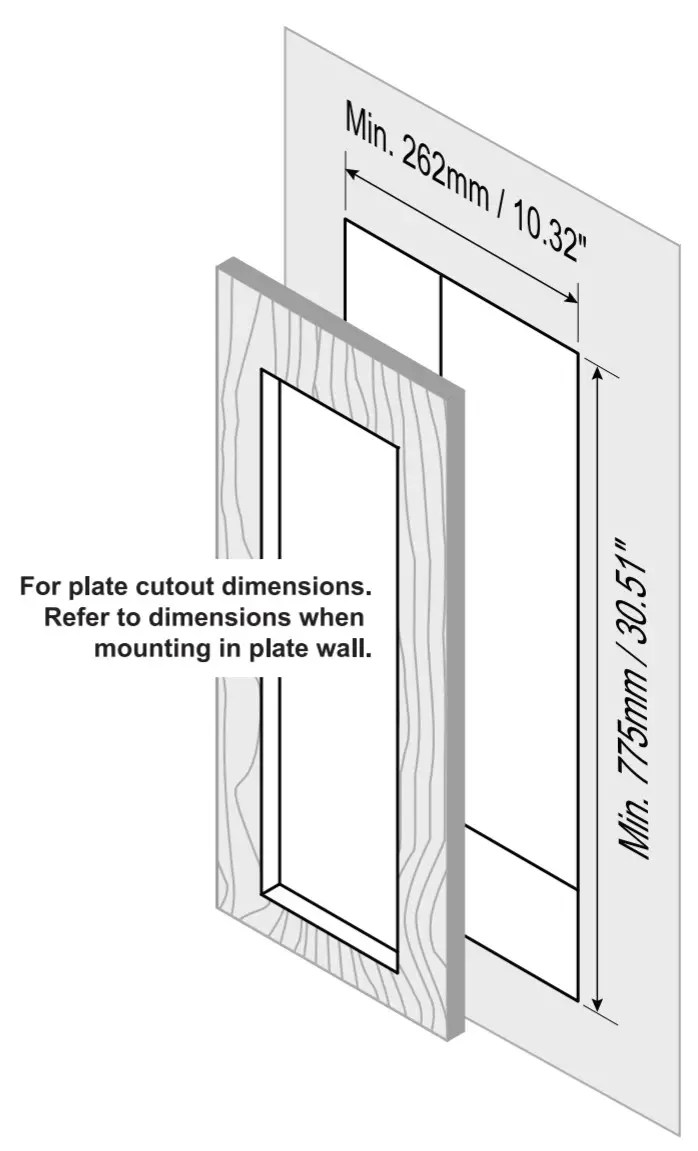

Plate in massive wall

DALI PHANTOM M-series Speaker - fig 3DALI PHANTOM M-series Speaker - fig 5

DOGLEG POSITION B

DALI PHANTOM M-series Speaker - fig 7DALI PHANTOM M-series Speaker - fig 6
