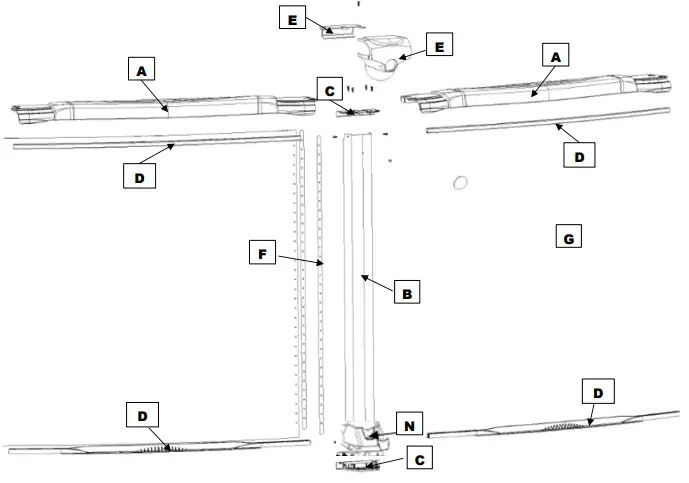

| Magnus Round Revised Sept 2016 Product Code : PMAG-54RSRSRSB11 | ||||||||||||
| Quantity required for installation (by pool size) | ||||||||||||
| Index# | Description | Parts # | Length | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 33 | |
| A | Top ledge | AR744-001-R | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | ||
| B | Upright | ART811-R12954M | 53,750” | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | |
| C | Top plate | 21120A | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | ||
| C | Bottom plate | CG21120B | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | ||
| D | Stabilizer 12D | LA1255612 | 55,750” | 8 | ||||||||
| D | Stabilizer 15D | LA1255615 | 55,875” | 10 | ||||||||
| D | Stabilizer 18D | LA1255618 | 55,875” | 12 | ||||||||
| D | Stabilizer 21D | LA1255621 | 55,750” | 14 | ||||||||
| D | Stabilizer 24D | LA1255624 | 56,125” | 16 | ||||||||
| D | Stabilizer 27D | LA1255627 | 55,688” | 18 | ||||||||
| D | Stabilizerl 30D | LA1255630 | 56,000” | 20 | 22 | |||||||
| D | Bottom rail | 1525515 | 55,250” | 8 | 10 | |||||||
| D | Bottom rail | 1525524 | 55,250” | 12 | 14 | 16 | 18 | |||||
| D | Bottom rail | 1525530 | 55,250” | 20 | 22 | |||||||
| E | Ledge cover | AR211-23120ABC | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | ||
| F | Steel bars | 11825 | 54,000” | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| G | Wall | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| N | Foot cover | AR711-23300AC | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | ||
| * | Hardware bag/pool | SACV12X34-58 | #12 screw 3/4 | 1 | ||||||||
| * | Hardware bag/pool | SACV12X34-66 | #12 screw 3/4 | 1 | ||||||||
| * | Hardware bag/pool | SACV12X34-74 | #12 screw 3/4 | 1 | ||||||||
| * | Hardware bag/pool | SACV12X34-86 | #12 screw 3/4 | 1 | ||||||||
| * | Hardware bag/pool | SACV12X34-98 | #12 screw 3/4 | 1 | ||||||||
| * | Hardware bag/pool | SACV12X34-113 | #12 screw 3/4 | 1 | ||||||||
| * | Hardware bag/pool | SACV12X34-129 | #12 screw 3/4 | 1 | ||||||||
| * | Hardware bag/pool | SACV12X34-147 | #12 screw 3/4 | 1 | ||||||||
| Screw 12×3/4 | V12x34 | 58 | 66 | 74 | 86 | 98 | 113 | 129 | 147 | |||
| *** | Hardware bag/pool | SACVHL12114-35 | screw1 1/4″-12 | 1 | ||||||||
| *** | Hardware bag/pool | SACVHL12114-42 | screw1 1/4″-12 | 1 | ||||||||
| *** | Hardware bag/pool | SACVHL12114-53 | screw1 1/4″-12 | 1 | ||||||||
| *** | Hardware bag/pool | SACVHL12114-63 | screw1 1/4″-12 | 1 | ||||||||
| *** | Hardware bag/pool | SACVHL12114-74 | screw1 1/4″-12 | 1 | 1 | |||||||
| *** | Hardware bag/pool | SACVHL12114-84 | screw1 1/4″-12 | 1 | ||||||||
| *** | Hardware bag/pool | SACVHL12114-95 | screw1 1/4″-12 | 1 | ||||||||
| Screw 12×1-1/4S | VHL12x114S | 35 | 42 | 53 | 63 | 74 | 74 | 84 | 95 | |||
| ** | Hardware bag/wall | 1050000054 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Thruss phill 18-8 bolts 18-8 1/4-0x3/4 | 99-0023 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | |||
| Flange nuts 1/4-20 Serrated | 2FGS422 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | 31 | |||
| Instruction DVD | SACWBI36876 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
- In the hadware bag/pool you will find parts: #V12x34
- ** In the hardware bag/wall you will find parts: #99-0023 – 2FGS422
- *** In the hardware bag/pool you will find parts: #VHL12114S
