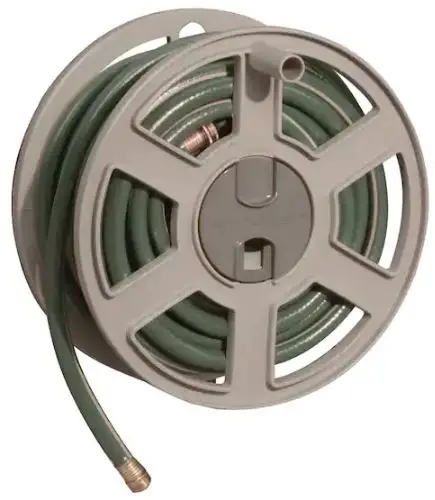

Suncast CPLSWA100 100 Ft Wall Mount Garden/Yard Hose
Register your product for Limited Warranty!
Must register the product within 90 days of purchase for a limited warranty.
www.suncast.com/warranty or call US 1 (800) 846-2345
Have Questions?
We are here to help. Check out our resource library along with helpful tips, videos, and FAQ’s. You may call the Contact Center directly at 1 (800) 846-2345 or write Suncast Corporation, Contact Center, 701 N. Kirk Road, Batavia, IL 60510 (USA).
To purchase Suncast replacement parts and learn about other Suncast products visit us online or call.
www.suncast.com
1-800-846-2345 or 1-630-879-2050.
1-800-846-2345 ou le 1-630-879-2050.
1-800-846-2345 o al 1-630-879-2050.
CONNECT LEADER HOSE AND MOUNT HOSE REEL

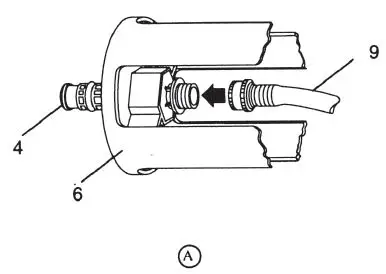

- A. Connect the brass end of the leader hose (9) to the in-tube (4) inside the hub (6).

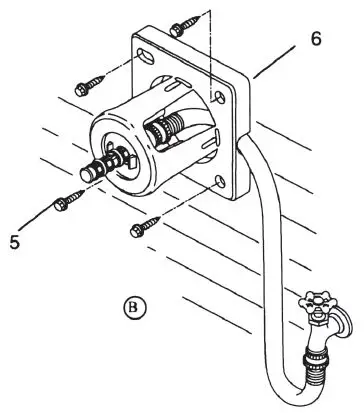

- B. Select wall mounting position with thought given to stability and reach of leader hose. Mounting screws (5) supplied will penetrate wood siding and sheeting. Other than wood siding, see your dealer for proper fasteners. Place the back of the mounting hub (6) against the wall and mark mounting points through four holes in the hub. Remove the hub from the wall and pre-drill marked points using a 5/32″ drill bit.
Assemble the mounting hub to the wall using four mounting screws (5), making sure that the leader hose is positioned inside the notch of the hub closest to the water outlet.
ATTACH REEL TO HUB

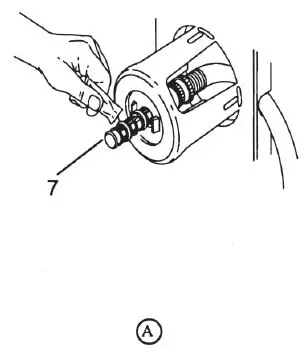

- A. Open the lubricant tube (7) and smear contents on the o-rings of the supply tube.

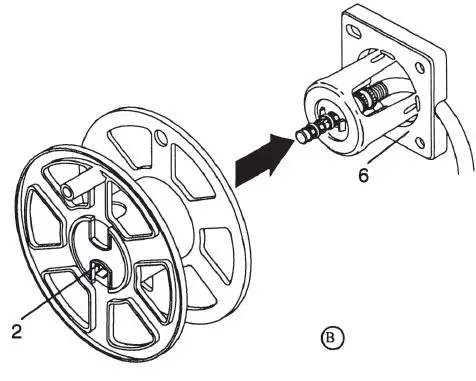

- B. Slide the tab of reel lock (2) to the “unlock” position (away from the center of the cover plate). Push the reel onto the mounting hub (6) until it stops. Slide the tab of the reel toward the center of the cover plate to the “lock” position. The reel can now be rotated. To remove the peel, slide the reel lock to the “unlock” position and pull the reel from the hub.
CONNECT YOUR HOSE TO REEL

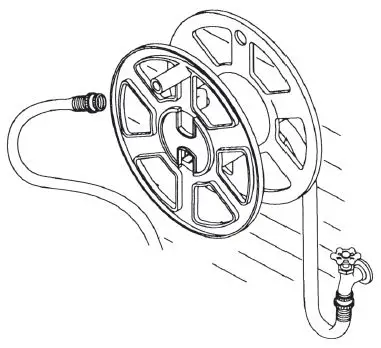

- Connect the end of the hose to the water out-tube.
CAUTION
If freezing may occur, remove from the faucet and drain water out of the hose and reel. Otherwise freezing of trapped water may cause damage to the reel or water pipes. Store indoors during colder months.
CAUTION
- DO NOT cross-thread the garden hose onto the out-tube.
- Check that the garden hose has a washer inside the female coupler.
If the washer is missing, consult your local hardware store for the correct washer needed.

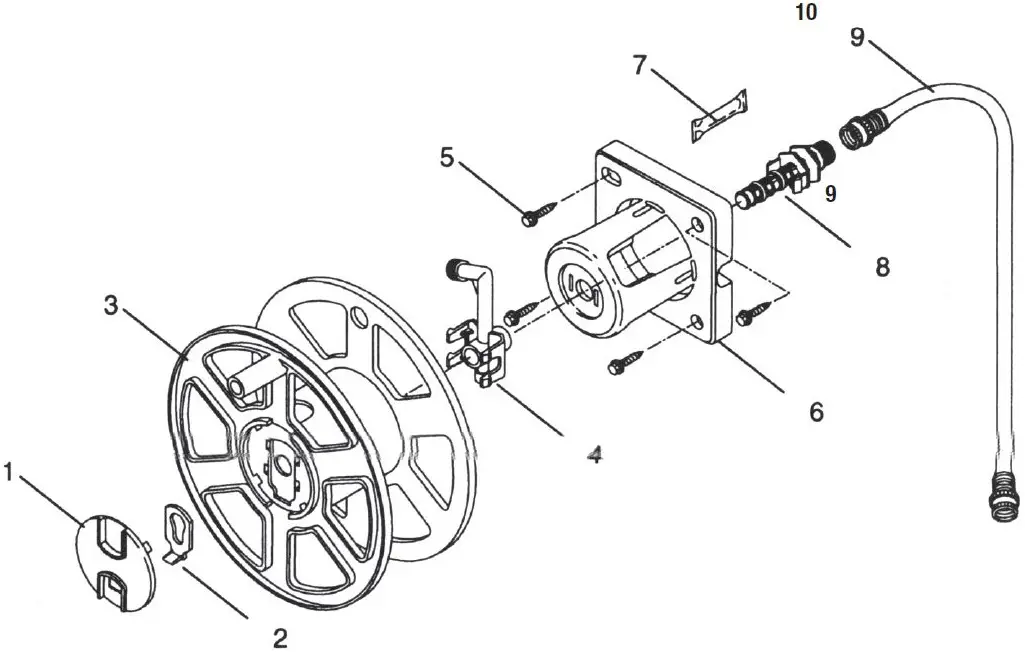

PARTS LIST
SWA100/GSW100
| Index No. | Part Name | SWA100 | GSW100 |
| 1 | COVER PLATE | 010082617 | 010082633 |
| 2 | REEL LOCK | 010006210 | 010006210 |
| 3 | REEL | 010082918 | 010082929 |
| 4 | OUT TUBE | 0461114 | 0461114 |
| 5 | MOUNTING SCREWS (4) | 021003111 | 021003111 |
| 6 | MOUNTING HUB | 010083017 | 010083029 |
| 7 | LUBRICANT TUBE | 0440093 | 0440093 |
| 8 | O-RING FOR SUPPLY TUBE | 0260029* 0260040** | 0260029* 0260040** |
| 9 | SUPPLY TUBE WITH O-RINGS | 0461113 | 0461113 |
| 10 | 3′ LEADER HOSE 1.5 M | 0520088 | 0520085 |
| SUNCAST PART NO. | UNIVERSAL DASH NO. | OUTSIDE DIAMETER | INSIDE DIAMETER | CROSS SECTION COUPE |
| *0260029 | -208 | 7/8″ | 5/8″ | 1/8″ |
| **0260040 | -209 | 15/16″ | 11/16″ | 1/8″ |
| These o-rings may be purchased from better auto supply stores or through Suncast. | ||||
To purchase Suncast replacement parts and learn about other Suncast products visit us online or call.
www.suncast.com
1-800-846-2345 or 1-630-879-2050.
1-800-846-2345 ou le 1-630-879-2050.
1-800-846-2345 o al 1-630-879-2050.
