Edifier Cc200 Wireless Mono Headset Instruction Manual

CC200
Wireless Mono Headset
Manual

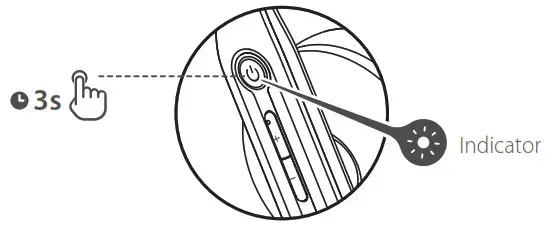

Power ON/OFF

Power ON: Press and hold the “” button for 3s when power OFF. Green LED will be lit for 1s.
Power OFF: Press and hold the “” button for 3s when power ON. Red LED will be lit for 1s.

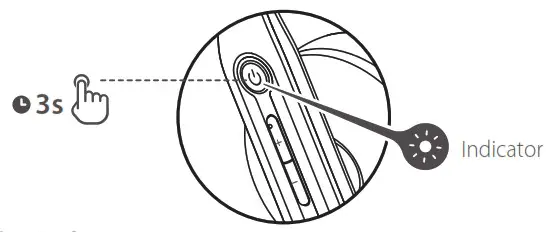

 Pairing

Pairing for the first time

1. Press and hold the “” button for 3s when power off. Red and Green LED will blink alternately and rapidly.
2. Select “EDIFIER CC200” in your device setting to connect. Green LED will blink twice rapidly then off after connected.

Note: For subsequent use, the headset will auto-connect to device used last time.

Pairing for new device

1. Press and hold the “” button for 5s when power off. Red and Green LED will blink alternately and rapidly.
2. Select “EDIFIER CC200” in your device setting to connect. Green LED will blink twice rapidly then off after connected.

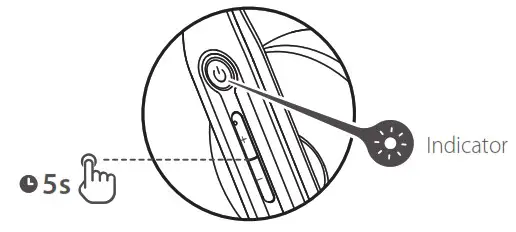

Reset

1. Power on and disconnected to any Bluetooth devices.
2. Simultaneously press and hold the “+” “-” buttons for 5s to reset and start Bluetooth pairing.
3. Green LED will blink 6 times rapidly when successful.

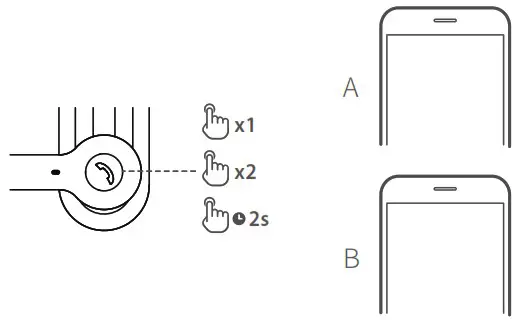

Multiple calls

The B call rings when accepting the A call:

1. Press the “” button to accept the B call and remain the A call.
2. Press 2 times the “” button to accept the B call and end the A call.
3. Press and hold the “” button for 2s to reject the B call.
4. When accepting the B call and remaining the A call, press 2 times the “” button to switch between the A and B calls.

Charge

1. Connect the product to power source with the included Type-C charging cable for charging.
2. Red LED is on when charging and Red LED is off when fully charged.
   Input: 5V 500mA

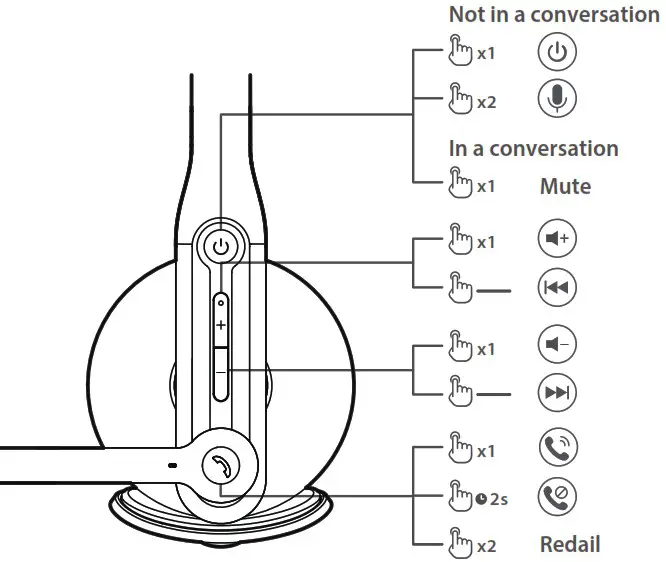

Controls

Note:

1. : Press and hold.
2. Please do not charge the headset when there is sweat or other liquids inside the charging port, which may damage the headset.
3. Images are for illustrative purposes only and may differ from the actual product.

For more information, please visit our website: www.edifier.com

@Edif ierglobal

@Edif ier_Global

@Edif ier_Global

Model: EDF200042
Edifier International Limited
P.O. Box 6264
General Post Office
Hong Kong

www.edifier.com
© 2021 Edifier International Limited. All rights reserved. Printed in China

NOTICE: For the need of technical improvement and system upgrade, information contained herein may be subject to change from time to time without prior notice. Products of EDIFIER will be customized for different applications. Pictures and illustrations shown on this manual may be slightly different from actual product. If any difference is found, the actual product prevails.
