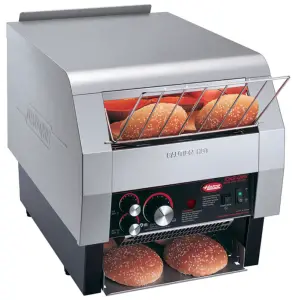

Toast-Qwik® Electric Conveyor Toasters

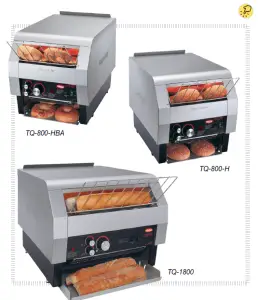

Models: TQ-800, -800H, -805, -800BA, -800HBA, -1800, -1800H, -1800BA, -1800HBA
The Hatco Toast-Qwik® is an economical conveyor toaster with fast, dependable and versatile toasting, offering 800 to 1800 slices per hour. Hatco toasters utilize conveyor speed, not temperature to determine toasting color. This method allows for instant adjustment of toasting time to match the bread product being toasted.
Standard features
- Hatco’s ColorGuard sensing system assures toast uniformity
- Optional power save mode with indicator light saves energy and money during slow periods
- Efficient design of front or rear discharge allows Toast-Qwik to be placed where it is most convenient – for sending product to operator side or customer/server
- BA models toast one side only and are for bagels and buns only, cut side up
- Opening height is 2″ (51 mm) and for H models is 3″ (76 mm)
- All models are constructed with stainless steel and powdercoated black lower side covers
- Insulation and an interior fan provide cool surface temperatures
- Toast storage area keeps bread warm and dry
- Permanently lubricated ball bearing motor and heating elements guaranteed against burnout and breakage for two years
Options (available at time of purchase only) c
- Automatic Power Save Mode
Accessories
- Additional Extended Feed Guide (Add 3″ [76 mm]) (not available for the TQ-1800 series)
- Security Package (not available for the TQ-1800 series)
Toast-Qwik® Electric Conveyor Toasters
Models: TQ-800, -800H, -805, -800BA, -800HBA, -1800, -1800H, -1800BA, -1800HBA
Toast-Qwik® Electric Conveyor Toasters
Models: TQ-800, -800H, -805, -800BA, -800HBA, -1800, -1800H, -1800BA, -1800HBA
SPECIFICATIONS
Toast-Qwik® Conveyor Toasters
| Model | Dimensions (W x D x H) | Volts (Single Phase) | Hertz | Watts | Amps | Capacity per Minute | Plug | Ship Weight* |
|
TQ-800 TQ-800H |
14.5″ x 22.71″ x 16.58″ (368 x 578 x 422 mm) Tray extends 6.5″ (165 mm) in rear | 208 | 60 | 3330 | 16.0 | 14 slices | NEMA 6-20P† |
62 lbs. (28 kg) |
| 240 | 13.9 | 14 slices | NEMA 6-15P‡ | |||||
| 200 | 50/60 | 3050 | 15.3 | 14 slices | AS 3112 | |||
| 220-230 (CE) | 3019-3300 | 13.7-14.4 | CCC or No Plug | |||||
| 230-240 (CE) | 3300-3593 | 14.4-15.0 | ||||||
| TQ-805 | 230-240 (CE) | 50/60 | 3300-3593 | 14.4-15.0 | 14 slices | No Plug | 62 lbs. (28 kg) | |
| TQ-800BA TQ-800HBA | 208 | 60 | 3280 | 15.8 | 14 slices | NEMA 6-20P† |
62 lbs. (28 kg) | |
| 240 | 13.7 | NEMA 6-15P‡ | ||||||
| 200 | 50/60 | 3003 | 15.0 | 14 slices | AS 3112 | |||
| 220-230 (CE) | 2791-3050 | 12.7-13.3 | CCC or No Plug | |||||
| 230-240 (CE) | 3050-3321 | 13.3-13.9 |

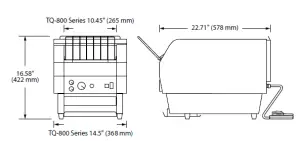

FRONT VIEW SIDE VIEW
SPECIFICATIONS
Toast-Qwik® Conveyor Toasters
| Model | Dimensions (W x D x H) | Volts (Single Phase) | Hertz | Watts | Amps | Capacity per Minute | Plug | Ship Weight* |
|
TQ-1800 |
18.5″ x 22.71″ x 16.58″ (470 x 577 x 421 mm) Tray extends 6.5″ (165 mm) in rear | 208 | 60 | 4440 | 21.4 | 30 slices | NEMA 6-30P |
73 lbs. (33 kg) |
| 240 | 60 | 4440 | 18.5 | 30 slices | NEMA 6-30P | |||
| 220 | 60 | 3731 | 17.0 | 30 slices | BS-1363 or No Plug | |||
| 220-230 (CE) | 50/60 | 3731-4078 | 17.0-17.7 | 30 slices | CCC or No Plug | |||
| 230-240 (CE) | 4078-4440 | 17.7-18.5 | ||||||
|
TQ-1800H | 208 | 60 | 4650 | 22.4 | 30 slices | NEMA 6-30P |
73 lbs. (33 kg) | |
| 240 | 19.4 | |||||||
| 200 | 60 | 4271 | 21.4 | 30 slices | BS-1363 or No Plug | |||
| 220 | 60 | 3907 | 17.8 | 30 slices | BS-1363 or No Plug | |||
| 220-230 (CE) | 50/60 | 3907-4271 | 17.8-18.6 | 30 slices | CCC or No Plug | |||
| 230-240 (CE) | 50/60 | 4271-4650 | 18.6-19.4 | 30 slices | CCC or No Plug | |||
| TQ-1800BA | 208 | 60 | 4580 | 22.0 | 30 slices | NEMA 6-30P | 73 lbs. (33 kg) | |
| 240 | 19.1 | |||||||
| 220-230 (CE) | 50/60 | 3849-4206 | 17.5-18.3 | 30 slices | CCC or No Plug | |||
| 230-240 (CE) | 4206-4580 | 18.3-19.1 | ||||||
| TQ-1800HBA | 208 | 60 | 4580 | 22.0 | 30 slices | NEMA 6-30P | 73 lbs. (33 kg) | |
| 240 | 19.1 | |||||||
| 220-230 (CE) | 50/60 | 3849-4206 | 17.5-18.3 | 30 slices | CCC or No Plug | |||
| 230-240 (CE) | 4206-4580 | 18.3-19.1 |
* Shipping weight includes packaging.
PLUG CONFIGURATIONS
PRODUCT SPECS Conveyor Toasters
The electric Toast-Qwik® Conveyor Toaster with ColorGuard sensing system shall be a Hatco model … as manufactured by the Hatco Corporation, Milwaukee, WI 53234 U.S.A.
The Toaster shall have the capacity to toast up to … pieces per minute and it shall be rated at … kW, … volts, single phase. The toaster shall be of stainless steel design and shall include a front mounted controlpanel with a toast selector knob, variable speed control knob, and an aluminum toast collector pan. The toaster will have multiple metal sheathed heating elements and an impedance protected motor. It shall be complete with factory attached UL listed 4’ (1219 mm) cord and plug. Warranty consists of 24/7 parts and service assistance (U.S. and Canada only).
