18354 AquaCount Swivel Sprayer

Translation of the original instructions.
For water-quantity measurement of freshwater in outdoor areas.
CAUTION! Only open the product in dry condition.

Operation

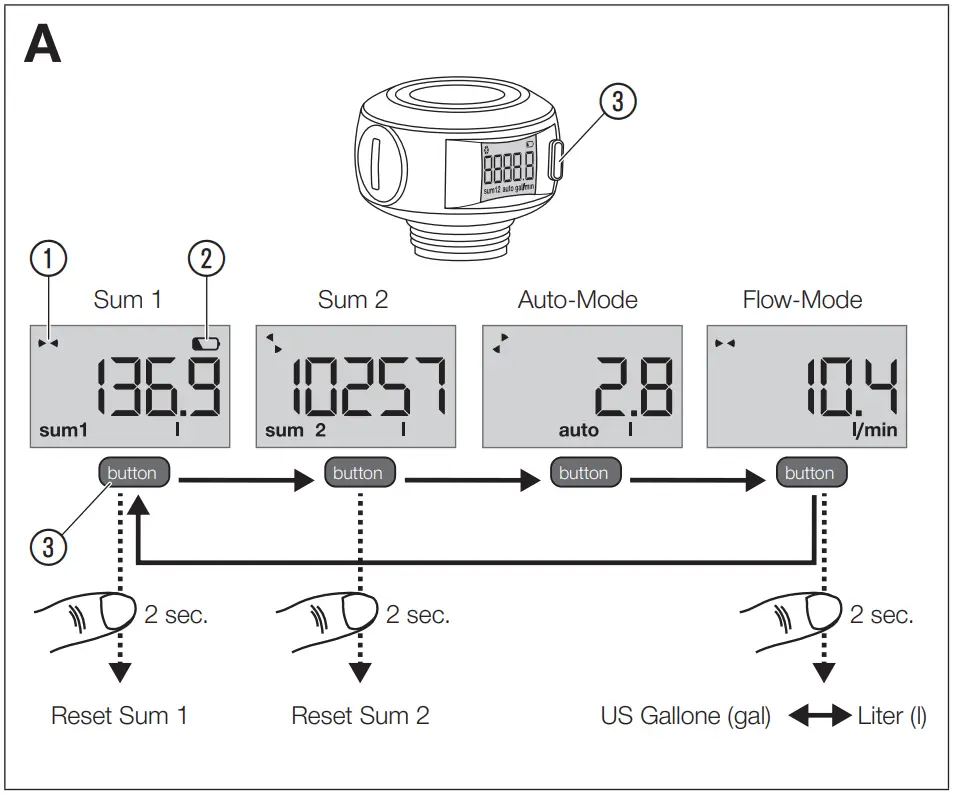

Push button ton (3) briefly: the display switches to the next display mode.

– Sum 2	Water quantity is measured up to the reset (e. g. day consumption).J354
– Sum 1	Water quantity is measured up to the reset (e. g. season consumption).
– Auto-Mode	Water quantity is measured during watering up to an interruption longer than 2 sec. At the next watering, the display starts at 0 again.
– Flow-Mode	Shows the current flow in l/min or gal/min.
– Standby	No display (longer than 1 min. without flow or without pushing of a button).
– Reset	Hold button (3) pressed in Sum 1 or Sum 2 Mode for 2 sec.: The measured water quantity of Sum 1 or Sum 2 Mode will be reset to 0 (Reset).
– Switch (l / gal)	Hold button (3) pressed in Flow Mode or 2 sec.: The display switches between litre and gallons (US). The measured water quantities will be reset to 0 (Reset).

Display symbols:

– Flow-Symbol (1) : display during active measurement.
– Battery-Symbol (2) : display at low battery.

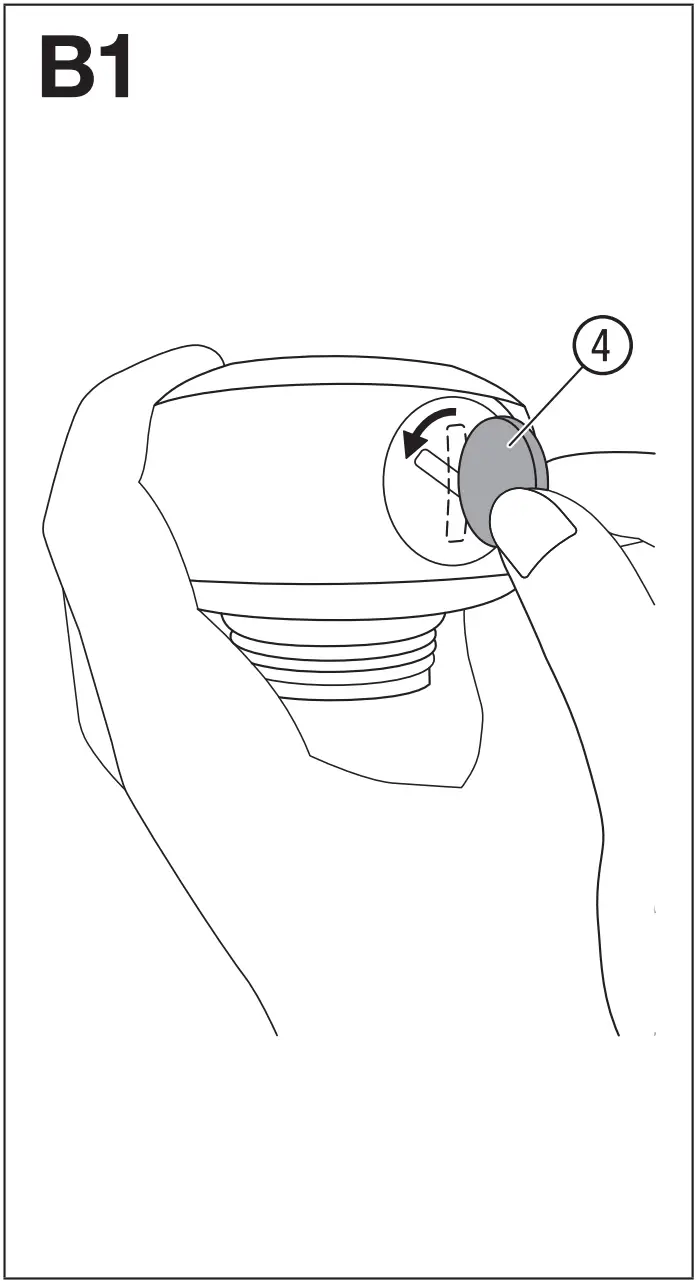

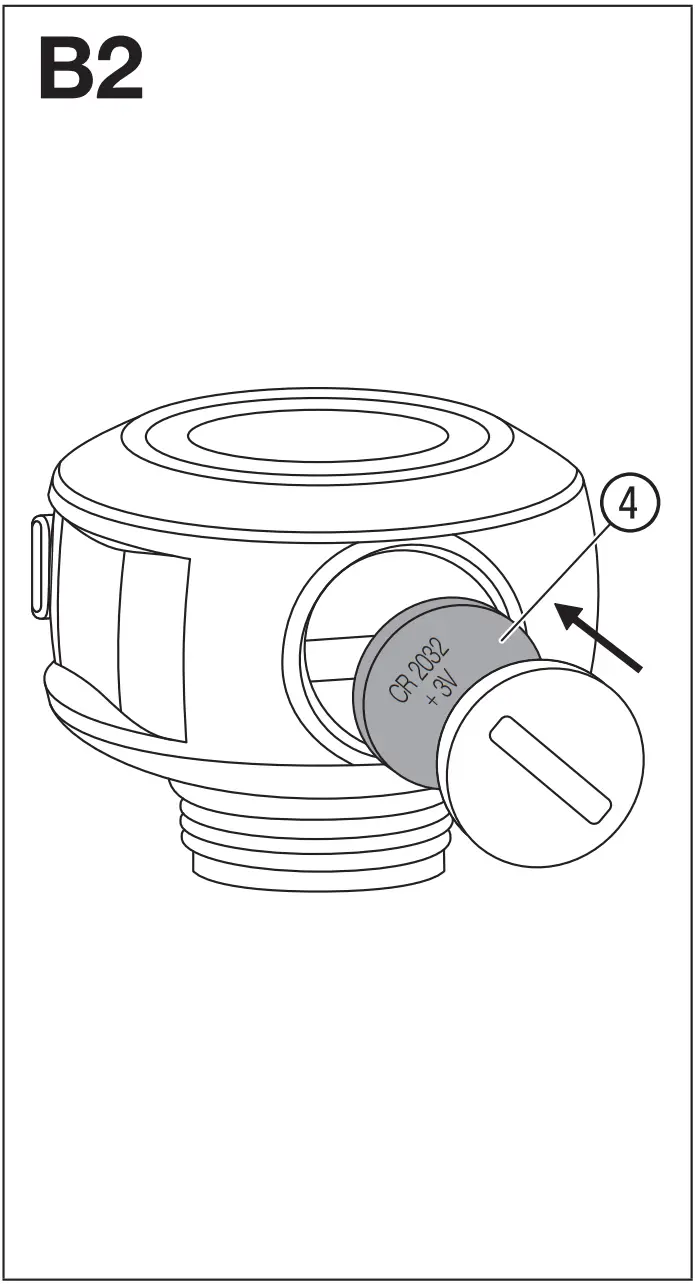

Change battery (CR 2032 3V) (4) (Fig. B1 / B2). The display can be rotated and can therefore be read in any position.

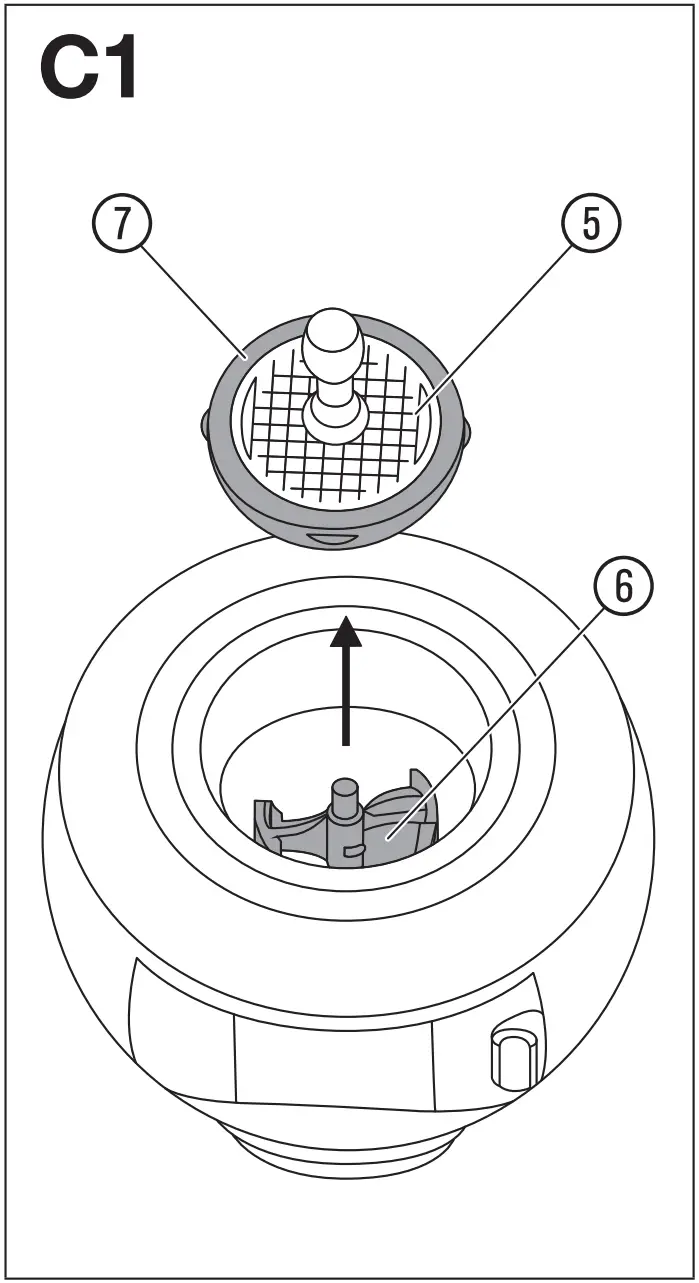

Clean turbine holder (5) and turbine (6) (Fig. C1 / C2):
Remove turbine holder (5) with washer ring (7) and turbine (6) and clean under flowing water.
Flush AquaCount before mounting.

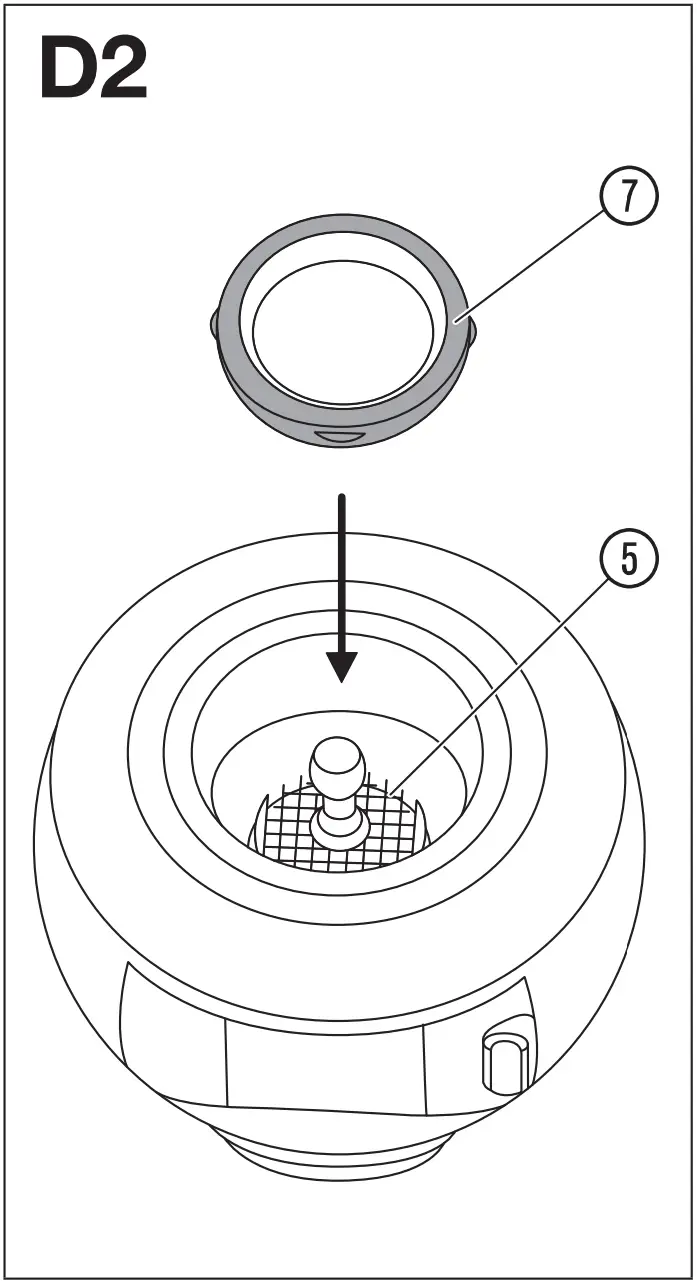

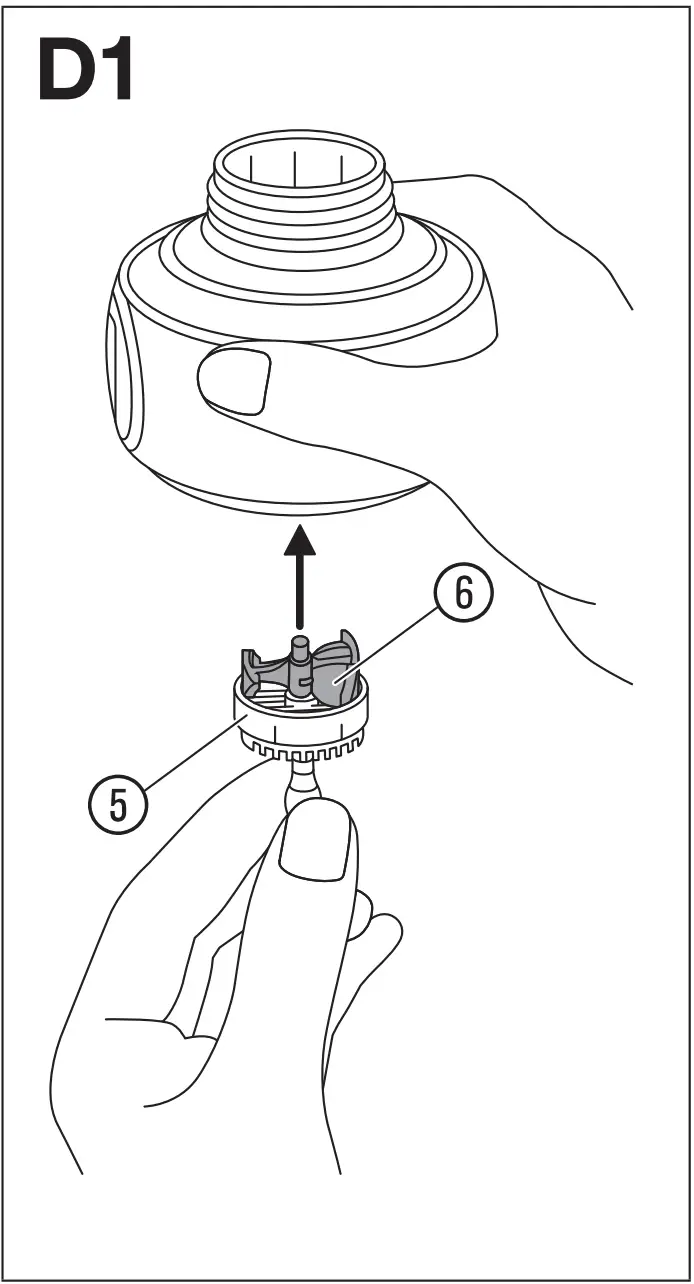

When mounting, observe the sequence (Fig. D1 / D2).

Technical data:

Water temperature:	5 – 40 °C	Flow area:	2 – 50 l/min
Ambient temperature:	5 – 60 °C	Maximum pressure:	12 bar
Measurement tolerance± 5 % (at least ± 0.5 l)		Measuring range: Flow max. 3000 l/h

Warranty:
GARDENA offers a five-year warranty on this product (as of date of purchase).

Disposal: (in accordance with RL2012/19/EC / S.I. 2013 No. 3113) The product must not be disposed of to normal household waste. It must be disposed of in line with local environ mental regulations.
IMPORTANT! v Dispose of the product through or via your municipal recycling collection centre.

DANGER! This product makes an electromagnetic field while it operates. This field may under some conditions interfere with active or passive medical implants. To decrease the risk of conditions that can possibly injure or kill, we recommend persons with medical implants to speak with their physician and the medical implant manufacturer before you operate the product.
DANGER! Small parts can be easily swallowed. There is also a risk that the polybag can suffocate toddlers. Keep toddlers away when you assemble the product.

Product liability
In accordance with the German Product Liability Act, we hereby expressly declare that we accept no liability for damage incurred from our products where said products have not been properly repaired by a GARDENA-approved service partner or where original GARDENA parts or parts authorised by GARDENA were not used.

UKCA Declaration of Conformity (only for UK)
The manufacturer: GARDENA Germany AB, PO Box 7454, S-103 92 Stockholm, Sweden hereby certifies, when leaving our factory, the unit(s) indicated below is / are in accordance with the UK Regulations, designated standards of safety and product specific designated standards.
This certificate becomes void if the units are modified without our approval.

Description of the product:	AquaCount
Article number:	18350 18352 18354
UK regulations:	S.I. 2016/1091 S.I. 2012/3032
Designated standards:	EN ISO 12100
Authorised Representative:	Husqvarna UK Limited
Deposited Documentation:	Preston Road, Aycliffe, County Durham UK DL5 6 UP

Aycliffe, 02.11.2021
Authorized representative:

John Tompson
Director Authorised Representative

Declaration of Conformity

The undersigned hereby certifies as the authorized representative of the manufacturer, GARDENA Germany AB, PO Box 7454, S-103 92, Stockholm, Sweden, that, when leaving our factory, the unit(s) indicated below is / are in accordance with the harmonised EU guidelines, EU standards of safety and product specific standards. This certificate becomes void if the unit(s) is / are modified without our approval.

Article number: 18350 18352 18354
EC-Directives: 2011/65/EU 2014/30/EU
Harmonised EN: EN ISO 12100
Deposited Documentation:
Documentation technique GARDENA,

Year of CE marking:
Ulm, 02.11.2021 Authorised representative

Reinhard Pompe
Vice PresidentWolfgang Engelhardt
Vice President
Supply Chain
