QUICK REFERENCE GUIDE > OS60NDBB1

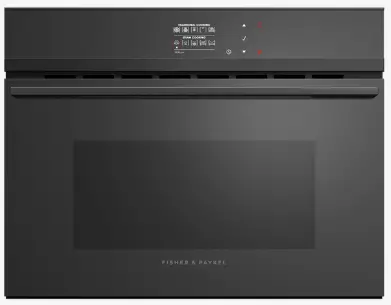

Combination Steam Oven, 60cm, 9 Function
Series 9 | Minimal Black
Reduce the need for oils and fats with steam cooking, paired with convection oven functions for cooking flexibility.
36L total capacity Cooking flexibility with nine oven functions, including five Steam functions, Grill and Fan Forced Steam cooking allows you to cook food in its own juices, to retain nutrients and flavor Designed to match aesthetically with companion products such as warming drawers, for flexible cooking configurations

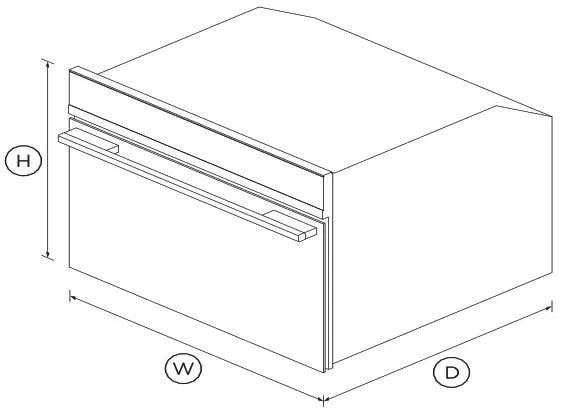

DIMENSIONS
| Height | 458mm |
| Width | 596mm |
| Depth | 562mm |
FEATURES & BENEFITS
Sized to suit
The compact 46cm height means this Combination Steam Oven can be placed almost anywhere. companion products share the same dimensions and can be installed in multiple configurations to suit your kitchen design and preference.
Cooking flexibility
The Combination Steam Oven allows ingredients to retain their nutrients, moisture content, and coloration. With nine oven modes, it doesn’t just Steam but also has Grill and Fan functions.
Easy to use
An easy-to-use, intuitive display shows the time and provides useful information about functions along with a refill alert.
Beauty of choice
With the choice of stylish stainless steel or elegant black trim, our companion products help you achieve a coherent kitchen aesthetic that suits your design style.
Easy cleaning
Cleaning and care of the Combination Steam Oven is easy. Simply wipe the smooth stainless steel interior with a dry cloth after each use.
Safe and sound
The CoolTouch door is safe to touch from the outside, protecting your hands and the surrounding cabinetry.
SPECIFICATIONS
Accessories
| Baking pan | 1 |
| Food probe | 1 |
| Optional 76cm trim kit | Part 81940 |
| Perforated baking tray | 1 |
| Wire shelf | 1 |
Capacity
| Shelf positions | 3 |
| Total gross | 36L |
Cleaning
| Easy clean stainless steel | • |
| Easy to clean formed side | • |
| Removable water tank | • |
Controls
| Audio feedback | • |
| Automatic cooking/minute | • |
| Celsius/Fahrenheit | • |
| Electronic capacitive touch | • |
| High-resolution touch display | • |
| Intuitive touchscreen display | • |
| Multi-language interface | • |
| Precise electronic temperature | • |
| Recipe and food-based | • |
Functions
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 9 |
| Ring + grill | • |
| Steam + ring | • |
| Steam 100 | • |
| Steam 130 | • |
| Steam Assist | • |
Performance
| Fan Element Power | 1500W |
| Grill power | 1500W |
| Steam generator | 1800W |
Power requirements
| Amperage | 15A |
| Supply frequency | 50Hz |
| Supply voltage | 230V |
Power requirements
| Depth | 562mm |
| Height | 458mm |
| Width | 596mm |
Safety
| Control panel key lock | • |
| CoolTouch door | • |
| SKU | 81924 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
