QUICK REFERENCE GUIDE > OS60SDTDX2
Combination Steam Oven,
60cm, 23 Function
Series 11 | Contemporary
Stainless Steel
User Guide
OS60SDTDX2 Combination Steam Oven
This Contemporary style oven has 23 functions with additional oven accessories, to effortlessly create healthy and delicious dishes.
- With steam-only cooking functions, convection-only, or a combination of both
- 23 oven functions including Steam, Sous Vide, Air Fry and Vent Bake
- Designed to match companion products such as Vacuum Seal Drawers
- Guided touchscreen cooking makes it simple to cook by food, function or recipe

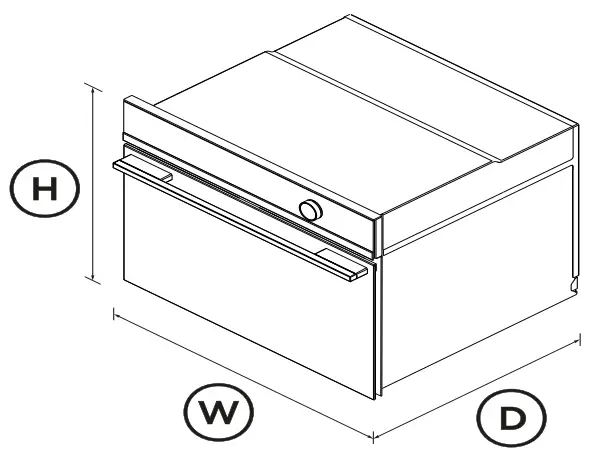

DIMENSIONS
| Height | 598mm |
| Width | 596mm |
| Depth | 565mm |
FEATURES & BENEFITS
FROM STEAM TO SOUS VIDE
Fine amounts of steam are released with accuracy and precision at a range of temperatures to ensure food is cooked gently and evenly. Perfect for entertaining, you can sous vide proteins such as steak and salmon before guests arrive, and simply sear when ready to serve. The flexibility of timing and accuracy of temperature control ensure perfect, predictable results every time.
GENTLE AND HEALTHY
Steam functions allow you to cook food in its own juices to retain nutrients, moisture and flavour. With five steam-only cooking functions including Sous Vide, plus four combi-steam functions, this oven lets you enjoy the benefits of flavourful and healthy restaurant-quality meals at home.
MULTI-FUNCTION FLEXIBILITY
A true multi-function oven, where the advantages of steam and convection cooking can be explored in full. You have the freedom to choose – whether it’s dry heat, moist heat, or a combination of the two, each cooking method creates a unique result. A Wired Temperature Sensor precisely monitors cooking in real time, giving you complete control.
SAFE AND SOUND
The CoolTouch door features triple glazing and a cooling system that ensures it’s safe to touch from the outside – protecting both your hands and the surrounding cabinetry.
REHEAT AND RESTORE
Reduce household food waste by reheating foods with steam, which helps to regenerate moisture levels and ensure meals come out fresh and delicious. Use Steam Regenerate to reheat leftover meals such as roasts and risotto, while Crisp Regenerate is perfect for refreshing pastries, breads and pizza.
COMPLEMENTARY DESIGN
Every detail has been carefully crafted from the finest materials to support a considered kitchen design. This Contemporary style oven has a stylish black finish with stainless steel contrasts, designed to help you achieve a kitchen aesthetic that suits your design style. Pair with a Vacuum Seal Drawer for the ultimate kitchen solution.
EXCEPTIONAL CONVECTION PERFORMANCE
AeroTech™ circulates heat evenly for a consistent temperature throughout the cavity, while ActiveVent technology ensures optimised moisture levels when using convection functions.
Achieve perfect results even when you’re using multiple shelves.
SPECIFICATIONS
| Accessories | |
| Chromed shelf runners | • |
| Descale solution | 2 sachets, Part 580925 |
| Flat brushed baking tray | 1 |
| Food probe | 1 |
| Full extension sliding shelves | 2 sets |
| Grill rack | 1 set |
| Large solid dish | 1 |
| Perforated large dish | 1 |
| Perforated small dish | 1 |
| Roasting dish | 1 |
| Smokeless grill tray | 1 |
| Step down wire shelf | 1 |
| Wired food probe | 1 |
| Capacity | |
| Shelf positions | 6 |
| Water tank capacity | 1.5L |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Descale cycle | • |
| Drying cycle | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
| Steam clean (oven) | • |
| Controls | |
| Adjustable audio and display | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| Electronic oven control | • |
| Food probe | • |
| Guided cooking by food type | • |
| Halogen lights | • |
| Intuitive touchscreen display | • |
| Multi-language display | UK English, US English, |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Soft close doors | • |
| Turned stainless steel dials | • |
| Wi-Fi connectivity | • |
| Functions | |
| Air fry | • |
| Bake | • |
| Classic bake | • |
| Crisp regenerate | • |
| Fan bake | • |
| Fan forced | • |
| Fan forced + High steam | • |
| Fan forced + Low steam | • |
| Fan forced + Medium steam | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 23 |
| Pastry Bake | • |
| Pizza bake | • |
| Roast | • |
| Slow cook | • |
| Sous vide | • |
| Steam | • |
| Steam clean (oven) | • |
| Steam defrost | • |
| Steam proof | • |
| Steam regenerate | • |
| Vent bake | • |
| Warm | • |
| Performance | |
| ActiveVent™ system | • |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Grill power | 3000W |
| SteamTechnology | • |
| Temperature range | 35°C – 230°C |
| Whisper quiet cooking | • |
| Power requirements | |
| Amperage | 12.8 – 13.8A |
| Supply frequency | 50Hz |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 565mm |
| Height | 598mm |
| Width | 596mm |
| Safety | |
| Advanced cooling system | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Control panel key lock | • |
| CoolTouch door | • |
| Non-tip shelves | • |
| Safety thermostat | • |
| Warranty | |
| Parts and labour | 2 years |
| SKU | 82873 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
