QUICK REFERENCE GUIDE > OS60NDB1
Combination Steam Oven, 60cm, 9 Function
Series 9 | Contemporary Stainless Steel

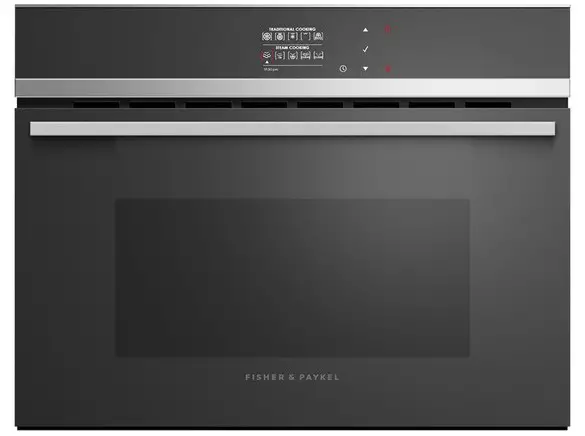

OS60NDB1 Combination Steam Oven60cm 9 Function
Reduce the need for oils and fats with steam cooking. Its compact size makes this perfect to pair with a warming drawer.
- 36L total capacity
- Steam cooking allows you to cook a food in its own juices, to retain nutrients and flavour
- Cooking flexibility with nine oven functions, including five steam functions, plus Grill and Fan Forced.
- Designed to match aesthetically with companion products such as warming drawers, for flexible cooking configurations.

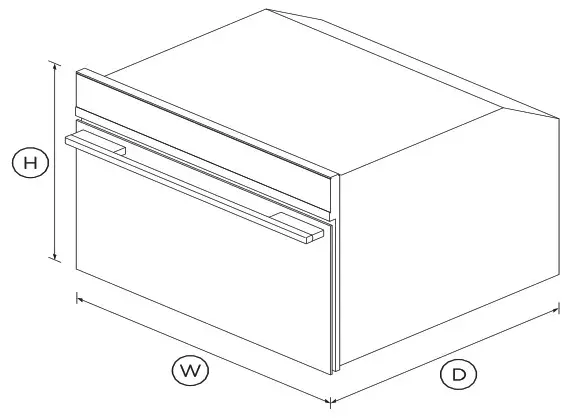

DIMENSIONS
| Height | 458mm |
| Width | 596mm |
| Depth | 562mm |
FEATURES & BENEFITS
Healthy eating
The Steam Oven allows you to cook food in its own juices to retain nutrients and flavour, with the steam moisture reducing the need for additional oils or fats.
Sized to suit
This compact 60cm Steam Oven can be placed almost anywhere. All companion products can be installed at a convenient height to suit your kitchen design and preference.
Simple to use
An easy to use, intuitive display shows the time and provides useful information about functions along with a refill alert.
Easy cleaning
Cleaning and care of the Steam Oven is easy. After each use, simply wipe the smooth stainless steel interior with a dry cloth.
Safe and sound
Keep those inquisitive little hands safe. A child lock has been included in the design of this Built-in Steam Oven
Easy installation
Plug in and cook straight away. The Steam Oven is easy to install, with no plumbing needed.
SPECIFICATIONS
Accessories
| Baking pan | 1 |
| Contemporary round handle | Optional round handle |
| Food probe | 1 |
| Optional round handle | Part 81648 |
| Perforated baking tray | 1 |
| Wire shelf | 1 |
Capacity
| Shelf positions | 3 |
| Total gross | 36L |
Cleaning
| Easy clean stainless steel | • |
| Easy to clean formed side | • |
| Removable water tank | • |
Consumption
| Energy rating | A++ |
Controls
| Audio feedback | • |
| Automatic cooking/minute | • |
| Celsius/Fahrenheit | • |
| Electronic capacitive touch | • |
| High resolution touch display | • |
| Intuitive information display | • |
| Multi-language interface | • |
| Precise electronic temperature | • |
Functions
| Fan forced | • |
| Fan grill | • |
| Grill | • |
| Number of functions | 9 |
| Recipe function | • |
| Ring + grill | • |
| Steam + ring | • |
| Steam 100 | • |
| Steam 130 | • |
| Steam assist | • |
Performance
| Fan Element Power | 1500W |
| Grill power | 1500W |
| Steam generator | 1800W |
Power requirements
| Amperage | 15A |
| Supply frequency | 50Hz |
| Supply voltage | 230V |
Product dimensions
| Depth | 562mm |
| Height | 458mm |
| Width | 596mm |
Safety
| Control panel key lock | • |
| CoolTouch door | • |
Warranty
| Parts and labour | 5 years |
| SKU | 82306 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
